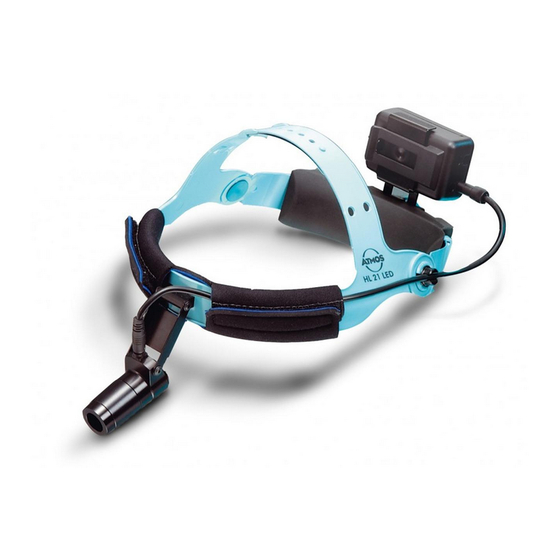

Atmos HL 21 LED Operating Instructions Manual
Hide thumbs
Also See for HL 21 LED:
- Operating instructions manual (24 pages) ,
- Operating instructions manual (24 pages) ,
- Operating instructions manual (20 pages)
Related Manuals for Atmos HL 21 LED
Summary of Contents for Atmos HL 21 LED
- Page 1 MedizinTechnik Englisch ATMOS HL 21 LED 507.4506.B 507.4505.B 507.4760.B 506.7551.B 530.4020.B 507.4507.B 507.4500.B 201 -04 Index: 0 Please store this document near the device for later use!
- Page 2 Adjustment to head measurement .............8 - 9 Functionality of rechargeable LED battery .........10 Operation ..................11 - 12 Variants of the headlight ATMOS HL 21 LED ........11 Switching on ..................12 Focusing the headlight ATMOS HL 21 LED ........12 Notes on cleaning and care ............13 - 14 Recommended surface disinfectants ..........14...
-
Page 3: Introduction
The ATMOS HL 21 LED bears the CE identifi cation symbol CE in accordance with the EU Medical Devices Directive (MDD) - Directive 93/42/EEC and meets the basic require-ments of Annex I to this Directive. -
Page 4: Explanation Of Symbols
1.0 Introduction Explanation of symbols The following symbols are at the ATMOS HL 21 LED, at the rechargeable LED battery or at the charging power pack. Please remember their meaning Symbol "Pay attention to operating instructions". This symbol shall draw your attention to the safety information contained in the operating instructions. -
Page 5: Notes On Safety
No warranty rights shall exist in the event of damage or failure caused by the use of non-ATMOS accessories or non-ATMOS consumables. Please make sure that the ATMOS HL 21 LED is used in the EMC area described in the Annex. -
Page 6: Intended Use
Due to the long-life light source with power-white light LED (service life ca. 50,000h) in combination with a high-end-battery system the ATMOS HL 21 LED enables a homogeneous illumination of the examination resp. operating fi eld. Application organs:... -
Page 7: Setting Up And Starting Up
Cable holder on headlight rack Adjusting instruments on the headlight rack. Prior to dispatch, this ATMOS device was subjected to an extensive functional test and has been carefully packed. Nevertheless, please compare the contents of the shipment on completeness immediately upon receipt (see following extents of supply). -
Page 8: Adjustment To Head Measurement
4.0 Setting up and starting up Fig. 2. Headlight ATMOS HL 21 LED Headlight rack Turning knob for adjusting the measurement Strap for adjusting the level Prior to fi rst operation, pay attention to the safety information in chapter 2.0. -
Page 9: Adjustment To Head Measurement
ATMOS current source. If necessary, lead the cable under the front pad and through the cable holders in the joint of the headlight ATMOS HL 21 LED. Use the enclosed cable clip (, fi g. 3) to fi x the long cable on your clothes. -
Page 10: Setting Up And Starting Up
Use the primary adapter fi tting your power supply (Euro/US/ UK/Aus). See information enclosed to the charging power pack. To charge the LED battery, separate it from the headlight ATMOS HL 21 LED. Join round connector of the power pack cable with the socket (, fi g. 6) on the LED battery. -
Page 11: Operation
Different variants of the headlight ATMOS HL 21 LED Fig. 7: Headlight ATMOS HL 21 LED with long cable, supply from the LED battery in the coat pocket or from a suitable ATMOS current source in an ENT examination unit. -
Page 12: Operation
5.0 Operation Fig. 9. Focusing Headlight rack Focusing ring Switching on Adjust the lateral switch on the LED battery to the desired position: ECO mode: operation for about 4 hours. POWER mode: operation for about 2 hours. Focusing the headlight ... - Page 13 • Disinfectants containing chloramines, phenol derivatives or anionic tensides since these may cause stress cracks in the plastics used. When the headlight ATMOS HL 21 LED is applied by several users, regular When the headlight ATMOS HL 21 LED is applied by several users, regular cleaning and disinfection is necessary.
-
Page 14: Recommended Surface Disinfectants
6.0 Cleaning Recommended surface disinfectants Disinfectant Ingredients (in 100 g) Manufacturer Incidin Plus Glucoprotamin 26,0 g Henkel, Düsseldorf (Application concentrate) Nonionic tensides Solvents, complexing agents Dismozon pur magnesium monoperoxyphthalate Bode Chemie, Hamburg (Application concentrate) hexahydrate 80 g Green & Clean SK alkyl-dimethyl-benzyl-ammonium (Application concentrate) chloride dialkyl-dimethyl-ammonium... -
Page 15: Maintenance And Servicing
• Assembly, resetting, alterations, extensions and repairs are not carried out by people authorised by ATMOS. No warranty rights shall exist in the event of damage or failure caused by the use of non-ATMOS acces- sories or non-ATMOS consumables. -
Page 16: Trouble-Shooting
8.0 Trouble-shooting Prior to dispatch, the headlight ATMOS HL 21 LED was subjected to an extensive functional test. If, nevertheless, a failure should appear, you may possibly clear it yourself if you follow these notes: Symptom Cause Remedy LED battery is fl at... -
Page 17: Accessories, Spare Parts, Consumables
9.0 Accessories, spare parts, consumables Accessories Description Connecting cable for LED battery, 40 cm....507.4542.0 Connecting cable for LED battery, 140 cm....507.4541.0 Connecting cable for LED battery, 200 cm....507.4545.0 Clip - for fixing the cable to clothes ......507.4543.0 Spare parts Description Light body complete.......... - Page 18 10.0 Technische Daten Charging power pack, 100...240 V~ 50/60 Hz; exchangeable primary adapters (Euro/UK/ US/Aus); secondary 12 V DC; 0.8 A via non-medical 1.8 m cable with DC plug 5.5 x 2.5 mm; protection class II; only for dry rooms Rechargeable battery Charging with 12 V DC;...
-
Page 19: Disposal
11.0 Disposal The headlight ATMOS HL 21 LED does not contain any hazardous goods. The LED battery (lithium-ionic) must be disposed of correctly. Prior to disposal, device and accessories must be de-contaminated. Make sure that materials are separated carefully. -
Page 20: Annex
12.0 Annex 12.1 Notes on EMC Medical electrical equipment is subject to special precautions with regard to EMC and must be installed acc. to following EMC notes. Portable and mobile HF communication facilities can infl uence medical electrical equipment. The use of other accessories, other converters and cables than stated may lead to an increased The use of other accessories, other converters and cables than stated may lead to an increased emission or a reduced interference immunity of the equipment or system. -
Page 21: Annex
12.0 Annex The device may not be used when being set up directly besides another equipment resp. when being stacked with other equipment. If, nevertheless, one of these arrangements is necessary, the device is to be observed to check its intended use. - Page 22 12.0 Annex...
- Page 23 12.0 Annex √ √ √...
- Page 24 12.0 Annex...
- Page 25 12.0 Annex √ √ √...
- Page 27 ATMOS MedizinTechnik GmbH & Co. KG in accepting such goods or payment arrears. Acts of God or stoppages upon in writing by us.
