Summary of Contents for Atmos HL 21

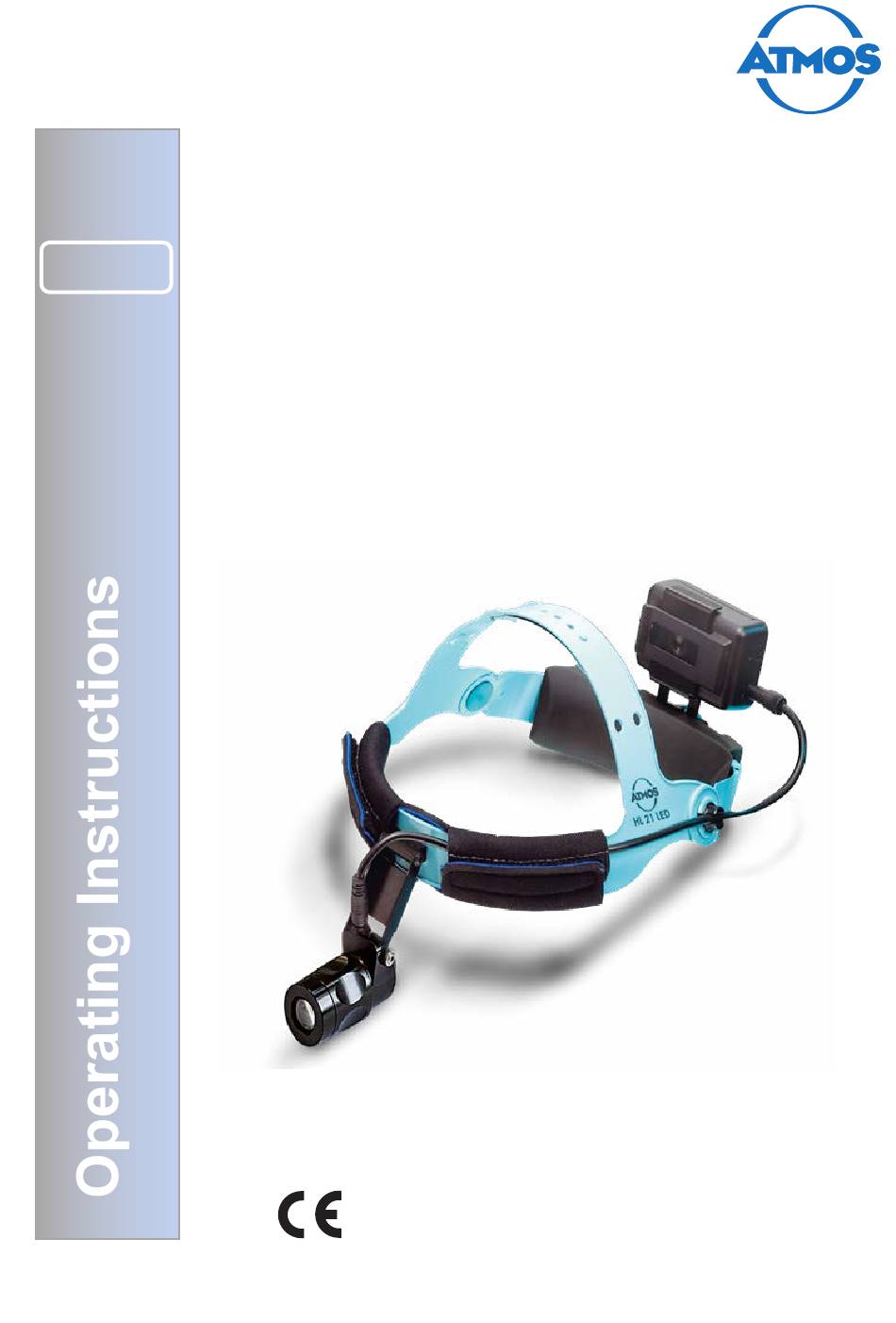

- Page 1 MedizinTechnik English ATMOS HL 21 GA1GB.150303.0 Please store this document near the device for later use! 2021-11 Index: 10...
-
Page 2: Table Of Contents
Individual components of the headlamp ....9 Adjustment to head circumference .....10 Functionality of the rechargeable LED battery ..12 Operation ............13 4.1 Different variants of the headlamp ATMOS HL 21 LED ..........13 Switching on............14 Focusing the headlamp........14 Cleaning and care ..........15 Recommended surface disinfectants ....15 Maintenance and service .........16 Sending in the device..........17... -
Page 3: Introduction
- Always keep these operating instructions close to the device! • The device’s operating safety and its readiness for use depend not only on your competence, but also on the care and maintenance of the headlamp ATMOS HL 21 LED. Regular cleaning and preventive maintenance work is therefore essential. -
Page 4: Explanation Of Pictures And Symbols
1.0 Introduction 1.2 Explanation of pictures and symbols In the operating instructions Abbreviations / symbols in these operating instructions: • Identifies a list - Subdivision of a list/activity. The recommended sequence must be adhered to in each case! Important notes! On device, type plate, and packaging Consult operating instructions Serial number Specification of the degree of... - Page 5 1.0 Introduction Lamp is switched off POWER Full performance Handle with care Fragile, handle with care Keep dry Keep away from sunlight Temperature limit Humidity limitation 1060 Atmospheric pressure limitation UDI application identifier (01) UDI-DI: Identification of the manufacturer and the device (11) Date of manufacture (21) Serial number...
-
Page 6: Intended Purpose
1.0 Introduction 1.3 Intended purpose Product name: ATMOS HL 21 LED Main functions: Medical LED cold light source with headband for fixation on the head of examiner Intended purpose: Illumination of orifices (e.g. ear/nose/throat) for visual diagnostics Intended Users / User profile: Doctors and medical specialists Intended Patient population: All patients without any restrictions... -
Page 7: Function
Cable clip 1.6 Transport and storage • Prior to dispatch, this ATMOS device was subjected to an extensive functional test and has been carefully packed. Nevertheless, please compare the contents of the shipment on completeness immediately upon receipt (see scope of supply). -
Page 8: For Your Safety
• No warranty rights shall exist in the event of damage or failure caused by the use of non-ATMOS accessories or non-ATMOS consumables. • Please make sure that the ATMOS HL 21 LED is used in the described EMC environment. -
Page 9: Setting Up And Starting Up
Fig. 1a + 1b. Individual components 3.1 Individual components of the headlamp Headlamp ATMOS HL 21 LED Different power plugs for charging power pack (Euro/UK/US/Aus) Charging power pack 12 V DC Rechargeable LED battery Connecting cable 40 cm, 140 cm and 200 cm long... -
Page 10: Adjustment To Head Circumference
3.0 Setting up and starting up Fig. 2. Headlamp ATMOS HL 21 LED Headlamp frame Turning knob for adjusting the circumference Strap for adjusting the height Prior to first operation, pay attention to the safety information in chapter 2.0. Prior to using the headlamp for the first time, charge the LED battery by means of the supplied charging power pack. 3.2 Adjustment to head circumference •... - Page 11 Front pad Headlamp connection Fig. 4. Connection of LED light battery • Take one of the enclosed connecting cables and join it to the ATMOS HL 21 LED headlamp connection ( , Fig. 3). • Use the short connecting cable if you want to carry the LED battery on the headband (Fig.
-
Page 12: Functionality Of The Rechargeable Led Battery
• Use the primary adapter fitting your power supply (Euro/US/UK/Aus). See information enclosed with the charging power pack. • To charge the LED battery, disconnect it from the headlamp ATMOS HL 21 LED. • Join the round connector of the power pack cable with the socket ( , Fig. 6) on the LED battery. -
Page 13: Operation
4.1 Different variants of the headlamp ATMOS HL 21 LED • Fig. 7: Headlamp ATMOS HL 21 LED with long cable, supply from the LED battery in the coat pocket or from a suitable ATMOS power source in an ENT treatment unit. -
Page 14: Switching On
4.0 Operation Fig. 9. Focusing Headlamp frame Focusing ring 4.2 Switching on • Adjust the lateral switch on the LED battery to the desired position: - ECO mode: operation for approx. 4 hours. - POWER mode: operation for approx. 2 hours. 4.3 Focusing the headlamp •... -
Page 15: Cleaning And Care
• disinfectants containing chloramines, phenol derivatives, or anionic surfactants since these may cause stress cracks in the plastics used. If the headlamp ATMOS HL 21 LED is used by several users, regular cleaning and disinfection must be carried out. Do not touch the lens in the light object. -
Page 16: Maintenance And Service
ATMOS recommends a test every 24 months. • For repair, this device can be returned to ATMOS. • ATMOS cannot guarantee perfect functioning nor will it be held liable for damage to people or property if - any non-original ATMOS parts are used,... -
Page 17: Sending In The Device
• The product must be well padded and packed in suitable packaging. • Place form QD 434 “Delivery complaint / return shipment” and the respective Decontamination certificate in an envelope. • Affix the envelope to the outside of the package. • Send the product to ATMOS or your dealer. -
Page 18: Troubleshooting
7.0 Troubleshooting The ATMOS HL 21 LED was subjected to a thorough quality control in the factory. If, however, a problem should occur, you may solve it yourself if you follow these notes. Error symptom Cause of error Remedy No light... -
Page 19: Technical Data
9.0 Technical data Mains voltage Charging power pack: 100–240 V~ 50/60 HZ; secondary 12 V DC Rechargeable battery: Charging with 12 V DC, lithium- ionic battery with 3,7 V nominal voltage and a 1950 mAh capacity Current consumption: Charging power pack: 0,8 A via non-medical 1,8 m cable with DC plug 5,5 x 2,5 mm Power consumption: Light emitter: 2 watt... - Page 20 Degree of protection IP X0 against Ingress CE mark Ident-No. (REF) 530.4020.0 ATMOS HL 21 LED 506.7551.0 ATMOS HL 21 LED 507.4505.0 ATMOS HL 21 LED (examination set) 507.4506.0 ATMOS HL 21 LED (OT set) 507.4500.0 ATMOS HL 21 LED...
-
Page 21: Disposal
10.0 Disposal • Die headlamp ATMOS HL 21 LED does not contain any hazardous goods. • The LED battery (lithium-ion) must be disposed of correctly. • Prior to disposal, device and accessories must be decontaminated. • Make sure that materials are separated carefully. -
Page 22: Notes On Emc
HF surgical devices, short-wave therapy equipment, or within an HF-shielded room of a magnetic resonance imaging system. The customer or user of the ATMOS HL 21 LED must ensure that it is used in a prescribed environment. Guidance and manufacturer’s declaration – key features ) Please note the Technical Data in these instructions. - Page 23 11.0 Notes on EMC WARNING Portable RF communications equipment (e.g., radios, antenna cables) should be used no closer than 30 cm* to any part of the ATMOS HL 21 LED, including cables, specified by the manufacturer. Otherwise, degradation of the performance of this equipment could result. ) *The distance may be reduced at higher immunity test levels.
- Page 24 ATMOS MedizinTechnik GmbH & Co. KG Ludwig-Kegel-Str. 16 79853 Lenzkirch / Germany Phone: +49 7653 689-0 info@atmosmed.com www.atmosmed.com...
