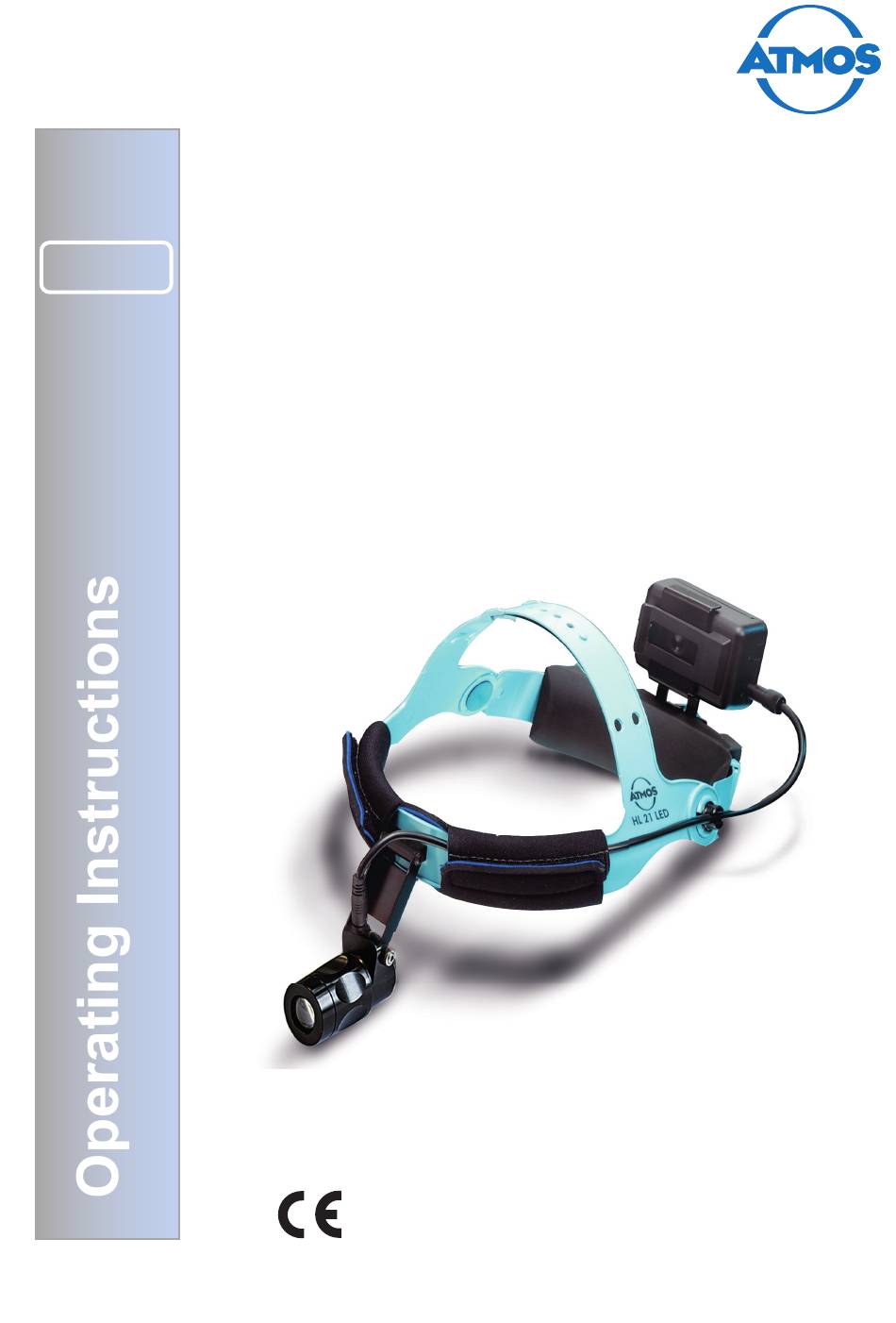

- Page 1 MedizinTechnik English ATMOS HL 21 LED GA1GB.150303.0 Please keep this document for future consultation! 2023-12 Index: 11...
-
Page 2: Table Of Contents
Setting up and starting up .........9 Individual components of the headlamp ....9 Adjustment to head circumference .....10 Functionality of the LED battery ......12 Operation ............13 4.1 D ifferent variants of the ATMOS HL 21 LED headlamp ............13 Switching on............14 Focusing the headlamp........14 Cleaning and care ..........15 Recommended surface disinfectants ....15 Maintenance and service .........16... -
Page 3: Introduction
1.0 Introduction 1.1 Notes on operating instructions These operating instructions apply to the following devices: • ATMOS HL 21 LED (examination set) 507.4505.0 • ATMOS HL 21 LED (OT set) 507.4506.0 • ATMOS HL 21 LED 507.4500.0 • ATMOS HL 21 LED 530.4020.0 • ATMOS HL 21 LED 506.7551.0 in connection with the accessories mentioned in chapter 8.0. • These operating instructions contain important information on how to operate the ATMOS HL 21 LED headlamp safely, correctly and effectively. -
Page 4: Explanation Of Pictures And Symbols
1.0 Introduction 1.2 Explanation of pictures and symbols In the operating instructions Abbreviations/symbols in these operating instructions: • Indicating a list - Subdivision of a list/activity The recommended sequence must be followed in each case! Important notes! On the device, type plate and packaging Consult the operating Medical device instructions Warning! Pay special attention Serial number This product meets the Specifi cation of the degree of... - Page 5 1.0 Introduction Half performance Lamp is switched off POWER Full performance Handle with care Fragile, handle with care Store in a dry place Protect from sunlight Temperature limit Humidity limitation 1060 Atmospheric pressure limitation UDI application identifi er (01) UDI-DI: Identifi cation of the manufacturer and the device (11) Date of manufacture (21) Serial number...
-
Page 6: Intended Use
1.0 Introduction 1.3 Intended use Product name: ATMOS HL 21 LED Main functions: Medical LED cold light source with headband for fixation on the head of the examiner Intended use / purpose: Illumination of orifices (e.g. ear/nose/throat) for visual diagnostics Intended users / user profile: Physicians and medical specialists Intended patient group: All patients without any restrictions Medical conditions to be... -
Page 7: Function
LED headlamp Charging power pack (Euro/UK/US/Aus) LED battery Cable, 40 cm Cable, 140 cm Cable, 200 cm Battery holder Cable clip 1.6 Transport and storage • Prior to dispatch, this ATMOS device was subjected to an extensive functional test and has been carefully packed. Nevertheless, please compare the contents of the shipment on completeness immediately upon receipt (see scope of supply). • Please document and report damages in transit immediately. For complaints or return deliveries, please use enclosed form QD 434 Delivery complaint / return shipment. -
Page 8: For Your Safety
2.0 For your safety • Prior to starting up the headlamp ATMOS HL 21 LED, read these operating instruc- tions carefully. • ATMOS neither guarantees for fault-free operation nor for personal injuries and damage to property if - no original ATMOS parts are being used, - The instructions for use included in these operating instructions are disregarded. - Assembly work, new settings, alterations, extensions and repairs are carried out by personnel not authorized by ATMOS. • No warranty rights shall exist in the event of damage or failure caused by the use of non-ATMOS accessories or non-ATMOS consumables. -
Page 9: Setting Up And Starting Up
3.0 Setting up and starting up Fig. 1a + 1b. Individual components 3.1 Individual components of the headlamp ATMOS HL 21 LED headlamp Different power plugs for charging power pack (Euro/UK/US/Aus) Charging power pack, 12 V DC LED battery Connecting cables, 40 cm, 140 cm and 200 cm long Cable holder on the headlamp frame Adjusting instruments of the headlamp frame... -
Page 10: Adjustment To Head Circumference
3.0 Setting up and starting up Fig. 2. ATMOS HL 21 LED headlamp Headlamp frame Locking screw for adjusting the circumference Strap for adjusting the height Prior to the fi rst operation, pay attention to the safety information in chapter 2.0. Prior to using the headlamp for the fi rst time, charge the LED battery with the supplied charging power pack. 3.2 Adjustment to head circumference •... - Page 11 3.0 Setting up and starting up Fig. 3. Cable holder Cable clip Front pad Headlamp connection Fig. 4. Connection of LED battery • Take one of the enclosed connecting cables and join it to the ATMOS HL 21 LED headlamp connection ( , Fig. 3). • Use the short connecting cable if you want to carry the LED battery on the head- band (Fig. 8, page 13). • Use the long connecting cable if you want to carry the LED battery in your coat pocket, in your trouser pocket, or on your belt. This cable is also to be used if the headlamp is to be supplied from an ATMOS power source. If necessary, lead the cable under the front pad and through the cable holders in the joint of the ATMOS HL 21 LED headlamp. , Fig. 3) to fix the long cable to your clothes. • Use the enclosed cable clip ( •...
-
Page 12: Functionality Of The Led Battery
< 50%. • As long as the test button ( , Fig. 5) of the rechargeable LED battery is pressed, the battery capacity is shown for approx. 3 seconds ( , Fig. 5, green LEDs for levels 1...5). 3.3.2 Charging the LED battery • Use the primary adapter suitable for your power supply (Euro/US/UK/Aus). See information enclosed with the charging power pack. • To charge the LED battery, disconnect it from the ATMOS HL 21 LED headlamp. • Connect the round connector of the power pack cable to the socket ( , Fig. 6) of the LED battery. • During the charging process, the current battery capacity is indicated ( , Fig. 5, green LEDs for levels 1...5). The battery is fully charged when all fi ve LEDs go out again. During charging, operation of the headlamp is impossible! -
Page 13: Operation
4.0 Operation Fig. 7. Headlamp without battery holder Fig. 8. Headlamp with battery holder 4.1 Diff erent variants of the ATMOS HL 21 LED headlamp • Fig. 7: ATMOS HL 21 LED headlamp with long cable, supply from the LED battery in the coat pocket or from a suitable ATMOS power source in an ENT treatment unit. Also pay attention to the respective operating instructions of the ATMOS ENT treat- ment unit. • Fig. 8: ATMOS HL 21 LED headlamp with short cable, LED battery in battery holder of the headlamp. • To remove the battery holder, proceed as follows: - Use the locking screw to adjust the headlamp frame quite tight. -
Page 14: Switching On
4.0 Operation Fig. 9. Focusing Headlamp frame Focusing ring 4.2 Switching on • Adjust the lateral switch on the LED battery to the desired position: - ECO mode: Operation for approx. 4 hours. - POWER mode: Operation for approx. 2 hours. 4.3 Focusing the headlamp • The size of the light spot can be adjusted by turning the focusing ring ( , Fig. 9). -
Page 15: Cleaning And Care
Do not touch the lens in the light object. Fingerprints can be removed with a soft cloth. If necessary, you may use ethanol. • The surfaces can be cleaned with a moist cloth. If necessary, you may use ethanol. • The ATMOS HL 21 LED headlamp cannot be sterilised. • The light body and the rigid headlamp frame can be wiped on the outside with a cloth moistened with a surface disinfectant (see chapter 5.1). • The front pad can be cleaned using a brush, clear water, and soap. If necessary, you may use a 70%-ethanol solution. The cleaning agent must not contain toluene. -
Page 16: Maintenance And Service
6.0 Maintenance and service • Prior to each application, check the device's functions and its proper condition. Damaged cables must be replaced immediately! • The ATMOS HL 21 LED headlamp is low-maintenance. The instructions and regula- tions for the respective field of application should be observed. • Maintenance, repairs and period tests may be carried out only by persons who have the appropriate technical knowledge and are familiar with the product. The person in question must possess the test devices and original spare parts required to take the mentioned measures. ATMOS recommend commissioning an authorized ATMOS service partner. This will ensure that the repairs and tests are carried out appropriately, original spare parts are used and any warranty claims remain unaffected. • Please comply with the country-specific guidelines regarding regular testing, espe- cially with regard to electrical safety. ATMOS recommend a test every 24 months. • This device can be returned directly to ATMOS for repairs. -
Page 17: Sending In The Device
) This form is enclosed with each delivery and can be found at www.atmosmed.com . • The device must be well padded and packed in suitable packaging. • Place the QD 434 form “Delivery Complaint / Return Shipment” and the correspond- ing decontamination certificate in an envelope. • Affix the envelope to the outside of the package. • Send the product to ATMOS or your dealer. -
Page 18: Troubleshooting
7.0 Troubleshooting The ATMOS HL 21 LED was subjected to thorough quality control at the factory. If, however, any problems should occur, you may be able to eliminate them yourself by observing the following notes. Error symptom Cause of error Troubleshooting No light LED battery is flat Charge LED battery Cable is not connected properly Connect cable Cable is defective New cable LED battery cannot LED battery is defective New battery... -
Page 19: Technical Data
9.0 Technical data Voltage Battery recharging unit: 100-240 V~ 50/60 HZ; secondary, 12 VDC LED battery Charge with 12 V DC lithium-ion battery with 3.7 V nominal voltage and a 2200 mAh capacity Current consumption Battery recharging unit: 0.8 A via non-medical 1.8 m cable with 5.5 x 2.5 mm DC plug Headlamp: max. 700 mA DC Power consumption Light emitter 3 watts Light intensity 100,000 lux Lifespan, LED Max 50,000 h Light emitter: White high-performance LED, type 5500 K, light spot focusing with a diameter of 25 to 55 mm in at a distance of 25 cm to the eye. - Page 20 9.0 Technical data Protection class II (charging power pack) (EN60601-1) Type of protection IP X0 CE mark ID no. (REF) 530.4020.0 ATMOS HL 21 LED 506.7551.0 ATMOS HL 21 LED 507.4505.0 ATMOS HL 21 LED (examination set) 507.4506.0 ATMOS HL 21 LED (OT set) 507.4500.0 ATMOS HL 21 LED...
-
Page 21: Disposal
10.0 Disposal • The ATMOS HL 21 LED headlamp does not contain any hazardous goods. • The LED battery (lithium-ion) must be disposed of correctly. • The device and accessories must be decontaminated prior to disposal. • Pay attention to careful separation of the different materials. • Please observe the national disposal regulations. -
Page 22: Notes On Emc
) Please observe the technical data in this manual. The key features are fully usable even in the presence of electromagnetic disturbances. Guidelines and manufacturer’s declaration – removable components that can be replaced by the operator The ATMOS HL 21 LED has the following removable components that can be replaced by the operator: Type Max. cable length Charging power pack 011.1199.0... - Page 23 11.0 Notes on EMC WARNING Portable RF communications equipment (e.g., radios, antenna cables) should be used no closer than 30 cm* to any part of the ATMOS HL 21 LED, including cables, spec- ifi ed by the manufacturer. Otherwise, this could result in degradation of the perfor- mance of this equipment. ) *The distance may be reduced at higher immunity test levels. WARNING Avoid placing the device on top of or next to another device. This could result in incor- rect operation. If this is unavoidable, the proper functioning of the device must be mon-...
- Page 24 ATMOS MedizinTechnik GmbH & Co. KG Ludwig-Kegel-Str. 16 79853 Lenzkirch/Germany Phone: +49 7653 689-0 info@atmosmed.de www.atmosmed.com...
