Dorel Asia WM5278T-W Assembly Instruction Manual

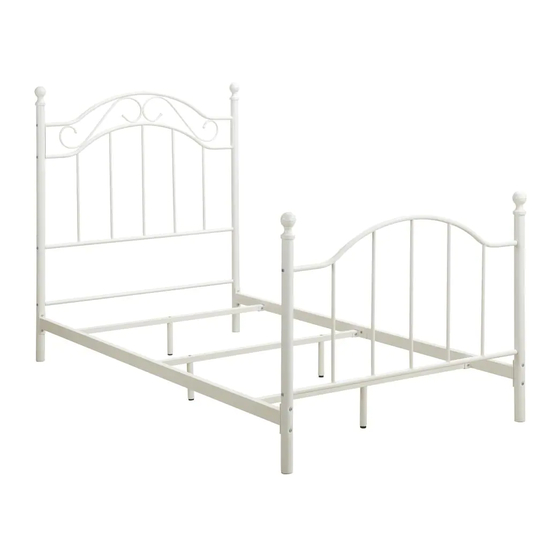

Twin metal bed
Hide thumbs

Advertisement

Quick Links

Download this manual
DOREL ASIA
Model No:
Twin Metal Bed
WM5278T-W
UPC CODE:
0-65857-16527-2
NOTE:
THIS INSTRUCTION BOOKLET
CONTAINS IMPORTANT SAFETY
INFORMATION. PLEASE READ AND
KEEP FOR FUTURE REFERENCE.
Lot number:
(TAKEN FROM CARTON)
Date of purchase:
_______ / _______ / _______
DO NOT RETURN PRODUCT TO THE STORE.
If a part is missing or damaged, contact our customer service
department. We will replace the part FREE of charge.
Tel #: 1-800-295-1980
NEED HELP!
E-Mail: das@dorel.com
CALL US FOR ASSISTANC
Fax #: 514-353-7819
1-800-295-1980
DO NOT RETURN PRODUC
E-MAIL:DAS@DOREL.COM

Advertisement

loading
Need help?

Need help?

Do you have a question about the WM5278T-W and is the answer not in the manual?

Questions and answers

Related Manuals for Dorel Asia WM5278T-W

Summary of Contents for Dorel Asia WM5278T-W

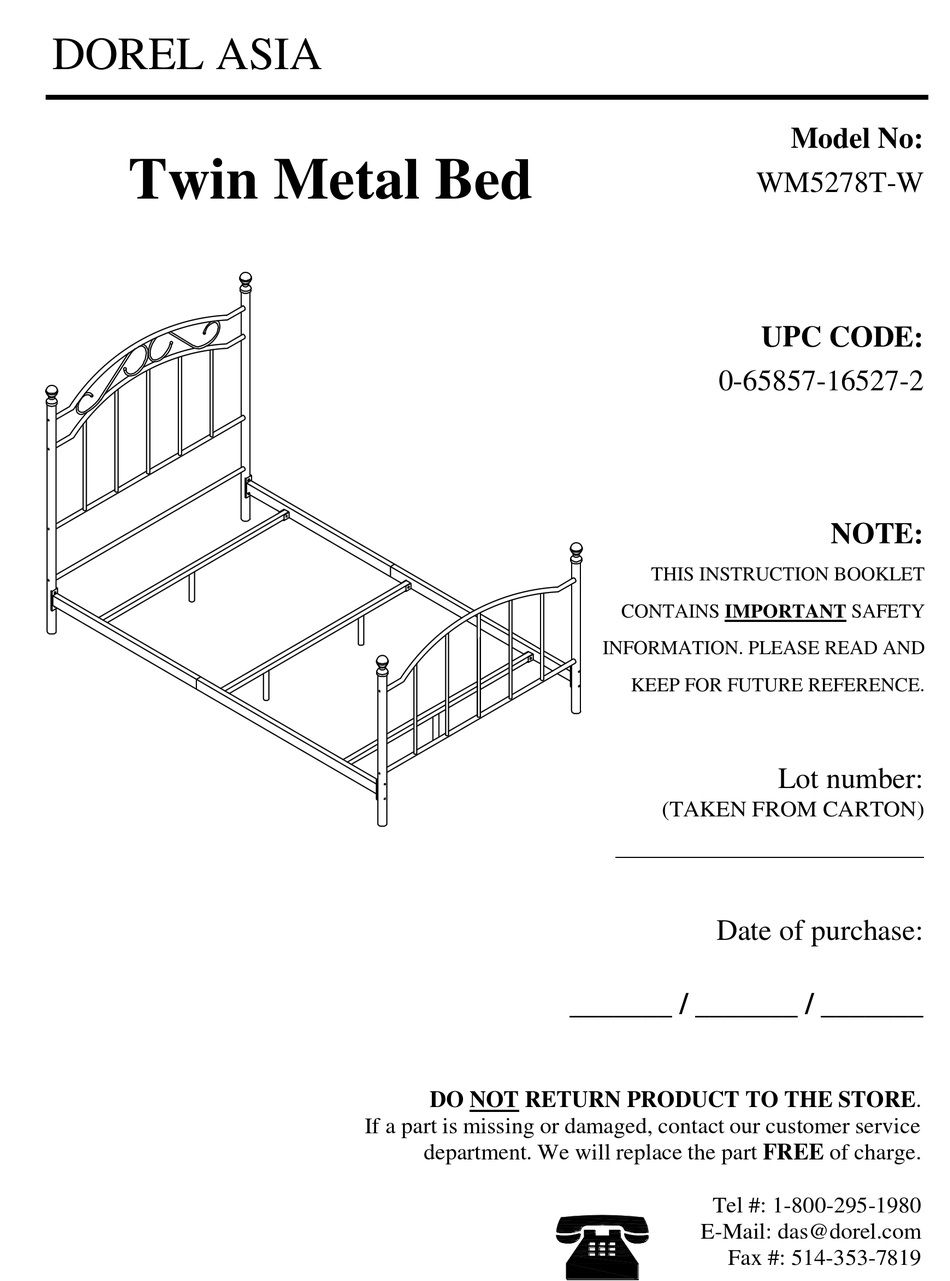

  • Page 1 DOREL ASIA Model No: Twin Metal Bed WM5278T-W UPC CODE: 0-65857-16527-2 NOTE: THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE. Lot number: (TAKEN FROM CARTON) Date of purchase: _______ / _______ / _______ DO NOT RETURN PRODUCT TO THE STORE.

  • Page 2: Care And Cleaning

    Check bolts/screws periodically and tighten them if necessary. LIMITED WARRANTY Dorel Asia warrants its product to be free from defects in material and workmanship and agrees to remedy any such defect. This warranty covers 1 year from the date of original purchase. This warranty is valid only upon presentation of proof of purchase.
  • Page 3 Twin Metal Bed WM5278T-W HARDWARE LIST Ø1/4" X 9/16" Ø1/4" X 1-9/16" Ø1/4" X 1-3/4" BOLT BOLT BOLT 6 PCS 10 PCS 8 PCS Ø1/4" X 1-15/16" Ø1/2" X 1/16" Ø10 mm X 2 mm BOLT FLAT WASHER SPRING WASHER...

  • Page 4: Parts List

    Twin Metal Bed WM5278T-W PARTS LIST HEADBOARD HEADBOARD POST BOTTOM CROSS BAR 1 PC 2 PCS 1 PC LEFT SIDE RAIL LEFT SIDE RAIL RIGHT SIDE RAIL (WITH 1 BRACKET) (WITH 2 BRACKETS) (WITH 1 BRACKET) 1 PC 1 PC...
  • Page 5 Twin Metal Bed WM5278T-W STEP 1 Attach the headboard (A) and bottom cross bar (C) to headboard posts (B) with bolts (4). Use Allen Key (10) to tighten the bolts. NOTE: Do not fully tighten bolts. Leaving the bolts loose will facilitate assembly in the...
  • Page 6 Twin Metal Bed WM5278T-W STEP 2 Attach the footboard posts (L) to the footboard (K) with the bolts (4). Use Allen Key (10) to tighten the bolts. NOTE: Do not fully tighten bolts. Leaving the bolts loose will facilitate assembly in the...
  • Page 7 Twin Metal Bed WM5278T-W STEP 3 Attach the left side rails (D & E) with the bolts (1), flat washers (5) and spring washers (6). Use Allen Key (10) to tighten the bolts.
  • Page 8 Twin Metal Bed WM5278T-W STEP 4 Attach the right side rails (F & G) with the bolts (1), flat washers (5) and spring washers (6). Use Allen Key (10) to tighten the bolts.
  • Page 9 Twin Metal Bed WM5278T-W STEP 5 Attach the assembled left and right side rail to the headboard and footboard with bolts (3) and nuts (7). Use Allen Key (10) and Allen wrench (9) to tighten the bolts and nuts. NOTE: Do not fully tighten bolts. Leaving the bolts loose will facilitate assembly in the...
  • Page 10 Twin Metal Bed WM5278T-W STEP 6 Attach the support legs (J) to the slats (H & I) with bolts (2). Use Allen Key (10) to tighten the bolts. NOTE: Do not fully tighten bolts. Leaving the bolts loose will facilitate assembly in the...
  • Page 11 Twin Metal Bed WM5278T-W STEP 7 Attach the assembled slats (H & I) to the left and right side rails with bolts (2) and nuts (7). Use Allen Key (10) and Allen wrench (9) to tighten the bolts and nuts.
  • Page 12 Twin Metal Bed WM5278T-W STEP 8 Insert the threaded pins (8) into the holes of headboard posts (B) and footboard posts ( L) . Attach finials (M) to the posts (B & L) by rotating clockwise.
  • Page 13 Twin Metal Bed WM5278T-W CAUTION: This unit is intended for use only with the products and/or maximum weights indicated. Use with other products and/or products heavier than the maximum weights indicated may result in instability or cause possible injury. Never allow children to play or jump on the bed.

  • Page 14: Customer Service

    MODEL #: WM5278T-W Customer Service PLEASE DO NOT RETURN THIS PRODUCT TO THE STORE PLEASE CONTACT CUSTOMER SERVICE REPRESENTATIVES AT THE FOLLOWING NUMBERS SHOULD THERE BE ANY MISSING OR DEFECTIVE PART(S). Customer Service Phone Number 1-800-295-1980 Email: das@dorel.com Customer Service Fax Number 514-353-7819...
