Summary of Contents for Riso ComColor GD9630
-
Page 1: Quick Guide
Quick Guide Please start by reading this guide. It describes basic operations. Series 061-360QG-EN0... - Page 2 This device is compliant with the substance emission inspections of the German environmental label "RAL-UZ171". CAUTION After reading this guide, keep it handy for future reference. The "Safety Precautions" are provided in the supplemental Safety Information. Be sure to read through them prior to use. ComColor GD Series Quick Guide...
- Page 3 Preface Thank you for using a ComColor GD Series product. This ComColor GD Series product is a network-compatible inkjet printer that performs high-speed color printing. About the Guides The five guides described below are supplied with this machine. Quick Guide (this guide) This guide describes basic machine operations and how to replace consumables.
- Page 4 Operating the Touch Panel (1) This guide may not be reproduced in whole or in part without the permission of RISO KAGAKU CORPORATION. (2) The contents of this manual may be changed without prior notice due to product improvements.
- Page 5 When Ink Runs Out ..................26 Scanner Care ...................28 Useful Tips ....................29 Consumables ........................29 RISO Console ......................... 29 Cleaning the Print Head ....................29 Storing Consumables ...................... 30 Originals That May Not Be Copied .................. 30 ComColor GD Series Quick Guide...
-
Page 6: About This Machine

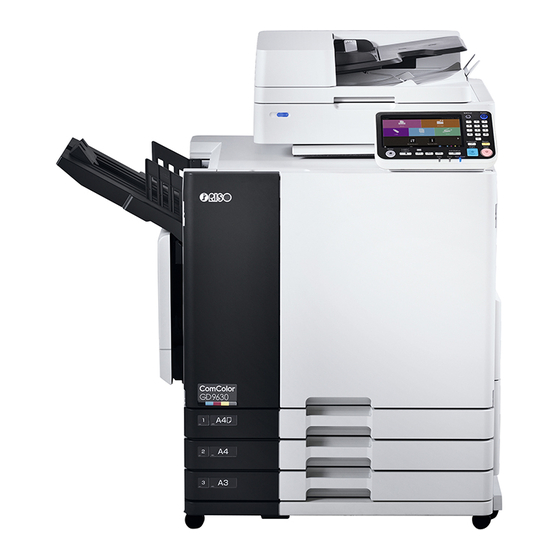

Preparation About This Machine Main Unit and Optional Scanner This section describes the main parts of the machine. Scanner Feed trays Use the scanner to copy or scan documents that Load the paper to be used for printing here. are read from the platen glass or the ADF Special paper such as thick paper cannot be (automatic document feeder). -
Page 7: Touch Panel
About This Machine Operation Panel This section describes the main parts used with the operation panel. Touch panel Numeric keys Use to perform operations or configure settings. Use these keys to enter numbers. Wake Up key Start key This key lights up when this machine is in power Press this key to start an operation. -
Page 8: Turning On The Power
Preparation Turning On the Power Press the [Power] key on the operation panel. The machine automatically enters power saving mode if you leave it unattended for some time. Press the [Wake Up] key to operate the machine. Wake Up Power The [Home1] screen is displayed after the startup screen. -
Page 9: Operating The Touch Panel
Preparation Operating the Touch Panel Touch Touching a button will select the item. Flick Flick your finger in any directions on the touch panel. On the [Home1] screen, flick to switch to the [Home2] screen. [Home1] screen [Home2] screen On other screens, flick to scroll the setting items or lists. Drag Slide your finger in any directions without lifting from the touch panel. -
Page 10: Logging In
Preparation Logging In Press the [Login/Logout] key. The [Login] screen is displayed. The [Login] screen can be displayed regardless of the mode button that is touched. Login / Logout Select the user name. Enter your password and touch [Login]. To log out, press the [Login/Logout] key. When Logging In for the First Time Change the temporary password provided by the administrator to a password of your own choosing. -
Page 11: Loading Originals
Preparation Loading Originals Loading in the ADF If you used ink or correction fluid on the original, make sure that it has fully dried before loading it. Load the original so that the side that you want to scan is facing up. Slide the ADF original guides to match the width of the original. -
Page 12: Copying
Getting Started Copying Load the original. Touch [Copy] on the [Home1] screen. Change the settings as needed. Enter the number of copies using the numeric keys. About the Various Copying Functions p.12 Press the [Start] key. Start ComColor GD Series Quick Guide... -
Page 13: Loading Orientation Of Originals And Paper
Loading Orientation of Originals and Paper When you are copying on letterhead paper, envelopes, or other paper with a pre-printed logo, the orientation of the original and paper is important. The orientation of the original and paper is described below, using an example of copying a single- sided original. -
Page 14: About The Various Copying Functions
Getting Started About the Various Copying Functions Sample Copy Sort Output one sample before making a large number When making multiple copies of multi-page of copies. originals, you can specify whether to print by the This enables you to check the results and settings. page or by the set. -
Page 15: Original Type
About the Various Copying Functions Original Type Gamma Correction Copy a document with image processing to suit the Correct the balance of colors the original contains to type of original such as photos and pencil drawings. create more natural colors. Base Color Level Add Cover Make the background color (base color) lighter... -
Page 16: Scanning
Getting Started Scanning You can select either [Mail], [PC], or [Console] as the destination for sending or storing the data. In this section, the procedure for sending the data to a computer is described as an example. Load the original. Touch [Scan] - [PC] on the [Home1] screen. -
Page 17: What Is The [Favorites] Function
What is the [Favorites] Function? The details configured in the [Copy] screen and the [Scan] screen can be registered as [Favorites]. If you register the settings you frequently use, you can eliminate the need to configure the same settings each time. Add shortcuts of registered [Favorites] to the [Home2] screen to bring these up at any time. -
Page 18: Printing
Getting Started Printing Sending Data to This Machine ® ® In this section, the procedure for printing from the Microsoft Windows 7 Notepad application is described as an example. Click [Print...] in the [File] menu. Click [Preferences], and check the settings. - Page 19 Printing Printing from This Machine At the factory settings, the machine starts printing automatically when you log in. If printing does not start automatically when you log in, perform the procedure below. Touch [Print] on the [Home1] screen. Select the job. You can touch [ ] to view the waiting jobs as thumbnails.
-
Page 20: About The Various Printing Functions
Getting Started About the Various Printing Functions Print and Pause Paper Type Print one sample before printing a large number of Print using the optimal colors for the type of paper. pages. This enables you to check the results and settings. Storage Combine Save the documents you frequently print in a folder... -
Page 21: Pin Code
About the Various Printing Functions Data Compression Screening Reduce the data file size and prioritize network Configure whether to express continuous gradations communication speed over image quality when you with the density of dots or with the size of dots. print. -
Page 22: Using Storage
Getting Started Using Storage Saving Scanned Data to Storage The scanned data is saved along with the print settings. Load the original. Touch [Storage] - [Save] on the [Home1] screen. Select the destination folder and touch [Save Document]. You can change the settings. You can touch [Add Folder] to create a new folder to use as the destination. - Page 23 Using Storage Printing Saved Data from Storage The data is printed with the settings saved along with the data. Touch [Storage] - [Load] on the [Home1] screen. Select the folder that you want to load, and select the document. You can touch [Search] to search for documents. Enter the number of copies using the numeric keys.
-
Page 24: Using A Usb Flash Drive
Getting Started Using a USB Flash Drive Saving Scanned Data to a USB Flash Drive Scanned data will be saved in one of the following file formats: PDF, TIFF, or JPEG Load the original and connect a USB flash drive to the machine. You can use a USB flash drive compatible with Mass Storage Class and USB 2.0 or 3.0 specifications. - Page 25 Using a USB Flash Drive Printing Data from a USB Flash Drive Print PRN files saved to a USB flash drive from the printer driver. Connect a USB flash drive to the machine. Touch [USB] - [Load] on the [Home1] screen. Open the folder that you want to load, and select the document.
-
Page 26: When Paper Runs Out
Routine Care When Paper Runs Out Loading Paper in the Feed Tray We recommend loading plain paper in the feed trays. When using A4 The machine detects the size of the paper based on the stopper position. Make sure to position the stopper against the edge of the paper. - Page 27 When Paper Runs Out Loading Paper in the Standard Tray Load thick paper and other special paper, postcards, or envelopes in the standard tray. Do Not Use These Paper Types Using these paper types may cause problems such as paper jams. •...
-
Page 28: When Ink Runs Out
Routine Care When Ink Runs Out Replacing the Ink Cartridge New ink cartridge Printing stops and the message is displayed. Replace the cartridge of the color shown. ComColor GD Series Quick Guide... - Page 29 • We recommend using genuine RISO ink. • Using ink other than RISO ink may prevent optimal printer performance. Malfunctions and reduced performance resulting from the use of non-RISO ink are not covered by the product warranty or service contract.
-
Page 30: Scanner Care
Routine Care Scanner Care Periodically clean the scanner to ensure optimal image Scanner Glass quality for copies and scans. Foreign matter such as dust, dirt, ink, glue or correction If the scanner glass is dirty, black streaks may appear on copies and scans. fluid on the platen glass or white sheet of the ADF may Wipe the scanner glass with a soft cloth. -
Page 31: Useful Tips
You can also check the status of consumables such as the ink and paper. To use the RISO Console, make sure the machine has been connected to the network. Cleaning the Print Head The printed paper may have white streaks or appear blurry due to the clogged print head. -
Page 32: Storing Consumables
Storing Consumables Originals That May Not Be Copied ● Paper Storage and Handling ● Do not use the equipment in any manner ● ● • Always use paper from a sealed package. that violates the law or infringes on • After you finish printing, remove the unused established copyrights, even when paper from the standard tray, place it back making copies for personal use. - Page 33 FeliCa is a registered trademark of Sony Corporation. Mifare is a registered trademark of Royal Philips Electronics. , ComColor, and FORCEJET are trademarks or registered trademarks of RISO KAGAKU CORPORATION in the United States and other countries. Other corporate names and/or trademarks are either registered trademarks or trademarks of each company, respectively.
- Page 34 Please contact the following for supplies and service: 2016/10 © Copyright 2016 RISO KAGAKU CORPORATION...
Need help?
Do you have a question about the ComColor GD9630 and is the answer not in the manual?
Questions and answers

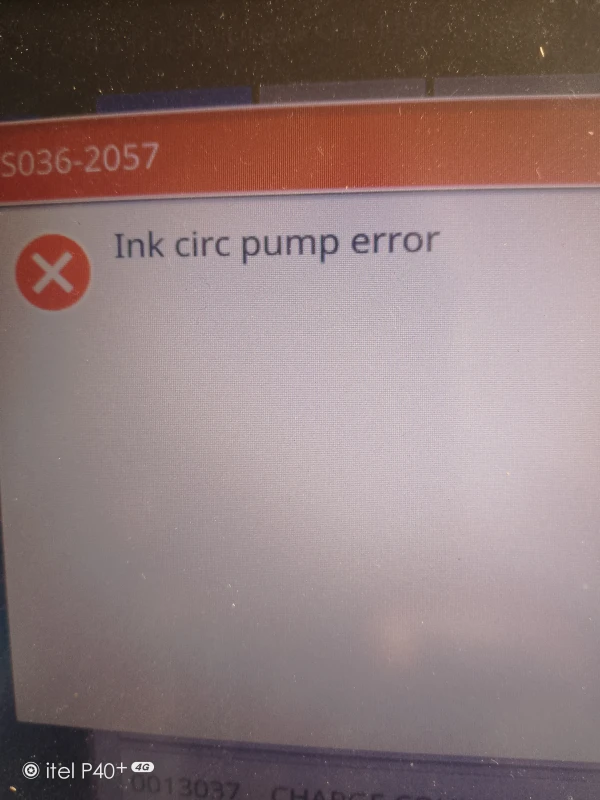

Bonjour, j'ai une riso comclor GD 9630, j'ai code erreur s036-2057 est il possible de mettre en ligne la documentation technique merci de vous lire, cordialement,
