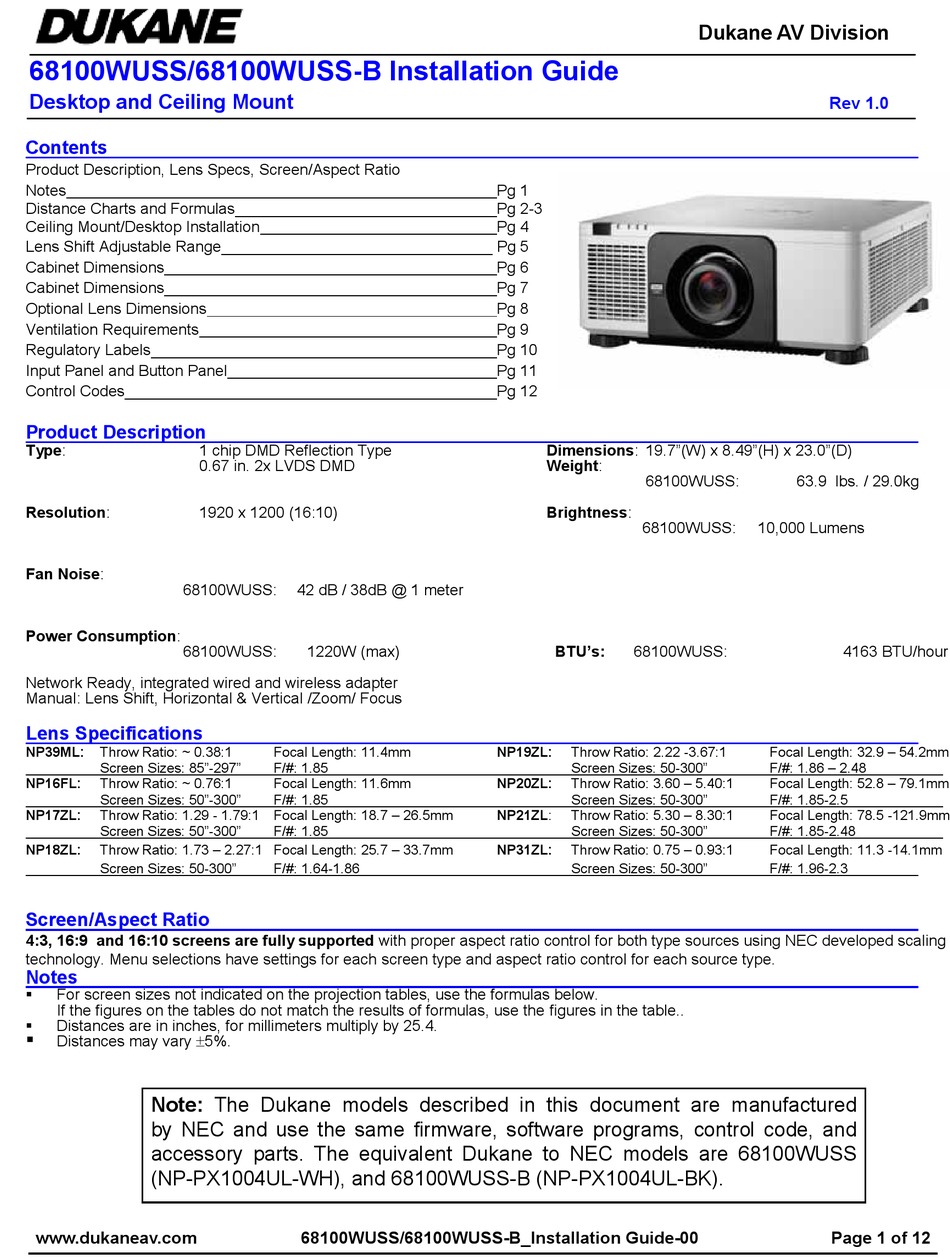

Dukane ImagePro 68100WUSS Installation Manual

68100WUSS/68100WUSS-B Installation Guide
PX803UL/PX1004UL Installation Guide
Desktop and Ceiling Mount
Desktop and Ceiling Mount
Contents
Product Description, Lens Specs, Screen/Aspect Ratio
Notes
Distance Charts and Formulas
Ceiling Mount/Desktop Installation
Lens Shift Adjustable Range
Cabinet Dimensions
Cabinet Dimensions
Optional Lens Dimensions
Ventilation Requirements
Regulatory Labels
Input Panel and Button Panel
Control Codes

Product Description

Type: 1 chip DMD Reflection Type
0.67 in. 2x LVDS DMD
Resolution:
1920 x 1200 (16:10)
Fan Noise:
68100WUSS:
Power Consumption:
68100WUSS:
Network Ready, integrated wired and wireless adapter
Manual: Lens Shift, Horizontal & Vertical /Zoom/ Focus

Lens Specifications

NP39ML: Throw Ratio: ~ 0.38:1
Screen Sizes: 85"-297"
NP16FL: Throw Ratio: ~ 0.76:1
Screen Sizes: 50"-300"
NP17ZL: Throw Ratio: 1.29 - 1.79:1 Focal Length: 18.7 – 26.5mm
Screen Sizes: 50"-300"
NP18ZL: Throw Ratio: 1.73 – 2.27:1 Focal Length: 25.7 – 33.7mm
Screen Sizes: 50-300"
Screen/Aspect Ratio
4:3, 16:9 and 16:10 screens are fully supported with proper aspect ratio control for both type sources using NEC developed scaling
technology. Menu selections have settings for each screen type and aspect ratio control for each source type.
Notes
For screen sizes not indicated on the projection tables, use the formulas below.

If the figures on the tables do not match the results of formulas, use the figures in the table..
Distances are in inches, for millimeters multiply by 25.4.


Distances may vary 5%.
Note: The Dukane models described in this document are manufactured
by NEC and use the same firmware, software programs, control code, and
accessory parts. The equivalent Dukane to NEC models are 68100WUSS
(NP-PX1004UL-WH), and 68100WUSS-B (NP-PX1004UL-BK).
www.dukaneav.com
www.necdisplay.com
42 dB / 38dB @ 1 meter
1220W (max)
Focal Length: 11.4mm
F/#: 1.85
Focal Length: 11.6mm
F/#: 1.85
F/#: 1.85
F/#: 1.64-1.86
68100WUSS/68100WUSS-B_Installation Guide-00
PX803UL/PX1004UL
NEC Display Solutions of America, Inc.
Pg 1
Pg 2-3
Pg 4
Pg 5
Pg 6
Pg 7
Pg 8
Pg 9
Pg 10
Pg 11
Pg 12
Dimensions: 19.7"(W) x 8.49"(H) x 23.0"(D)
Weight:
68100WUSS:
Brightness:
68100WUSS:
BTU's: 68100WUSS:
NP19ZL: Throw Ratio: 2.22 -3.67:1
Screen Sizes: 50-300"
NP20ZL: Throw Ratio: 3.60 – 5.40:1
Screen Sizes: 50-300"
NP21ZL: Throw Ratio: 5.30 – 8.30:1
Screen Sizes: 50-300"
NP31ZL: Throw Ratio: 0.75 – 0.93:1
Screen Sizes: 50-300"
Dukane AV Division
Rev 1.0
Rev 1.0
63.9 lbs. / 29.0kg
10,000 Lumens
4163 BTU/hour
Focal Length: 32.9 – 54.2mm
F/#: 1.86 – 2.48
Focal Length: 52.8 – 79.1mm
F/#: 1.85-2.5
Focal Length: 78.5 -121.9mm
F/#: 1.85-2.48
Focal Length: 11.3 -14.1mm
F/#: 1.96-2.3
Page 1 of 12
Page 1 of 12
