Dukane 6752WU Installation Manual

6700 Series Installation Guide v00
PA521U/PA571W/PA621X Installation Guide
Ceiling Mounted and Desktop
Desktop and Ceiling Mount
Contents

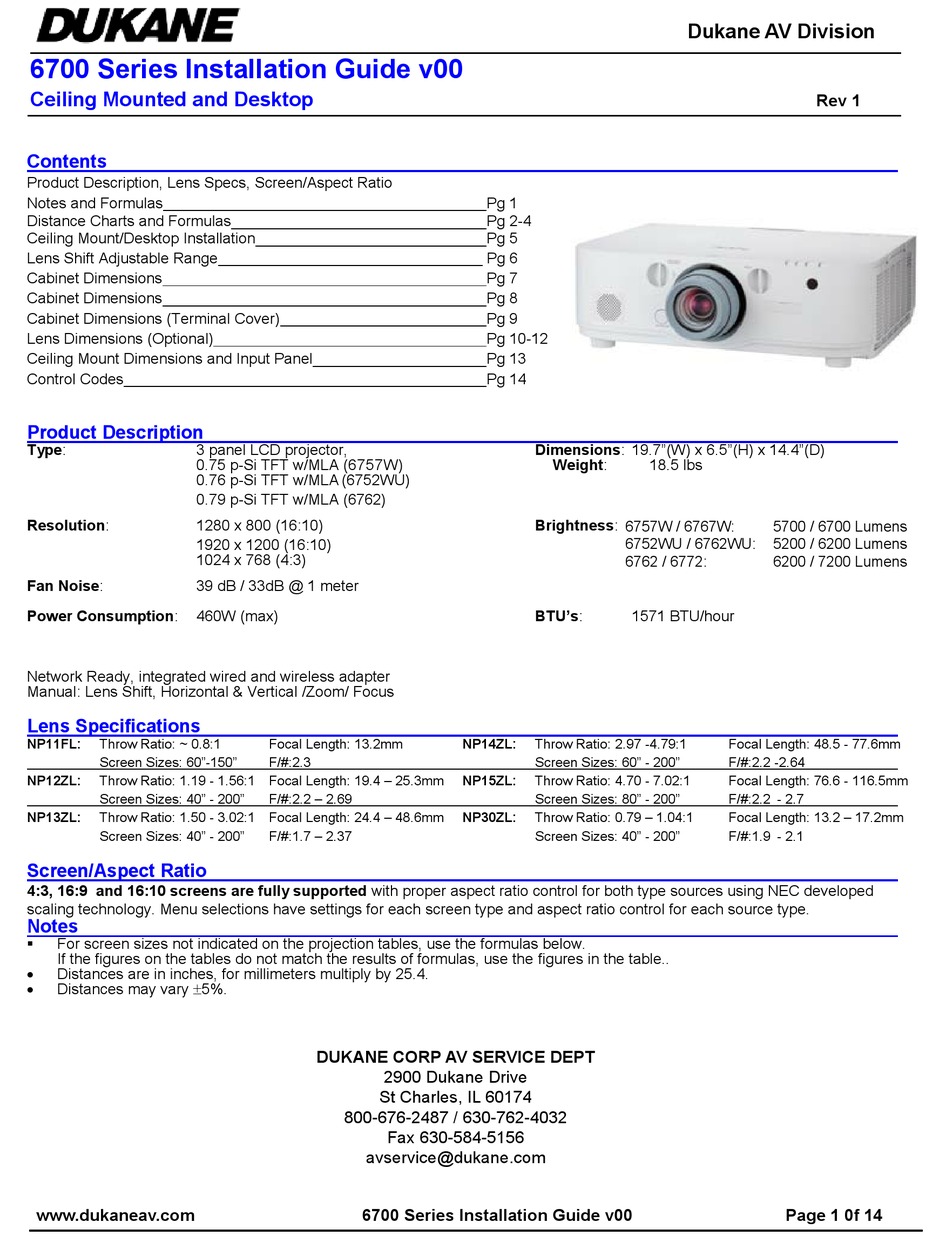

Product Description, Lens Specs, Screen/Aspect Ratio
Notes and Formulas
Distance Charts and Formulas
Ceiling Mount/Desktop Installation
Lens Shift Adjustable Range
Cabinet Dimensions
Cabinet Dimensions
Cabinet Dimensions (Terminal Cover)
Lens Dimensions (Optional)
Ceiling Mount Dimensions and Input Panel
Control Codes

Product Description

Type: 3 panel LCD projector,
0.75 p-Si TFT w/MLA (6757W)
0.76 p-Si TFT w/MLA (6752WU)
0.79 p-Si TFT w/MLA (6762)
Resolution: 1280 x 800 (16:10)
1920 x 1200 (16:10)
1024 x 768 (4:3)
Fan Noise:
39 dB / 33dB @ 1 meter
Power Consumption: 460W (max)
Network Ready, integrated wired and wireless adapter
Manual: Lens Shift, Horizontal & Vertical /Zoom/ Focus

Lens Specifications

NP11FL:
Throw Ratio: ~ 0.8:1
Screen Sizes: 60"-150"
NP12ZL: Throw Ratio: 1.19 - 1.56:1 Focal Length: 19.4 – 25.3mm
Screen Sizes: 40" - 200"
NP13ZL: Throw Ratio: 1.50 - 3.02:1 Focal Length: 24.4 – 48.6mm
Screen Sizes: 40" - 200"
Screen/Aspect Ratio
4:3, 16:9 and 16:10 screens are fully supported with proper aspect ratio control for both type sources using NEC developed
scaling technology. Menu selections have settings for each screen type and aspect ratio control for each source type.
Notes
For screen sizes not indicated on the projection tables, use the formulas below.

If the figures on the tables do not match the results of formulas, use the figures in the table..
 Distances are in inches, for millimeters multiply by 25.4.
 Distances may vary 5%.
www.dukaneav.com
www.necdisplay.com
Focal Length: 13.2mm
F/#:2.3
F/#:2.2 – 2.69 _________
F/#:1.7 – 2.37
DUKANE CORP AV SERVICE DEPT
2900 Dukane Drive
St Charles, IL 60174
800-676-2487 / 630-762-4032
Fax 630-584-5156
avservice@dukane.com
6700 Series Installation Guide v00
PA521U/ PA571W/PA621X
NEC Display Solutions of America, Inc.
Pg 1
Pg 2-4
Pg 5
Pg 6
Pg 7
Pg 8
Pg 9
Pg 10-12
Pg 13
Pg 14
Dimensions: 19.7"(W) x 6.5"(H) x 14.4"(D)
Weight:
Brightness:
6757W / 6767W:
6752WU / 6762WU:
6762 / 6772:
BTU's: 1571 BTU/hour
NP14ZL:
Throw Ratio: 2.97 -4.79:1
Screen Sizes: 60" - 200"
NP15ZL: Throw Ratio: 4.70 - 7.02:1
Screen Sizes: 80" - 200"
NP30ZL: Throw Ratio: 0.79 – 1.04:1
Screen Sizes: 40" - 200"
Dukane AV Division
Rev 1
18.5 lbs
5700 / 6700 Lumens
5200 / 6200 Lumens
6200 / 7200 Lumens
Focal Length: 48.5 - 77.6mm
F/#:2.2 -2.64
Focal Length: 76.6 - 116.5mm
F/#:2.2 - 2.7
Focal Length: 13.2 – 17.2mm
F/#:1.9 - 2.1
Page 1 0f 14
Page 1 of 14
Rev 1.0
