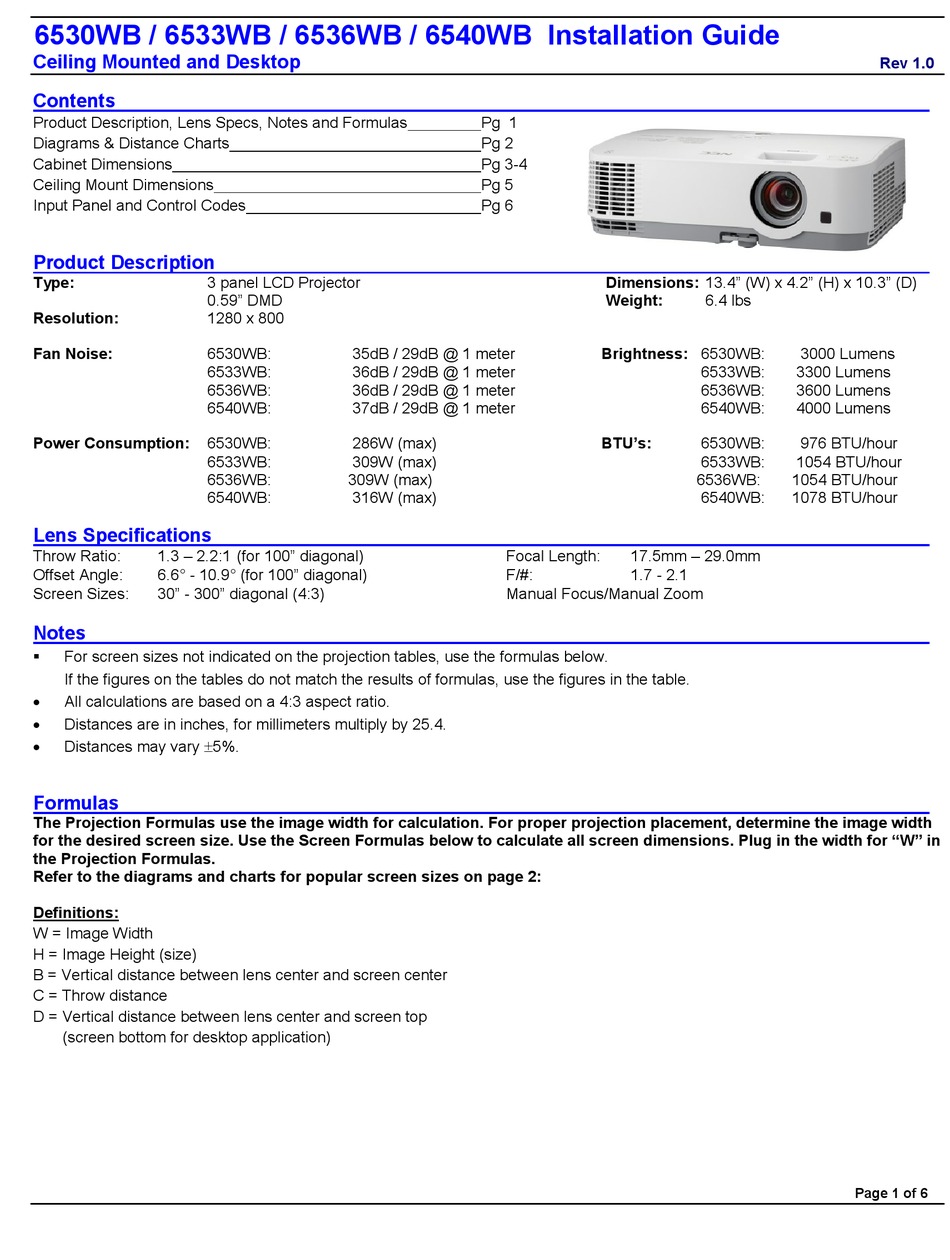

6530WB / 6533WB / 6536WB / 6540WB Installation Guide
Ceiling Mounted and Desktop
Contents
Product Description, Lens Specs, Notes and Formulas
Diagrams & Distance Charts
Cabinet Dimensions
Ceiling Mount Dimensions
Input Panel and Control Codes

Product Description

Type: 3 panel LCD Projector
0.59" DMD
Resolution: 1280 x 800
6530WB:
Fan Noise:
6533WB:
6536WB:
6540WB:
6530WB:
Power Consumption:
6533WB:
6536WB:
6540WB:

Lens Specifications

Throw Ratio: 1.3 – 2.2:1 (for 100" diagonal)
Offset Angle: 6.6° - 10.9° (for 100" diagonal)
Screen Sizes: 30" - 300" diagonal (4:3)
Notes
 For screen sizes not indicated on the projection tables, use the formulas below.
If the figures on the tables do not match the results of formulas, use the figures in the table.

All calculations are based on a 4:3 aspect ratio.

Distances are in inches, for millimeters multiply by 25.4.
 Distances may vary 5%.
Formulas
The Projection Formulas use the image width for calculation. For proper projection placement, determine the image width
for the desired screen size. Use the Screen Formulas below to calculate all screen dimensions. Plug in the width for "W" in
the Projection Formulas.
Refer to the diagrams and charts for popular screen sizes on page 2:
Definitions:
W = Image Width
H = Image Height (size)
B = Vertical distance between lens center and screen center
C = Throw distance
D = Vertical distance between lens center and screen top
(screen bottom for desktop application)
www.dukaneav.com
Pg 1
Pg 2
Pg 3-4
Pg 5
Pg 6
35dB / 29dB @ 1 meter
36dB / 29dB @ 1 meter
36dB / 29dB @ 1 meter
37dB / 29dB @ 1 meter
286W (max)
309W (max)
309W (max)
316W (max)
Focal Length:
F/#:
Manual Focus/Manual Zoom
Dimensions: 13.4" (W) x 4.2" (H) x 10.3" (D)
Weight: 6.4 lbs
Brightness: 6530WB:
6533WB:
6536WB:
6540WB:
6530WB:
BTU's:
6533WB:
6536WB:
6540WB:
17.5mm – 29.0mm
1.7 - 2.1
Rev 1.0
3000 Lumens
3300 Lumens
3600 Lumens
4000 Lumens
976 BTU/hour
1054 BTU/hour
1054 BTU/hour
1078 BTU/hour
Page 1 of 6
