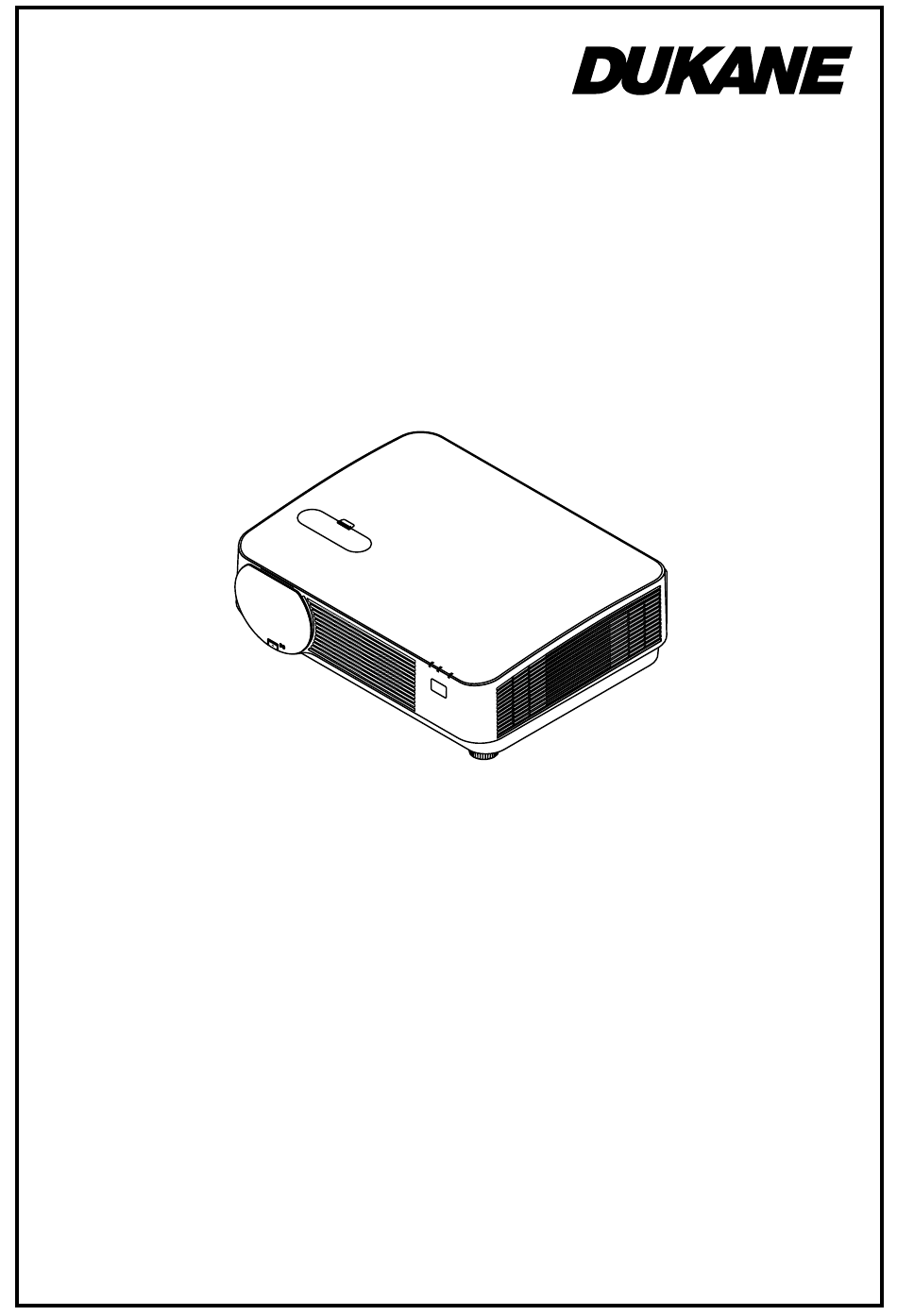

6650WSSA & 6650HDSSA
DUKANE CORP AV SERVICE DEPT
2900 Dukane Drive
St Charles, IL 60174
800-676-2487 / 630-762-4032
Fax 630-584-5156
avservice@dukane.com
www.dukaneav.com
Projector
User's Manual
Thank you for purchasing this product.
Please read this manual before you operate
your projector. Save it for future reference.
6650WSSA_6650HDSSA_User Manual_v00

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 6650WSSA and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Dukane 6650WSSA

Summary of Contents for Dukane 6650WSSA

  • Page 1 6650WSSA & 6650HDSSA User’s Manual Thank you for purchasing this product. Please read this manual before you operate your projector. Save it for future reference. DUKANE CORP AV SERVICE DEPT 2900 Dukane Drive St Charles, IL 60174 800-676-2487 / 630-762-4032 Fax 630-584-5156 avservice@dukane.com...
  • Page 2 (3) Great care has been taken in the preparation of this user’s manual; however, should you notice any questionable points, errors or omissions, please contact us. (4) Notwithstanding article (3), DUKANE will not be responsible for any claims on loss of profit or other matters deemed to result from using the Projector.
  • Page 3 Important Information Safety Cautions Precautions Please read this manual carefully before using your projector and keep the manual handy for future reference. CAUTION To turn off main power, be sure to remove the plug from power outlet. The power outlet socket should be installed as near to the equipment as possible, and should be easily accessible.
  • Page 4 The Federal Communications Commission does not allow any modifications or changes to the unit EXCEPT those specified by DUKANE Corp in this manual. Failure to comply with this government regulation could void your right to operate this equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
  • Page 5 Important Information WARNING • Do not cover the lens with the lens cap or equivalent while the projector is on. Doing so can lead to melting of the cap due to the heat emitted from the light output. • Do not place any objects, which are easily affected by heat, in front of the projector lens. Doing so could lead to the object melting from the heat that is emitted from the light output.
  • Page 6 Important Information - Do not place the power cord under the projector, or any heavy object. - Do not cover the power cord with other soft materials such as rugs. - Do not heat the power cord. - Do not handle the power plug with wet hands. •...
  • Page 7 Important Information Light Module 1. A light module containing multiple laser diodes is equipped in the product as the light source. 2. These laser diodes are sealed in the light module. No maintenance or service is required for the performance of the light module.
  • Page 8 Important Information • The labels are stuck on the below indicated position. Label 1 Label 2 Label 1: Label 2:...
  • Page 9 Note: The Dukane models described in this document are manufactured by NEC and use the same firmware, software programs, control code, and accessory parts. The equivalent Dukane to NEC models are 6650WSSA (NP-P502WL-2 ) and 6650HDSSA ( NP-P502HL-2).
  • Page 10 Model Number of Wireless LAN unit Wireless LAN unit is an optional item. To find the appropriate model to your area, please visit the company website: URL: http://www.dukaneav.com DUKANE CORP AV SERVICE DEPT 2900 Dukane Drive St Charles, IL 60174 800-676-2487 / 630-762-4032 Fax 630-584-5156 avservice@dukane.com...

  • Page 11: Table Of Contents

    Table of Contents Important Information .................... i 1. Introduction ......................1 ❶ What’s in the Box? ......................1 ❷ Introduction to the Projector ...................2 General ........................2 Light source · Brightness ..................2 Installation .........................2 Videos ........................2 Network ........................2 Energy-saving ......................3 About this user’s manual ...................3 ❸...
  • Page 12 Table of Contents Checking Energy-Saving Effect [CARBON METER] ..........29 ❺ Preventing the Unauthorized Use of the Projector [SECURITY] ........30 ❻ Viewing 3D Images .......................33 LCD shutter eyeglasses (recommended) ...............33 Steps for viewing 3D images on the projector............33 Troubleshooting on viewing 3D images..............36 4.
  • Page 13 Table of Contents Connecting HDMI Input...................78 Connecting your document camera ................79 Connecting to a Wired LAN ..................80 Connecting to a Wireless LAN (Optional: NP05LM series) ........81 Connecting to a HDBaseT transmission device (sold commercially) ......84 Portrait projection (vertical orientation) ..............86 6.

  • Page 14: Introduction

    1. Introduction ❶ What’s in the Box? Make sure your box contains everything listed. If any pieces are missing, contact your dealer. Please save the original box and packing materials if you ever need to ship your projector. Projector Remote control Batteries (AAA ×...

  • Page 15: ❷ Introduction To The Projector

    DMD panel Resolution Aspect ratio 6650HDSSA 0.65 type 1920 × 1080 pixels 16:9 6650WSSA 0.65 type 1280 × 800 pixels 16:10 Light source · Brightness • A long-life laser diode is equipped in the light module The product can be operated at low cost because the laser light source can be used for a long time without requir- ing replacement or maintenance.

  • Page 16: Energy-Saving

    1. Introduction • Compatible with the MultiPresenter application This projector is compatible with the NEC MultiPresenter application, so multi-screen projection is possible via the network (wired LAN/wireless LAN). Energy-saving • 0.15 W (100-130 V AC)/0.36 W (200-240 V AC) in standby condition with energy saving technology Selecting [NORMAL] for [STANDBY MODE] from the menu can put the projector in power-saving mode.

  • Page 17: ❸ Part Names Of The Projector

    1. Introduction ❸ Part Names of the Projector Front Lens shift cover Indicators (→ page 17) (→ page 6) Zoom Lever (→ page 19) Intake Vent (→ page 113) Lens Focus Ring Remote Sensor (→ page 19) (→ page 9) Lens Cap Intake Vent Tilt Foot...

  • Page 18: Rear

    1. Introduction Rear Remote Sensor Controls (→ page 9) (→ page 6) Connection for cable cover (Left/ Right) Screw holes (→ page 122) Wireless LAN cover Exhaust Vent (→ page 81) Built-in Security Slot ( AC Input Connect the supplied power cord’s Security chain opening three-pin plug here, and plug the Attach an anti-theft device.

  • Page 19: Controls/Indicators

    1. Introduction Controls/Indicators (POWER) Button (→ page 12, 24) 2. POWER Indicator (→ page 11, 12, 24, 115) 3. STATUS Indicator (→ page 115) 4. LIGHT Indicator (→ page 115) 5. ECO Button (→ page 28) 6. SOURCE Button (→ page 14) 7.

  • Page 20: Terminal Panel Features

    1. Introduction Terminal Panel Features 1. COMPUTER IN/ Component Input Terminal (Mini 14. PC CONTROL [PC CONTROL] Port (D-Sub 9 Pin) D-Sub 15 Pin) (→ page 127) (→ page 73, 77, 79) Use this port to connect a PC or control system. This enables you to control the projector using serial 2.

  • Page 21: ❹ Part Names Of The Remote Control

    1. Introduction ❹ Part Names of the Remote Control 1. Infrared Transmitter 20. EXIT Button (→ page 9) (→ page 37) 21. ▲▼◀▶ Button 2. POWER ON Button (→ page 12) (→ page 37) 3. POWER STANDBY Button 22. ENTER Button (→...

  • Page 22: Battery Installation

    1. Introduction Battery Installation 1. Press firmly and slide the battery 2. Install new batteries (AAA). En- 3. Slip the cover back over the bat- cover off. sure that you have the batteries’ teries until it snaps into place. Do polarity (+/−) aligned correctly.

  • Page 23: Projecting An Image (Basic Operation)

    2. Projecting an Image (Basic Operation) This section describes how to turn on the projector and to project a picture onto the screen. ❶ Flow of Projecting an Image Step 1 • Connecting your computer / Connecting the power cord (→ page 11) Step 2 •...

  • Page 24: ❷ Connecting Your Computer/Connecting The Power Cord

    2. Projecting an Image (Basic Operation) ❷ Connecting Your Computer/Connecting the Power Cord 1. Connect your computer to the projector. This section will show you a basic connection to a computer. For information about other connections, see “5. Installation and Connections” on page 73. Connect the computer cable (VGA) between the projector’s COMPUTER IN terminal and the computer’s port (mini D-Sub 15 Pin).

  • Page 25: ❸ Turning On The Projector

    2. Projecting an Image (Basic Operation) ❸ Turning on the Projector WARNING The projector produces a strong light. When turning on the power, make sure no one within projection range is looking at the lens. 1. Remove the lens cap. With the lens cap’s stopper pressed up, pull forward and off.

  • Page 26: Note On Startup Screen (Menu Language Select Screen)

    2. Projecting an Image (Basic Operation) Note on Startup screen (Menu Language Select screen) When you first turn on the projector, you will get the Startup menu. This menu gives you the opportunity to select one of the 30 menu languages. To select a menu language, follow these steps: 1.

  • Page 27: ❹ Selecting A Source

    2. Projecting an Image (Basic Operation) ❹ Selecting a Source Selecting the computer or video source NOTE: Turn on the computer or video source equipment connected to the projector. Detecting the Signal Automatically Press the SOURCE button once. The projector will search for the avail- able input source and display it.
  • Page 28 2. Projecting an Image (Basic Operation) Selecting Default Source You can so that it will be displayed each time the projector is turned on. 1. Press the MENU button. The menu will be displayed. 2. Press the ▶ button twice to select [SETUP] and the ▼ button or the ENTER button to select [GENERAL]. 3.

  • Page 29: ❺ Adjusting The Picture Size And Position

    2. Projecting an Image (Basic Operation) ❺ Adjusting the Picture Size and Position Use the lens shift dial, the adjustable tilt foot lever, the zoom lever/zoom ring and the focus ring to adjust the picture size and position. In this chapter drawings and cables are omitted for clarity. Adjusting the projected image’s vertical and horizontal Adjusting the focus [Focus ring] position [Lens shift]...

  • Page 30: Adjusting The Vertical Position Of A Projected Image (Lens Shift)

    2. Projecting an Image (Basic Operation) Adjusting the vertical position of a projected image (Lens shift) CAUTION Perform the adjustment from behind or from the side of the projector. Adjusting from the front could expose your eyes to strong light which could injure them. 1.
  • Page 31 62%V 100%V Height of projected image 100%H 25%H 25%H 28%H 28%H [6650WSSA] Width of projected image 59%V 100%V Height of projected image 100%H 28%H 28%H Description of symbols: V indicates vertical (height of the projected image), H indicates horizontal (width of the projected image).

  • Page 32: Focus

    2. Projecting an Image (Basic Operation) Focus Use the FOCUS ring to obtain the best focus. • Recommend to perform the focus adjustment after leaving the projector under the state the TEST PATTERN has been projected for over 30 minutes. Please refer to page about the TEST PATTERN.

  • Page 33: Adjusting The Tilt (Tilt Foot)

    2. Projecting an Image (Basic Operation) Adjusting the tilt (Tilt foot) Adjusting the left and right tilt. 1. Turn the left and right tilt feet to adjust. The tilt feet lengthen and shorten when turned. The height of the projected image is adjusted by turning the left and right tilt feet.

  • Page 34: ❻ Correcting Keystone Distortion [Keystone]

    2. Projecting an Image (Basic Operation) ❻ Correcting Keystone Distortion [KEYSTONE] When the projector is not exactly perpendicular to the screen, keystone distortion occurs.To overcome it, you can use the “Keystone” function, a digital technology that can adjust for keystone-type distortion, resulting in a crisp, square image. The following procedure explains how to use the [KEYSTONE] screen from the menu to correct trapezoidal distortions.
  • Page 35 2. Projecting an Image (Basic Operation) 4. Press the ▲ button to select [HORIZONTAL] and then use the ◀ or ▶ so that the top and bottom sides of the projected image are parallel. • Adjust the horizontal keystone distortion. 5.

  • Page 36: ❼ Optimizing Computer Signal Automatically

    2. Projecting an Image (Basic Operation) ❼ Optimizing Computer Signal Automatically Adjusting the Image Using Auto Adjust Optimizing a computer image automatically. (COMPUTER) Press the AUTO ADJ. button to optimize a computer image automatically. This adjustment may be necessary when you connect your computer for the first time. [Poor picture] [Normal picture] NOTE:...

  • Page 37: ❾ Turning Off The Projector

    2. Projecting an Image (Basic Operation) ❾ Turning off the Projector To turn off the projector: 1. First, press the (POWER) button on the projector cabinet or the STANDBY button on the remote control. The confirmation message will be displayed. •...

  • Page 38: ❿ When Moving The Projector

    2. Projecting an Image (Basic Operation) ❿ When Moving the Projector Preparation: Make sure that the projector is turned off. 1. If the separately sold cable cover is mounted, remove it. (→ page 122) 2. Unplug the power cord. 3. Disconnect any other cables. •...

  • Page 39: Convenient Features

    3. Convenient Features ❶ Turning off the Image and Sound Press the AV-MUTE button to turn off the image and sound for a short period of time. Press again to restore the image and sound. NOTE: • Even though the image is turned off, the menu still remains on the screen. ❷...

  • Page 40: ❸ Magnifying A Picture

    3. Convenient Features ❸ Magnifying a Picture You can enlarge the picture up to four times. NOTE: • The maximum magnification may be less than four times depending on the signal. To do so: 1. Press the D-ZOOM (+) button to magnify the picture. To move the magnified image, use the ▲,▼,◀...

  • Page 41: ❹ Changing Eco Mode/Checking Energy-Saving Effect

    3. Convenient Features ❹ Changing Eco Mode/Checking Energy-Saving Effect Using Eco Mode [ECO MODE] When the [LIGHT MODE]’s [ECO MODE] is set to [ECO1] or [ECO2], the brightness and the operating sound are reduced. Furthermore, the power consumption is decreased and the projector’s CO emissions are reduced.

  • Page 42: Checking Energy-Saving Effect [Carbon Meter]

    3. Convenient Features Checking Energy-Saving Effect [CARBON METER] This feature will show energy-saving effect in terms of CO emission reduction (kg) when the projector’s [ECO MODE] is set to [ECO1] or [ECO2]. This feature is called as [CARBON METER]. There are two messages: [TOTAL CARBON SAVINGS] and [CARBON SAVINGS-SESSION]. The [TOTAL CARBON SAVINGS] message shows the total amount of CO emission reduction from the time of shipment up to now.

  • Page 43: ❺ Preventing The Unauthorized Use Of The Projector [Security]

    3. Convenient Features ❺ Preventing the Unauthorized Use of the Projector [SECURITY] A keyword can be set for your projector using the Menu to avoid operation by an unauthorized user. When a keyword is set, turning on the projector will display the Keyword input screen. Unless the correct keyword is entered, the pro- jector cannot project an image.
  • Page 44 3. Convenient Features 7. Type in the same combination of ▲▼◀▶ buttons and press the ENTER button. The confirmation screen will be displayed. 8. Select [YES] and press the ENTER button. The SECURITY function has been enabled. To turn on the projector when [SECURITY] is enabled: 1.
  • Page 45 3. Convenient Features To disable the SECURITY function: 1. Press the MENU button. The menu will be displayed. 2. Select [SETUP] → [INSTALLATION] → [SECURITY] and press the ENTER button. The OFF/ON menu will be displayed. 3. Select [OFF] and press the ENTER button. The SECURITY KEYWORD screen will be displayed.

  • Page 46: ❻ Viewing 3D Images

    3. Convenient Features ❻ Viewing 3D Images The projector provides 3D images to a user wearing commercially available LCD shutter eyeglasses. CAUTION Health precautions Before viewing, be sure to read health care precautions that may be found in the user’s manual included with your LCD shutter eyeglasses or your 3D compatible content such as DVDs, video games, computer’s video files and the like.
  • Page 47 3. Convenient Features The [3D] menu will be displayed 4. Press the ▽ button to select a signal and press the ENTER button. The 3D (DETAIL SETTINGS) screen will be displayed. 5. Press the ▽ button to [GLASSES] and press the ENTER button. The [GLASSES] setting screen will be displayed.
  • Page 48 3. Convenient Features To view 3D images, see page 33. Select [HDMI1], [HDMI2], [COMPUTER], [VIDEO], or [HDBaseT]. NOTE: • The maximum distance for viewing 3D images is 10 m/394 inches from the screen surface under the following restrictions: - Brightness on the projector: 2000 lumens or greater - Screen gain: 1 - Viewing position: Facing straight towards the screen center - Outside light: None...

  • Page 49: Troubleshooting On Viewing 3D Images

    3. Convenient Features Troubleshooting on viewing 3D images If images will not be displayed in 3D or 3D images appear as 2D, check the following table. Also refer to the user’s manual accompanied with your 3D content or LCD shutter eyeglasses. Possible causes Solutions •...

  • Page 50: Using On-Screen Menu

    4. Using On-Screen Menu ❶ Using the Menus NOTE: The on-screen menu may not be displayed correctly while interlaced motion video image is projected. 1. Press the MENU button on the remote control or the projector cabinet to display the menu. NOTE: The commands such as ENTER, EXIT, ▲▼, ◀▶...

  • Page 51: Menu Elements

    4. Using On-Screen Menu Menu Elements Slide bar Solid triangle Available buttons Source Highlight Radio button Wireless symbol Menu mode ECO mode symbol Off Timer remaining time Thermometer symbol Key Lock symbol Menu windows or dialog boxes typically have the following elements: Highlight �����������������������������Indicates the selected menu or item�...

  • Page 52: ❷ List Of Menu Items

    4. Using On-Screen Menu ❷ List of Menu Items Some menu items are not available depending on the input source. The below listed menu items are on the advanced menu. The mark (B) is added to the items on the basic menu. Refer to pages about the APPS MENU.
  • Page 53 4. Using On-Screen Menu Menu Item Default Options SETUP MENU COLOR SELECT COLOR COLOR, MONOCHROME SOURCE DISPLAY OFF, ON ID DISPLAY OFF, ON DISPLAY TIME AUTO 45 SEC MANUAL, AUTO 5 SEC, AUTO 15 SEC, AUTO 45 SEC BACKGROUND BLUE BLUE, BLACK, LOGO 3D CAUTION MESSAGE OFF, ON...
  • Page 54 4. Using On-Screen Menu Menu Item Default Options INFO� USAGE TIME (B) LIGHT HOURS USED TOTAL CARBON SAVINGS SOURCE(1) (B) RESOLUTION HORIZONTAL FREQUENCY VERTICAL FREQUENCY SYNC TYPE SEPARATE SYNC, COMPOSITE SYNC, SYNC ON GREEN, SYNC ON VIDEO SYNC POLARITY SCAN TYPE INTERLACE, NON-INTERLACE SOURCE(2) (B) SIGNAL TYPE...

  • Page 55: ❸ Menu Descriptions & Functions [Source]

    4. Using On-Screen Menu ❸ Menu Descriptions & Functions [SOURCE] HDMI1 and HDMI2 Selects the HDMI compatible equipment connected to your HDMI 1 IN or HDMI 2 IN terminal. COMPUTER Selects the computer connected to your COMPUTER input terminal signal. NOTE: When the component input signal is connected to the COMPUTER IN terminal, select [COMPUTER].

  • Page 56: ❹ Menu Descriptions & Functions [Adjust]

    4. Using On-Screen Menu ❹ Menu Descriptions & Functions [ADJUST] [PICTURE] [PRESET] This function allows you to select optimized settings for your projected image. You can adjust neutral tint for yellow, cyan or magenta. There are eight factory presets optimized for various types of images. You can also use [DETAIL SETTINGS] to set user adjustable settings to customize each gamma or color.
  • Page 57 4. Using On-Screen Menu [DETAIL SETTINGS] Storing Your Customized Settings [REFERENCE] This function allows you to store your customized settings in [PRESET 1] to [PRESET 8]. First, select a base preset mode from [REFERENCE], then set [GAMMA CORRECTION] and [COLOR TEMPERATURE]. HIGH-BRIGHT ��������...
  • Page 58 4. Using On-Screen Menu [CONTRAST] Adjusts the intensity of the image according to the incoming signal. [BRIGHTNESS] Adjusts the brightness level or the back raster intensity. [SHARPNESS] Controls the detail of the image. [COLOR] Increases or decreases the color saturation level. [HUE] Varies the color level from +/−...

  • Page 59: [Image Options]

    4. Using On-Screen Menu [IMAGE OPTIONS] Adjusting Clock and Phase [CLOCK/PHASE] This allows you to manually adjust CLOCK and PHASE. CLOCK ������������������� Use this item to fine tune the computer image or to remove any vertical banding that might appear� This function adjusts the clock frequencies that eliminate the horizontal banding in the image�...
  • Page 60 4. Using On-Screen Menu Adjusting Horizontal/Vertical Position [HORIZONTAL/VERTICAL] Adjusts the image location horizontally and vertically. - An image can be distorted during the adjustment of [CLOCK] and [PHASE]. This is not malfunction. - The adjustments for [CLOCK], [PHASE], [HORIZONTAL], and [VERTICAL] will be stored in memory for the current signal.
  • Page 61 4. Using On-Screen Menu Selecting Aspect Ratio [ASPECT RATIO] The term “aspect ratio” refers to the ratio of width to height of a projected image. The projector automatically determines the incoming signal and displays it in its appropriate aspect ratio. •...
  • Page 62 [Computer signal] Aspect ratio of incoming signal 16:9 15:9 16:10 6650HDSSA Sample image when the appropriate aspect ratio is 6650WSSA automatically determined [Video signal] Aspect ratio of incoming signal Letterbox Squeeze Sample image when the aspect ratio is automatically determined...

  • Page 63: ❺ Menu Descriptions & Functions [Setup]

    4. Using On-Screen Menu ❺ Menu Descriptions & Functions [SETUP] [GENERAL] Correcting Keystone Distortion Manually [KEYSTONE] You can correct horizontal or vertical keystone manually. [HORIZONTAL] and [VERTICAL] (simultaneously adjustable) correction can be selected. NOTE: • Some items are not available when one item is activated. Unavailable items are shown in grey. •...
  • Page 64 4. Using On-Screen Menu Using the Wall Color Correction [WALL COLOR] This function allows for quick adaptive color correction in applications where the screen material is not white. [LIGHT MODE] Adjusting the energy savings settings and the brightness of each projector in multi-screen projection. For energy sav- ings settings, see page “4 Changing Eco Mode/Checking Energy-Saving Effect”.
  • Page 65 4. Using On-Screen Menu Setting Closed Caption [CLOSED CAPTION] This option sets several closed caption modes that allow text to be superimposed on the projected image of Video or S-Video. OFF ������������������������ This exits the closed caption mode� CAPTION 1-4 ��������� Text is superimposed� TEXT 1-4 ����������������...

  • Page 66: [Menu]

    4. Using On-Screen Menu [MENU] Selecting Menu Color [COLOR SELECT] You can choose between two options for menu color: COLOR and MONOCHROME. Turning On / Off Source Display [SOURCE DISPLAY] This option turns on or off input name display such as HDMI1, HDMI2, COMPUTER, VIDEO, HDBaseT, APPS, to be displayed on the top right of the screen.

  • Page 67: [Installation]

    4. Using On-Screen Menu [INSTALLATION] Selecting Projector Orientation [ORIENTATION] This reorients your image for your type of projection. The options are: desktop front projection, ceiling rear projection, desktop rear projection, and ceiling front projection. AUTO When the light module is turned ON, the inner sensor of the projector detects its installation state either DESK FRONT or CEILING FRONT and then switch its projection method DESKTOP FRONT CEILING REAR...
  • Page 68 4. Using On-Screen Menu Enabling Security [SECURITY] This feature turns on or off the SECURITY function. Unless the correct keyword is entered, the projector cannot project an image. (→ page 30) NOTE: Your setting will not be affected even when [RESET] is done from the menu. Selecting Communication Speed [COMMUNICATION SPEED] This feature sets the baud rate of the PC Control port (D-Sub 9P).
  • Page 69 4. Using On-Screen Menu Setting ID to the Projector [CONTROL ID] You can operate multiple projectors separately and independently with the single remote control that has the CONTROL ID function. If you assign the same ID to all the projectors, you can conveniently operate all the projectors together using the single remote control.
  • Page 70 4. Using On-Screen Menu Using Test Pattern [TEST PATTERN] Displays the test pattern for adjusting distortion on the screen and the focus at the time of the projector setup. Once the [TEST PATTERN] on the onscreen menu is selected, the pattern for adjustment will be displayed on. If you find distortion on the pattern, adjust the projector installation angle or correct distortion by pressing the KEYSTONE button on the remote.

  • Page 71: [Options(1)]

    4. Using On-Screen Menu [OPTIONS(1)] Selecting Fan Mode [FAN MODE] Fan Mode is used to set the speed of the internal cooling fan. AUTO ��������������������� The built-in fans automatically run at a variable speed according to the internal temperature� HIGH ���������������������� The built-in fans run at a high speed� Select this option when using the projector at altitudes approximately 5500 feet/1700 meters or higher�...
  • Page 72 4. Using On-Screen Menu Setting HDMI1, HDMI2, or HDBaseT [HDMI SETTINGS] Make the settings for each video level when connecting HDMI equipment and Ethernet/HDBaseT terminal. VIDEO LEVEL ��������� Select [AUTO] to automatically detect video level� If automatic detection may not work well, select [NOR- MAL] to disable the [ENHANCED] feature of your HDMI equipment or select [ENHANCED] to improve image contrast and increase detail in the dark areas�...

  • Page 73: [Options(2)]

    4. Using On-Screen Menu [OPTIONS(2)] Selecting Power-saving in [STANDBY MODE] The projector has two standby modes: [NORMAL] and [NETWORK STANDBY]. The NORMAL mode is the mode that allows you to put the projector in the power-saving condition which consumes less power than the NETWORK STANDBY mode. NORMAL �����������������������POWER indicator: Red light/STATUS indicator: Off When [NORMAL] is selected, only the following buttons and feature will work: POWER button on the projector cabinet and the remote control, powering on from PC Control com-...
  • Page 74 4. Using On-Screen Menu Turning On the Projector By Applying Computer Signal [AUTO POWER ON] When the projector is in Standby mode, applying a computer or HDMI signal from a computer connected to the COM- PUTER IN input, HDMI1, or HDMI2 input will power on the projector and simultaneously project the image. This functionality eliminates the need to always use the POWER button on the remote control or the projector cabinet to power on the projector.
  • Page 75 4. Using On-Screen Menu Selecting Default Source [DEFAULT SOURCE SELECT] You can set the projector to default to any one of its inputs each time the projector is turned on. LAST ���������������������� Sets the projector to default to the previous or last active input each time the projector is turned on� AUTO ���������������������...

  • Page 76: [3D]

    4. Using On-Screen Menu [3D] Selecting input connected to a source of 3D images [HDMI1/HDMI2/COMPUTER/VIDEO/HDBaseT] [3D] This function switches the 3D mode between ON and OFF for each input. ON ������������������������� Turns on the 3D mode for the selected input� NOTE: To confirm that the supported 3D signal is accepted, use either way of the following: •...
  • Page 77 4. Using On-Screen Menu [L/R INVERT] Change the setting if you have difficulty seeing 3D images. NON-INVERT ��������� Normal setting� INVERT ������������������ Changes the order of displaying the images for left eye and right eye� NOTE: • When [L/R INVERT] cannot be operated, the [L/R INVERT] screen will not be displayed even when the remote control’s video button is pressed.

  • Page 78: ❻ Menu Descriptions & Functions [Info.]

    4. Using On-Screen Menu ❻ Menu Descriptions & Functions [INFO.] Displays the status of the current signal and light module usage. This item has nine pages. The information included is as follows: TIP: Pressing the HELP button on the remote control will show the [INFO.] menu items. [USAGE TIME] [LIGHT HOURS USED] (H) [TOTAL CARBON SAVINGS] (kg-CO2)

  • Page 79: ❼ Menu Descriptions & Functions [Reset]

    4. Using On-Screen Menu ❼ Menu Descriptions & Functions [RESET] Returning to Factory Default [RESET] The RESET feature allows you to change adjustments and settings to the factory preset for a (all) source (s) except the following: [CURRENT SIGNAL] Resets the adjustments for the current signal to the factory preset levels. The items that can be reset are: [PRESET], [CONTRAST], [BRIGHTNESS], [COLOR], [HUE], [SHARPNESS], [AS- PECT RATIO], [HORIZONTAL], [VERTICAL], [CLOCK], [PHASE], and [OVERSCAN].

  • Page 80: Installation And Connections

    5. Installation and Connections ❶ Setting Up the Screen and the Projector Use this to get a general idea of what the screen size will be when set in a certain position, what size screen you will need, and what distance you will need to project images of the desired size. The projection distance range at which focusing is possible is 0.79 m (for a 30 model) to 14.19 m (for a 300 model).
  • Page 81 5. Installation and Connections [6650WSSA] (inch) When zoom lever turned to wide When zoom lever turned to telescopic [Projection distance] With tilt feet tilted 4° when set to wide When zoom lever turned to wide When zoom lever turned to telescopic...

  • Page 82: Tables Of Screen Sizes And Dimensions

    132.8 74.7 177.1 99.6 221.4 124.5 265.7 149.4 Screen width 332.1 186.8 442.8 249.1 553.4 311.3 664.1 373.6 [6650WSSA] Size (inches) Screen width Screen height (cm) (cm) 64.6 40.4 Screen size 86.2 53.8 Screen height (diagonal) 107.7 67.3 129.2 80.8 172.3...

  • Page 83: Example Of Installation On A Desktop

    −124.5 – +28.9 6.87 11.82 −155.7 – +36.2 8.25 14.19 −186.8 – +43.4 [6650WSSA] Screen surface Lens center Lower edge of screen with 59.0% V Measurement +H Measurement -H Approximately 92 to 97 mm Lower edge of screen with 0% V...

  • Page 84: Lens Shifting Range

    Horizontal direction: ±25% 25%H 25%H Width of projected image 62%V 100%V Height of projected image 100%H 25%H 25%H [6650WSSA] Lens shifting range: Vertical direction: +59%, −0% Horizontal direction: ±28% 28%H 28%H Width of projected image 59%V 100%V Height of projected image...
  • Page 85 Adjustment range in the horizontal direction: the projected image can be moved to the left 0.25 × 130.8"/332.1 cm ≈ 32.7"/83 cm, to the right approximately 32.7"/83 cm. [6650WSSA] According to the “Table of screen sizes and dimensions” (→ page 70), H = 127.3"/323.1 cm, V = 79.5"/201.9 cm.

  • Page 86: ❷ Making Connections

    5. Installation and Connections ❷ Making Connections Connecting Your Computer Computer cables and HDMI can be used to connect to a computer. The HDMI cable is not enclosed with the projector. Please get ready a suitable cable for the connection. NOTE: Signals supported by Plug &...
  • Page 87 5. Installation and Connections NOTE: The projector is not compatible with video decoded outputs of the NEC ISS-6020 switcher. NOTE: An image may not be displayed correctly when a Video source is played back via a commercially available scan converter. This is because the projector will process a video signal as a computer signal at the default setting.

  • Page 88: Connecting An External Monitor

    5. Installation and Connections Connecting an External Monitor You can connect a separate, external monitor to your projector to simultaneously view on a monitor the computer analog image you’re projecting. AUDIO OUT MONITOR OUT (COMP.) Stereo mini-plug audio cable (not supplied) Stereo mini-plug audio cable (not supplied) Computer cable (VGA) (not supplied)

  • Page 89: Connecting Your Dvd Player Or Other Av Equipment

    5. Installation and Connections Connecting Your DVD Player or Other AV Equipment Connecting Video Input VIDEO IN AUDIO IN Audio cable (not supplied) Video cable (not supplied) Audio equipment Audio cable (not supplied) • Select the source name for its appropriate input terminal after turning on the projector. SOURCE button on the projector Input terminal Button on the remote control...

  • Page 90: Connecting Component Input

    5. Installation and Connections Connecting Component Input Connection for component signal. Signal from the color difference signal output terminal on DVD players (DVD video output) and the YPbPr output terminal on the Hi-vision video can be projected. Recommend to connect the terminal for audio output on the DVD player to the audio components.

  • Page 91: Connecting Hdmi Input

    5. Installation and Connections Connecting HDMI Input You can connect the HDMI output of your DVD player, hard disk player, Blu-ray player, or notebook type PC to the HDMI IN terminal of your projector. HDMI 1 IN HDMI 2 IN HDMI cable (not supplied) Use High Speed HDMI Cable.

  • Page 92: Connecting Your Document Camera

    5. Installation and Connections Connecting your document camera You can connect your document camera and project printed documents, etc. COMPUTER IN VIDEO IN Name, position, and direction of terminals are vary depending on camera model. Please check user's manual of your camera for details. Computer cable (VGA) (supplied) Video cable (not supplied)

  • Page 93: Connecting To A Wired Lan

    5. Installation and Connections Connecting to a Wired LAN The projector comes standard with the Ethernet/HDBaseT port (RJ-45) and the LAN port which provide a LAN con- nection using a LAN cable. To use a LAN connection, you are required to set the wired LAN settings on the projector menu. Select [SETUP] → [INSTALLATION] →...

  • Page 94: Connecting To A Wireless Lan (Optional: Np05Lm Series)

    5. Installation and Connections Connecting to a Wireless LAN (Optional: NP05LM series) The USB Wireless LAN Unit also provides a wireless LAN connection. To use a wireless LAN connection, you are required to assign an IP address to the projector. Important: •...
  • Page 95 5. Installation and Connections 3. Insert the wireless LAN unit into the USB (wireless LAN) port with the side containing the indicator facing up. • Slowly slide the wireless LAN unit left and right, up and down, checking the insertion slot as you push the unit in. NOTE: Do not force to insert the USB Wireless LAN Unit.
  • Page 96 5. Installation and Connections Example of wireless LAN connection To use a LAN connection, you are required to set the Wireless LAN settings on the projector menu. Select [SETUP] → [INSTALLATION] → [NETWORK SETTINGS]. (→ page 57). The network settings can also be selected from the APPS menu. PC with wireless LAN card PC with built-in wireless inserted...

  • Page 97: Connecting To A Hdbaset Transmission Device (Sold Commercially)

    5. Installation and Connections Connecting to a HDBaseT transmission device (sold commercially) HDBaseT is a connection standard for home appliances that is established by the HDBaseT Alliance. Use a LAN cable sold commercially to connect the Ethernet / HDBaseT port of the projector (RJ-45) to a HDBaseT transmission device sold commercially.
  • Page 98 5. Installation and Connections NOTE: • Please use a shielded twisted pair (STP) cable of Category 5e or higher for the LAN cable (sold commercially). • The maximum transmission distance over the LAN cable is 100 m. • Please do not use other transmission equipment between the projector and transmission equipment. The picture quality may be deteriorated as a result.

  • Page 99: Portrait Projection (Vertical Orientation)

    5. Installation and Connections Portrait projection (vertical orientation) Portrait screens from a computer can be projected by installing the projec- tor in a vertical orientation. All the screens such as the on-screen menu will be rotated in an counter-clockwise direction. The projector is equipped with a sensor to automatically detect the instal- lation state.
  • Page 100 5. Installation and Connections Design and manufacturing conditions for the stand Please engage an installation service provider for the design and manufacture of the customized stand to be used for portrait projection. Please ensure that the following are complied with when designing the stand. 1.

  • Page 101: Apps Menu

    6. APPS MENU ❶ What can you do with the APPS MENU? It becomes available to select the expansion functions indicated in below and various setting with the APPS MENU. For displaying the APPS MENU, press the APPS button on the remote or select [APPS] as the [SOURCE] on the onscreen menu.
  • Page 102 6. APPS MENU VIEWER This is used to select a saved image or video and project it from the projector. The three types below can be used. (1) Projector Memory: Images and videos temporarily saved in the projector’s internal memory. (2) USB Memory: Images and videos saved in the USB memory connected with the projector.
  • Page 103 6. APPS MENU WEB SERVER FUNCTION WEB SHARING Without using the exclusive software, it enables to share images and files among the projector and computers in the same network by accessing the web server of the projector utilizing the web browser. Sharing files MultiPresenter It enables to control displaying position of the images that are simultaneously transferred from each terminal utilizing...
  • Page 104 6. APPS MENU TOOLS Set up for various features as the mouse, program timer, day and time, administrator mode and default APP. MOUSE A commercially available USB mouse can be used for operating the APPS MENU. Perform the set up for using it. PROGRAM TIMER Once day and time is set up, changing the projector’s condition in powering ON/standby, switching input signals, and switching ECO mode can be automatically performed.

  • Page 105: User Supportware

    7. User Supportware ❶ The five utility software is available for download Names and Features of Bundled Software Programs Name of software program Features Image Express Utility Lite • This is a software program used to project your computer’s screen over the Image Express Utility Lite for wired/wireless network.

  • Page 106: ❷ Projecting Your Computer's Screen Image From The Projector Over A Lan

    7. User Supportware ❷ Projecting Your Computer’s Screen Image from the Projector over a LAN (Image Express Utility Lite) Using Image Express Utility Lite allows you to send the computer’s screen image to the projector over a wired or wireless LAN. Image Express Utility Lite is a program compatible with Windows.
  • Page 107 If the message “There is not enough free space on destination” is displayed, free up enough space (about 100 MB) to install the program. 1. To obtain links for the software go to the Dukane product website and look at the projector model downloads.
  • Page 108 7. User Supportware Step 2: Connect the projector to a LAN. Connect the projector to the LAN by following the instructions in “Connecting to a Wired LAN” (→ page 80) and “Con- necting to a Wireless LAN (Optional: NP05LM series)” (→ page 81). Step 3: Start Image Express Utility Lite.

  • Page 109: Starting Image Express Utility Lite From A Usb Memory Or Sd Card

    7. User Supportware TIP: Viewing the “Help” file of Image Express Utility Lite • Displaying the Help file of Image Express Utility Lite while it is running. Click the [?] (help) icon on the control window. The Help screen will be displayed. •...
  • Page 110 Using on Mac Step 1: Install Image Express Utility Lite for Mac on the computer 1. To obtain links for the software go to the Dukane product website and look at the projector model downloads. Step 2: Connect the projector to a LAN Connect the projector to the LAN by following the instructions in “Connecting to a Wired LAN”...

  • Page 111: ❸ Projecting An Image From An Angle

    7. User Supportware ❸ Projecting an Image from an Angle (Geometric Correction Tool in Image Express Utility Lite) The Geometric Correction Tool (GCT) function allows you to correct distortion of images projected even from an angle. What you can do with GCT •...
  • Page 112 7. User Supportware 4. Click the “ ”(Projection) icon and then the “ ”(Exit) button. 5. Click “Yes”. 6. Start the Image Express Utility Lite again. 7. Click the “ ” (Picture) icon and then the “ ” button. The “4-point Correction” window will be displayed. 8.
  • Page 113 7. User Supportware 10.Drag the selected [ • ] mark to the point you wish to correct and drop it. • When you click somewhere within the project image area, the nearest [ • ] mark will go to the position where the mouse cur- sor is.

  • Page 114: ❹ Controlling The Projector Over A Lan (Pc Control Utility Pro 4/Pro 5)

    Using the utility software “PC Control Utility Pro 4” and “PC Control Utility Pro 5” from the links on the product website for the Dukane projector, the projector can be controlled from a computer over a LAN. PC Control Utility Pro 4 is a program compatible with Windows. (→ this page) PC Control Utility Pro 5 is a program compatible with Mac OS.
  • Page 115 7. User Supportware Note: These Dukane projectors operate with the NEC software. The PC Control Utility programs are also available from the NEC website. The menu window will be displayed. 2 Click “PC Control Utility Pro 4” on the menu window.
  • Page 116 7. User Supportware Step 2: Connect the projector to a LAN. Connect the projector to the LAN by following the instructions in “Connecting to a Wired LAN” (→ page 80) and “Con- necting to a Wireless LAN (Optional: NP05LM series)” (→ page 81). Step 3: Start PC Control Utility Pro 4 Click “Start”...
  • Page 117 Using on Mac Step 1: Install PC Control Utility Pro 5 on the computer 1. To obtain links for the software go to the Dukane product website and look at the projector model downloads. 3. Double-click the “Mac OS X” folder.
  • Page 118 7. User Supportware TIP: Uninstalling a software program 1. Put the “PC Control Utility Pro 5” folder to the Trash icon. 2. Put the configuration file of PC Control Utility Pro 5 to the Trash icon. • The configuration file of PC Control Utility Pro 5 is located in “/Users/<your user name>/Application Data/NEC Projector User Supportware/PC Control Utility Pro 5”.

  • Page 119: ❺ Using The Computer Cable (Vga) To Operate The Projector (Virtual Remote Tool)

    7. User Supportware ❺ Using the Computer Cable (VGA) to Operate the Projector (Virtual Remote Tool) Using the utility software “Virtual Remote Tool”, Virtual Remote screen (or toolbar) can be displayed on your computer screen. This will help you perform operations such as projector’s power on or off and signal selection via the computer cable (VGA), serial cable, or LAN connection.
  • Page 120 • Exit all running programs before installing Virtual Remote Tool. If another program is running, the installation may not be com- pleted. 1 To obtain links for the software go to the Dukane product website and look at the projector model downloads.
  • Page 121 7. User Supportware 2 Click “Install Virtual Remote Tool” on the menu window. The installation will start. When the installation is complete, the Welcome window will be displayed. 3 Click “Next”. “END USER LICENSE AGREEMENT” screen will be displayed. Read “END USER LICENSE AGREEMENT” carefully. 4 If you agree, click “I accept the terms in the license agreement”...
  • Page 122 7. User Supportware TIP: Uninstalling Virtual Remote Tool Preparation: Exit Virtual Remote Tool before uninstalling. To uninstall Virtual Remote Tool, the Windows user account must have “Administrator” privilege (Windows 8.1, Windows 8, Windows 7 and Windows Vista) or “Computer Administrator” privilege (Windows XP).
  • Page 123 7. User Supportware Step 3: Start Virtual Remote Tool Start using the shortcut icon • Double-click the shortcut icon on the Windows Desktop. Start from the Start menu • Click [Start] → [All Programs] or [Programs] → [NEC Projector User Supportware] → [Virtual Remote Tool] →...
  • Page 124 7. User Supportware Exiting Virtual Remote Tool 1 Click the Virtual Remote Tool icon on the Taskbar. The pop-up menu will be displayed. 2 Click “Exit”. The Virtual Remote Tool will be closed. Viewing the help file of Virtual Remote Tool •...

  • Page 125: ❻ Introduction Of Multipresenter Application

    7. User Supportware ❻ Introduction of MultiPresenter application This projector is compatible with the NEC MultiPresenter application (hereafter referred to simply as “MultiPresenter”). • MultiPresenter is compatible with multiple OSes (Windows, OS X, Android and iOS), so it can be started up on multiple computers or smartphones, images and documents* can be transferred over the network (wired LAN/ wire- less LAN) and multi-screen projection can be performed from this projector.

  • Page 126: Maintenance

    8. Maintenance ❶ Cleaning the Lens • Turn off the projector before cleaning. • The projector has a plastic lens. Use a commercially available plastic lens cleaner. • Do not scratch or mar the lens surface as a plastic lens is easily scratched. •...

  • Page 127: ❷ Cleaning The Cabinet

    8. Maintenance ❷ Cleaning the Cabinet Turn off the projector, and unplug the projector before cleaning. • Use a dry soft cloth to wipe dust off the cabinet. If heavily soiled, use a mild detergent. • Never use strong detergents or solvents such as alcohol or thinner. •...

  • Page 128: Appendix

    9. Appendix ❶ Troubleshooting This section helps you resolve problems you may encounter while setting up or using the projector. Indicator Messages POWER Indicator Indicator Condition Projector Condition Note The main power is off – Blinking Blue 0�5 sec On, The projector is getting ready to turn on�...
  • Page 129 9. Appendix Over-Temperature Protection If the projector inside temperature gets too high, the light modules will be turned off automatically and the status indicator will start to blink (2-cycle On and OFF). Should this happen, do the following: • Unplug the power cord after the cooling fans stop. •...

  • Page 130: Common Problems & Solutions

    9. Appendix Common Problems & Solutions (→ “POWER/STATUS/LIGHT Indicator” on page 115.) Problem Check These Items Does not turn on • Check that the power cord is plugged in and that the power button on the projector cabinet or the remote or shut down control is on�...

  • Page 131: If There Is No Picture, Or The Picture Is Not Displayed Correctly

    9. Appendix Problem Check These Items Remote control does • Install new batteries.(→ page 9) not work • Make sure there are no obstacles between you and the projector. • Stand within 22 feet (7 m) of the projector. (→ page 9) •...

  • Page 132: ❷ Specifications

    9. Appendix ❷ Specifications This section provides technical information about projector’s performance. 6650WSSA 2 Model name Method 1 Chip DLP type Specifications of main parts DMD panel Size 0.65" (aspect ratio: 16:9) 0.65" (aspect ratio: 16:10) Pixels 2,073,600 (1920 dots × 1080 lines) 1,024,000 (1280 dots ×...
  • Page 133 9. Appendix Model name 6650HDSSA 6650WSSA Usage environment Operating temperature: 5 to 40°C (*5) Operating humidity: 20 to 80% (with no condensation) Storage temperature: −10 to 50°C (*5) Storage humidity: 20 to 80% (with no condensation) Operating altitude: 0 to 2600 m/8500 feet (Set [FAN MODE] to [HIGH] when using the projector at altitudes approximately 5500 feet/1700 meters or higher.)

  • Page 134: ❸ Cabinet Dimensions

    9. Appendix ❸ Cabinet Dimensions Unit: mm (inch) 469 (18.5) 94 (3.7) Lens center 250 (9.8)

  • Page 135: ❹ Attaching The Optional Cable Cover (Np08Cv)

    9. Appendix ❹ Attaching the Optional Cable Cover (NP08CV) After finishing connections, attach the supplied cable cover to properly hide the cables. CAUTION: • Be sure to tighten the screws after attaching the cable cover. Failure to do so may cause the cable cover to come off and fall, resulting in injury or damage to the cable cover.

  • Page 136: Removing The Cable Cover

    9. Appendix Removing the cable cover 1. Loosen the cable cover screws until the Phillips screw- driver goes into a freewheeling condition. • When suspended from the ceiling, hold so that the cable cover does not drop. • The screws cannot be removed. 2.

  • Page 137: ❺ Pin Assignments And Signal Names Of Main Terminals

    9. Appendix ❺ Pin assignments and signal names of main terminals COMPUTER IN Terminal (Mini D-Sub 15 Pin) Connection and signal level of each pin Pin No. RGB Signal (Analog) YCbCr Signal 11 12 13 14 15 Green or Sync on Green Blue Ground Ground...
  • Page 138 9. Appendix Ethernet/HDBaseT/LAN Port (RJ-45) Pin No. Signal TxD+/HDBT0+ 1 2 3 4 5 6 7 8 TxD−/HDBT0− RxD+/HDBT1+ Disconnection/HDBT2+ Disconnection/HDBT2− RxD−/HDBT1− Disconnection/HDBT3+ Disconnection/HDBT3− USB Port (Type A) Pin No. Signal D− Grounding PC CONTROL Port (D-Sub 9 Pin) Pin No. Signal Unused RxD reception data...

  • Page 139: ❻ Compatible Input Signal List

    1280 × 16:9 50/59.94/60 SECAM *1 Native resolution on WXGA model (6650WSSA) *3 WXGA MODE: OFF *2 The projector may fail to display these signals correctly when [AUTO] *4 Native resolution on 1080p model (6650HDSSA) is selected for [ASPECT RATIO] in the on-screen menu.

  • Page 140: ❼ Pc Control Codes And Cable Connection

    9. Appendix ❼ PC Control Codes and Cable Connection PC Control Codes Function Code Data POWER ON POWER OFF INPUT SELECT COMPUTER INPUT SELECT HDMI1 INPUT SELECT HDMI2 INPUT SELECT VIDEO INPUT SELECT APPS INPUT SELECT HDBaseT PICTURE MUTE ON PICTURE MUTE OFF SOUND MUTE ON SOUND MUTE OFF...

  • Page 141: ❽ Update The Software

    9. Appendix ❽ Update the Software Using the web browser on a computer, download the updated software for the projector from our web site and install it on the projector by the wired LAN connection. NOTE: • The exclusive web browser enables to update the software is Internet Explorer 11. •...
  • Page 142 When the software update is not completed properly even if you tried to update several times, please consult your dealer. Note: The Dukane models described in this document are manufactured by NEC and use the same firmware, software programs, control code, and accessory parts. The equivalent Dukane to NEC models are 6650WSSA (NP-P502WL-2 ) and 6650HDSSA ( NP-P502HL-2).

  • Page 143: ❾ Troubleshooting Check List

    9. Appendix ❾ Troubleshooting Check List Before contacting your dealer or service personnel, check the following list to be sure repairs are needed also by referring to the “Troubleshooting” section in your user’s manual. This checklist below will help us solve your problem more efficiently.
  • Page 144 9. Appendix In the space below please describe your problem in detail. Information on application and environment where your projector is used Projector Installation environment Model number: Screen size: inch Serial No�: Screen type: □ White matte □ Beads □ Polarization □...

  • Page 145: ❿ Tco Certification

    9. Appendix ❿ TCO Certification Some models in this product family are TCO certified. All TCO certified models have the TCO mark on the marking plate (on the bottom of the product). To see a list of our TCO certified projectors and their TCO Certification (in English only), visit our website at: http://www.dukaneav.com.

  • Page 146: ⓫ Register Your Projector

    9. Appendix ⓫ REGISTER YOUR PROJECTOR! Please take time to register your new projector. This will insure an active warranty and your Peace of Mind program. DUKANE CORP AV SERVICE DEPT 2900 Dukane Drive St Charles, IL 60174 800-676-2487 / 630-762-4032 Fax 630-584-5156 avservice@dukane.com...
  • Page 147 DUKANE CORP AV SERVICE DEPT 2900 Dukane Drive St Charles, IL 60174 800-676-2487 / 630-762-4032 Fax 630-584-5156 avservice@dukane.com www.dukaneav.com 6650WSSA_6650HDSSA_User Manual_v00...

This manual is also suitable for:

6650hdssa

Table of Contents
