68100-4KSS Installation Guide
PX1005QL Installation Guide
Desktop and Ceiling Mount
Desktop and Ceiling Mount
Contents
Product Description, Lens Specs, Screen/Aspect Ratio
Notes
Distance Charts and Formulas
Ceiling Mount/Desktop Installation
Lens Shift Adjustable Range
Cabinet Dimensions
Cabinet Dimensions
Optional Lens Dimensions
Ventilation Requirements/Portrait Requirements
Regulatory Labels
Input Panel and Button Panel
Control Codes

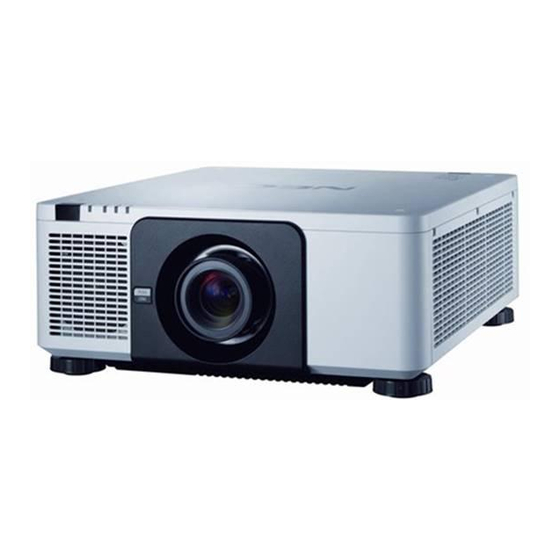

Product Description

Type: 1 chip DMD Reflection Type
0.66 in. TRP DMD
DMD Resolution: 2716 x 1528 (16:9)
Output Resolution: 3840 x 2160 (16:9)
Fan Noise: 43 dB / 39dB @ 1 meter
Power Consumption: 1220W (max)
Network Ready, RJ45
Powered: Lens Shift, Horizontal & Vertical /Zoom/ Focus

Lens Specifications

NP39ML-4K: Throw Ratio: ~ 0.38:1
Screen Sizes: 85"-350"
NP16FL-4K: Throw Ratio: ~ 0.76:1
Screen Sizes: 50"-300"
NP17ZL-4K: Throw Ratio: 1.24 - 1.78:1 Focal Length: 18.7 – 26.5mm
Screen Sizes: 50"-300"
NP18ZL-4K: Throw Ratio: 1.71 – 2.25:1 Focal Length: 26.0 – 34.0mm
Screen Sizes: 50-300"
Screen/Aspect Ratio
4:3, 16:9 and 16:10 screens are fully supported with proper aspect ratio control for both type sources using developed scaling
technology. Menu selections have settings for each screen type and aspect ratio control for each source type.
Notes
For screen sizes not indicated on the projection tables, use the formulas below.

If the figures on the tables do not match the results of formulas, use the figures in the table.
Distances are in inches, for millimeters multiply by 25.4.


Distances may vary 5%.
www.dukaneav.com
www.necdisplay.com
Focal Length: 11.4mm
F/#: 1.85
Focal Length: 11.6mm
F/#: 1.85
F/#: 1.85
F/#: 1.70-1.90
DUKANE CORP AV SERVICE DEPT
2900 Dukane Drive
St Charles, IL 60174
800-676-2487 / 630-762-4032
Fax 630-584-5156
avservice@dukane.com
www.dukaneav.com
68100-4KSS_Installation _Guide-00
NEC Display Solutions of America, Inc.
Pg 1
Pg 2-3
Pg 4
Pg 5
Pg 6
Pg 7
Pg 8
Pg 9
Pg 10
Pg 11
Pg 12
Dimensions: 19.7" (W) x 8.49" (H) x 23.0" (D)
Weight: 63.9 lbs. / 29.0kg
Brightness: 10,000 Lumens
BTU's:
NP19ZL-4K: Throw Ratio: 2.20 -3.67:1
Screen Sizes: 50-300"
NP20ZL-4K: Throw Ratio: 3.54 – 5.36:1
Screen Sizes: 50-300"
NP21ZL-4K: Throw Ratio: 5.25 – 8.28:1
Screen Sizes: 50-300"
NP31ZL-4K: Throw Ratio: 0.74 – 0.93:1
Screen Sizes: 50-300"
PX1005QL
Dukane AV Division
4163 BTU/hour
Focal Length: 32.9 – 54.2mm
F/#: 1.86 – 2.48
Focal Length: 52.8 – 79.1mm
F/#: 1.85-2.41
Focal Length: 78.5 -121.9mm
F/#: 1.85-2.48
Focal Length: 11.3 -14.1mm
F/#: 1.96-2.3
