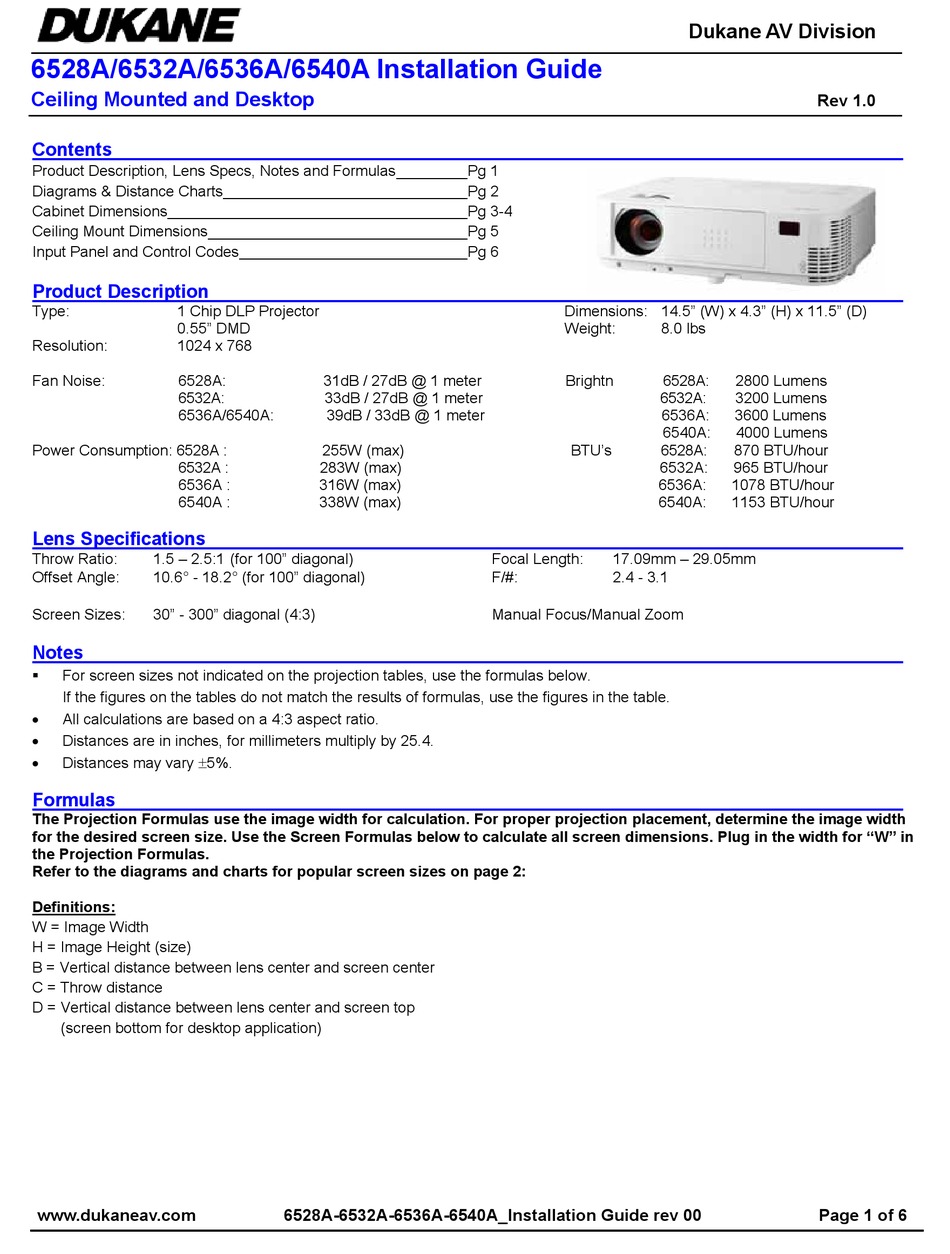

6528A/6532A/6536A/6540A Installation Guide
M283X/M323X/M363X/M403X Installation Guide
Ceiling Mounted and Desktop
Ceiling Mounted and Desktop
Contents
Product Description, Lens Specs, Notes and Formulas
Diagrams & Distance Charts
Cabinet Dimensions
Ceiling Mount Dimensions
Input Panel and Control Codes

Product Description

Type: 1 Chip DLP Projector
0.55" DMD
Resolution: 1024 x 768
Fan Noise: 6528A:
6532A:
6536A/6540A:
Power Consumption: 6528A :
6532A :
6536A :
6540A :

Lens Specifications

Throw Ratio: 1.5 – 2.5:1 (for 100" diagonal)
Offset Angle: 10.6° - 18.2° (for 100" diagonal)
Screen Sizes: 30" - 300" diagonal (4:3)
Notes
For screen sizes not indicated on the projection tables, use the formulas below.

If the figures on the tables do not match the results of formulas, use the figures in the table.
 All calculations are based on a 4:3 aspect ratio.
 Distances are in inches, for millimeters multiply by 25.4.
 Distances may vary 5%.
Formulas
The Projection Formulas use the image width for calculation. For proper projection placement, determine the image width
for the desired screen size. Use the Screen Formulas below to calculate all screen dimensions. Plug in the width for "W" in
the Projection Formulas.
Refer to the diagrams and charts for popular screen sizes on page 2:
Definitions:
W = Image Width
H = Image Height (size)
B = Vertical distance between lens center and screen center
C = Throw distance
D = Vertical distance between lens center and screen top
(screen bottom for desktop application)
www.necdisplay.com
www.dukaneav.com
31dB / 27dB @ 1 meter
33dB / 27dB @ 1 meter
39dB / 33dB @ 1 meter
255W (max)
283W (max)
316W (max)
338W (max)
1
6528A-6532A-6536A-6540A_Installation Guide rev 00
NEC Display Solutions of America, Inc.
Pg 1
Pg 2
Pg 3-4
Pg 5
Pg 6
Dimensions: 14.5" (W) x 4.3" (H) x 11.5" (D)
Weight:
Brightn
BTU's
Focal Length: 17.09mm – 29.05mm
F/#: 2.4 - 3.1
Manual Focus/Manual Zoom
M283X, M323X, M362X, M403X
Dukane AV Division
Rev 1.0
8.0 lbs
6528A: 2800 Lumens
6532A: 3200 Lumens
6536A: 3600 Lumens
6540A: 4000 Lumens
6528A: 870 BTU/hour
6532A: 965 BTU/hour
6536A: 1078 BTU/hour
6540A: 1153 BTU/hour
