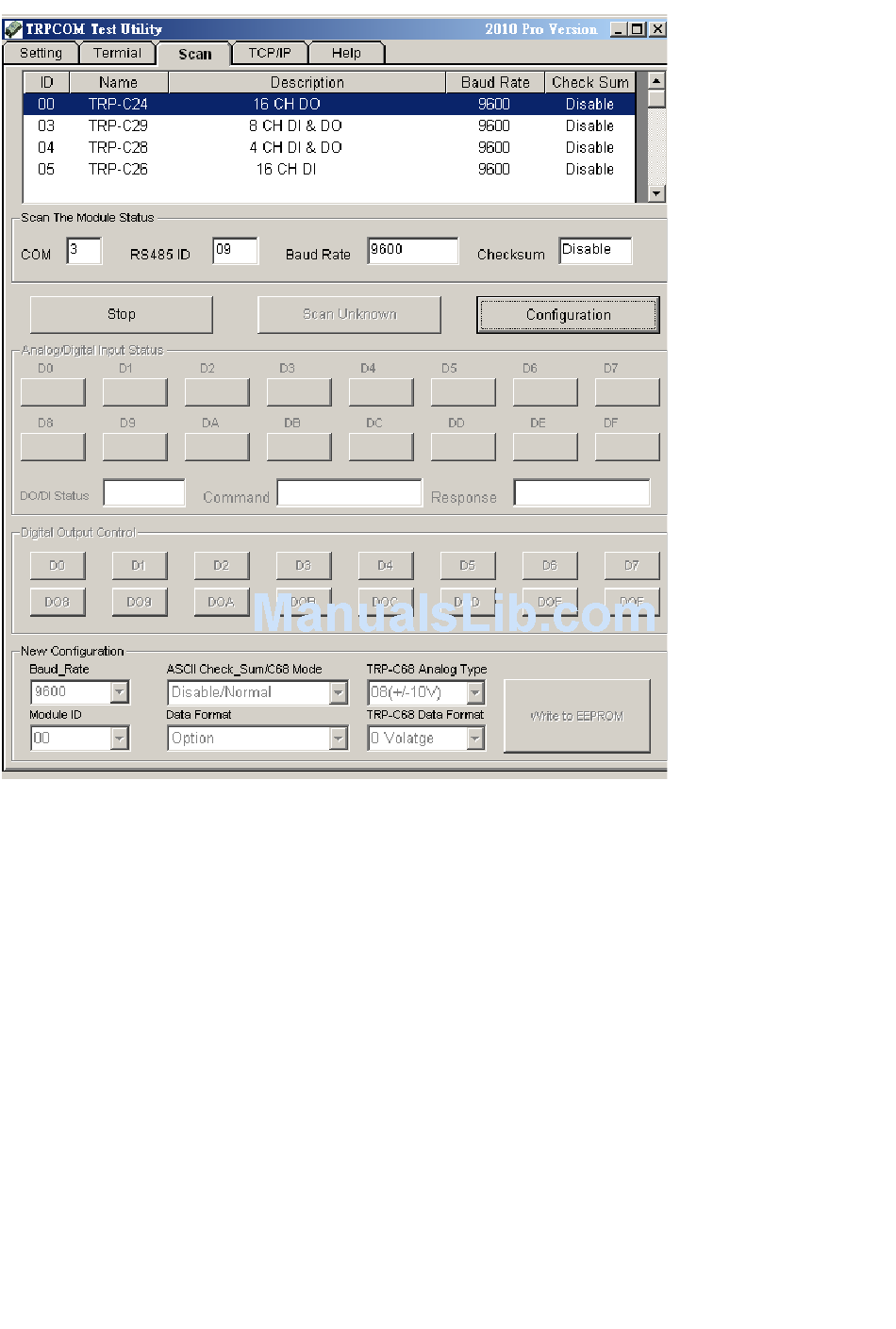

Figure 3

Select the module which one you want setting then click "Configuration".

Example: TRP-C29 Configuration

A: Get Counter Value please click Digital Input "D0~D7" button.

B: Enable the digital output click Digital Output "D0~D7"button.

C: Set up new RS485 ID, Baud-Rate and data format then click "Write to EEPROM" button.
