Trycom Technology TRP-C28 User Manual page 37

from TRYCOM web www.trycom.com.tw.

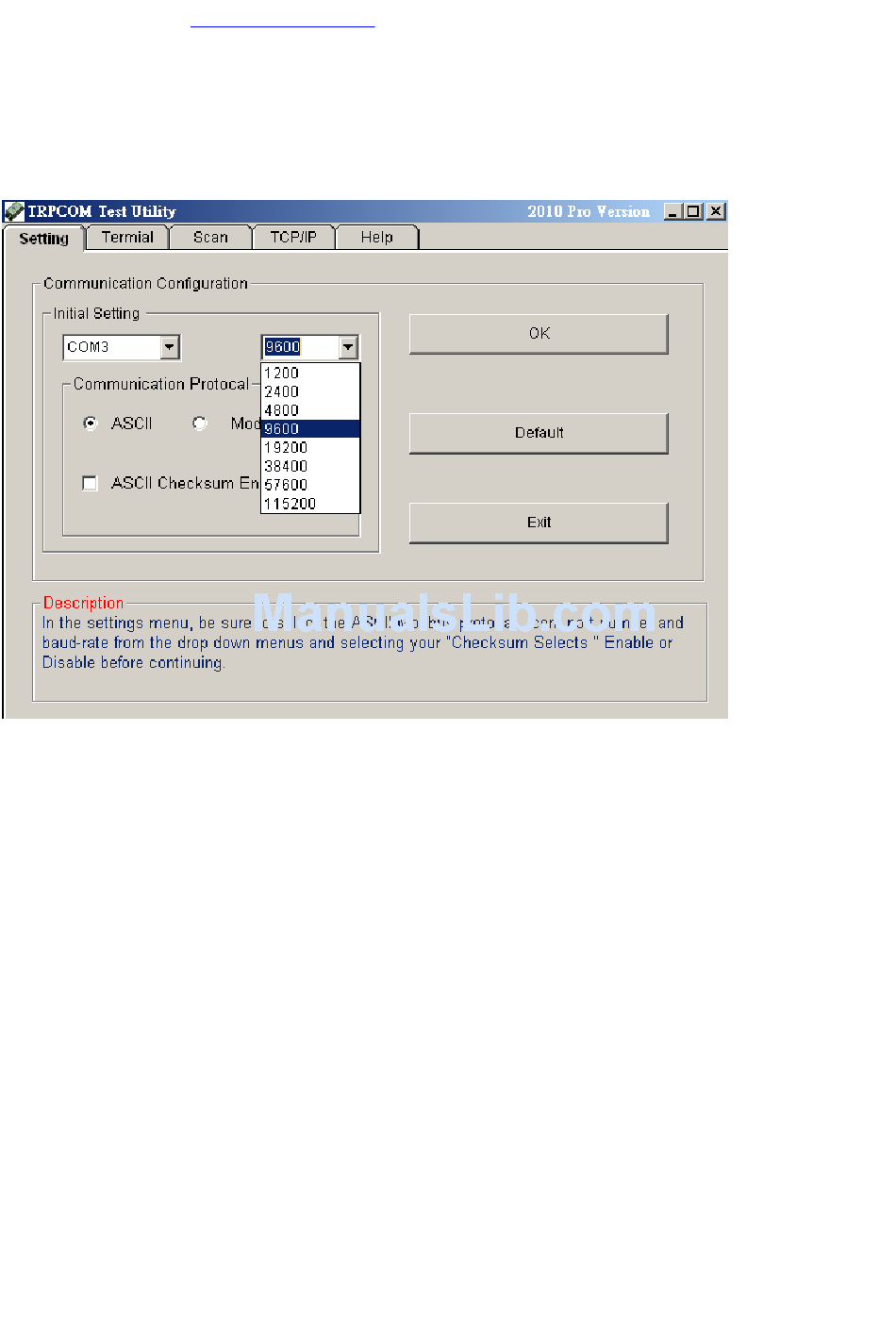

1.The "Setting"function is for user to initiate the software to set the Com Port from 1 to 20 and
setting the Baud-Rate from 1200 to 115200,Checksum Enable or Disable. ...See Figure 1
*The Module Factory Setting is "9600" and "ID" is 01, Checksum is Disable.
*Turn module's switch to "OFF,ON" position into ASCII communication mode.
2.The "Terminal" function is for user to input command, user can control all of module's digital
input/output status or wait to get module response status ...See Figure 2.
Figure
37
