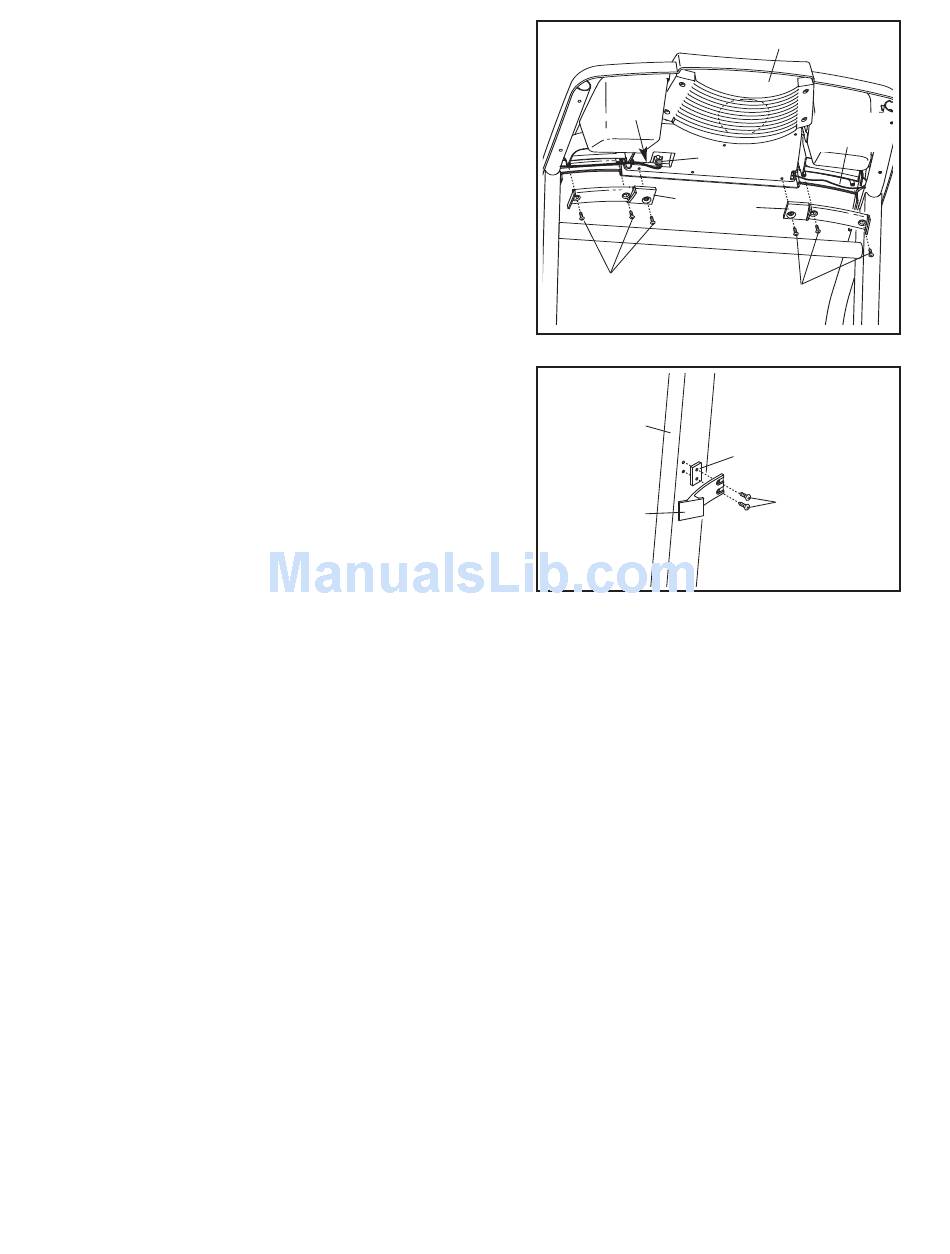

7. Press the Upright Wire (42) into the slot in the underside
of the Console Base (47) in the indicated area. Cover the
Upright Wire with the Right Grip Plate (36). Be careful
not to pinch the Upright Wire. Tighten three 1/2"
Screws (48) into the Right Grip Plate and the Console
Base.
Attach the Left Grip Plate (32) over the ground wire and
the other wires with three 1/2" Screws (48). Be careful
not to pinch any of the wires.
8. Attach the Storage Latch (29) and the Latch Spacer (44)
to the left Upright (69) with two 3/4" Screws (2) as shown.
Do not overtighten the Screws.
9. Make sure that all parts are properly tightened before you use the treadmill. Note: Extra hardware may
be included. Keep the included allen wrenches in a secure place. The large allen wrench is used to adjust the
walking belt (see page 25). To protect the floor or carpet, place a mat under the treadmill.
