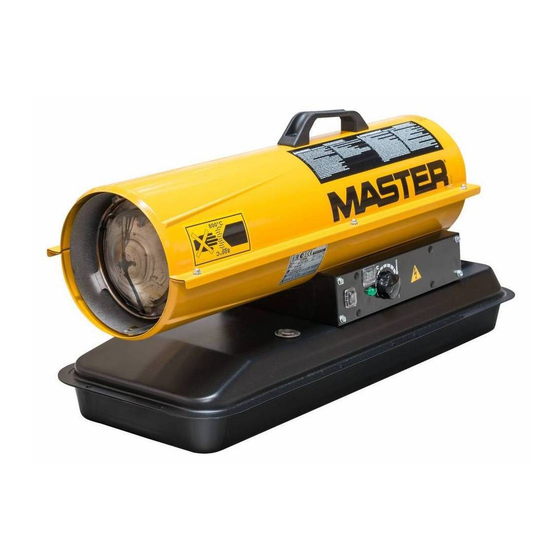

Master B 65 CEL Owner's Manual

Portable forced air heaters
Hide thumbs Also See for B 65 CEL:

Advertisement

Table of Contents

FR - APPAREILS DE CHAUFFAGE INDIVIDUELS À AIR FORCÉ
DE - TRAGBARE HOCHDRUCK EISSLUFTTURBINEN
NL - VERPLAATSBARE HETELUCHTKANONNEN
IT - GENERATORE D'ARIA CALDA A RISCALDAMENTO DIRETTO
ES - CALENTADORES PORTATILES DE AIRE FORZADO
SV - PORTABEL VÄRMEFLÄKT MED FORCERAT LUFTFLÖDE
FI - KANNETTAVA KUUMAILMAPUHALLIN
NO - TRANSPORTABLE VARMEAPPARATER MED VIFTE
PL - PRZENOŚNE OLEJOWE NAGRZEWNICE POWIETRZA
RU - ПEPEДBИЖHЫE BOЗДYXOHAГPEBATEЛИ
HU - HORDOZHATÓ, GÉPI LÉGFŰTŐ BERENDEZÉS
CZ - PŘENOSNÉ OHŘÍVAČE S NUCENÝM OBĚHEM VZDUCHU
OWNER'S MANUAL - MANUEL D'ITILISATION - BEDIENUNGSANLEITUNG
- GEBRUIKERSHANDLEIDING - MANUALE D'ISTRUZIONE - MANUALE DEL
PROPIETARIO - ANVÄNDARMANUAL - KÄYTTÖOPAS - BRUGSANVISNING
- BRUKERHÅNDBOK - INSTRUKCJA OBSŁUGI - PYKOBOДCTBO ДЛЯ
ПOЛЬЗOBATEЛЯ - FELHASZNÁLÓI KÉZIKÖNYV - PŘÍRUČKA PRO UŽIVATELE
Heater sizes - Production de la chaleur - Heizgerät-Größen - Vermogen - Potenza termica -
Tamaños - Effekt storlekar - Lämmittimen lämpötehot - Størrelse - Størrelser - Nagrzewnice o
wydajności - Moшhocть haгpeвaтeлeй - Fűtőberendezések teljesítménye - Vákon ohřívačů:
Models - Modèles - Modelle - Modellen - Modelli - Modelos - Modeller
- Mallit - Model - Modeller - Modele - Moдeли - Modellek - Modely:
B 35 CEL, B 65 CEL, B 70 CEL, B 100 CEL, B 150 CEL
4111.492
Edition 09 - Rev.03
GB - PORTABLE FORCED AIR HEATERS
DK - VARMEKANONER
C CИCTEMOЙ HAДДYBA
10, 18,5, 20, 29 y 44 kW
(35.000, 64.000, 70.000, 100.000 and 150.000 Btu/Hr)
