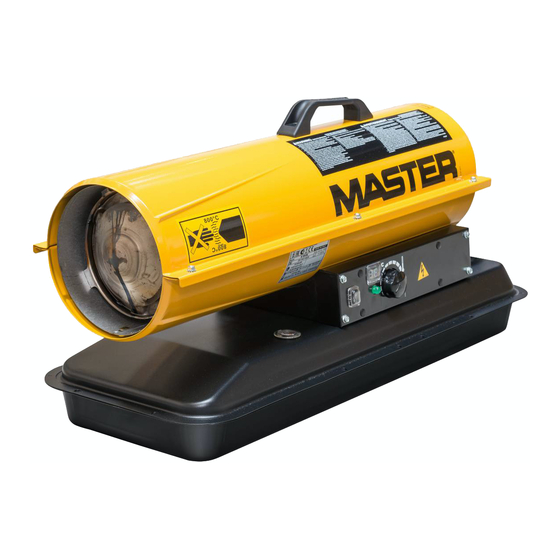

Master B35CEL Owner's Manual

Portable forced air heaters 35,000 70,000 100,000 150,000 btu/hr
Hide thumbs Also See for B35CEL:
Table of Contents

Advertisement

Quick Links

R
PORTABLE
FORCED
AIR HEATERS
OWNER'S MANUAL
Heater Sizes: 35,000 70,000 100,000 150,000 Btu/Hr
Models: B35CEL, B70CEL, B100CEL, and B150CEL
IMPORTANT: Read and understand this manual before assembling, start-
ing or servicing heater. Improper use of heater can cause serious injury.
Keep this manual for future reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the B35CEL and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Master B35CEL

Summary of Contents for Master B35CEL

  • Page 1 AIR HEATERS OWNER’S MANUAL Heater Sizes: 35,000 70,000 100,000 150,000 Btu/Hr Models: B35CEL, B70CEL, B100CEL, and B150CEL IMPORTANT: Read and understand this manual before assembling, start- ing or servicing heater. Improper use of heater can cause serious injury. Keep this manual for future reference.

  • Page 2: Safety Information

    PORTABLE FORCED AIR HEATERS SAFETY c) All flame, including the pilot light, if • Use only in places free of flammable va- any, shall be extinguished and the pors or high dust content. INFORMATION heater allowed to cool, prior to •...

  • Page 3: Product Identification

    • clogged fuel filter and nozzle Cord • use of non-toxic anti-icer in fuel during very cold weather Figure 1 - B35CEL and B70CEL Models IMPORTANT: Use a KEROSENE ONLY container. Be sure storage container is clean. Foreign matter such as rust, dirt, or water...
  • Page 4 PORTABLE FORCED AIR HEATERS ASSEMBLY VENTILATION 2. Place cap nuts on axle ends. Gently tap with hammer to secure. (FOR B100CEL AND 3. Place heater on wheel support frame. WARNING: Follow the mini- B150CEL MODELS ONLY) Make sure air inlet end (rear) of heater mum fresh, outside air ventilation is over wheels.

  • Page 5: Theory Of Operation

    ON/OFF Switch with Light Combustion Chamber Air Pump Motor Ignitor Air Intake Filter Clean Cool Heated Air Out Figure 5 - ON/OFF Switch, B35CEL and Output B70CEL Models Filter ON/OFF Switch with Light Nozzle Ignition Control Fuel Air Line Fuel Assembly...

  • Page 6: Storing, Transporting, Or Shipping

    PORTABLE FORCED AIR HEATERS STORING, PREVENTATIVE WARNING: Never service heater TRANSPORTING, MAINTENANCE while it is plugged in, operating, or hot. Severe burns and electrical shock can OR SHIPPING SCHEDULE occur. Note: If shipping, transport companies re- quire fuel tanks to be empty. Item How Often How To...
  • Page 7 OWNER’S MANUAL TROUBLESHOOTING Continued FAULT CONDITION POSSIBLE CAUSE REMEDY Motor starts and runs but heater does not 1. No fuel in tank 1. Fill tank with kerosene ignite (ON/OFF switch light remains on) 2. Pump pressure incorrect 2. See Pump Pressure Adjustment, page 10 3.

  • Page 8: Service Procedures

    Side Cover Attach rubber fuel line to fuel filter neck. Fuel Line 7. Replace side cover. Figure 9 - Fuel Filter Removal, B35CEL and B70CEL Models FUEL FILTER (B100CEL and Fuel Filter, Bushing, B150CEL Models) and Lower Fuel Line 1.
  • Page 9 OWNER’S MANUAL SERVICE 6. Remove combustion chamber. Stand 10. Replace combustion chamber. combustion chamber on end with 11. Route the ignitor wires back down PROCEDURES nozzle adapter bracket on top (see Fig- through the hole in the lower shell. ure 12). Continued Connect wires to the ignition control Remove ignitor screw with a 1/4"...
  • Page 10 5. Wash or replace air intake filter (see Preventative Maintenance Schedule, page 6). Figure 13 - Air Output, Air Intake, and Lint Filters, B35CEL and B70CEL Models 6. Replace filter end cover. 7. Replace fan guard and upper shell. Air Intake Filter...
  • Page 11 (see Figure 17, 18, or 19). Hose Adapter til nozzle seats. Tighten 1/3 turn more For B35CEL and B70CEL model heat- Assembly using 5/8" socket wrench 4.5 to 5.1 N- ers, route air and fuel lines approxi- m (40 to 45 in-lbs). See Figure 21.

  • Page 12: Pump Rotor

    Air Output Remove pump plate screws using 5/16" Filter nut-driver. 5. Remove pump plate. Figure 23 - Rotor Location, B35CEL and B70CEL Models 6. Remove rotor, insert, and blades. 7. Check for debris in pump. If debris is Blade Pump found, blow out with compressed air.
  • Page 13 OWNER’S MANUAL SERVICE IGNITION CONTROL Installing the New Assembly ASSEMBLY PROCEDURES CAUTION: Ignition control Continued assembly contains electrostatic WARNING: Unplug heater components. Handle the assem- before servicing. bly by the edges of the printed circuit board. Do not touch any IMPORTANT: Remove fan from motor Remove Old Assembly of the quick connect terminals...

  • Page 14: Illustrated Parts Breakdown

    PORTABLE FORCED AIR HEATERS ILLUSTRATED PARTS BREAKDOWN B35CEL MODEL 12-1 12-2 12-3 12-4 12-5 12-6 12-18 12-7 12-17 12-16 12-8 12-9 12-15 12-13 12-14 12-10 Motor and Pump Assembly 12-19 12-12 12-11 105398...

  • Page 15: Parts List

    This list contains replaceable parts used in your heater. When ordering parts, be sure to provide the correct model and serial numbers (from the model plate), then the part number and description of the desired part. B35CEL MODEL PART PART...
  • Page 16 PORTABLE FORCED AIR HEATERS ILLUSTRATED PARTS BREAKDOWN B70CEL MODEL 12-1 12-2 12-3 12-4 12-5 12-6 12-18 12-7 12-17 12-16 12-8 12-9 12-15 12-13 12-14 12-10 Motor and Pump Assembly 12-19 12-12 12-11 105398...
  • Page 17 OWNER’S MANUAL PARTS LIST This list contains replaceable parts used in your heater. When ordering parts, be sure to provide the correct model and serial numbers (from the model plate), then the part number and description of the desired part. B70CEL MODEL PART PART...
  • Page 18 PORTABLE FORCED AIR HEATERS ILLUSTRATED PARTS BREAKDOWN B100CEL MODEL 10-1 10-2 10-3 10-5 10-4 10-6 10-17 10-7 10-8 10-16 10-15 10-9 10-13 10-14 10-10 10-13 10-11 Motor and Pump Assembly 10-12 105398...
  • Page 19 OWNER’S MANUAL This list contains replaceable parts used in your heater. When ordering parts, be sure to provide the PARTS LIST correct model and serial numbers (from the model plate), then the part number and description of the desired part. B100CEL Model PART PART...
  • Page 20 PORTABLE FORCED AIR HEATERS ILLUSTRATED PARTS BREAKDOWN B150CEL MODEL 10-1 10-2 10-3 10-5 10-4 10-6 10-17 10-7 10-8 10-16 10-15 10-9 10-18 10-14 10-10 10-13 10-11 Motor and Pump Assembly 10-12 105398...
  • Page 21 OWNER’S MANUAL This list contains replaceable parts used in your heater. When ordering parts, be sure to provide the PARTS LIST correct model and serial numbers (from the model plate), then the part number and description of the desired part. B150CEL Model PART PART...

  • Page 22: Wheels And Handles

    PORTABLE FORCED AIR HEATERS WHEELS AND HANDLES B100CEL AND B150CEL MODELS KEY PART PART NO. NUMBER DESCRIPTION QTY. 4110.077 Handles 4110.144 Screw 4110.078 Wheel Support Frame 4110.143 Hex Nut, 4110.084 Wheel (2) 4110.085 Cap Nut 4110.078 Axle 105398...

  • Page 23: Specifications

    OWNER’S MANUAL SPECIFICATIONS Output Rating (kw/Btu/Hr) 10 (35,000) 20 (70,000) 30 (100,000) 44 (150,000) Fuel Use Only Kerosene or No. 1 Fuel Oil Fuel Tank Capacity (Liters/U.S. Gal.) 15.1/4.0 18.9/5.0 43.5/11 .5 43.5/11.5 Fuel Consumption (Liters Per Hr./Gal. Per Hr.) 1.1/.28 1.97/.52 3.0/.79...
  • Page 24 For all models. Special tool to check pump STANDARD WHEELS AND pressure. HANDLE KIT - 4103.930 Makes heater even more portable and con- venient. Easy to assemble. For B35CEL and B70CEL models. A 008 IGNITION CONTROL HEAVY DUTY WHEELS AND ASSEMBLY/PHOTOCELL HANDLE KIT - 4103.925...

  • Page 25: Ec Conformity Declaration

    3004 ED Rotterdam Holland Kerosene Portable Forced Air Heaters Model Numbers: B35CEL, B70CEL, B100CEL, B150CEL It is declared that these models conform to the Machinery Directive 98/37/EC, including 91/368/EEC and the Low Voltage Directive 73/23/EEC. It is further declared that these models conform to the EMC Directive 89/336/EEC, amended by 92/31/EEC and including EN50081-1 and EN50082-1.

  • Page 26: Warranty Information

    WARRANTY INFORMATION CERTIFICATE OF GENERAL EQUIPMENT - LIMITED ONE YEAR WARRANTY DESA International warrants new Products sold by it to be POSE. IN ANY EVENT IMPLIED WARRANTIES INCLUDING free from defects in material or workmanship for a period of one THOSE OF MERCHANTABILITY AND FITNESS FOR A PAR- year after date of delivery to the first user and subject to the TICULAR PURPOSE ARE LIMITED TO THE DURATION OF...

This manual is also suitable for:

B70celB100celB150cel
