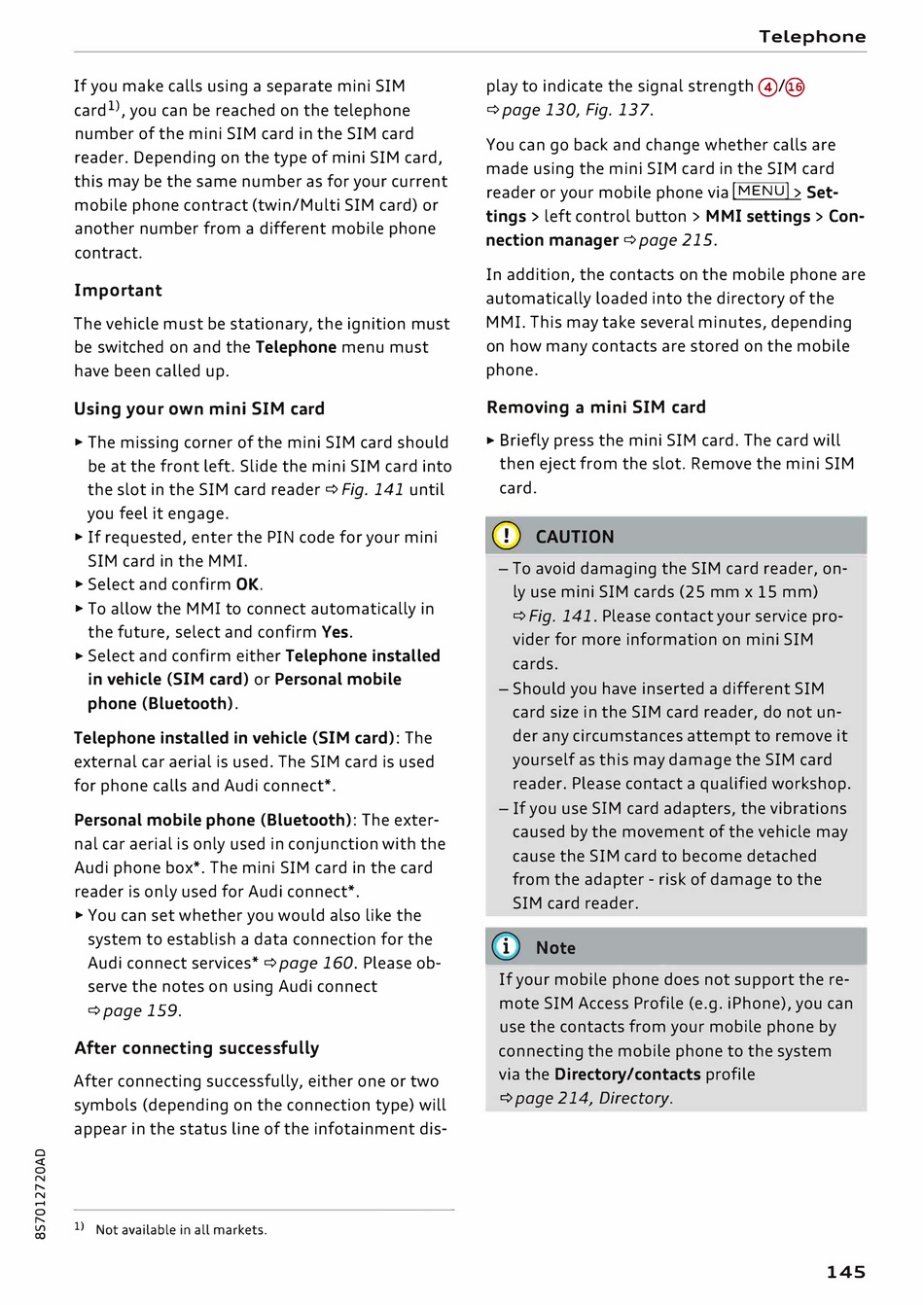

Audi TT Roadster 2016 Owner's Manual page 147

If you make calls using a separate mini SIM
card 1 ), you can be reached on the telephone
number of the mini SIM card in the SIM card
reader. Depending on the type of mini SIM card,
this may be the same number as for your current
mobile phone contract (twin/Multi SIM card) or
another number from a different mobile phone
contract.
Important
The vehicle must be stationary, the ignition must
be switched on and the Telephone menu must
have been called up.
Using your own mini SIM card
� The missing corner of the mini SIM card should
be at the front left. Slide the mini SIM card into
the slot in the SIM card reader¢ Fig. 141 until
you feel it engage.
� If requested, enter the PIN code for your mini
SIM card in the MMI.
� Select and confirm OK.
� To allow the MMI to connect automatically in
the future, select and confirm Yes.
� Select and confirm either Telephone installed
in vehicle (SIM card) or Personal mobile
phone (Bluetooth).
Telephone installed in vehicle (SIM card): The
external car aerial is used. The SIM card is used
for phone calls and Audi connect*.
Personal mobile phone (Bluetooth): The exter­
nal car aerial is only used in conjunction with the
Audi phone box*. The mini SIM card in the card
reader is only used for Audi connect*.
� You can set whether you would also like the
system to establish a data connection for the
Audi connect services*¢ page 160. Please ob­
serve the notes on using Audi connect
¢page 159.
After connecting successfully
After connecting successfully, either one or two
symbols (depending on the connection type) will
appear in the status line of the infotainment dis-
0
<t
0
N
,.....
N
......
0
[;:j
Not available in all markets.
1}
CX)
play to indicate the signal
¢page 130, Fig. 137.
You can go back and change whether calls are
made using the mini SIM card in the SIM card
reader or your mobile phone via I MENU!> Set­
tings> left control button> MMI settings> Con­
nection manager ¢page 215.
In addition, the contacts on the mobile phone are
automatically loaded into the directory of the
MMI. This may take several minutes, depending
on how many contacts are stored on the mobile
phone.
Removing a mini SIM card
� Briefly press the mini SIM card. The card will
then eject from the slot. Remove the mini SIM
card.
CD
CAUTION
- To avoid damaging the SIM card reader, on­
ly use mini SIM cards (25 mm x 15 mm)
¢ Fig. 141. Please contact your service pro­
vider for more information on mini SIM
cards.
- Should you have inserted a different SIM
card size in the SIM card reader, do not un­
der any circumstances attempt to remove it
yourself as this may damage the SIM card
reader. Please contact a qualified workshop.
- If you use SIM card adapters, the vibrations
caused by the movement of the vehicle may
cause the SIM card to become detached
from the adapter - risk of damage to the
SIM card reader.
((!)
Note
If your mobile phone does not support the re­
mote SIM Access Profile (e.g. iPhone), you can
use the contacts from your mobile phone by
connecting the mobile phone to the system
via the Directory/contacts profile
page 214, Directory.
¢
Telephone
strength@/@
145
