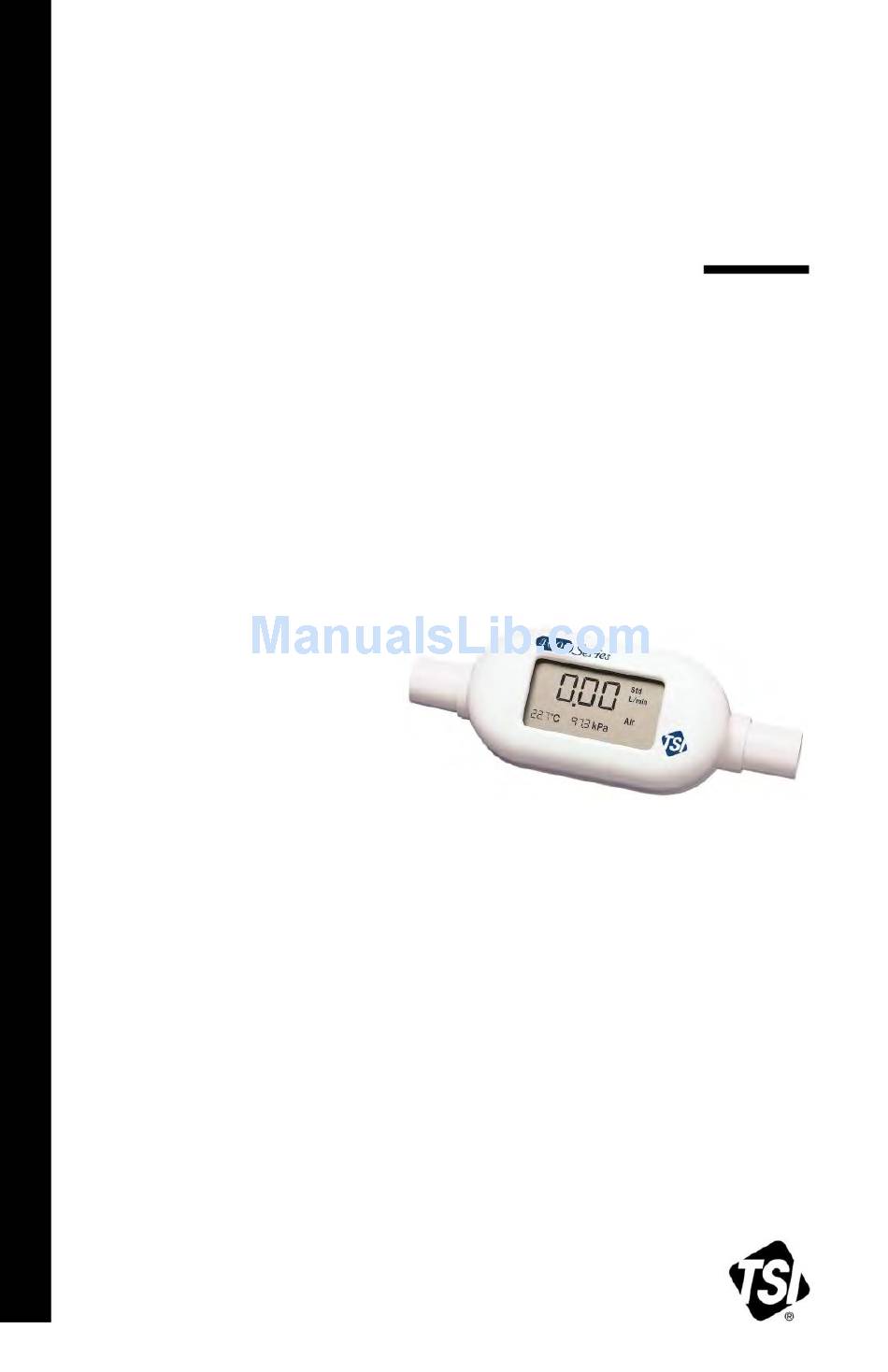

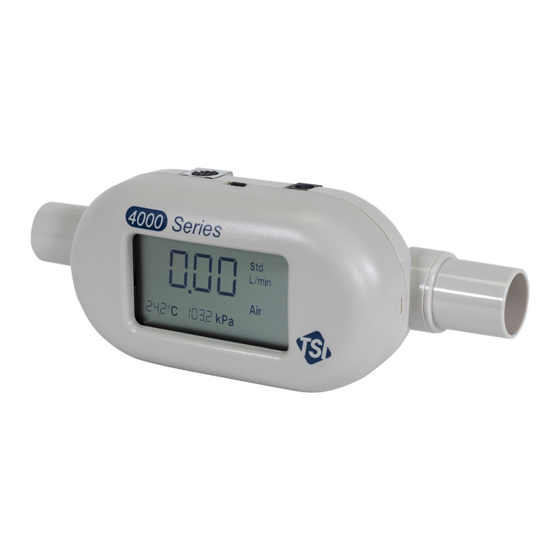

- Page 1 GENERAL PURPOSE THERMAL MASS FLOWMETER MODEL 4040/4043/4045 OPERATION AND SERVICE MANUAL P/N 1980339, REVISION J FEBRUARY 2016 GlobalTestSupply www. .com uality Products Online at: sales@GlobalTestSupp...
- Page 2 EXCLUSIVE REMEDY SHALL BE THE RETURN OF THE PURCHASE PRICE DISCOUNTED FOR REASONABLE WEAR AND TEAR OR AT SELLER’S OPTION REPLACEMENT OF THE GOODS WITH NON-INFRINGING GOODS. TO THE EXTENT PERMITTED BY LAW, THE EXCLUSIVE REMEDY OF THE USER OR BUYER, AND THE LIMIT OF SELLER'S LIABILITY FOR ANY AND ALL LOSSES, INJURIES, OR DAMAGES CONCERNING THE GOODS (INCLUDING CLAIMS BASED ON CONTRACT, NEGLIGENCE, TORT, STRICT LIABILITY OR OTHERWISE) SHALL BE THE RETURN OF GOODS TO SELLER AND THE REFUND OF THE...
- Page 3 CONTENTS CHAPTERS UNPACKING AND PARTS IDENTIFICATION ......1 SETTING-UP ................. 3 Supplying Power ................3 Connecting Filter and Flow Tubes ..........4 RS232 Configuration and Operation ..........4 Configuration Software ..............5 OPERATION ................. 7 Overview ..................7 ON/OFF Switch ................7 Warm-up Time ................
- Page 4 Mass Flowmeter, 0.75 inch inlet/outlet 4045 Computer Cable 1303583 Analog Cable 1303584 Filter 22 mm ISO-taper (for Model 4040) 1602292 3/8” Female NPT (for Model 4043/45) 1602300 AC Adapter 100 to 240 V, N. America NEMA 5-15 plug, grounded 8918-NA...
- Page 5 Parts Identification Figure 1-1 Model 4040/4043/4045 Mass Flowmeter 1. On/Off Switch 4. DC Power Input 2. Display 5. Flow Inlet 3. Mounting Inserts (2) 6. Computer Serial Interface and Analog Output and Optional Power Input Connector Chapter 1 GlobalTestSupply www.
-
Page 6: Setting-Up
Chapter 2 Setting-Up Supplying Power The flowmeter can be powered in one of two ways: through the power jack using the supplied AC adapter or through the mini-DIN connector. The DC power input connector is shown below along with the power requirements. Power Supply: 7.5 VDC ±... -
Page 7: Connecting Filter And Flow Tubes
Connecting Filter and Flow Tubes The Models 4040/4043/4045 have an exposed thermal flow sensor, which must be protected from foreign matter and particles in the gas flow. TSI has supplied a filter, which should be connected to the inlet of the flowmeter; however, any filter will work as long as it has a minimum efficiency of 99.9%. -
Page 8: Configuration Software
Configuration Software TSI has several software utilities to help you communicate with your flowmeter to change parameters and to obtain flow data. You can download the latest versions of these at no charge from our web site: 1. If you only want to change one or more of the operating parameters shown in Table 3 (above), the easiest way is to use the software utility called “TSI setup.”... -
Page 9: Operation
Recommended warm-up time of the flowmeter is 5 minutes. Flow Rate Measurement Flow rate data can be obtained from the Models 4040/4043/4045 through the LCD display, RS232 serial port or the linearized analog output. The analog output is a 0 to 10 volt DC linear signal representing 0 to 300 Std L/min (Model 4043: 200 Std. -
Page 10: Temperature Measurement
LCD display and are available through the RS232 serial port. Volume Measurement The Models 4040/4043/4045 measure total volume by integrating flow over time. This is a calculated measurement performed by the flowmeter and is only available using the RS232 serial port. Volume is not displayed on the LCD display. -
Page 11: Maintenance
Re-certification To maintain a high degree of confidence in the measurements made by the Models 4040/4043/4045, TSI recommends that you return the instrument to TSI every 12 months for re-certification. For a nominal fee, we will recalibrate the unit and return it to you with a certificate of calibration and US National Institute of Standards Technology (NIST) traceability. -
Page 12: Troubleshooting
Chapter 5 Troubleshooting Table 4 lists the symptoms, possible causes, and recommended solutions for common problems encountered with the flowmeter. If the symptom is not listed, or if none of the solutions solves the problem, please contact TSI Customer Support at 1-800-874-2811 or 651-490-2811. -
Page 13: A Specifications
Appendix A Specifications* Flow Measurement Measurement Range Models 4040/4045 ..0 to 300 Std L/min. Model 4043 only .... 0 to 200 Std L/min. Accuracy Air, O ......2% of reading or 0.05 Std L/min, whichever is greater , Air/O mixtures .. - Page 14 Storage, Ambient ....-20 to 60°C Physical Dimensions External Dimensions ..See Diagram Tube Adapters ....Model 4040: 22 mm male ISO Taper (Inlet & Outlet) Model 4043: ½ inch straight Model 4045: ¾ inch straight Weight ......180 grams Flow Body Material ...
- Page 15 Specifications GlobalTestSupply www. .com uality Products Online at: sales@GlobalTestSupp...
- Page 16 Appendix A GlobalTestSupply www. .com uality Products Online at: sales@GlobalTestSupp...
- Page 17 Volumetric flow rate is the true volume flow of the gas exiting the flowmeter. In some instances, volumetric flow rate rather than standard flow rate may be of interest. To display volumetric flow rate, the Models 4040/4043/4045 will multiply the standard flow measurement by the following density correction factor: ...
