Summary of Contents for TSI Incorporated velocicalc 9545

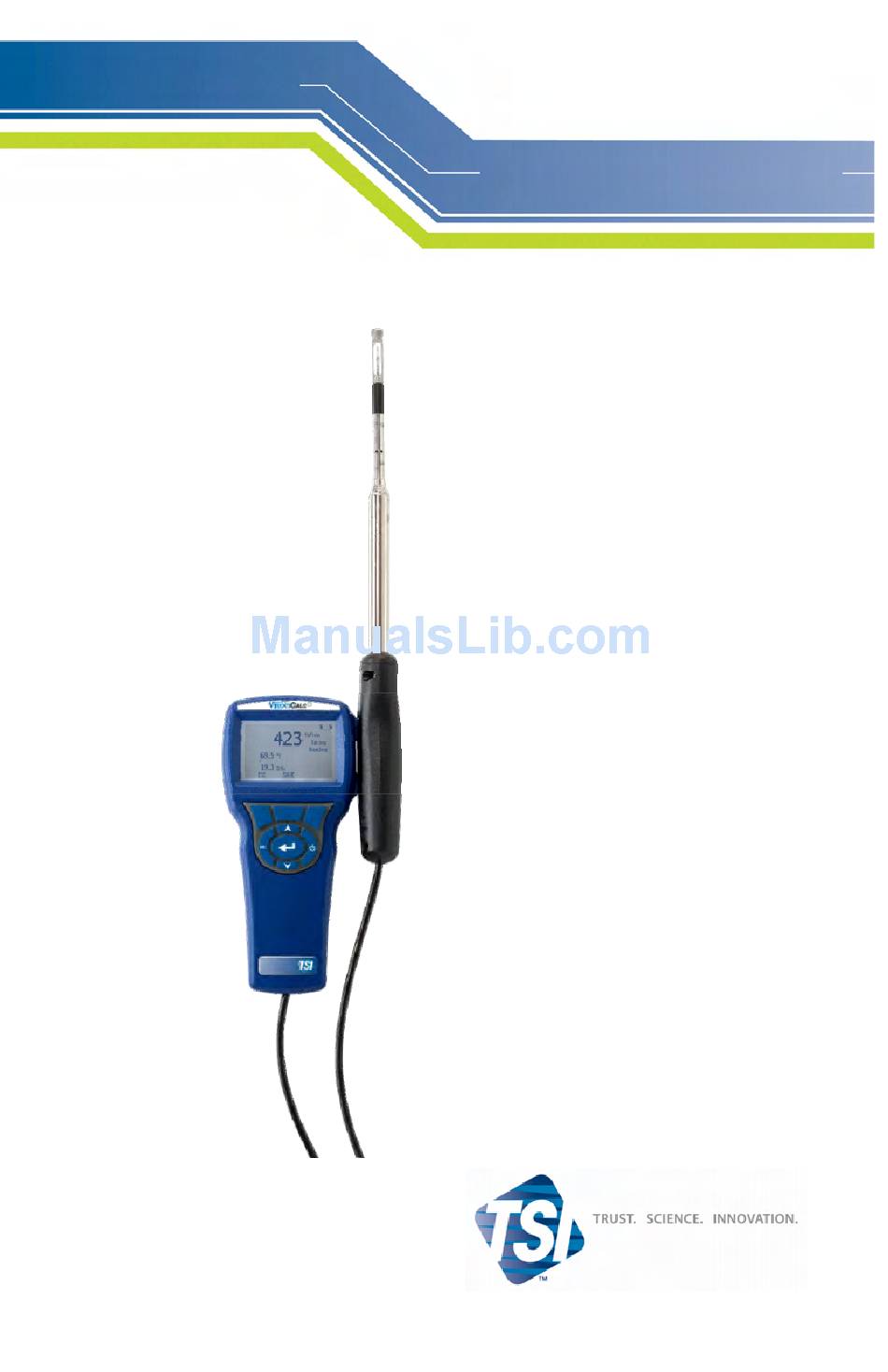

- Page 1 ENERGY AND COMFORT Ventilation Testing ® ELOCI Air Velocity Meter Models 9545/9545-A Operation and Service Manual...
- Page 2 Copyright© TSI Incorporated / May 2007 / All rights reserved. Address TSI Incorporated / 500 Cardigan Road / Shoreview, MN 55126 / USA Fax No. (651) 490-3824 LIMITATION OF WARRANTY AND LIABILITY (effective July 2000) Seller warrants the goods sold hereunder, under normal use and service as described in the...
-
Page 3: Table Of Contents
CONTENTS CHAPTER 1 UNPACKING AND PARTS IDENTIFICATION .... 1 CHAPTER 2 SETTING-UP..............3 Supplying Power to the Model 9545/9545-A ........3 Installing the Batteries ...............3 Using the Optional AC Adapter ..........3 Using the Telescoping Probe ............3 Extending the Probe ..............3 Retracting the Probe.............. -
Page 5: Chapter 1 Unpacking And Parts Identification
Chapter 1 Unpacking and Parts Identification Carefully unpack the instrument and accessories from the shipping container. Check the individual parts against the list of components below. If anything is missing or damaged, notify TSI immediately. 1. Carrying case 2. Instrument 3. -
Page 7: Chapter 2 Setting-Up
Chapter 2 Setting-up Supplying Power to the Model 9545/9545-A The TSI Model 9545/9545-A V Air Velocity Meter is powered ELOCI with four size AA batteries. Installing the Batteries Insert four AA batteries as indicated by the diagram located on the inside of the battery compartment. -
Page 8: Connecting To A Computer
Connecting to a Computer Use the Computer Interface USB Cable provided with the Model 9545/9545-A to connect the instrument to a computer for downloading stored data or for remote polling. Connect the end labeled “COMPUTER” to the computer USB port and the other end to the data port of the Model 9545/9545-A. -
Page 9: Chapter 3 Operation
Chapter 3 Operation Keypad Functions ON/OFF Key Press to turn the Model 9545/9545-A on and off. During the power up sequence the display will show the following: Model Number, Serial Number, Software Revision and Last Date Calibrated. Arrow ( ) Keys Press to scroll through choices while setting a parameter. -
Page 10: Menus
Menus DISPLAY SETUP Display setup menu is where you will setup the desired parameters to be displayed on the running screen. With a parameter highlighted you can then use the ON soft key to have it show up on the running screen or select the OFF soft key to turn off the parameter. -
Page 11: Data Logging
DATA LOGGING Measurements Measurements to be logged are independent of measurements on the display, and must therefore be selected under DATA LOGGING Measurements. Log Mode/Log Settings You can set Log Mode to Manual, Auto-save. • Manual mode does not automatically save data, but instead prompts the user to save a sample. -
Page 13: Chapter 4 Maintenance
Return Material Authorization (RMA) number. To fill out an online RMA form, visit TSI’s website at http://service.tsi.com. U.S. & International TSI Incorporated 500 Cardigan Road Shoreview MN 55126-3996 Tel: (800) 874-2811 (651) 490-2811... -
Page 15: Chapter 5 Troubleshooting
Chapter 5 Troubleshooting Table 5-1 lists the symptoms, possible causes, and recommended solutions for common problems encountered with the Model 9545/9545-A. If your symptom is not listed, or if none of the solutions solves your problem, please contact TSI. Table 5-1: Troubleshooting the Model 9545/9545-A Symptom Possible Causes Corrective Action... -
Page 17: Appendix A Specifications
Appendix A Specifications Specifications are subject to change without notice. Velocity Probe: Range: 0 to 6000 ft/min (0 to 30 m/s) 1&2 Accuracy ±3% of reading or ±3 ft/min (±0.015 m/s), whichever is greater Resolution: 1 ft/min (0.01 m/s) Duct Size: Range: 1 to 250 inches in increments of 0.1 in. -
Page 18: Power Requirements
Time Constant: User selectable Response Time: Velocity: 200 msec Temperature: 2 minutes (to 66% of final value) Humidity: <1 minute (to 66% of final value) External Meter Dimensions: 3.3 in. × 7.0 in. × 1.8 in. (8.4 cm × 17.8 cm × 4.4 cm) Meter Probe Dimensions: Probe length: 40 in. - Page 19 TSI Incorporated – 500 Cardigan Road, Shoreview, MN 55126 U.S.A Tel: +1 800 874 2811 E-mail: info@tsi.com Website: www.tsi.com Tel: +44 149 4 459200 E-mail: tsiuk@tsi.com Website: www.tsiinc.co.uk France Tel: +33 491 95 21 90 E-mail: tsifrance@tsi.com Website: www.tsiinc.fr Germany Tel: +49 241 523030 E-mail: tsigmbh@tsi.com Website...
