TSI Incorporated 4140 Operation And Service Manual

General purpose thermal mass flowmeter
Hide thumbs
Table of Contents

Advertisement

Quick Links

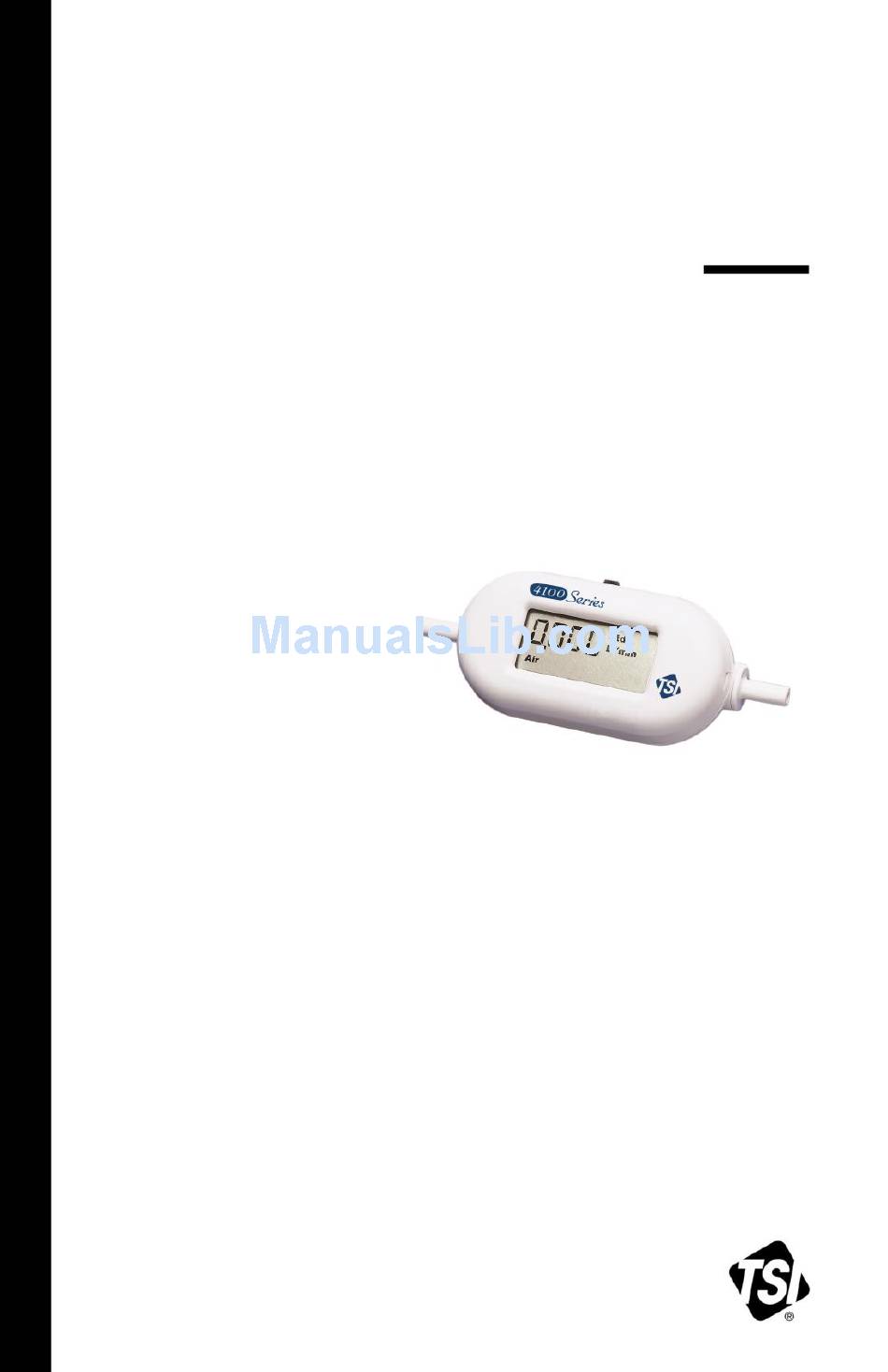

GENERAL PURPOSE
THERMAL MASS FLOWMETER
MODEL 4140/4143
OPERATION AND SERVICE MANUAL
P/N 1980383, REVISION G
FEBRUARY 2016

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 4140 and is the answer not in the manual?

Questions and answers

Related Manuals for TSI Incorporated 4140

Summary of Contents for TSI Incorporated 4140

  • Page 1 GENERAL PURPOSE THERMAL MASS FLOWMETER MODEL 4140/4143 OPERATION AND SERVICE MANUAL P/N 1980383, REVISION G FEBRUARY 2016...
  • Page 3 GENERAL PURPOSE THERMAL MASS FLOWMETER MODEL 4140/4143 OPERATION AND SERVICE MANUAL P/N 1980383, REVISION G FEBRUARY 2016 U.S. & INTERNATIONAL TSI Instruments Ltd. (UK) Sales and Customer Service: Sales and Customer Service: (800) 874-2811 / +1(651) 490-2811 +44 (0) 1494 459200...
  • Page 5 Copyright TSI Incorporated / 2003-2016 / All rights reserved. Address TSI Incorporated, 500 Cardigan Road, Shoreview, MN 55126 USA WARNING TSI flowmeters employ a heated platinum sensor. They should not be used with flammable or explosive gasses or mixtures. Caution...
  • Page 6 EXCLUDES CLAIMS OF CONTRIBUTORY OR INDUCED INFRINGEMENTS. BUYER’S EXCLUSIVE REMEDY SHALL BE THE RETURN OF THE PURCHASE PRICE DISCOUNTED FOR REASONABLE WEAR AND TEAR OR AT SELLER’S OPTION REPLACEMENT OF THE GOODS WITH NON-INFRINGING GOODS. TO THE EXTENT PERMITTED BY LAW, THE EXCLUSIVE REMEDY OF THE USER OR BUYER, AND THE LIMIT OF SELLER'S LIABILITY FOR ANY AND ALL LOSSES, INJURIES, OR DAMAGES CONCERNING THE GOODS (INCLUDING CLAIMS BASED ON CONTRACT, NEGLIGENCE, TORT, STRICT LIABILITY OR OTHERWISE)

  • Page 7: Table Of Contents

    CONTENTS CHAPTERS UNPACKING AND PARTS IDENTIFICATION ......1 SETTING-UP ................3 Supplying Power ................3 Connecting Filter and Flow Tubes ..........4 RS232 Configuration and Operation ..........4 Configuration Software ..............5 OPERATION ................7 Overview ..................7 ON/OFF Switch ................7 Warm-up Time ................
  • Page 8 (This page intentionally left blank)

  • Page 9: Chapters

    4143 (Air, Oxygen, Nitrogen) Mass Flowmeter, 0.375 inch inlet/outlet 41433 (Air, Oxygen, Nitrogen, Nitrous Oxide)* Filter Model 4140: 60 mm ULPA filter with 0.25 inch barbed 1602317 fittings Model 4143: 63 mm HEPA filter with 0.375 inch barbed 1602342 fittings AC Adapter 100 to 240 V, N.
  • Page 10 Parts Identification Figure 1-1 Model 4140/4143 Mass Flowmeter 1. On/Off Switch 4. DC Power Input 2. Display 5. Flow Inlet 3. Mounting Inserts (2) 6. Computer Serial Interface, Analog Output, and Optional Power Input Connection Chapter 1...

  • Page 11: Setting-Up

    Chapter 2 Setting-Up Supplying Power The flowmeter can be powered in one of two ways: through the power jack using the supplied AC adapter or through the mini-DIN connector. The DC power input connector is shown below along with the power requirements. Power Supply: 7.5 VDC ±...

  • Page 12: Connecting Filter And Flow Tubes

    Connecting Filter and Flow Tubes The Model 4140/4143 has a thermal sensor exposed to the gas flow that must be protected from foreign matter and particles. TSI supplies a filter that should be connected to the inlet of the flowmeter, however, any filter will work as long as it has a minimum efficiency of 99.9%.

  • Page 13: Configuration Software

    Table 4. Changeable Operating Parameters Function Command Select Gas Calibration air, O , or N O(if available) Select Standard or Volumetric Flow Measurement LCD Display Update Rate (controls averaging) SURnnnn Select Measurement Display Scroll Mode SDMFTPn Select Measurement Displayed on LCD Display SDMm Select Measurement Units on LCD Display SDUn...
  • Page 14 2. If you want to communicate directly with the flowmeter using the basic RS232 commands shown in the Serial Command Set Manual, you can use a terminal program. HyperTerminal is a common terminal program that is included with most versions of the Microsoft operating system.

  • Page 15: Operation

    Recommended warm-up time of the flowmeter is 5 minutes. Flow Rate Measurement Flow rate data can be obtained from the Model 4140/4143 through the LCD display, RS232 serial port, or the linearized analog output. The analog output is a 0 to 10 volt DC linear signal representing 0 to 20 Std L/min.

  • Page 16: Pressure Measurement

    Refer to the Series 4000/4100 RS232 Serial Command Set manual for instructions on how to select between flow units. The Model 4140/4143 has an independent temperature sensor in the flow tube to measure the gas temperature. The temperature sensor is used for temperature compensation of flow rate and for converting flow from standard to volumetric units.

  • Page 17: Maintenance

    Re-certification To maintain a high degree of confidence in the measurements made by the Model 4140/4143, TSI recommends that the instrument be returned to TSI every 12 months for re-certification. The flowmeter will be recalibrated and returned with a certificate of calibration to US National Institute of Standards Technology (NIST) traceable standards.
  • Page 18 (This page intentionally left blank) Chapter 4...

  • Page 19: Troubleshooting

    Chapter 5 Troubleshooting Table 4 lists the symptoms, possible causes, and recommended solutions for common problems encountered with Series 4100 flowmeters. If the symptom is not listed, or if none of the solutions solves the problem, please contact TSI Customer Support at 1-800-874-2811 or 651-490-2811.
  • Page 20 (This page intentionally left blank) Chapter 5...

  • Page 21: Specifications

    Appendix A Specifications* Flow Measurement Measurement Range ..0.01 to 20 Std L/min. Accuracy Air and 100% O 2% of reading or .005 Std L/min, whichever is 2 ....greater, 100% N ...... 3% of reading or .010 Std L/min, whichever is greater, 100% N O ....
  • Page 22 O (41403 and 41433 only), User selectable through serial port Physical Dimensions External Dimensions ..See Diagram Tube Adapters ....Model 4140/41403: 0.25 inch O.D. straight (Inlet & Outlet) Model 4143/41433: 0.375 inch O.D. straight Weight ......86 grams Flow Body Material ..
  • Page 23 Notes: Accuracy stated at standard conditions of 21.1°C and 101.3 kPa.  Add an additional 0.0003 Std L/min or 0.075% of reading, whichever is greater, per 1°C away from standard conditions when operating within the range of 0°C to 50°C. ...
  • Page 24 4140/4143 Pressure Drop 4140 4140 with filter 4143 4143 with filter Flow (SLPM) Figure A-1 Pressure Drop Mounts use 6-32 UNF Screws Figure A-2 Model 4140/4143 Dimensions Appendix A...

  • Page 25: Standard Flow Rate Vs. Volumetric Flow Rate

    P m = Absolute pressure measured in flow tube in units of kPa To demonstrate the difference in output, consider the following. Measured flow displays 10 Std L/min at 15C and 117kPa. The volumetric flow as calculated by the Model 4140/4143 would be as follows. ...
  • Page 26 TSI Incorporated – Visit our website www.tsi.com for more information. Tel: +1 800 874 2811 India Tel: +91 80 67877200 Tel: +44 149 4 459200 China Tel: +86 10 8219 7688 France Tel: +33 1 41 19 21 99 Singapore Tel: +65 6595 6388...
