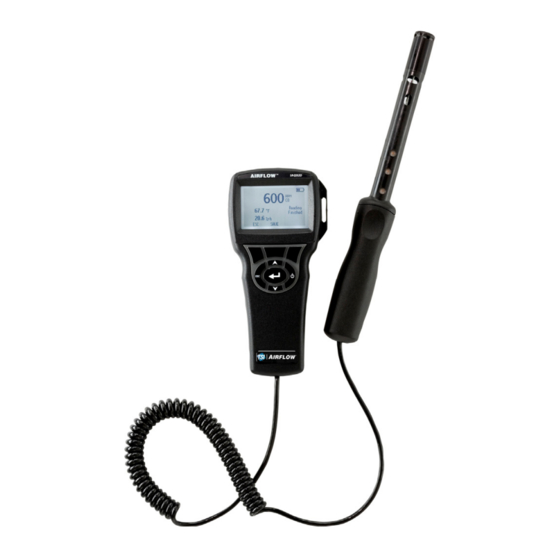

- Page 1 Indoor Air Quality Indoor Air Quality Meter Alnor Model CF920 ® Model IAQ920 IRFLOW Operation and Service Manual...
- Page 2 Copyright© TSI Incorporated / 2007-2008 / All rights reserved. Address TSI Incorporated / 500 Cardigan Road / Shoreview, MN 55126 / USA Fax No. (651) 490-3824 LIMITATION OF WARRANTY AND LIABILITY (effective July 2000) Seller warrants the goods sold hereunder, under normal use and service as described in the...
- Page 3 CONTENTS CHAPTER 1 UNPACKING AND PARTS IDENTIFICATION .... 1 CHAPTER 2 SETTING-UP..............3 Supplying Power to the Alnor CF920/A IAQ920 ....3 IRFLOW Installing the Batteries ...............3 Using the Optional AC Adapter ..........3 Using The Probe................3 Connecting to a Computer..............3 CHAPTER 3 OPERATION ..............
-
Page 5: Chapter 1 Unpacking And Parts Identification
Chapter 1 Unpacking and Parts Identification Carefully unpack the instrument and accessories from the shipping container. Check the individual parts against the list of components below.. If anything is missing or damaged, notify TSI immediately. 1. Carrying case 2. Instrument 3. -
Page 7: Chapter 2 Setting-Up
Use the probe holder to support the probe when in continuous data logging mode. Connecting to a Computer Use the USB Cable provided with the Alnor CF920/A IAQ920 to IRFLOW connect the instrument to a computer. Connect the end labeled “COMPUTER”... -
Page 9: Chapter 3 Operation
Chapter 3 Operation Keypad Functions ON/OFF Key Press to turn the Alnor CF920/A IAQ920 IRFLOW on and off. During the power up sequence the display will show the following: Model Number, Serial Number, Software Revision and Last Date Calibrated. Press to scroll through choices while setting a... -
Page 10: Menus
Time Constant The time constant is an averaging period. It is used to dampen the display. If you are experiencing fluctuating flows, a longer time constant will slow down those fluctuations. The display will update every second, but the displayed reading will be the average over the last time constant period. -
Page 11: Data Logging
DATA LOGGING Measurements Measurements to be logged are independent of measurements on the display, and must therefore be selected under DATA LOGGING Measurements. Log Mode/Log Settings You can set Log Mode to Manual, Auto-save, Cont-key, or Cont-time. • Manual mode does not automatically save data, but instead prompts the user to save a sample. -
Page 12: Logdat2 Downloading Software
IAQ920, connect the To download data from the Alnor CF920/A IRFLOW supplied computer interface USB cable to the Alnor CF920/A IRFLOW IAQ920 and to a computer USB port. Then run the LogDat2 downloading software. Within the LogDat2 software, either select the tests to be downloaded or double-click on a test to open it. -
Page 13: Chapter 4 Maintenance
If the instrument case or storage case needs cleaning, wipe it off with a soft cloth and isopropyl alcohol or a mild detergent. Never immerse the Alnor CF920/A IAQ920. If the enclosure of the Alnor CF920/A IRFLOW IRFLOW IAQ920 or the AC adapter becomes broken, it must be replaced immediately to prevent access to hazardous voltage. -
Page 15: Chapter 5 Troubleshooting
Chapter 5 Troubleshooting Table 5-1 lists the symptoms, possible causes, and recommended solutions for common problems encountered with the Alnor CF920/A IRFLOW IAQ920. If your symptom is not listed, or if none of the solutions solves your problem, please contact TSI. -
Page 17: Appendix A Specifications
Appendix A Specifications Specifications are subject to change without notice. Range 0 to 5000 ppm Accuracy ±3% of reading or ±50 ppm, whichever is greater Resolution 1 ppm Sensor type Non-Dispersive Infrared (NDIR) Temperature: Range: 32 to 122°F (0 to 50°C) Accuracy 1.0°F (±0.6°C) Resolution:... -
Page 18: Power Requirements
External Meter Dimensions: 3.3 in. × 7.0 in. × 1.8 in. (8.4 cm × 17.8 cm × 4.4 cm) Meter Probe Dimensions: Probe length (including handle): 11.15 in. (28.3 cm) Probe diameter of tip: 0.75 in. (19.0 mm) Meter Weight: Weight with batteries: 0.6 lbs (0.27 kg) Power Requirements:... - Page 19 E-mail: info@airflowinstruments.co.uk Web: www.airflowinstruments.co.uk France Tel: +33 491 95 21 90 E-mail: tsifrance@tsi.com Website: www.tsiinc.fr Germany Tel: +49 241 523030 E-mail: tsigmbh@tsi.com Website: www.tsiinc.de Quality Assured to ISO 9001:2000 Part No. 1980592 Rev. C Copyright © 2008 by TSI Incorporated...
