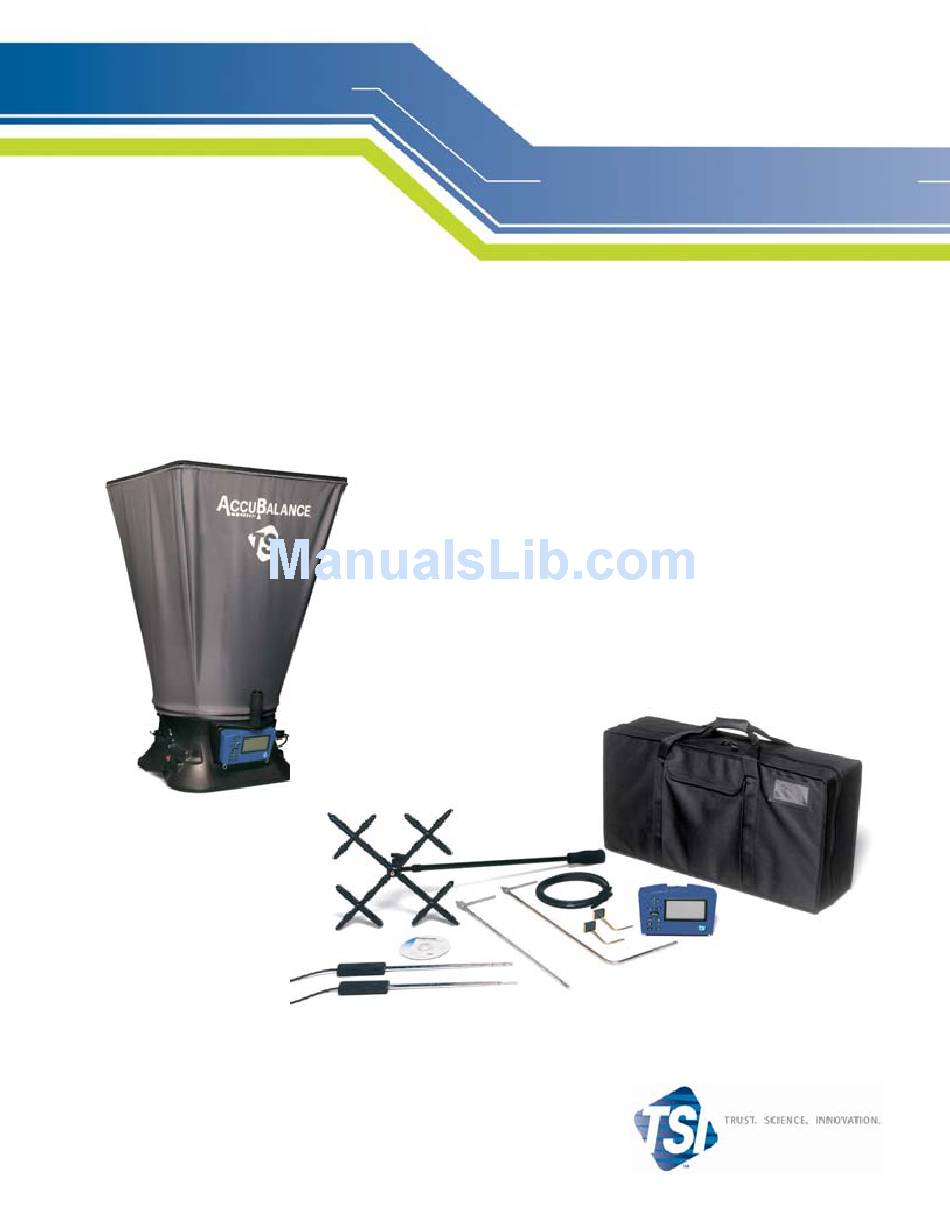

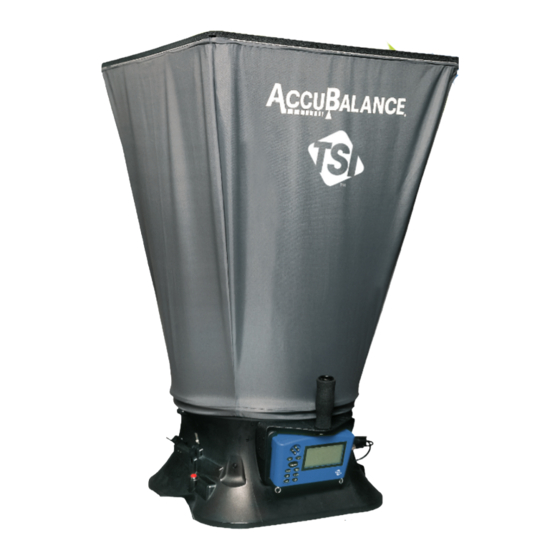

- Page 1 ENERGY AND COMFORT Ventilation Testing/Balancing Model 8710 DP-C Micromanometer Model 8375 A ® ALANCE Modular Air Balancing Tool Operation and Service Manual 1980525, Revision E June 2009 ® Model 8375 A ALANCE Modular Air Balancing Tool Model 8710 DP-C ™ Micromanometer...
- Page 2 LIMITATION OF WARRANTY AND LIABILITY Copyright© TSI Incorporated / 2005–2009 / All rights reserved. LIMITATION OF WARRANTY AND LIABILITY (effective July 2000) Seller warrants the goods sold hereunder, under normal use and service as described in the operator's manual, shall be free from defects in workmanship and material for twenty-four (24) months, or the length of time specified in the operator's manual, from the date of shipment to the customer.
-
Page 4: Table Of Contents
CONTENTS About This Manual........................iii Caution............................iii Formatting and Typography ....................iii Technical Assistance—Help! ....................iii Chapter 1. Introduction ......................1 Instrument Description ......................1 Micromanometer ....................... 2 Micromanometer ........................3 Standard Tools........................3 Pitot Tube.......................... 3 Static Pressure Probe ....................... 3 Optional Tools ......................... 3 Capture Hoods ........................ - Page 5 Select/Set a K-factor for a Tool ..................... 21 View/Set Standard Pressure and Temperature ..............21 Set Units of Measure for Temperature, Pressure, Velocity/Flow and Humidity ....23 Select the RS232 Output Device (Computer or Printer) ............23 Set the Baud Rate......................... 24 Set the Format for Date and Decimal..................
-
Page 6: About This Manual
About This Manual ® This manual explains how to set up, operate, and maintain the TSI Model 8710 DP-C ™ ® Micromanometer and Model 8375 A Module Air Balancing Tool. Read it thoroughly ALANCE before using the instrument. Caution C A U T I O N ®... -
Page 8: Chapter 1. Introduction
Chapter 1. Introduction The Model 8710 DP-C ™ Micromanometer is a lightweight and easy-to-use instrument packaged with a variety of accessories for measuring pressure, temperature, humidity, air velocity, and air volume. Features of the micromanometer include: Single-function keys for ease of use Auto-zero for pressure measurements and auto-density correction User-selectable English and metric units Conversions between actual and standard flow... -
Page 9: Micromanometer
C A U T I O N ® HILE USING THE ALANCE AIR BALANCING INSTRUMENT TO TEST AIR FLOW IN DUCTS YOU MAY COME INTO CONTACT WITH OR BE EXPOSED TO DUST POLLEN MOLD FUNGUS OR OTHER AIRBORNE CONTAMINANTS F YOU ARE OR MAY BE SENSITIVE TO DUST POLLEN MOLD... -
Page 10: Micromanometer
Micromanometer The micromanometer is a multifunction instrument useful in obtaining air velocity, air flow, absolute and differential pressure, temperature, and humidity measurements when used with the tools listed below. The lightweight micromanometer incorporates auto-zeroing for high-accuracy, low-end pressure measurements. Standard Tools This section gives a brief description of standard tools for the micromanometer. -
Page 12: Chapter 2. Unpacking And Setting Up
Chapter 2. Unpacking and Setting Up This chapter describes unpacking and setting up (preparing) the micromanometer for use. Figure 3 shows a picture of the Model 8710 with a velocity matrix measuring the face velocity on a laboratory hood. Figure 3: Model 8710 with Velocity Matrix Unpacking As you unpack the instrument and accessories, check the components against your packing list. -
Page 13: Preparing The Instrument For Use
Item Part No./Model No. Capture Hood upgrade kit for 8710 DP-C ™ micromanometer includes: 2 ft × 801179 2 ft hood fabric, frame, poles, base, wheeled carrying case AC Adapter (USA) 8710-USA AC Adapter (EU) 8710-EUA AC Adapter (UK) 8710-UKA AC Adapter (AU) 8710-AUA Table 2: List of Optional Hood Components... - Page 14 Figure 4: Battery Cover Removal Press down on the compartment cover and slide it down. (The cover slides off.) Remove the battery holder by pulling up on the bottom (to loosen it) and then pulling the battery holder free. Refer to Figure 5 and set the battery selection switch to indicate the type of batteries you are using. Battery Selection Switch Figure 5: Location of Battery Type Selector Switch Reinstall the battery holder and replace the battery compartment cover.
-
Page 15: Connecting The Pitot Tube To The Micromanometer
Remove the old batteries and replace with fresh batteries (alkaline or rechargeable NiMH). Make certain batteries are correctly oriented. Verify the battery selection switch is correctly set (see Figure 5). Reinstall the battery holder and replace the compartment cover. Note: Make sure the battery holder is oriented so that its terminals make contact with the spring contacts in the battery compartment. -
Page 16: Attaching The Micromanometer To The Capture Hood Base
Magnet Static Pressure Port Figure 7: Static Pressure Probe Attaching the Micromanometer to the Capture Hood Base 1. Tilt the meter forward and align the tabs in the base of the meter with the two matching slots in the bottom of the recessed area at the front of the base (see Figure 8). 2. -
Page 17: Connecting The Air Flow Probe To The Micromanometer
Standoffs can be screwed together to make different lengths and are used to maintain a fixed and level orientation away from a filter. The standoffs are attached to the positive (+) side of the velocity matrix. The handle assembly is attached to the downstream or negative (-) side in the center of the velocity matrix (see Figure 9). - Page 18 Figure 11: Connector for the Temperature Probe or Temperature/Humidity Probe Chapter 2: Unpacking and Setting Up...
-
Page 20: Chapter 3. Getting Started
Chapter 3. Getting Started This section provides information to help you quickly become familiar with the Model 8710 Micromanometer functions. It also includes step-by-step instructions for taking Sample readings. Keypad Operation The keypad lets you enter information, initiate functions, and change values stored in the micromanometer. -
Page 21: Common Terms
The BACKLIGHT key turns the display’s backlighting on and off. Use backlighting only when working in areas where you cannot read the display with existing light. Backlighting has a significant impact on battery life. Common Terms In this manual there are several terms that are used in different places. The following is a brief explanation of the meanings of terms. -
Page 22: Step-By-Step Example Operation
Step-By-Step Example Operation The quickest way to become acquainted with the operation of the micromanometer is to take a few Samples while in the pressure mode. To take Samples proceed as follows: 1. Connect the AC adapter to the micromanometer or install batteries in the micromanometer (see Chapter 2. -
Page 24: Chapter 4. How To
Chapter 4. How To This chapter explains how to perform a variety of operations: Select a Tool/Probe Set the Date and Time Change the current Test ID Recall Sample Data Delete Sample Data Delete All Sample Data Select/Set a K-factor View/Set Standard Pressure and Temperature Set Units of Measure for Temperature, Pressure, Flow and Humidity Select the RS232C Output Device (Computer or Printer) - Page 25 Table 3: Tool Selection Display Display Shows Tool Units Available Pressure units only Pressure in H O, mm H O, cm H O, Pa, hPa, kPa, mm Hg, cm Hg, in Hg, Capture Hood l/s, m /hr, m /min, CFM with flow units Pressure units with K- Diffuser Flow...
-
Page 26: Set The Time And Date
Set the Time and Date 1. Press to display CHANGE Test ID. 2. Press until SETUP appears. 3. Press 4. Press until TIME is displayed. 5. Press . The display shows the current time and date. The hours value is flashing. 6. -
Page 27: Delete Sample Data
Delete Sample Data You can delete data in three ways: 1) delete all Sample data in all Test IDs, 2) delete all Sample data for a single Test ID, and 3) delete only the last Sample currently stored in a Test ID. Delete all Sample Data to display CHANGE Test ID. -
Page 28: Select/Set A K-Factor For A Tool
Select/Set a K-factor for a Tool It is possible to enter K-Factors to adjust the calculations of the velocity and flow measurements. For Pitot Velocity, Pitot Flow, Air Flow Probe Flow, Air Flow Probe Velocity and Velocity Matrix, the K-Factor is simply multiplied by the calculated velocity or flow in order to get the displayed value. For these Tools, use of a K-Factor is optional and setting the K-Factor to 1.0 will turn it off. - Page 29 To display the Barometric Pressure: 1. Press to display CHANGE Test ID. until STP.SET appears. 2. Press 3. Press . ACT.STD is displayed. 4. Press until B.PRESS appears. The measured barometric pressure is displayed. Barometric pressure is not changeable by the user. 5.
-
Page 30: Set Units Of Measure For Temperature, Pressure, Velocity/Flow And Humidity
Set Units of Measure for Temperature, Pressure, Velocity/Flow and Humidity 1. Press to display CHANGE Test ID. until SETUP appears. 2. Press 3. Press 4. Press until UNITS appears. 5. Press . The display shows TEMP. 6. Press . The display shows the current temperature units. Options are °F or °C. 7. -
Page 31: Set The Baud Rate
6. Press to change device. 7. Press . COM.DEV is displayed. 8. Press ESC to return to SETUP. Set the Baud Rate Before transferring data to a computer or printer, you must set the baud rate to the speed at which your printer or computer will accept information. -
Page 32: Set Display Mode For Running Average Or Single
Set Display Mode for Running Average or Single If Single is selected, the instrument will show READY on its display, and will not start taking readings until READ is pressed. If Running Average is selected, the instrument will constantly measure and display a running average. The READ button can then be used to stop and start the running average. -
Page 33: Take Back Pressure Compensated Hood Readings
2. Press until SETUP appears. 3. Press until BP.COMP appears. 4. Press 5. Press . The display shows whether back pressure compensation is on or off. 6. Press to change the option. Options are: ON and OFF. 7. Press . BP.COMP is displayed. 8. -
Page 34: Calibrate The Micromanometer (User Calibration)
6. Press to change the option. Options are: ON and OFF. 7. Press . DEADbAnd is displayed. 8. Press ESC to return to the main display. Calibrate the Micromanometer (User Calibration) A full instrument checkout and calibration with a calibration certificate is available from the factory. However, some users prefer to calibrate their own instruments. -
Page 35: Connect And Download Data To An Optional Printer
Always turn the instrument on before the printer. If the printer prints question marks (??????), asterisks (******), or random characters, reset it by turning it off and then on again. Figure 12 illustrates the printout information for a single sample. --------------------------- MODEL: 8710 DP-Calc SERIAL: 0404004 --------------------------- TEST ID:... -
Page 36: Connect And Download Data To A Computer
To print all samples stored within a particular Test ID, first enter the RECALL menu. Select the desired Test ID to print using the up/down arrow keys. Then press and release the key. The display will flash “Send dAtA” while sending. To print an individual sample, first enter the RECALL menu. -
Page 38: Chapter 5. Changing Flow Hoods
Chapter 5. Changing Flow Hoods This chapter identifies the flow hood parts and gives instructions for assembling the flow hood. Flow Hood Parts Identification Figure 13 identifies the major parts of the capture hood, which are described in the following paragraphs. Before using the hood, please familiarize yourself with the various parts. -
Page 39: Alternate Hood Installation
Figure 14: Installing a Support Pole 4. Insert the second support pole into the pole mount on the opposite side of the base. 5. Repeat step 3 for the second support pole. 6. Repeat steps 4 and 5 for the remaining two support poles. Four other hood sizes are available from TSI and can be purchased separately. - Page 40 Figure 15: 1 ft × 4 ft (305 mm x 1220 mm) hood and frame. The support poles always cross as pairs at the front and back of the fabric hood. For the 1 ft × 4 ft (305 mm x 1220 mm), the support poles are inserted into the outside ferrule locations.
- Page 41 Figure 16: 2 ft × 4 ft (610 mm x 1220 mm) hood and frame. The support poles always cross as pairs at the front and back of the fabric hood. For the 2 ft × 4 ft (610 mm x 1220 mm), the support poles are inserted into the inside ferrule locations.
- Page 42 Figure 17: 1 ft × 5 ft (305 mm × 1525 mm) hood and frame. The support poles always cross as pairs at the front and back of the fabric hood. For the 1 ft × 5 ft (305 mm × 1525 mm), the support poles are inserted into the inside ferrule locations.
- Page 43 Figure 18: 3 ft × 3 ft (915 mm × 915 mm) hood and frame. The support poles always cross as pairs at the front and back of the fabric hood. For the 3 ft × 3 ft (915 mm × 915 mm), the support poles are inserted into the outside ferrule locations.
-
Page 44: Direct Inflow Measurement Hood For Biological Safety Cabinets
Figure 20: Frame Side Coupler Assembly Each hood is constructed in a trapezoidal shape, sewn together so that one open end forms a round attachment to the base, and the other forms a square or rectangle large enough to fit its matching frame assembly. - Page 45 The direct inflow BSC hood includes (see Figure 22): ❑ Fixed frame assembly with four removable flaps ❑ Fabric hood ❑ Hood support poles ❑ Base mounting hardware (threaded insert, washer, and screw) ❑ Telescopic pole stand with case to freely hold the 8710 Micromanometer in a vertical position when mounted to a biological safety cabinet or lab hood Figure 22: Direct Inflow Measurement Hood Components To complete the assembly of the BSC hood, follow these seven steps:...
- Page 46 2. Attach the fabric hood and hood support poles to the frame and base assembly in the same manner as previously described for the other hood sizes. 3. Insert the flaps into the slots from the side of the frame where the fabric hood is attached to the U- channel of the frame (see Figure 24).
- Page 47 Figure 26: Adjust Height and Position of Telescopic Stand 6. Lower the sash of the cabinet until it rests on the foam lip of the hood frame (see Figure 27). Figure 27: Lower Sash of Cabinet Until it Rests on Foam Lip of Hood Frame 7.
- Page 48 Figure 28: Unit Ready to Make Measurements Chapter 5: Changing Flow Hoods...
-
Page 50: Chapter 6. Flow Measurements Using The Capture Hood
Chapter 6. Flow Measurements Using the Capture Hood There are two methods of making flow measurements using the capture hood: Non-Backpressure Compensated and Backpressure Compensated methods (see “Appendix A. Back Pressure,” for an explanation of the implications of capture hood-induced back pressure on the measured flow). Flows in both “Supply”... -
Page 51: Running Average Measurements
Running Average Measurements In the “Running Average” measurement mode, the meter will constantly measure and display a running average of flow. This mode is useful when making adjustments to the flow. If you wish to “hold” a particular value on the display, momentarily press either the “READ” key on the meter or the red trigger button on the base. -
Page 52: Error Display
Error Display If the limits of allowed flow parameters are exceeded during a backpressure compensated measurement, an error message will be displayed. This can happen if there are flow reversals during the measurement or other changes in the flow during the measurement (such as changing a damper position), or as a result of other operator errors. -
Page 54: Chapter 7. Maintenance And Troubleshooting
Chapter 7. Maintenance and Troubleshooting The Model 8710 Micromanometer is designed for long-term field use. If used with reasonable care, it should be able to make precise measurements over a long time period. Some of the components can be cleaned periodically. When cleaning the components, please follow the instructions given below. Fabric Hood The hoods can be washed with mild detergent and cold water. -
Page 55: Cases
Cases If the instrument case or storage case needs cleaning, wipe it off with a soft cloth and isopropyl alcohol or a mild detergent. Calibration TSI recommends an annual calibration for the instrument. For a nominal fee, we will calibrate the unit and return it to you with a certificate of calibration and NIST traceability. -
Page 56: Error Code
Table 6: Error Codes Error Code Possible Causes Corrective Action The AC adapter voltage is too low. Use correct AC adapter. The NiMH batteries will not recharge fully with low AC adapter voltage. The AC adapter voltage is too high. Use correct AC adapter. - Page 57 Error Code Possible Causes Corrective Action There was an error reading the AD7708 A Return to factory if error re-occurs. to D converter. There was an error reading the AD7718 A Return to factory if error re-occurs. to D converter. 39,40, 41,42 Error in logged data.
- Page 58 Error Code Possible Causes Corrective Action Pressure sensor divider calibration out of Return to factory. range. A to D reference voltage out of range. Return to factory. 5V reference voltage out of range. Return to factory. 71, 72 An invalid K-Factor was corrected. The micromanometer has set the K- factor to 1.0 to correct it.
-
Page 60: Appendix A. Back Pressure
Appendix A. Back Pressure The quantity of air flowing through a supply diffuser or a return grille is reduced to some extent whenever a capture hood is placed over the flow opening. The amount of flow reduction will vary depending on the combined effects of the diffuser/grille resistance, the capture hood resistance, and the flow rate. -
Page 62: Appendix B. Actual Vs. Standard Air Velocity And Flow Measurements
Appendix B. Actual vs. Standard Air Velocity and Flow Measurements Actual Air Velocity is also known as the “local” air velocity. It can be thought of as the speed of a microscopic dust particle being carried along in the air stream. Actual Air Velocity is measured with a Pitot tube using the basic formula: ×... - Page 63 Thus, to convert from Actual Velocity to Standard Velocity, use the following equation: ρ × Eq. (5) ρ Substituting known values into Eq. (5), we get: × × × × Eq (6) where: P is the local atmospheric pressure, as measured by the micromanometer, for example, in units of (in.
-
Page 64: Specifications
Model 8710 DP-C ™ Micromanometer and ® Model 8375 A Modular Air Balancing Tool ALANCE Specifications Range Units Differential pressure... ±15 in. H O (3735 pa); 150 in. Pressure ....in. H O, pa, hPa, kPa, mm Hg, O maximum safe operating in. - Page 65 Thank you for reading this data sheet. For pricing or for further information, please contact us at our UK Office, using the details below. UK Office Keison Products, P.O. Box 2124, Chelmsford, Essex, CM1 3UP, England. Tel: +44 (0)330 088 0560 Fax: +44 (0)1245 808399 Email: sales@keison.co.uk...
