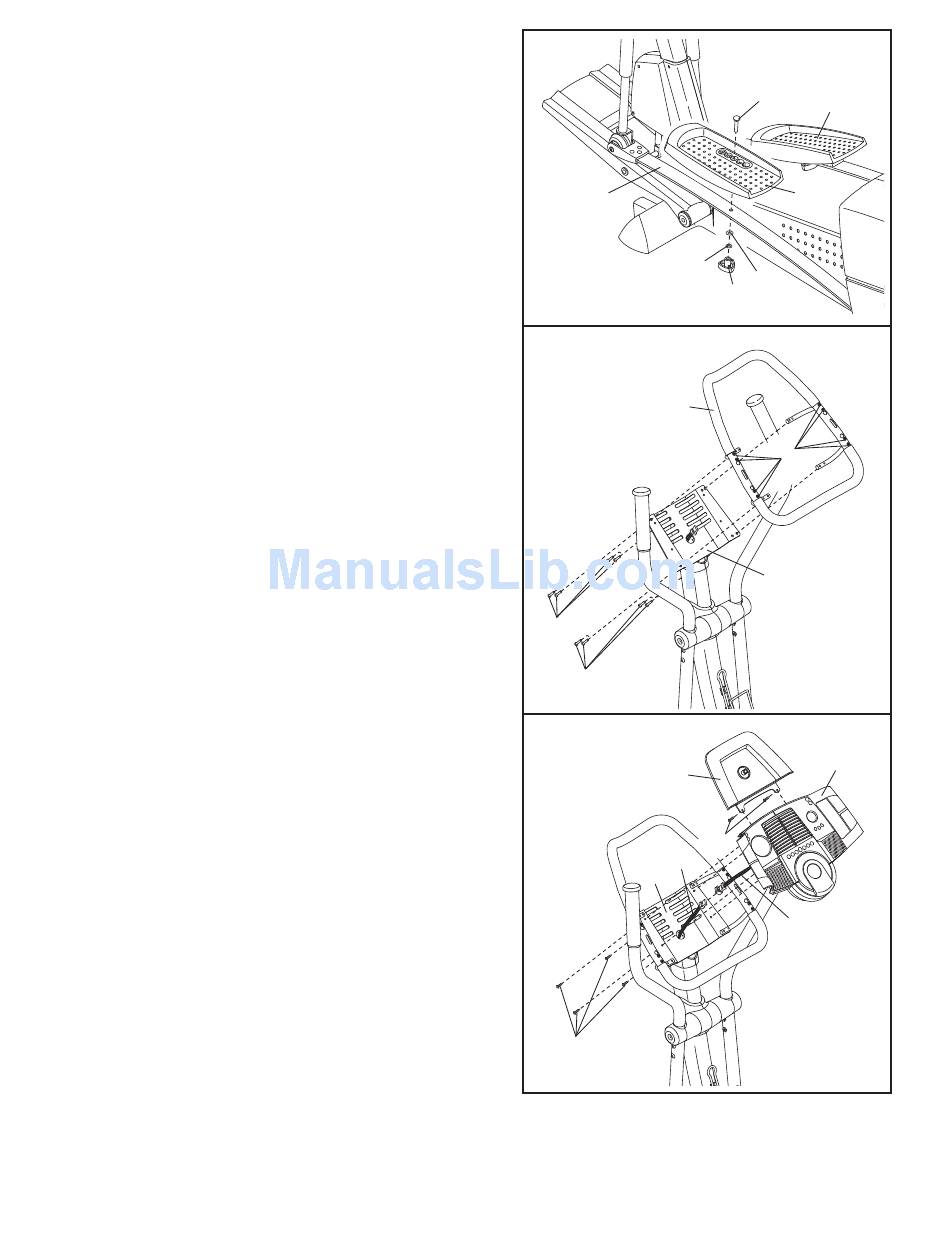

10. Identify the Left Pedal (13). Attach the Left Pedal to
the left Flex Bar (14) with an M10 x 35mm Carriage
Bolt (20), an M10 Washer (99), an M10 Split Washer
(144), and a Pedal Knob (15) as shown. Note: The
Left Pedal can be attached in any of five positions
(see HOW TO ADJUST THE PEDALS on page 11).
Attach the Right Pedal (12) in the same way. Make
sure that both Pedals are in the same position.
See step 7. Tighten the four M8 x 43mm Button Bolts
(50).
11. Loosen the eight indicated screws (A) in the Center
Handlebar (63).
Attach the Center Handlebar (63) to the Upright (2)
with eight M6 x 16mm Tapered Button Screws (107).
Do not tighten the Tapered Button Screws yet.
Retighten the eight screws (A) in the Center
Handlebar (63).
12. See step 13. Remove the six M4 x 16mm Screws (66)
and the Left and Right Handlebar Covers (109, 110)
from the Console (5).
Attach the CD Holder (114) to the Console (5) with
two M4 x 12mm Screws (84) as shown.
While another person holds the Console (5) in the
position shown, connect the wire harness on the
Console to the Upper Wire Harness (86). Insert the
excess wire harness down into the Upright (2).
Attach the Console (5) to the Upright (2) with four M4
x 12mm Screws (84). Be careful to avoid pinching
the wire harnesses.
10
14
11
107
107
12
2
84
9
20
12
13
144
99
15
63
A
2
5
114
84
86
Wire
Harness
