ProForm PFEL1303.3 User Manual

Proform user manual elliptical exerciser pfel1303.3
Hide thumbs

Advertisement

Table of Contents

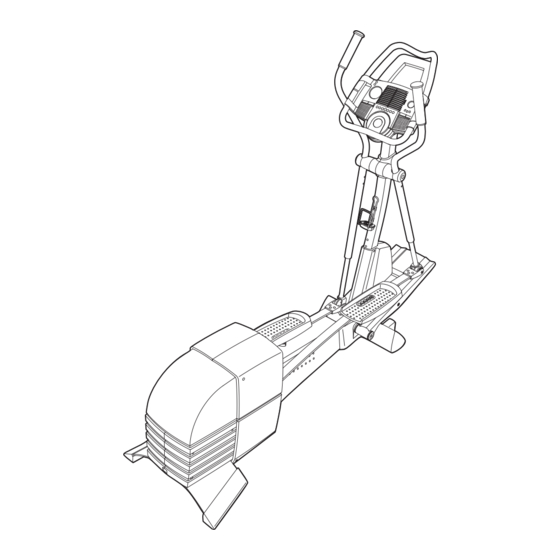

Model No. PFEL1303.3
Serial No.
Serial Number
Decal
QUESTIONS?
As a manufacturer, we are com-
mitted to providing complete
customer satisfaction. If you
have questions, or if parts are
damaged or missing, PLEASE
CONTACT OUR CUSTOMER
SERVICE DEPARTMENT
DIRECTLY.
CALL TOLL-FREE:
1-888-533-1333
Mon.–Fri., 6 a.m.–6 p.m. MST
ON THE WEB:
www.proformservice.com
CAUTION
Read all precautions and instruc-
tions in this manual before using
this equipment. Keep this manual
for future reference.
USER'S MANUAL
Visit our website at
www.proform.com
new products, prizes,
fitness tips, and much more!

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PFEL1303.3 and is the answer not in the manual?

Questions and answers

Related Manuals for ProForm PFEL1303.3

Summary of Contents for ProForm PFEL1303.3

  • Page 1 Model No. PFEL1303.3 Serial No. Serial Number Decal QUESTIONS? As a manufacturer, we are com- mitted to providing complete customer satisfaction. If you have questions, or if parts are damaged or missing, PLEASE CONTACT OUR CUSTOMER SERVICE DEPARTMENT DIRECTLY. CALL TOLL-FREE: 1-888-533-1333 Mon.–Fri., 6 a.m.–6 p.m.

  • Page 2: Table Of Contents

    LIMITED WARRANTY ............. .Back Cover PROFORM is a registered trademark of ICON IP, Inc.

  • Page 3: Important Precautions

    IMPORTANT PRECAUTIONS WARNING: To reduce the risk of serious injury, read the following important precau- tions before using the elliptical exerciser. 1. Read all instructions in this manual and all warnings on the elliptical exerciser before using the elliptical exerciser. 2.

  • Page 4: Before You Begin

    1280 S product model number and serial number before call- ® ing. The model number is PFEL1303.3. The serial number can be found on a decal attached to the ellipti- cal exerciser (see the front cover of this manual for the location of the decal).

  • Page 5: Assembly

    ASSEMBLY To hire an authorized service technician to assemble the elliptical exerciser, call toll-free 1-800-445-2480. Assembly requires two persons. Place all parts of the elliptical exerciser in a cleared area and remove the packing materials. Do not dispose of the packing materials until assembly is completed. In addition to the included allen wrenches, assembly requires a phillips screwdriver wrench , and a rubber mallet...
  • Page 6 1. While another person lifts the front of the Frame (1), thread a Leveling Foot (72) fully into the underside of the Frame. Next, attach the Front Stabilizer (3) to the front of the Frame (1) with two M8 x 54mm Button Screws (33) and two M8 Split Washers (94).
  • Page 7 4. Identify the Ramp Axle (128), which is the longest axle. Slide a Ramp Axle Cover (132) onto an M6 x 18mm Button Screw (67) as shown. Tighten the Button Screw into one end of the Ramp Axle. Apply a small amount of the included grease to the Ramp Axle.
  • Page 8 7. Identify the Left Handlebar (9), which is marked with a sticker. Insert the Left Handlebar into one of the Handlebar Legs (79); make sure that the Handlebar Leg is turned so the hexagonal holes are on the indicated side. Attach the Left Handlebar with two M8 x 43mm Button Bolts (50) and two M8 Nylon Locknuts (46).
  • Page 9 10. Identify the Left Pedal (13). Attach the Left Pedal to the left Flex Bar (14) with an M10 x 35mm Carriage Bolt (20), an M10 Washer (99), an M10 Split Washer (144), and a Pedal Knob (15) as shown. Note: The Left Pedal can be attached in any of five positions (see HOW TO ADJUST THE PEDALS on page 11).
  • Page 10 13. Attach the Left Handlebar Cover (109) to the Console (5) with three M4 x 16mm Screws (66). Attach the Right Handlebar Cover (110) in the same way. See assembly step 11. Tighten the eight M6 x 16mm Tapered Button Screws (107). 14.

  • Page 11: How To Use The Elliptical Exerciser

    HOW TO USE THE ELLIPTICAL EXERCISER HOW TO PLUG IN THE POWER CORD This product must be Grounded Outlet Box grounded. If it should malfunction or break down, grounding Grounding Pin provides a path of least Grounded Outlet resistance for electric current to reduce the risk of electric shock.

  • Page 12: Features Of The Console

    FEATURES OF THE CONSOLE The advanced console offers a selection of features designed to make your workouts more enjoyable and effective. When the manual mode of the console is selected, the resistance of the pedals and the angle of the ramp can be changed with the touch of a button. As you work out, the console will provide continuous exercise feedback.

  • Page 13: How To Use The Manual Mode

    To use the manual mode of the console, see the instructions below. To use a Smart program, see page 15. To use a Heart Rate program, see page 16. To use an iFIT.com CD program, see page 17. To use an iFIT.com video program, see page 19. To use a program directly from our Web site, see page 20.
  • Page 14 The small display will show your pedaling pace (in revolutions per minute). The indicator bar in the small display will increase or decrease in length as you increase or decrease your pedaling pace. Note: When you use a Heart Rate program, the small display will show your heart rate instead of your pedaling pace.
  • Page 15 HOW TO USE A SMART PROGRAM Each Smart program will automatically change the resistance of the pedals and prompt you to increase or decrease your pace as it guides you through an effec- tive workout. Follow the steps below to use a Smart program. Turn on the console.

  • Page 16: Heart Rate Program

    HOW TO USE A HEART RATE PROGRAM Heart Rate program 1 is designed to keep your heart rate between 60% and 90% of your maximum heart rate during your workout. (Your maximum heart rate is estimated by subtracting your age from 220. For example, if you are 25 years old, your maximum heart rate is 195 beats per minute.) Heart Rate program 2 is designed to keep your heart rate near a target heart...

  • Page 17: Ifit.com Cd Programs

    The program will continue in this way until the large display shows that no time remains in the program. Note: If you stop pedaling for a few sec- onds, the program will end. To use the program again, reselect it and start it at the beginning. Follow your progress with the large display.
  • Page 18 Adjust the volume if desired. To adjust the vol- ume, press the Volume – and + buttons on the CD player. Follow your progress with the large display. See step 4 on page 13. Measure your heart rate if desired. See step 5 on page 14.
  • Page 19 HOW TO CONNECT TO YOUR COMPUTER Note: If your computer has a 1/8” LINE OUT jack, see instruction A. If your computer has only a PHONES jack, see instruction B. A. Plug one end of a 1/8” to 1/8” stereo audio cable (available at electronics stores) into the jack beneath the console.
  • Page 20 • Make sure that the audio cable is properly connected and that it is fully plugged in. To stop the program at any time, stop pedaling and press the pause button on your VCR. To restart the program, press the play button on your VCR and begin pedaling.
  • Page 21 THE OPTIONAL CHEST PULSE SENSOR The optional chest pulse sensor provides hands-free operation and continuously monitors your heart rate during your workouts. To purchase the optional chest pulse sensor, call the toll-free telephone number on the front cover of this manual. If you have purchased the optional chest pulse sensor, follow the steps below to install the receiv- er included with the chest pulse sensor.

  • Page 22: Maintenance And Troubleshooting

    MAINTENANCE AND TROUBLESHOOTING Inspect and properly tighten all parts of the elliptical exerciser regularly. Replace any worn parts immedi- ately. For smooth operation of the elliptical exer- ciser, inspect and clean the ramp regularly using a soft cloth and mild detergent.

  • Page 23: Conditioning Guidelines

    CONDITIONING GUIDELINES WARNING: • Before beginning this or any exercise pro- gram, consult your physician. This is espe- cially important for persons over the age of 35 or persons with pre-existing health prob- lems. • The pulse sensor is not a medical device. Various factors may affect the accuracy of heart rate readings.

  • Page 24: Part List

    PART LIST—Model No. PFEL1303.3 Key No. Qty. Description Frame Upright Front Stabilizer Rear Stabilizer Console Left Side Shield Right Side Shield Rear Left Side Shield Left Handlebar Right Handlebar Foam Grip Right Pedal Left Pedal Flex Bar Pedal Knob Left Flex Bracket...
  • Page 25 Key No. Qty. Description Idler Bolt Idler Adjustment Screw M6 x 16mm Tapered Button Screw Pivot Axle Left Handlebar Cover Right Handlebar Cover M4 x 14mm Screw M6 x 30mm Flat Bolt Rear Plate CD Holder M8 x 43mm Button Screw Right Stabilizer Cover Handlebar Leg Bushing Chrome Tube...

  • Page 26: Exploded Drawing

    EXPLODED DRAWING A—Model No. PFEL1303.3 R1205A...
  • Page 27 EXPLODED DRAWING B—Model No. PFEL1303.3 R1205A...

  • Page 28: How To Order Replacement Parts

    • the MODEL NUMBER of the product (PFEL1303.3) • the NAME of the product (PROFORM 1280 S elliptical exerciser) • the SERIAL NUMBER of the product (see the front cover of this manual) • the KEY NUMBER and DESCRIPTION of the part(s) (see pages 24 and 25) ICON Health &...
