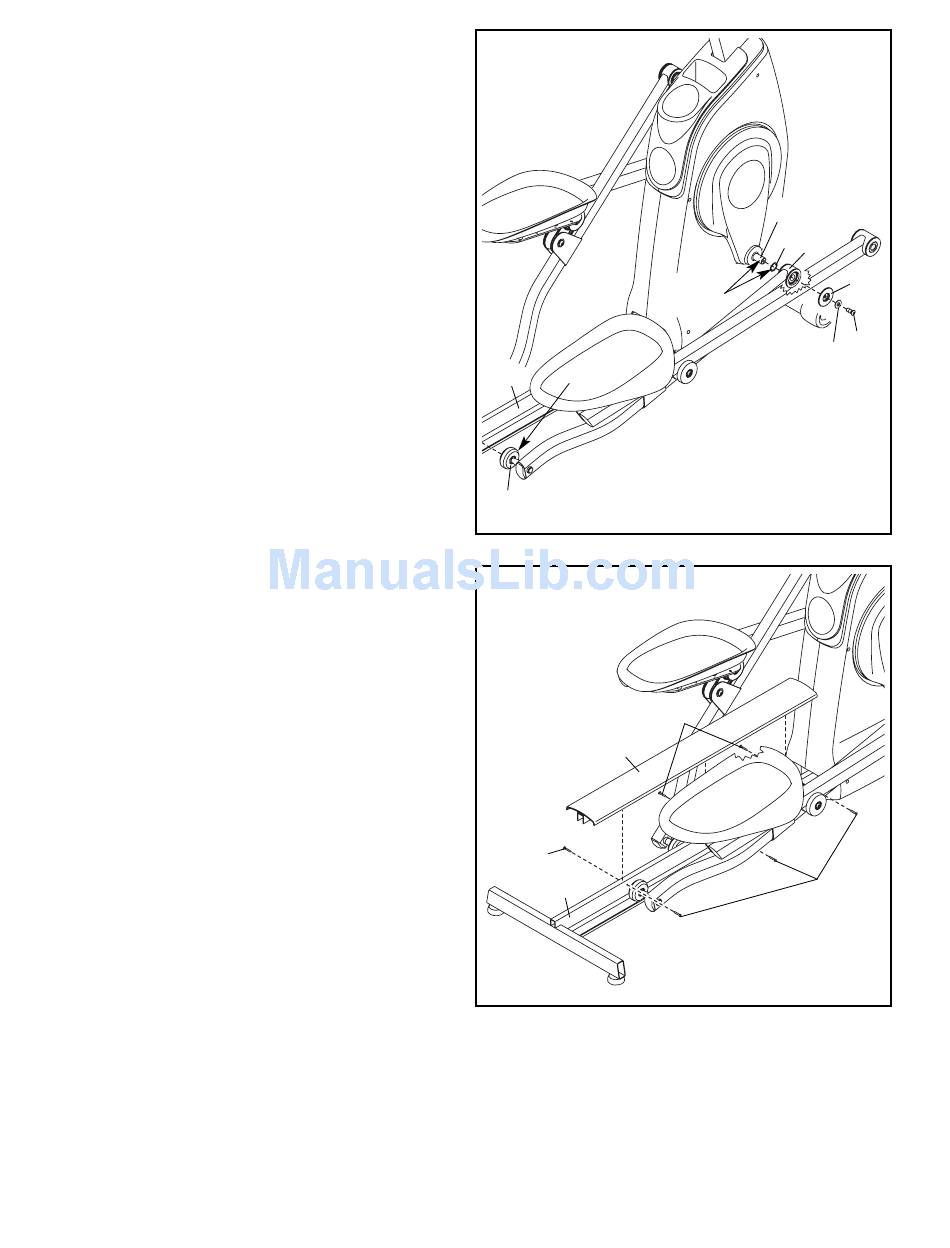

5. Apply a small amount of grease to the axle on
the right Crank Arm (36) and to a Wave Washer
(93). Then, slide the Wave Washer onto the
Crank Arm.
Also, apply a small amount of white grease,
which is marked with a "For Wheels" sticker, to
the Roller (22) on the Right Roller Leg (21);
spread the grease evenly around the Roller.
Slide the Right Roller Leg (21) onto the axle on
the right Crank Arm (36) and set the Roller (22)
on the Base (1). Attach the Right Roller Leg
with an M10 x 23mm Shoulder Screw (80), an
M10 x 20mm x 2mm Washer (81), and a Crank
Axle Cap (30).
Repeat this step for the other side of the
elliptical exerciser.
6. Attach the Center Frame Cover (27) to the Base
(1) with six M4 x 12mm Flange Screws (73).
