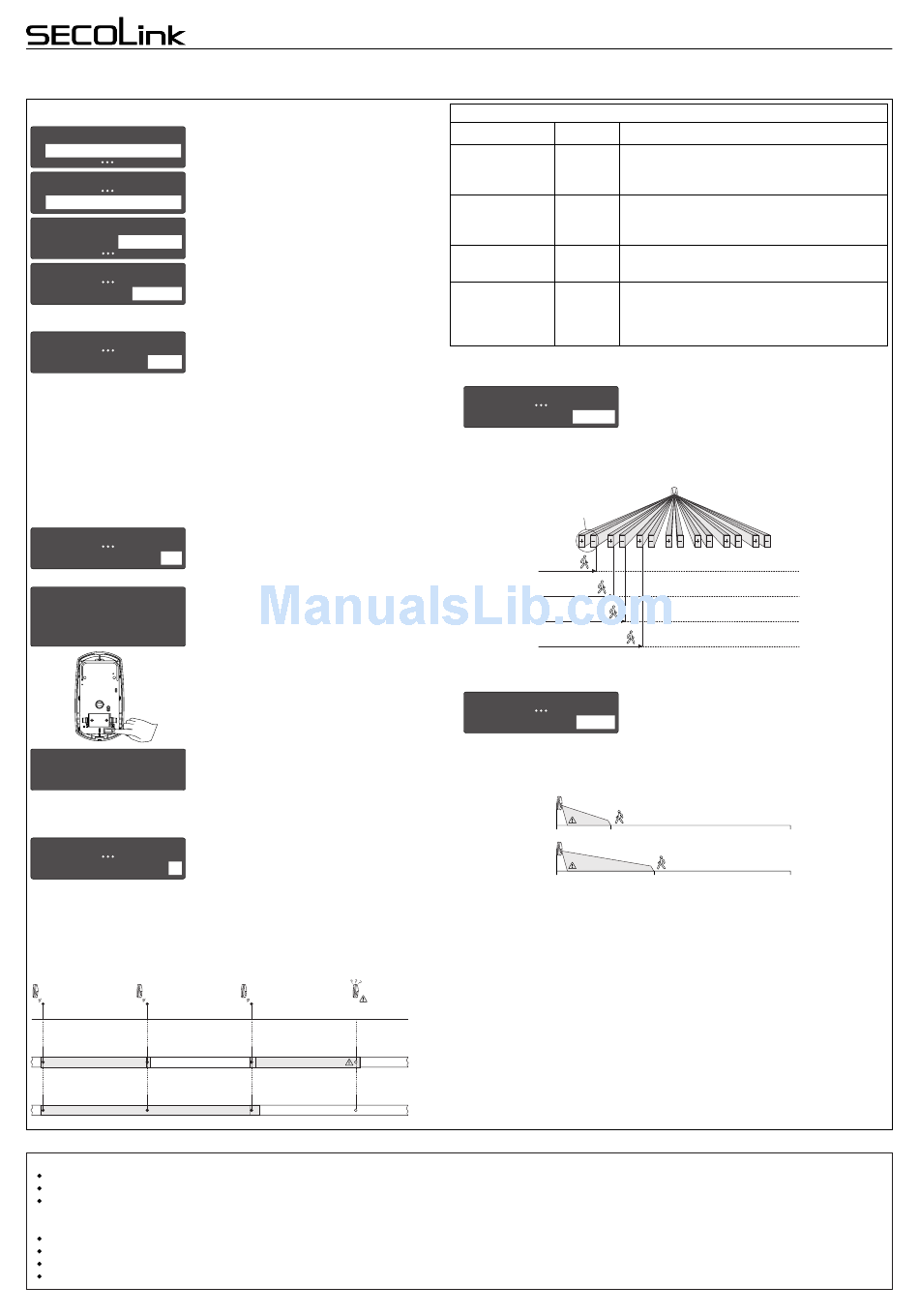

SECOLink BP2 Installation Manual page 2

Intruder alarm system
Service mode
1 System setup
System setup
3 Zones
Advance to the next unlearned zone with keypad
Z01 Living room
keys [Ь] or [7].
1 Name Living room
Enable the wireless zone by changing Not used
Z01 Living room
loop type to any other loop type. If the system uses
Loop type NO/DEOL
3
a keypad produced before 2014, an installer is
obligated to change the loop type to NO/DEOL or
Vibration.
Enter the zone address in MA_Z format, where MA
Z01 Living room
is a module address in the system and Z is a zone
3 Address 06_1
number in the module.
Note: for wireless zones MA_1 – MA_8 the system
will automatically assign NO/DEOL loop type and
for wireless zones MA_9 – MA_16 the Vibration
loop type. Don't change the loop type of a zone!
Module address:
EXT116S - address 06 (default) or given during
the registration process;
Virtual module EXT116S address depends on the
control panel type:
P16 - address 12;
P32 - address 12 and 13;
P64 - address 12, 13, 14 and 15.
Enter wireless detector loop (zone) ID number and
Z01 Living room
press the [ENT] key to start enrolling. This field may
4 WL det. loop (zone) ID 181
also be used for deleting the sensor from the
module.
When enrollment has started, immediately press
Waiting for
the tamper switch for a short period of time (~1 sec)
as shown in the picture. You will feel a light click after
WL detector
pressing the switch. The tamper switch is now
activated and the detector will transmit a tamper
message.
Wireless detector successfully enrolled. No addi-
Done
tional transmissions are needed for confirmation.
Supervisory check
The wireless detectors send a supervision signal
Z01 Living room
approximately every 1 hour. If the system does not
7 Supervisory window 2h
receive supervision (or alarm signal) signals from a
specific transmitter, the transmitter is regarded as
inactive. The amount of time after which a
transmitter is considered inactive is called the
Supervisory window.
Note: 0 hours disables the supervision. If there are
many detectors in the system, due to increased
collision effect, it is recommended to set the
supervision time to a minimum of 2 hours.
after ~1h
12h
received
Supervisory window: 1h
received
Supervisory window: 2h
It is expected that the detector with pet immune array lense will eliminate false alarms caused by:
Animals up to 25 kg,
Several small rodents,
Random flying birds.
Note: The weight of the animal should only be used as a guide; other factors such as the length and color of fur also affect the level of immunity.
For maximum pet immunity the following guidelines are recommended:
Mount the center of the detector at a height of 2,1 m.
Set the pulse counter to SPEC.
Do not aim the detector at stairways that can be climbed by an animal.
Avoid a location where an animal can come within 1,8m of the detector by climbing on furniture, boxes or other objects.
Page 2
ENROLLING AND PROGRAMMING
Enrolling
after ~2h after ~3h
received missing - supervisory trouble
received missing - waiting for other...
PET IMMUNITY GUIDELINES
Wireless detector loop (zone) enrolling ID numbers
Use Supports
Passive infrared
sensor
BP2
(PIR sensor)
Built-in
temperature
BP2
sensor
Delete detector in
All
a specific zone
Delete all
detectors
All
in a specific
wireless module
Pulse counter
Pulse counter determines the amount of beams that
Z01 Living room
need to be crossed before the sensor will produce
Pulse counter 2 pulses
15
the alarm. Use [Ѓ] or [‚] to change the setting: 2
pulses (the most sensitive mode), 3 pulses, 4
pulses or SPEC (the less sensitive mode).
Note: This setting could be changed using KM24,
KM24 or KM24G keypad.
Beam
2 pulses
3 pulses
4 pulses
SPEC
Use this setting to adjust the detection range. Range
Z01 Living room
can vary due to environmental conditions. To reduce
PIR Sensitivity Normal
16
the risk of false alarms always select the lowest range
possible for the installation.
Note: This setting could be changed using KM24,
KM24A (firmware: v.2.067 and higher) or KM24G
(firmware: v.2.021 keypad and higher).
~5
BP2, BP2-p Wireless detector
Installation manual
Wireless detector loop (zone) ID number
181
180
255
254
Fast detection performance
Good detection and false alarm
protection ratio
Pet immune applications
(with pet immune array lens)
Max false alarm protection in
hostile environment
Sensitivity
Small room
Large room
~12
