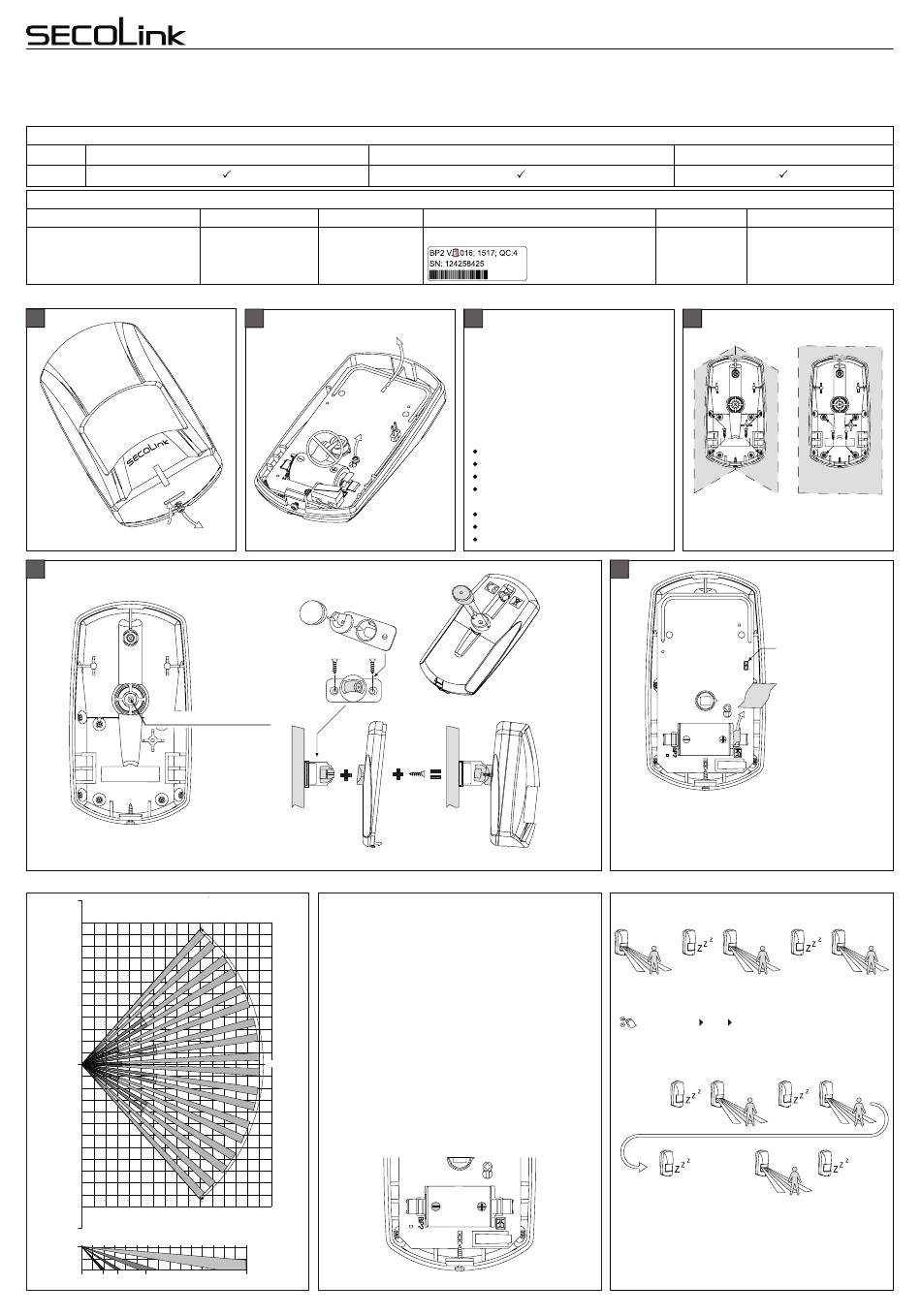

SECOLink BP2 Installation Manual

Intruder alarm system
The BP2 detector provides the mo st reliable,
toughest, most labor intensive installation. The BP2 detector is compatible with wireless extension modules EXT116S or with built-in virtual modules EXT116SVM in P series control
panels P16, P32 and P64.
Model Passive infrared sensor (PIR sensor)
BP2
Dimensions (W x H x D)
54,8 mm x 100 mm x 39 mm
1
2
3b
Use for swivel mount bracket
DETECTION PATTERNS
15m
10
5
0
5
10
0 5 10
15m
2,1m
0 1,9 3,3 5,9
convenient and cost effective solution for security
SECOLINK WIRELESS DETECTORS
Ambient temperature Ambient humidity
o o
0% - 70%
-10 C - +55 C
2
1
BATTERY INSTALLATION/REPLACEMENT
Battery life of wireless detectors depends on the
environment, usage, and the specific wireless devices
being used. Factors such as humidity, high or low
temperatures, as well as large swings in temperature
may all reduce the actual battery life in a given
installation. When the battery is nearly dead (low battery
threshold voltage < 2,45V) , the detector will send a low
battery signal to the alarm system for the user to replace
it before it discharges completely.
1. Unscrew the self-tapping screw.
2. Remove the detector's top cover.
3. Observe correct polarity and insert the battery into the
battery holder.
o
98
4. Close the top cover and secure it with a self-tapping
screw.
5. Dispose of used batteries as per local regulations.
Caution: the detector will send a tamper message to the
receiver when housing is opened - the alarm can be
triggered.
15m
15m
protection. The device is powerful and versatile enough to help solve even the
Built-in temperature sensor
SPECIFICATIONS
Operating frequency
Depends on firmware version of the detector:
1 = 868,30 MHz (EU)
9 = 915,30 MHz (AU)
INSTALLATION
3
Detector's recommended mounting
height is 2,1 meters (+/- 20 cm). It is
designed to be mounted on surfaces, in
corners (3a), or installed in places where
it is necessary to use a swivel mount
bracket (3b).
Find a suitable location (place) for the
detector keeping in mind the warnings
below:
Keep away from heat source.
Do not expose to air drafts.
Do not install outdoors.
Do not obscure partially or completely
the detector's field of view.
Avoid direct sunshine.
Keep away from power cables.
Mount on solid and stable surface.
BP2 Wireless detector
Installation manual
Pet immunity
Battery
Lithium battery BP2: > 2 years
½ AA, 3,6V
3a
Corner mount
4
LED indicator is
enabled when the
pins are shorted
Pull the
plastic tab
LED
Remove the plastic tab. Follow the instructions on a 2nd
page and enroll the detector into the system. After a
successful detector's enrollment close the top cover.
Use the screw to secure the top cover to the mounting
base.
WIRELESS DETECTOR OPERATION TESTING
Normally a wireless motion detector idles 4 minutes after
last movement detection:
~ 4 min
To test wireless detector operation enable the test mode
by doing a burglary zone test:
Main menu Test Burglary zone test
Detector will enter the test mode after first movement
detection and will stay in this mode until the zone test will
end (see picture below).
TEST
STARTED
~ 4 min ~ 10 sec
TEST
ENDED
~ 10 sec
Battery life
Surface mount
~ 4 min
~ 4 min
Page 1
