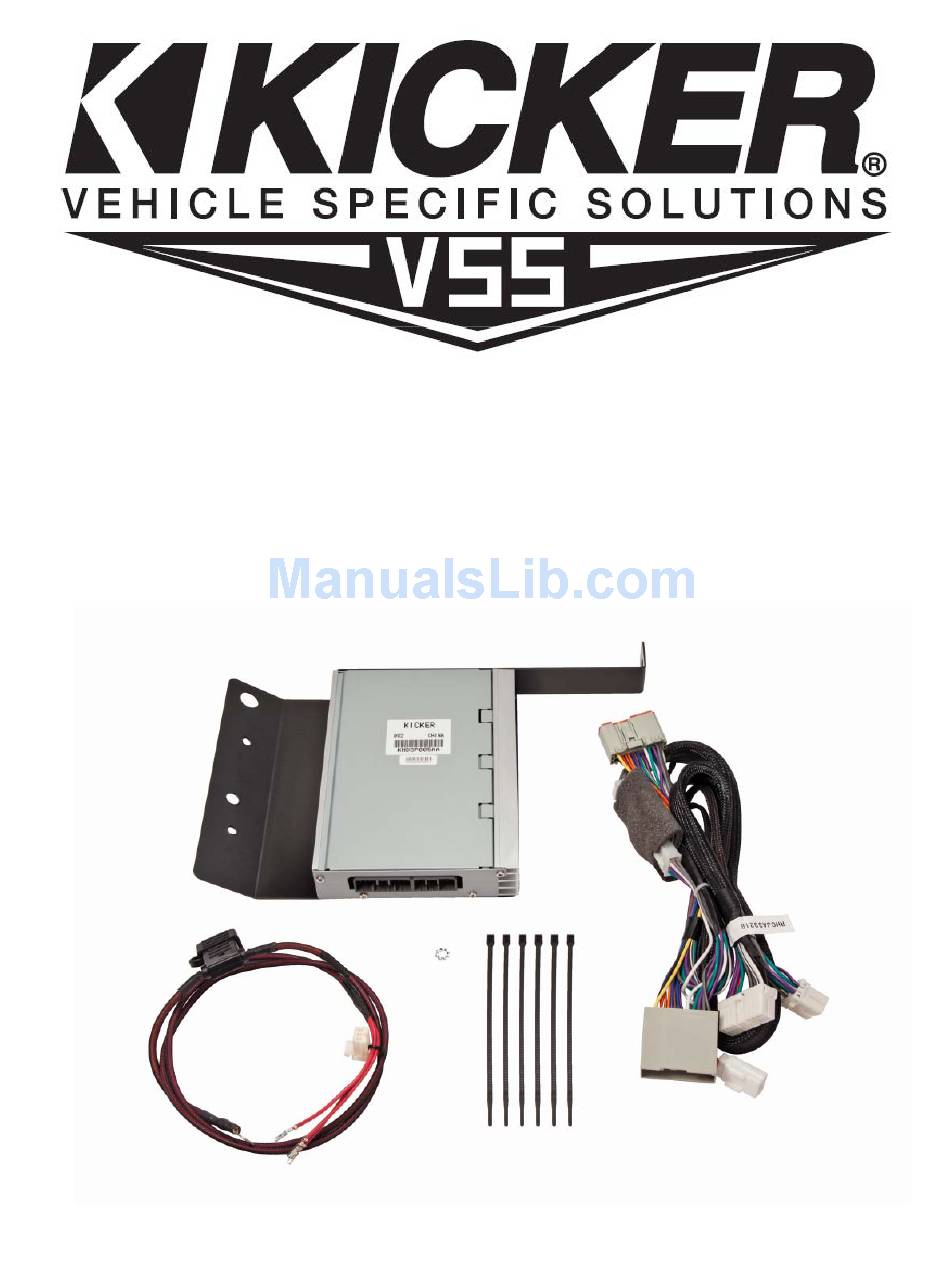

- Page 1 PMUSP10 ® Designed for 2010–2011 Ford Mustang vehicles Amplifi er Assembly Body Harness Power Harness 25A Fuse Wire Ties x6 Star Washer ©2012 Stillwater Designs PMUSP10-A3-20140730...
- Page 2 Subwoofer Assembly Body Harness Power Harness 25A Fuse Wire Taps x2 Wire Ties x6 Adapter Harness M6 Nut Installation 1. Disconnect negative battery cable 2. Turn the steering wheel as far as possible to the left. 3. Using a straight screwdriver pry out the center portion of the two plastic retainers that secure the rear portion of passenger’s side front fender well.
- Page 3 7. Route the power harnesses down to the small opening near the fi re wall that leads into the fender well area. Fig. 4 8. Using a razor knife make a small incision in the rubber grommet. Fig. 5 9. Pass the power harnesses into the cabin and secure with the provided wire ties. Fig. 6 10.
- Page 4 Amplifi er Mounting 16. Remove the four screws along the bottom of the glove compartment. Fig. 11 17. Remove the nut from the stud at the base of the HVAC fan housing. Fig. 12 18. Remove the sill plate along the bottom of the passenger’s side door opening. Fig. 13 19.
- Page 5 B. Connect the two corresponding connectors of the Mobile-Ease harness to the radio. C. Connect the Kicker® amplifi er body harness to the Mobile-Ease harness. D. Connect the remaining connector of the Kicker® amplifi er body harness back to the factory wiring. Kicker...
- Page 6 40. Slowly rotate the subwoofer into place. Line up the top bracket with the hole near the tail light and reinstall and tighten the bolt. Fig. 24 If you continue to experience problems after troubleshooting, please contact KICKER Technical Support at (800) 256-0808 ext. 6009, or support@kicker.com.
- Page 7 44. Install the supplied fuses in the fuse holders. 45. Reconnect negative battery cable. Torque to 5Nm. Troubleshooting the Kicker Integrated Systems If you experience a problem once the subwoofer or amplifi er are installed use this guide to locate the trouble.
- Page 8 There is a problem with the multi-channel stereo amplifi er: • Check the battery voltage to make sure it is not discharged below 11 volts. • Check the negative battery cable to see if it has been securely tightened back on the battery. •...
