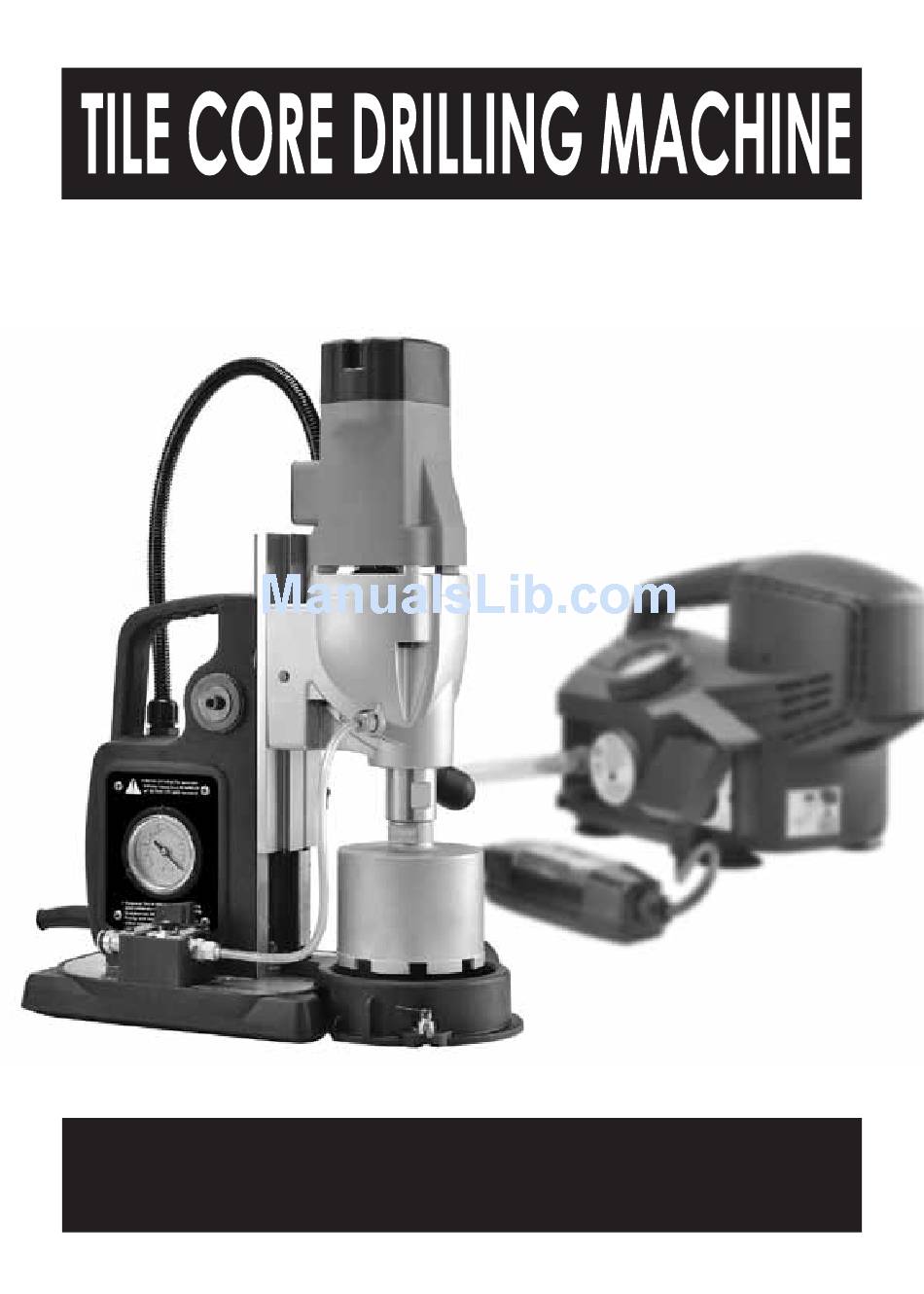

- Page 1 Original operating instructions For your personal safety, READ and UNDERSTAND before using. SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE. Version:20121227...
- Page 2 TECHNICAL DATA Voltage See Machine Nameplate Power Input 1100 W No Load min 1000 / 2000 Rated Load min 600 / 1200 Maximum Core Drilling Capacity 100mm Minimum Vacuum 0.7 Bar (10 psi) Spindle Thread 1/2” BSP Female Protection Class Class 1 With RCD Dimensions 291 x 234 x 320mm...
- Page 3 GENERAL SAFETY INSTRUCTIONS WARNING: Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term "power tool" in the warnings refers to your mains-operated (corded) power tool.
- Page 4 Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations. Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
- Page 5 • If you detect a leak in any part of the water supply system, shut the machine down immediately and repair the fault. Water pressure should not exceed 70 psi (4 bar). • Take care not to damage gas, water, power and other conduits in the area of the drilling operation.
- Page 6 is damaged. A damaged cable must be replaced immediately by an authorized Customer Service Center. Do not try to repair the damaged cable yourself. The use of damaged power cables can lead to an electric shock. WARNING:This machine is equipped with a Portable Residual Current Device (PRCD) also known as a Ground Fault Circuit Interrupter (GFCI).
- Page 7 Sintered bits, also known as wet type, are much longer lasting but require operator knowledge for best results. Water is absolutely always required with sintered bits. The bit is impregnated with many layers of diamond in its metal matrix. As the matrix (bond) wears, new diamonds are exposed.
- Page 8 3. Vacuum Pump This machine must be used in conjunction with a vacuum pump. Connect the vacuum hose quick-release coupling to the vacuum valve fitting on the vacuum base of the machine. Vacuum Valve Open WARNING: Never attempt to use this machine without a vacuum pump or if the vacuum base is damaged.
- Page 9 WARNING: Take care that the bit does not come crashing down when the height adjustor is loosened. 6. Diamond Core Drilling WARNING: When coring through a floor, the core will fall down. Take precautions to avoid injury or damage below. NOTE: When cutting with a new bit for the first time, use less than normal feed pressure for a time until it breaks-in.
- Page 10 When the cut is finished keep the motor running until the bit is removed from the cut to avoid it getting stuck. CAUTION: Drilling operations are very stressful to the motor and at the end of the cut, the motor temperature will be very hot, always run the motor at no load for a few minutes until the temperature returns to a normal range before shutting off.
- Page 11 KEEP TOOL CLEAN Periodically blow out all air passages with dry compressed air. All plastic parts should be cleaned with a soft damp cloth. NEVER use solvents to clean plastic parts. They could possibly dissolve or otherwise damage the material. Wear s afety glasses while using compressed air.
- Page 12 THE GIBS (DOVETAIL SLIDES) The gibs require adjustment if too loose. To adjust, loosen the lock nuts and adjust the adjustor screws evenly while moving the handle up and down. Adjust so that there is no free play, without any binding anywhere in its range of travel.
- Page 13 WIRING...
- Page 14 EXPLODED VIEW...
-
Page 15: Parts List
PARTS LIST Parts Name Q'ty Parts Name Q'ty PARALLEL KEY 5 x 5 x 10 GIB LOCK NUT M5 SPINDLE 1/2BSP THUMB SCREW M5 x 16 INTERNAL CIRCLIP R-47 BUSHING Ø28 x Ø32 x 12 BEARING 6005 2RS FLAT WASHER Ø6 x Ø40 x 2.5 EXTERNAL CIRCLIP S-25 FLAT WASHER Ø6 x Ø25 x 1 SCREW M5 x 65...
