ORIGINAL OPERATING INSTRUCTIONS
SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.
Warning:
For tools equipped with over load protection, when motor has shut down off due to over
load, always run machine with no load for at least 3 minutes to reduce temperature before
returning to operation to avoid burn out of the motor.
2 Speed Drilling System
4 Speed Drilling System
4 Speed Swivel Base Drilling System
4 Speed Variable Motor Speed
Drilling System
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MD120/4 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for AGP MD120/4

Summary of Contents for AGP MD120/4

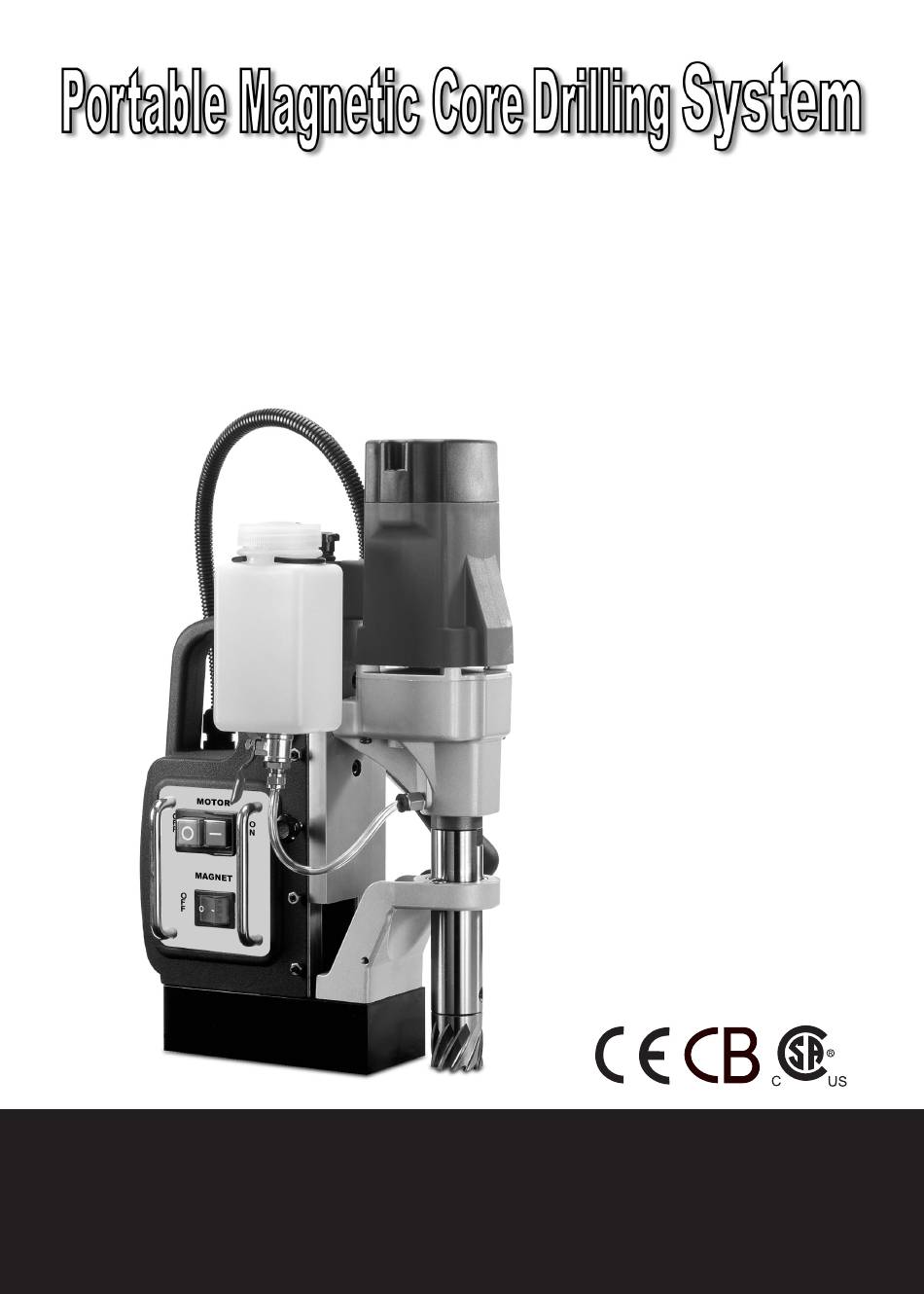

  • Page 1 2 Speed Drilling System 1 Speed Drilling System 1 Speed Drilling System (N) 4 Speed Drilling System 4 Speed Swivel Base Drilling System Semi Auto Feed Drilling System 4 Speed Variable Motor Speed Semi Auto Feed Drilling System(N) Drilling System ORIGINAL OPERATING INSTRUCTIONS SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.
  • Page 2 1 Speed Drilling System & 1 Speed Drilling System (N) Coolant tank Coolant feed tap Arbor support bracket Motor switch Magnet switch Arbor Gib adjustor screw Magnet base Annular cutter (Not included) Pilot pin (Not included) Optional adaptor and 13mm chuck (Not included) STANDARD ACCESSORIES 1 Speed...
  • Page 3 Semi Auto Feed Drilling System & Semi Auto Feed Drilling System (N) Coolant tank Crank handle Coolant feed tap Arbor support 3 position feed bracket rate selector Magnet switch Arbor Magnet base Annular cutter (Not included) Motor switch Pilot pin (Not included) Dual purpose lever MODEL...
  • Page 4 2 Speed Drilling System Coolant tank Coolant feed tap Gear selector Motor switch Arbor support Magnet switch bracket Arbor Magnet base Annular cutter (Not included) Pilot pin (Not included) Optional adaptor and 16mm chuck (Not included) STANDARD ACCESSORIES 2 Speed MODEL * WRENCH M8 POWER INPUT...
  • Page 5 4 Speed Drilling System Coolant tank Coolant feed tap Gear selector Ejector port Motor switch Arbor Reversing switch Arbor support bracket Magnet switch Annular cutter Magnet base (Not included) Pilot pin (Not included) MT3 Twist drill bit MT3 Chuck adaptor MT3 Tapping adaptor (Not included) and Chuck...
  • Page 6 4 Speed Swivel Base Drilling System Coolant tank 30°,2x15° 20mm Coolant feed tap Gear selector Crank handle Ejector port Motor switch Arbor Reversing switch Arbor support bracket Magnet switch Magnet base Annular cutter (Not included) Pilot pin (Not included) MT3 Twist drill bit MT3 Chuck adaptor MT3 Tapping adaptor (Not included)
  • Page 7 4 Speed Variable Motor Speed Drilling System Variable Speed Wheel MT3 Chuck adaptor MT3 Tapping adaptor and and Chuck (Not included) Tapping unit (Not included) Coolant tank Coolant feed tap MT3 Twist drill bit (Not included) Gear selector Ejector port Motor switch Reversing switch Spindle...
