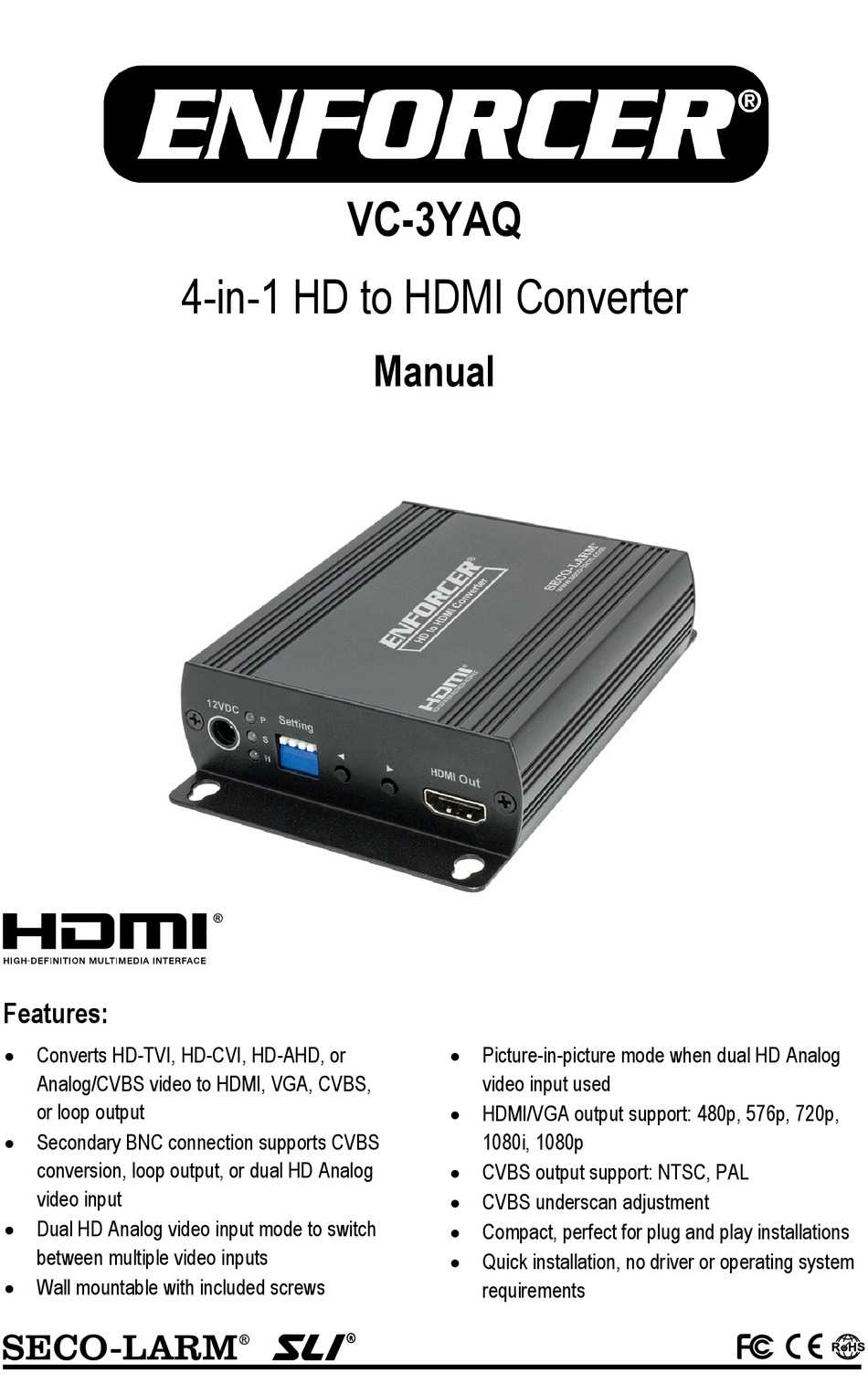

ENFORCER VC-3YAQ User Manual

4-in-1 hd to hdmi converter
Hide thumbs
1
2
3
4
Table of Contents

Advertisement

Quick Links

Download this manual

Features:

Converts HD-TVI, HD-CVI, HD-AHD, or
Analog/CVBS video to HDMI, VGA, CVBS,
or loop output
Secondary BNC connection supports CVBS
conversion, loop output, or dual HD Analog
video input
Dual HD Analog video input mode to switch
between multiple video inputs
Wall mountable with included screws
4-in-1 HD to HDMI Converter
VC-3YAQ
Manual
Picture-in-picture mode when dual HD Analog
video input used
HDMI/VGA output support: 480p, 576p, 720p,
1080i, 1080p
CVBS output support: NTSC, PAL
CVBS underscan adjustment
Compact, perfect for plug and play installations
Quick installation, no driver or operating system
requirements
®

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VC-3YAQ and is the answer not in the manual?

Questions and answers

Related Manuals for ENFORCER VC-3YAQ

Summary of Contents for ENFORCER VC-3YAQ

  • Page 1 VC-3YAQ 4-in-1 HD to HDMI Converter Manual Features:   Converts HD-TVI, HD-CVI, HD-AHD, or Picture-in-picture mode when dual HD Analog Analog/CVBS video to HDMI, VGA, CVBS, video input used or loop output  HDMI/VGA output support: 480p, 576p, 720p, ...

  • Page 2: Parts List

    Function buttons (88mm) Status LEDs VGA Output HDMI Output " (30mm) " (130mm) LEDs: The VC-3YAQ has six LEDs that indicate input and output status. HDMI Output Side VGA Output Side Green Power input present Green Loop output mode Blue...
  • Page 3 ENFORCER 4-in-1 HD to HDMI Converter DIP Switch Settings and Button Functions: Function Buttons Output Mode Left Right Left + Right Decrease output Increase output Switch AHD/CVI Loop output OFF OFF OFF OFF resolution resolution (requires power cycle) CVBS Decrease CVBS...

  • Page 4: Troubleshooting

    ENFORCER 4-in-1 HD to HDMI Converter Sample Applications (Continued): Dual Input Application (Same Cable Connections Also Used for PIP): Dual Input HD Analog 12VDC DIP switch settings: Camera Adapter HD Analog Input Select Camera HDMI Monitor Monitor Troubleshooting:  Make sure power, input, and output cables are firmly connected to the converter.
