MVA-TH01Q

Composite-to-HDMI Converter with Scaler

Manual

• Converts composite video and stereo audio to 720p or 1080p HDMI

• Supports NTSC, PAL, and SECAM video inputs

• Supports up to 1080p on HDMI output

• Stereo audio input

• Switch for switching between 720p and 1080p upscaling

• Plug and play operation

Need help?

Do you have a question about the MVA-TH01Q and is the answer not in the manual?

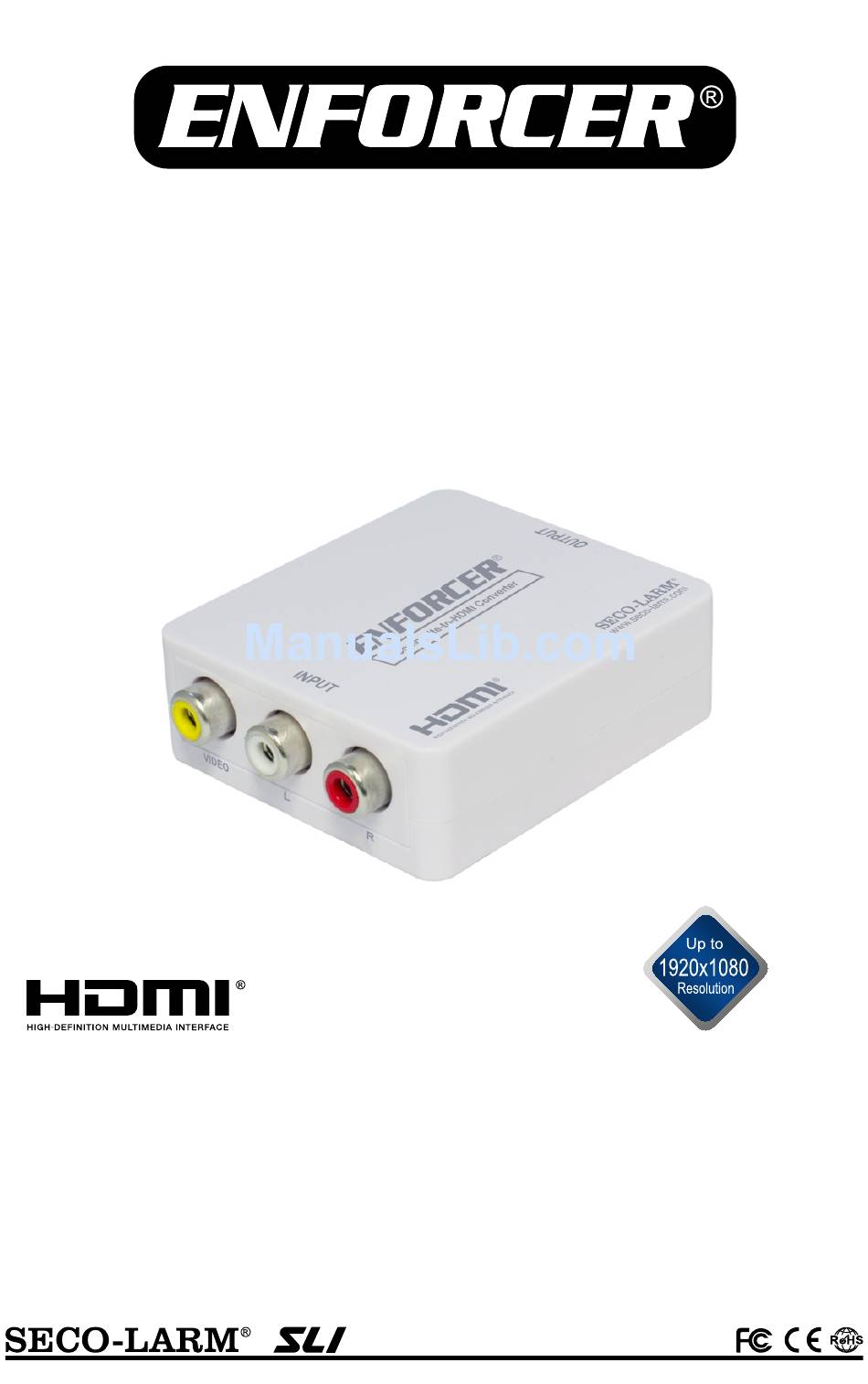

Page 1 MVA-TH01Q Composite-to-HDMI Converter with Scaler Manual • Converts composite video and stereo audio to 720p or 1080p HDMI • Supports NTSC, PAL, and SECAM video inputs • Supports up to 1080p on HDMI output • Stereo audio input • Switch for switching between 720p and 1080p upscaling...
Page 2: Specifications
The MVA-TH01Q Composite-to-HDMI Converter with Scaler allows the user to convert video from analog devices with composite (RCA) outputs on HDMI displays. Active operation allows the conversion of formats as large as 1920x1080. The MVA-TH01Q also has a L/R analog stereo input allowing the conversion of audio as well.
Page 3 2. Connect a composite RCA cable from the analog source to the composite RCA input of the MVA-TH01Q. 3. Connect a stereo audio cable from the source device to the audio input of the MVA-TH01Q. 4. Connect a HDMI cable from the HDMI monitor to the output of the MVA-TH01Q.
Page 4: Troubleshooting
• Test the cables separately to make sure HDMI Device does not function correctly. they are functioning. • Make sure that you are trying to convert composite to HDMI. The MVA-TH01Q does not convert HDMI to composite. Also Available from SECO-LARM: MVE-AH010Q...
