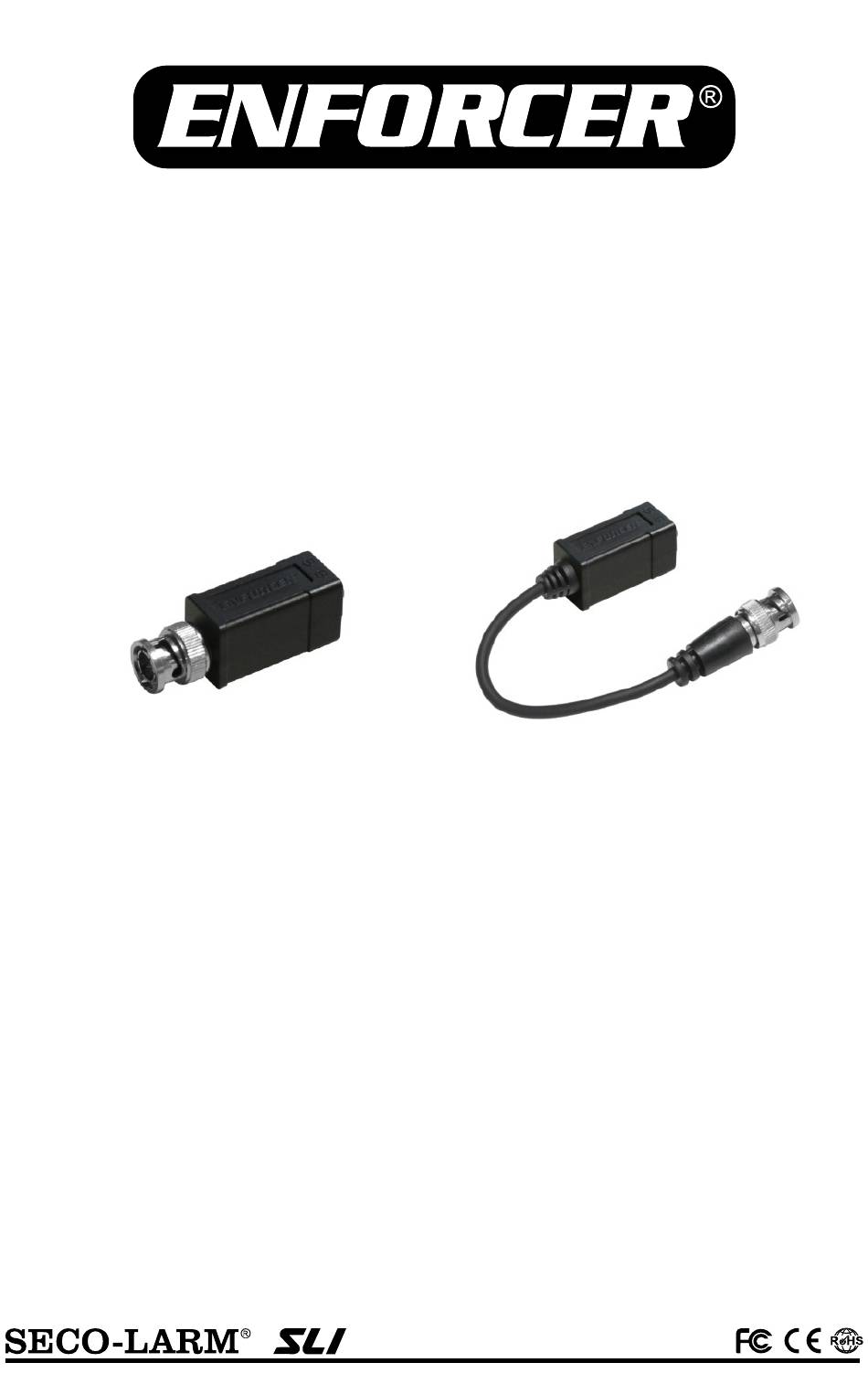

4-in-1 HD Passive Video Baluns

EB-P101-01HQ

4-in-1 HD Passive Video Balun

Features:

• 4-in-1 TVI / CVI / AHD / Analog video

up to 4K

• Transmits up to 1,312ft (400m) depending

on format, resolution, and cable used

• PAL / NTSC / SECAM compatible

• Built-in TVS surge protection

• Anti-static and wave filters

• Lightning protection – Grade III

• 60dB Crosstalk and noise immunity

Manual

4-in-1 HD Passive Video Balun

• Exceptional interference rejection

• Passive operation – No external

power required

• Real-time transmission over low-cost

Cat5e/6 cable instead of costly coaxial cable

• Quick-connect terminals for easy installation

• Small size allows mounting of multiple

baluns behind a DVR

EB-P101-20HQ

with 6" Pigtail

Need help?

Do you have a question about the Seco-Larm SLI EB-P101-01HQ and is the answer not in the manual?

Page 1 4-in-1 HD Passive Video Baluns Manual EB-P101-01HQ EB-P101-20HQ 4-in-1 HD Passive Video Balun 4-in-1 HD Passive Video Balun with 6" Pigtail Features: • 4-in-1 TVI / CVI / AHD / Analog video • Exceptional interference rejection up to 4K • Passive operation – No external •...
Page 2 ENFORCER 4-in-1 HD Passive Video Baluns Specifications: Model EB-P101-01HQ EB-P101-20HQ 4MP: 590ft (180m) 4K: 426ft (130m) 4MP/4K: 656ft (200m) Range 4MP: 656ft (200m) 4K: 492ft (150m) Analog 4MP/4K: 1,312ft (400m) Video format NTSC, PAL, SECAM Frequency response DC~42MHz Common/differential mode rejection...
Page 3 ENFORCER 4-in-1 HD Passive Video Baluns Installation: 1. HD Video baluns are connected in pairs. Connect the transmitter balun to the HD CCTV camera. Connect the receiver balun to an HD DVR or other remote HD CCTV equipment. 2. Make sure the distance between the camera and the remote video device does not exceed the specified range for the cable type and resolution used (see table below).
Page 4 ENFORCER 4-in-1 HD Passive Video Baluns Troubleshooting: • Move the Cat5e/6 cable away from possible sources of interference. Wavy or ghost image if connected to • Ensure that the same twisted pair connects to a balun at both ends of the image processor (e.g., multiplexer or...
