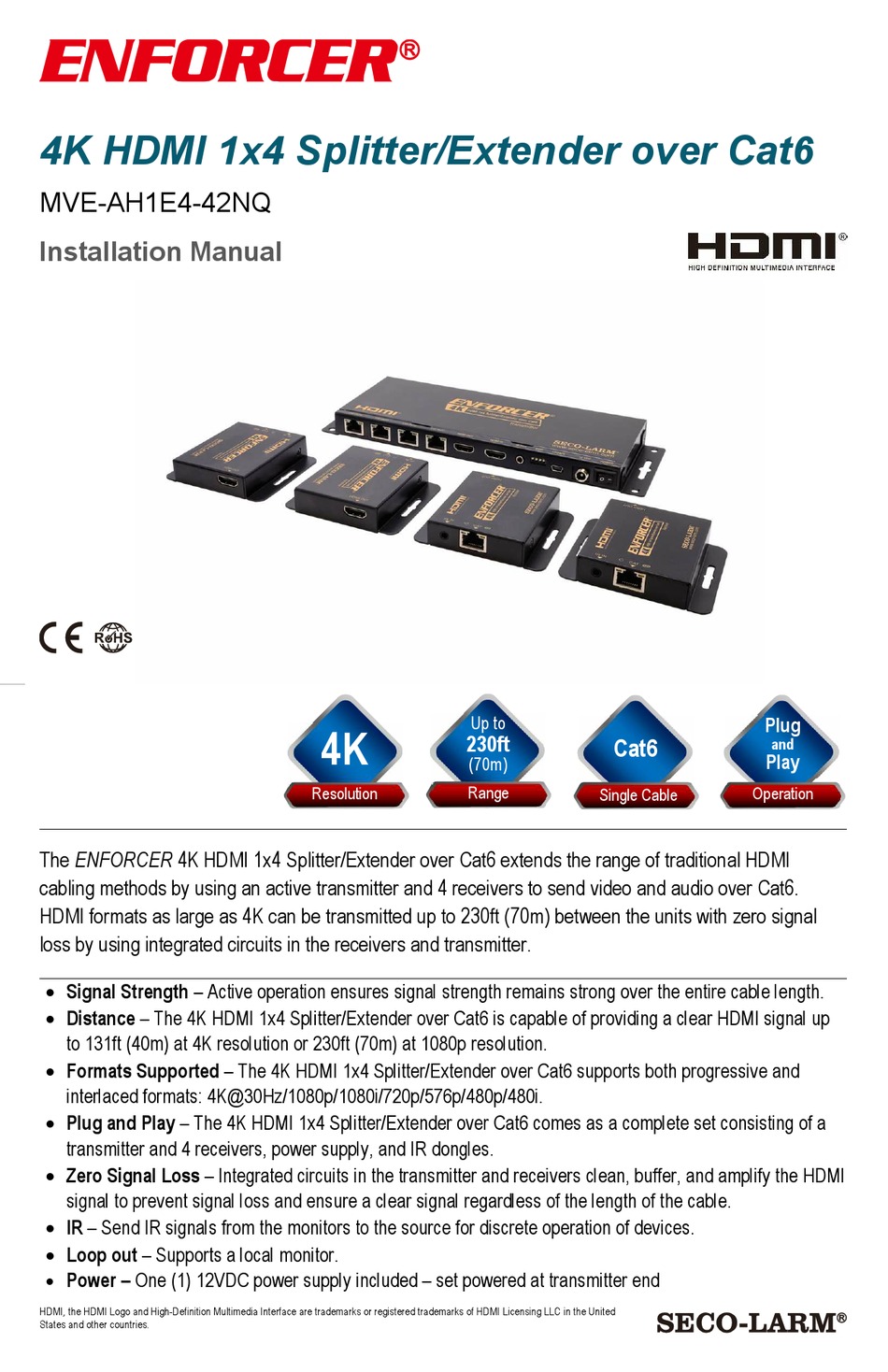

ENFORCER MVE-AH1E4-42NQ Installation Manual

4K HDMI 1x4 Splitter/Extender over Cat6
MVE-AH1E4-42NQ
Installation Manual
The ENFORCER 4K HDMI 1x4 Splitter/Extender over Cat6 extends the range of traditional HDMI
cabling methods by using an active transmitter and 4 receivers to send video and audio over Cat6.
HDMI formats as large as 4K can be transmitted up to 230ft (70m) between the units with zero signal
loss by using integrated circuits in the receivers and transmitter.
 Signal Strength – Active operation ensures signal strength remains strong over the entire cable length.
 Distance – The 4K HDMI 1x4 Splitter/Extender over Cat6 is capable of providing a clear HDMI signal up
to 131ft (40m) at 4K resolution or 230ft (70m) at 1080p resolution.
 Formats Supported – The 4K HDMI 1x4 Splitter/Extender over Cat6 supports both progressive and
interlaced formats: 4K@30Hz/1080p/1080i/720p/576p/480p/480i.
 Plug and Play – The 4K HDMI 1x4 Splitter/Extender over Cat6 comes as a complete set consisting of a
transmitter and 4 receivers, power supply, and IR dongles.
 Zero Signal Loss – Integrated circuits in the transmitter and receivers clean, buffer, and amplify the HDMI
signal to prevent signal loss and ensure a clear signal regardless of the length of the cable.
 IR – Send IR signals from the monitors to the source for discrete operation of devices.
 Loop out – Supports a local monitor.
Power – One (1) 12VDC power supply included – set powered at transmitter end

HDMI, the HDMI Logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC in the United
States and other countries.
.
Up to
4K
230ft
(70m)
Resolution Range
Plug
Cat6
Play
Operation
Single Cable
and
