6.3
Settings and Timers
The S)ettings menu contains commands for selecting Master and Slave modes, editing the RTS head and tail
times, the poll timeout interval, and the character timeout interval. To configure your settings, press C (Config) in
the main menu, then press S (Settings).
6.3.1 Selecting Master and Slave Modes
Use the following steps to select Master or Slave mode:
1.
At the main menu press C (Config).
2.
Press S (Settings) for the S)ettings menu.
3.
Press M (Mode) to select Master or Slave mode — see Figure 6.6.
Note: Slave Mode is the default setting.

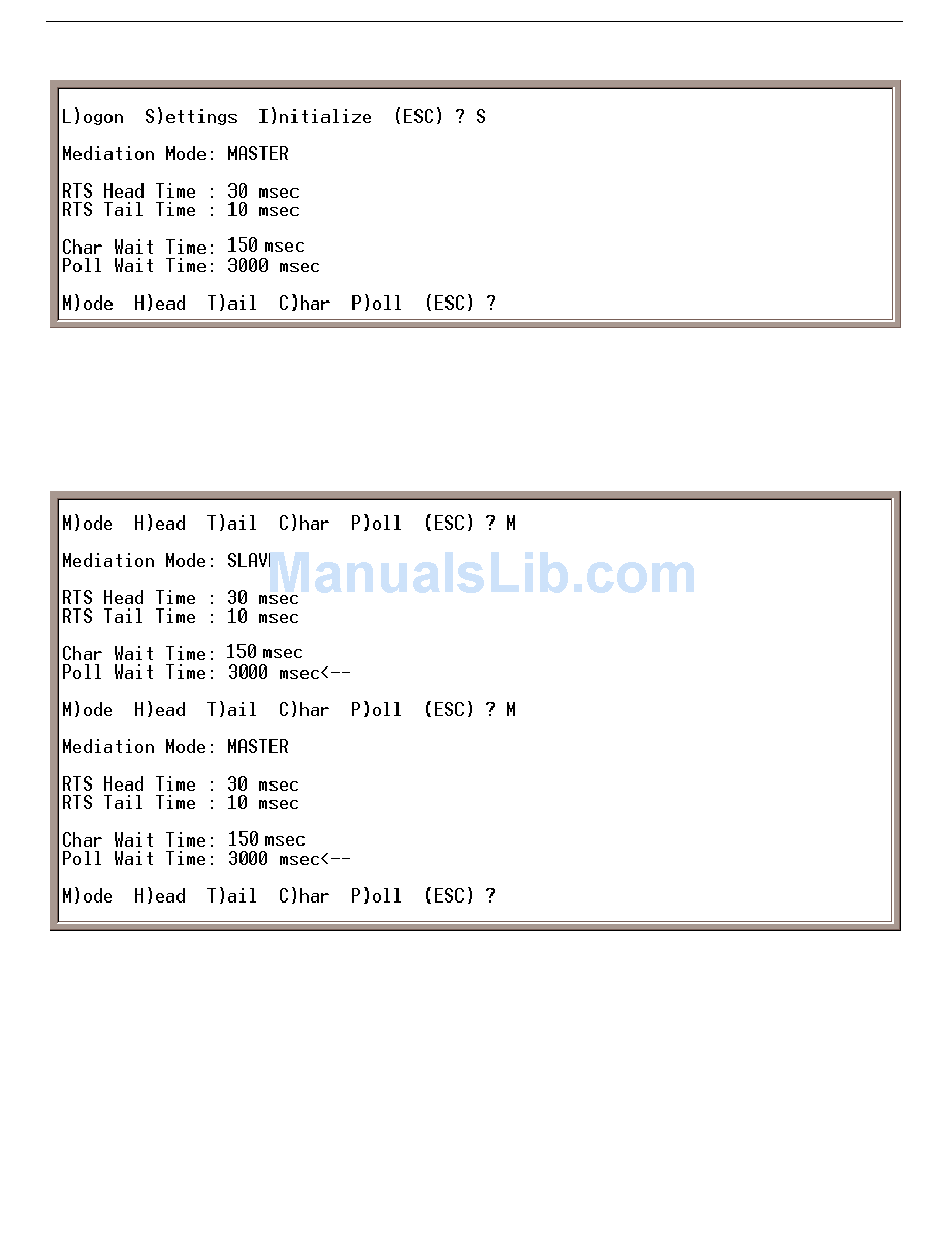

Fig. 6.5. The Settings menu commands
Fig. 6.6. Select Master mode from Settings menu
10
