Summary of Contents for Inter-m NPX-8000

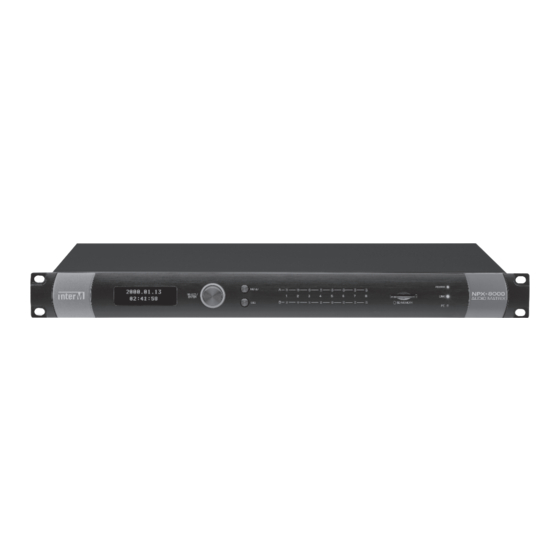

- Page 1 Operation Manual Audio Matrix Controller NPX 8000...
- Page 2 A personal welcome to you from the management and employees of Inter-M All of the co-workers here at Inter-M are dedicated to providing excellent products with inherently good value, and we are delighted you have purchased one of our products.
- Page 3 Contents Unpacking ............................2 Installation environment............................2 Important Safety Instructions......................2 Features ............................3 Front Panel ............................4 Rear Panel ............................6 Operation ............................10 System Configuration Example ....................15 Block Diagram ..........................16 Specifications ..........................17 Service Procedures............................19 Schematic.............................19 Parts list ............................19 Variations and Options .......................19 Warranty ............................19 nPx-8000...
-
Page 4: Unpacking
AudIo MAtrIx Controller Unpacking Unpacking Although your nPx-8000 is neither complicated nor difficult to operate, we recommend you take a few minutes to read this brief manual and familiarize yourself with the important information regarding product features, setup and operation. -
Page 5: Features
You can play MP3 files on a Sd Card. - Monitor output You can monitor the channel selected on the control PC. - High performance DSP there is no need for a separate processor device because of the built-in high performance dSP. (digital Signal Processor) nPx-8000... -
Page 6: Front Panel
- Please save the MP3 files in the uSer folder on the Sd card. If the folder name is not uSer, the files will not be recognized. MP3 filename should not exceed 80 characters in english. (40 in 2-byte character) nPx-8000... - Page 7 - PC led: If connections are correctly with MP-8000 (PC application), led will be blink. ※ disconnecting with MP-8000 from normal connection, led will be turn off after 10 seconds. If you want to link again, you have to reboot MP-8000. refer to MP-8000 manual for connecting with MP-8000. nPx-8000...
-
Page 8: Rear Panel
4. 8 CHANNEL AUDIO OUTPUT TERMINAL this is an 8 channel audio output terminal. It put the signal of selected channel out by the setting of nPx-8000 matrix. Please refer to the following picture about the suitable cables. AUDIO OUTPUT... - Page 9 Contact closure signal is send by MP-8000’s preset. refer to below to connect. External Device Contact Closure Input External Device Contact Closure Input External Device Contact Closure Input External Device Contact Closure Input ※ refer to MP-8000 manual to setup. nPx-8000...
- Page 10 It is a external control port by rS-232. refer to below to connect. ※ Contact customer center for detail of external control port. 10. NETWORK PORT It is for connecting nlM-8000A/C and nrM-8000A with nPx-8000. It supports the ethernet network for link with MP-8000 (PC program). MR-8000 ETHERNET ①...
- Page 11 ※ use only direct cable to link with each devices. ※ It is recommended CAt 5e dCr with less than 9.8Ω/100m. ③ etHernet Port - It is for control nPx-8000 with ethernet network. You can control nPx-8000 by MP-8000 PC program. ※ refer to MP-8000’s manual for setting. nPx-8000...
-
Page 12: Operation
MP3 file is stopped and ■ symbol is displayed on the right. ④ Press eSC button in MP3 play screen to return to standby screen. ⑤ It is shown ‘no Sd CArd’ when there is no memory card. 2. MENU nPx-8000... - Page 13 ③ Pressing the SeleCt/enter switch on the In/out Module screen displays the audio input/output modules installed at rear slot A and B of nPx-8000. rotate the SeleCt/enter switch to change the slot to confirm. ④ Pressing the SeleCt/enter switch on the exPAnSIon Module screen displays Mr-8000.
- Page 14 ⑤ Select a output channel to control volume, then turn SeleCt/enter switch on to adjust volume of the channel. After adjust volume, press the switch to return to the screen where you can select the output channel. ⑥ Press eSC button to return to previous screen. nPx-8000...
- Page 15 ⑤ When you press the SeleCt/enter switch in Sd CArd StAtuS, the number of all the MP3 files stored in the Sd card is displayed and the capacity of memory card is displayed. ⑥ Press eSC button to return to previous screen. nPx-8000...
- Page 16 ② Select the preset and press the SeleCt/enter switch to confirm that you will recall that preset. rotating the SeleCt/enter switch allows you to change the preset. ③ Pressing the SeleCt/enter switch on the confirmation screen will recall the preset. ④ Press eSC button to return to previous screen. nPx-8000...
-
Page 17: System Configuration Example
AudIo MAtrIx Controller System Configuration Example System Configuration Example nPx-8000... -
Page 18: Block Diagram
AudIo MAtrIx Controller Block Diagram Block Diagram nPx-8000... -
Page 19: Specifications
AudIo MAtrIx Controller Specifications Specifications NPX-8000 data Communication Contact Closure, rS-232C Communication type rM, lM Port : CAn ethernet network : lAn(tCP/IP) Input 8 channels, Contact Closure Input/output output 8 channels, Mute, ext CAn : 20kbps, Communication Speed An(tCP/IP) : 100Mbps... - Page 20 AudIo MAtrIx Controller ※ DIMENSIONS nPx-8000...
-
Page 21: Procedures
Inter-M directly or the authorized Inter-M distributor for your specific country or region. - Page 22 note...
- Page 24 Inter-M, ltd. (Korea) began operations in 1983. Since then, Inter-M has grown to become one of the largest manufacturers of professional audio and commercial sound electronics equipment in the world. Inter-M has gained worldwide recognition for its own branded products, as well as private label manufacturing of electronics sold under other names (oeM).
