- Page 1 MVF-2132 Multi-Voice File MVF 2132 MULTI - VOICE FILE -3dB -8dB -13dB -18dB OC03 OC03 INPUT LEVEL MIC IN REC( ) REPEAT DELETE 0 21 B370031...
-
Page 2: Table Of Contents
Contents Contents Welcome Warning...1 Unpacking ...2 Short Form Instructions...2 Installation Environment...3 Important Safety Instructions...3 Description ...4 Features ...4 Accessories...4 Front Panel ...5 Rear Panel ...7 Display Legend ...8 Connections ...9 Applications ...10 Block Diagram ...11 Specifications ...12 Service Procedures...13 Schematic ...13 Parts List ...13 Variations and Options Warranty... -
Page 3: Warning
A personal welcome to you from the management and employees of Inter-M All of the co-workers here at Inter-M are dedicated to providing excellent products with inherently good value, and we are delighted you have purchased one of our products. -
Page 4: Unpacking
1. Do not connect the AC power until step 5. 2. Connect the OUTPUT to an Inter-M Weekly Program Timer or other appropriate device. 3. Connect the Serial port or Remote connector to an Inter-M Weekly Program Timer or other appropriate device. -
Page 5: Installation
MULTI-VOICE FILE S3125A S3125A MVF-2132... -
Page 6: Description
- Inputs provided for connection with a microphone, compact disk, or other line-level auxiliary device Accessories Accessories One detachable AC power cord is provided for use with this product. One detachable AC power cord is provided for use with this product. MVF-2132... -

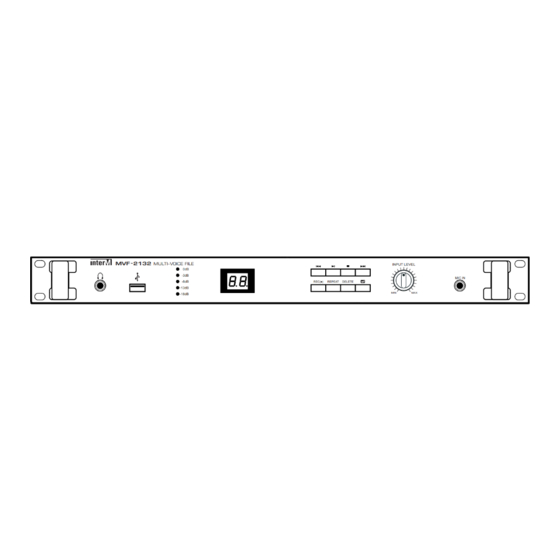

Page 7: Front Panel
2. USB PORT This provides a convenient interface with computers to facilitate MP3 file transfers. Windows 2000 ready, Windows 98 compatible by downloading software from Inter-M.com (Length of USB Cable: MAX 2m) 3. DUAL FUNCTION LEVEL INDICATOR While recording the meter shows the Input signal level. During Playback the meter shows the Output signal level. - Page 8 DELETE button, and select the file No. by using the rewind or fast forward button, then press the Enter button to complete the deletion. To cancel it, press STOP button. 14. ENTER BUTTON This button is used in conjunction with the DELETE button to remove files from memory. MVF-2132...
-
Page 9: Rear Panel
3. SERIAL PORT This provides an RS-232C interface for connecting this unit to the Inter-M PW-9242N weekly program timer. 4. REMOTE CONTROL PORT This provides a means of connecting this unit to the Inter-M PW-9242V weekly program timer. -
Page 10: Display Legend
- ENTER The letters “En” will appear indicating the ENTER button has been depressed. - REPEAT MVF-2132 Display segments will illuminate sequentially around the perimeter of the display alternating with a display of file number. “r1” indicates that the REPEAT button has been depressed one time. -
Page 11: Connections
Connections Connections - System Interconnect Inter-M products are wired to reflect accepted wiring practices used throughout the world. Balanced XLR connectors are wired as described: Pin 1 is Ground Pin 2 is Positive Pin 3 is Common Balanced 1/4” TRS connectors are wired as described:... -
Page 12: Applications
MULTI-VOICE FILE Applications Applications CDC-9300AD ~AC INPUT 230V 50Hz MVF-2132 FUSE T100mAL/250 MVF-2132 DIGI-LINK OUTPUT RS-232C OC03 RESET RSW2 DC INPUT TO PW-9242N TO PW-9242V www.inter-m.com OUTLET 1(MAX 500W, 120V) REMOTE OUTPUT RS-232C CHANNEL SWITCHED AUDIO IN CH 4 FROM VOICE FILE... -
Page 13: Block Diagram
MULTI-VOICE FILE Block Diagram Block Diagram MVF-2132... -
Page 14: Specifications
AUX INPUT ...318mV/47kΩ CD INPUT...1V/47kΩ Frequency Response (Output at rated ±3dB) AUX INPUT ...80Hz-15kHz CD INPUT ...80Hz-15kHz Residual Noise (20kHz LPF)...1mV/2kΩ - GENERAL Power Source...AC 100V/120V/230V/240V, 50/60Hz Power Consumption ...12W Weight...3.5kg Dimensions...482mm/19in(W)x44mm/1.75in(H)x280mm/11in(D) * Specifications and design subject to change without notice. MVF-2132... -
Page 15: Service
To obtain specific warranty information and available service locations contact Inter-M directly(in Korea or the USA) or the authorized Inter-M Distributor for your specific country or region. - Page 16 Inter-M, Ltd. (Korea) began operations in 1983. Since then, Inter-M has grown to become one of the largest manufacturers of professional audio and commercial sound electronics equipment in the world. Inter-M has gained worldwide recognition for its own branded products, as well as private label manufacturing of electronics sold under other names (OEM).
