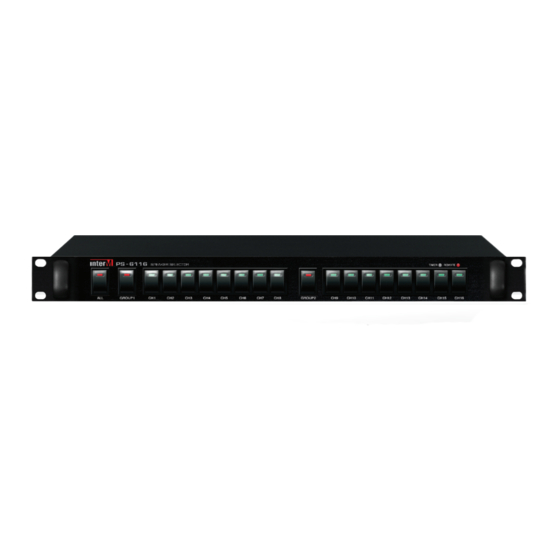

- Page 1 Operation anual peaker elector S-6116 * Rack mount products in the Western Hemisphere(North merica, South merica, and the Caribbean) do not have handles installed due to customer preference.
- Page 2 Welcome personal welcome to you from the management and employees of Inter-M ll of the co-workers here at Inter-M are dedicated to providing excellent products with inherently good value, and we are delighted you have purchased one of our products.
-
Page 3: Table Of Contents
SPE KER SELECTOR Contents Contents Unpacking ............................2 Installation Environment............................2 Important Safety Instructions......................2 Features ............................3 Operation ............................3 Front Panel ............................4 Rear Panel ............................5 pplications ............................6 Block Diagram ..........................7 Specifications ..........................8 Service Procedures............................9 Schematic ............................9 Parts List ............................9 Warranty ............................9 PS-6116... -
Page 4: Unpacking
SPE KER SELECTOR Unpacking Unpacking lthough your PS-6116 is neither complicated nor difficult to operate, we recommend you take a few minutes to read this brief manual and familiarize yourself with the important information regarding product features, setup and operation. -
Page 5: Features
Keep volume levels turned down before switching on. NOTE: The system’s operation is delayed by approximately three seconds after pressing the power switch. This is due to the built-in protection circuitry, designed to protect the speakers and other system components. PS-6116... -
Page 6: Front Panel
TIMER: It shows that the system is operated by timer. REMOTE: It shows that the system is operated by remote control equipment. 4. 1-16 SPE KER SELECTOR SWITCH You can select the group 1 speakers or group 2 speakers at a time by using these switches. PS-6116... -
Page 7: Rear Panel
You can select the the all speakers, Group 1 speakers or Group 2 speakers by these remote control terminals. 5. TIMER, REMOTE CONTROL INDIC TOR TERMIN LS These terminal are for connection to indicator output terminals of timer or remote control equipment. PS-6116... -
Page 8: Pplications
SPE KER SELECTOR pplications pplications P D-9359A PD-6359 SPEAKER 16 SPEAKER 1 PS-6116 DC INPUT AMP IN 1 GROUP2 CH16 CH15 CH14 CH13 CH12 CH11 CH10 CH9 AMP IN 2 TIMER REM OTE GROUP1 PA-2312 PUBLIC ADDRESS POWER AMPLIFIER OUTPUT&PROTECTION... -
Page 9: Block Diagram
SPE KER SELECTOR Block Diagram Block Diagram PS-6116... -
Page 10: Specifications
SPE KER SELECTOR Specifications Specifications PS-6116 Speaker Selection 16 Channels, ll, Group 1, Group 2 ELECTRIC L 16 Channels, ll, Group 1, Group Indicators Timer Mode, Remote Mode Power Source 24V DC GENER L Weight 3.3kg/7.27lb Dimensions 482(W)x44(H)x280(D)mm/19(W)x1.7(H)x11(D)in * Specifications and design are subject to change without notice. -
Page 11: Service
To obtain specific warranty information and available service locations contact Inter-M directly or the authorized Inter-M Distributor for your specific country or region. - Page 12 Inter-M, Ltd. (Korea) began operations in 1983. Since then, Inter-M has grown to become one of the largest manufacturers of professional audio and commercial sound electronics equipment in the world. Inter-M has gained worldwide recognition for its own branded products, as well as private label manufacturing of electronics sold under other names (OEM).
