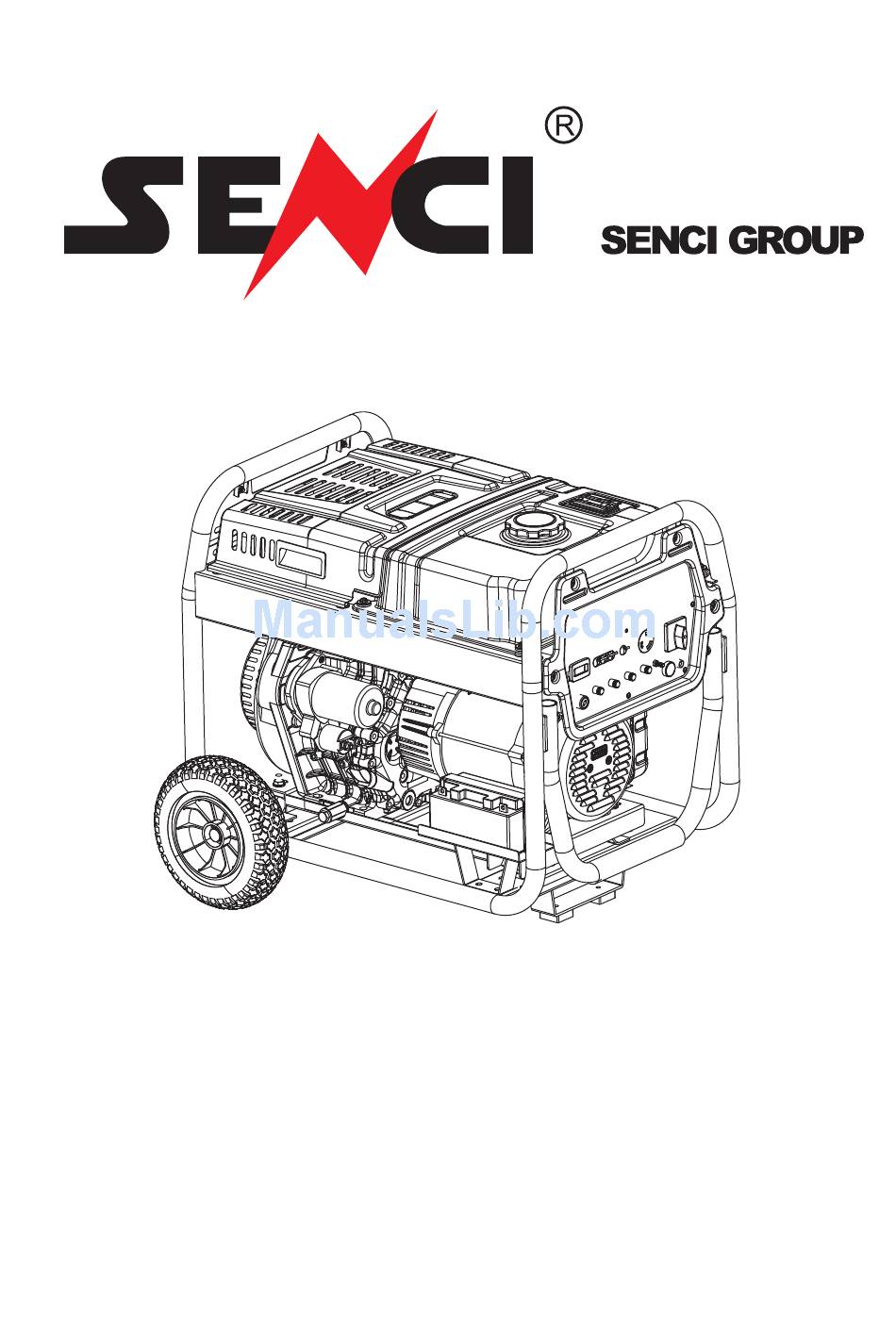

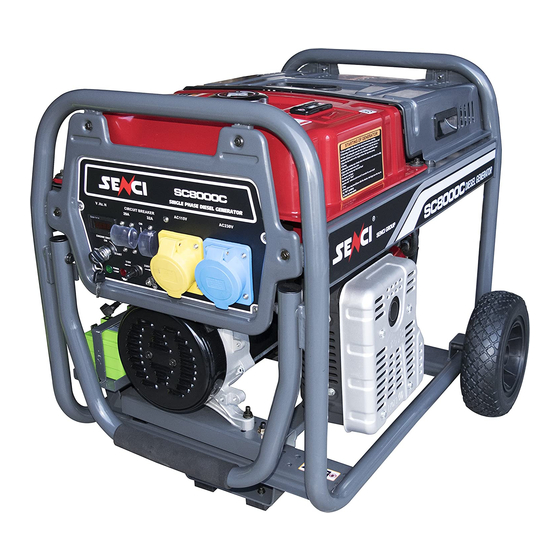

- Page 1 DIESEL GENERATOR Brief instruction manual...
- Page 2 Main operation parts Reducing handle Fuel cap 3 in 1 meter Circuit breaker Socket Single/Three phase switch Low oil alert lamp Air heating button Earthing terminal Key Starting Handle Oil drain bolt Battery Oil level Gauge Air filter Fuel handle Recoil starter...
- Page 3 Diesel generator main technical parameter 1. 1 Main technical parameter SC4000C SC6500C SC8000C Single phase/ Three phases Type Single phase Frequancy(Hz ) Max Power(KVA) 3. 3 5. 5 Rated Power(KVA) 2. 8 Voltage(AC)(V) 3600 3000 3600 3000 3600 3000 Rotating speed( rpm)
- Page 4 1. 2 Model number SC XXXX C Diesel generator Model number Product series Operation environment A l t i t u d e ( M ) Ambient temperature( ℃) relative humidity -1 5 ～40 ＜1000 ＜90% A running engine gives off carbon monoxide, an WARNING！...
- Page 5 The national Electrical Code requires that the frame and external electrically conductive part of this generator be properly connected to an approved earth ground. Proper grounding of the generator will help prevent electrical shock in the event of ground fault condition in the generator or in connected electrical devices.
- Page 6 Model SC4000C SC6500C SC8500C Capacity Fuel capacity(L) Fuel cap Red mark ！...
- Page 7 Recommanded Limitation SC4000C SC6500C SC8500C Suggested SAE 10W30,API CD or above oil 1. 1 1. 65 1. 65 Capacity( L) Engine oil Put the generator in flat surface.Add engine oil and make sure its level between the upper limit and the lower limit.
- Page 8 ！ WARNING:GENERATOR MUST BE STARTED WITHOUT LOADING! 3. 3 FUEL PIPE EXHAUSTING SYSTEM The generator can not starting when the oil is filled it is probably the air has mixed in the fuel.The way to solve it is close the fuel switch anticlockwise and loosen the clamp between the fuel pipe and injection pump,then unplug the fuel pipe and open the fuel switch clockwise till there is no bubble from the fuel.
- Page 9 Open fuel switch Now Start! Put the speed control rod to the "RUN" position Repeat the above operation if can not start! Pull it quickly at full tilt,use both hands Hold on to the starter when needed! handle gently Pull out slowly Hold on to the starter tightly Till you feel...
- Page 10 4. 2 Electrical start ( 1) Disconnect all loading equipment ( 2) Put the starting switch in "OFF" position ( 3) Open the fuel switch in "ON" position ( 4) Put the operation handle to "RUN" position ( 5) Turn the key clockwise to "START" position ！...
- Page 11 OPERATION 5 OPERATION 5. 1. 1 AVOID OVERLOAD OVERLOAD WILL DECREASE THE LIFETIME OF THE GENERATOR.USE IT IN LIGHT LOAD IN THE FIRST 20 HOURS TO ENSURE THE RUN-IN PERIOD. REPLACE OIL AFTER FIRST 20 HOURS RUNNING OR AT THE END OF THE FIRST MONTH'S USING,THEN REPLACE EACH 50 HOURS.REPLACE OIL EACH 100 HOURS OR EACH 3 MONTHS AFTER THREE TIMES REPLACEMENT OF OIL.
- Page 12 5.1.3 LOW OIL ALERT LAMP Because low oil alert lamp fitted, it will light at low oil level or little oil, it keeps lighting if restart the generator without add the oil. Check the oil level before starting, add the oil if needed. 5.2 CHECK THE GENERATOR DURING OPERATION a) Excessive speed fluctuation, slow or fast b) Overheating of the load wires...
- Page 13 When the load is a resistive load such as incandescent, heater or common power tools, using electrical appliances can refer to rated power. If the load is inductive and resistive mixed loads such as fluorescent lamps, mercury lamp, transformers, fans, small blowers or inductors,using electrical appliances can only refer to 60% rated power.
- Page 14 the generator will not damage. If starting the electromotor is difficult in a short time, turn off other electrical loads and minimize the load of the electromotor. 6.3 CONNECTING WIRE When supplying power some far from generator, connecting wire will be applied. The dimensions of the wire used must conform to the requirements of the cross section and length, in order to keep the voltage drop within a very small value between electricity terminal and supply terminal.
- Page 15 WARNING: THE ELECTRICAL LOAD MUST BE DISCONNECTED WHEN USING SINGLE/ THREE PHASE SWITCH. STOP STOP Turn the starting switch to "OFF" position, disconnect all the loadings in generator, letting the generator running with no-loading for 3 minutes. NOTICE: Do not stop generator suddenly because it may cause the generator’s temperature rise abnormality, which will stuck nozzle and damage the generator.
- Page 16 NOTICE: SPECIAL TOOLS WILL BE USED WHEN TIGHTEN THE CYLINDER HEAD SCREWS 8.1.6 Check the nozzle, high pressure pumps, etc. 8.1.7 Adjust the inlet and exhaust valve clearance. 8.1.8 Replace piston rings NOTICE: DO NOT EXPOSE SKIN IN FUEL SPRAY WHEN OPERATION. FUEL CAN PENETRATE SKIN AND CAUSE BODY HARM.KEEP AWAY FROM THE NOZZLE WHEN MEASUREING FUEL INJECTOR ATOMIZATION SITUATION.
- Page 17 Recoil starter is not enough fast and strong to start the diesel GENERATOR according to “operation program” Spray nozzle has dirt clean the spray nozzle The storage battery has no electricity charging or changing main switch is not closing turn it to the “ON” position Socket is band connecting adjust the socket feet The engine didn’t reach the rated speed...
