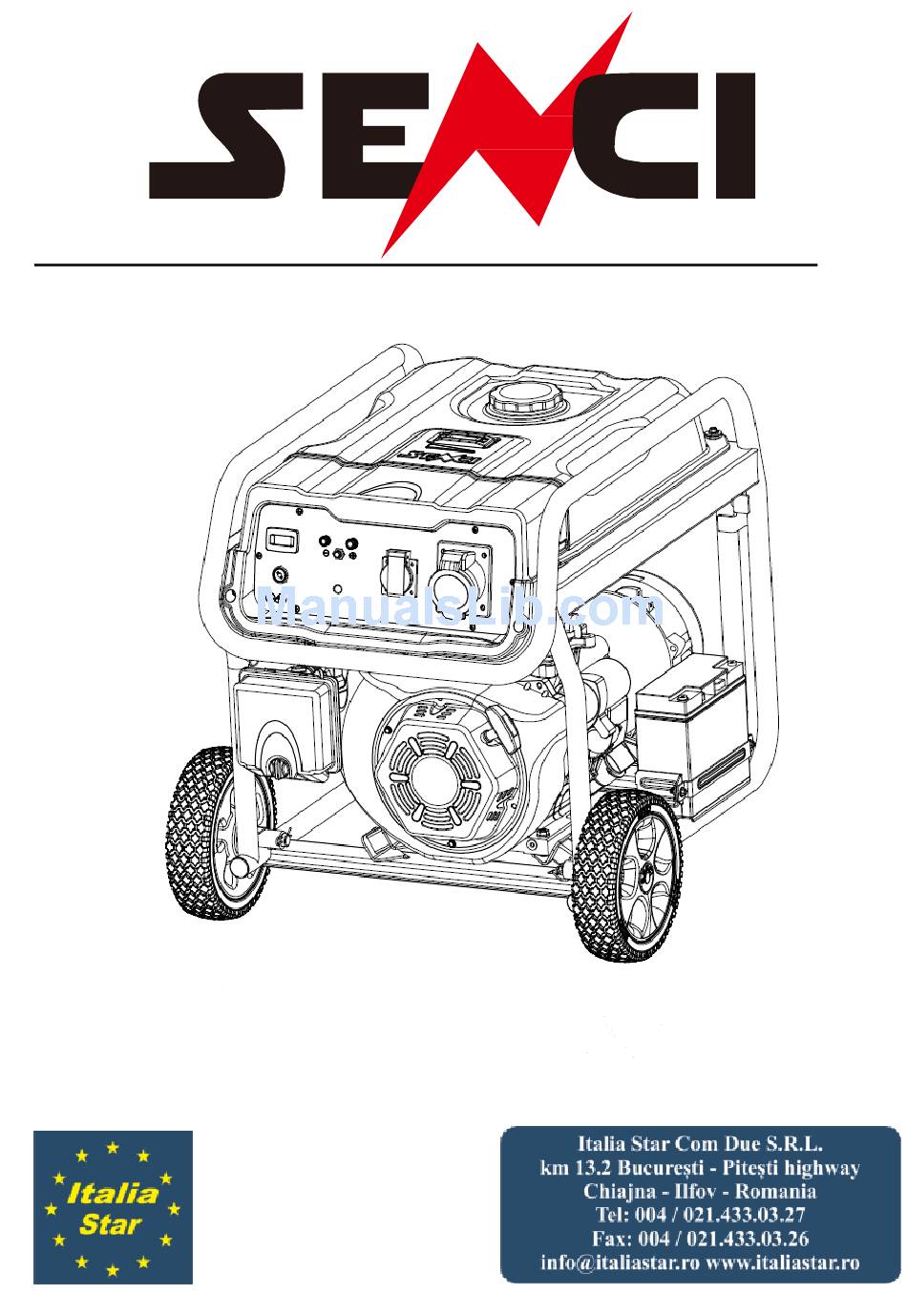

- Page 1 Generator Operator’s Manual Official importer for: Romania, Moldova si Bulgaria...
-
Page 2: Table Of Contents
Section 6 — Maintenance....10 Introduction..........1 Maintenance Schedule........10 Section 1 — Safety Rules.......1 General Recommendations......10 Standards Index...........1 6.2.1 Generator Maintenance......10 6.2.2 To Clean The Generator......10 Section 2 — General Information..4 6.2.3 Engine Maintenance........10 6.2.4 Changing The Oil........11 Unpacking...........4 6.2.5 Replacing The Spark Plug......11 Assembly.............4 6.2.6 Spark Arrestor.........11 6.3 Service Air Filter..........11... -
Page 3: Introduction
INTRODUCTION DANGER indicates-a-hazard which, if not avoided, will result in death or serious injury. Thank you for purchasing products from Senci. WARNING indicates a hazard which, if not We appreciate your business. Our generator is avoided, could result in death or serious injury. - Page 4 WARNING Starter cord kickback (rapid WHEN TRANSPORTING, OR REPAIRING EQUIPMENT retraction) will pull hand and arm • Transport/move/repair with fuel tank EMPTY or toward engine faster than you can let go which could cause broken bones, with fuel valve OFF. fractures, bruises, or sprains resulting in serious •...
- Page 5 CAUTION Excessively high operating NOTICE Improper treatment of generator speeds could result in minor injury and/or could damage it and shorten its life. • Use generator only for intended uses. generator damage. • If you have questions about intended use, ask Excessively low speeds impose a heavy load.
-
Page 6: Section 2 -General Information
SECTION 2 —GENERAL INFORMATION 2.1 UNPACKING 3. Refer to following Figure to install the handle assembly as shown. • Set the carton on a rigid flat surface. • Insert the handle bracket onto the generator frame • Remove everything from carton except and secure with two M8 bolts and two M8 flange generator. -
Page 7: Section 3 -Features And Controls
SECTION 3 —FEATURES AND CONTROLS Read this Operator’s Manual and safety rules before operating your generator. Compare the illustrations with your generator, to familiarize yourself with the locations of various controls and adjustments. Save this manual for future reference. 10 AIR CLEANER 1 ENGINE SWITCH 2 MUFFLER 11 FUEL VALVE... -
Page 8: Section 4 - Preparation Before Operation
SECTION 4 — PREPARATION BEFORE OPERATION 4.1 ADDING ENGINE OIL • Use regular UNLEAD gasoline with the generator engine. Do not use any fuel with more Please add properly oil before starting the than 10% added ethanol, and never use E85 fuel. generator.Use a special additives. -
Page 9: Section 5 - Operation
SECTION 5 — OPERATION Proper grounding of the generator will help prevent electrical shock in the event of ground fault condition in the generator or in connected 5.1 STARTING THE ENGINE electrical devices. Proper grounding also helps dissipate static electricity, which often builds up WARNING Never start or stop engine with in ungrounded devices. - Page 10 When engine starts, move choke lever to 1/2- M ove engine choke lever to the OFF position. CHO KE position till engine runs smoothly and then fully into ON position. If engine flalters, move choke back to 1/2- CHOKE position till engine running smoothly and then fully into ON positi on again.
-
Page 11: Connecting Electrical Loads
Some electric motors, such as induction types, IMPORTANT Do not overload the generator. require about three times more watts of power for Also,do not overload individual panel starting than for running. This surge of power lasts receptacles. These outlets are protected against only a few seconds when starting such motors. -
Page 12: Section 6 - Maintenance
SECTION 6 — MAINTENANCE 6.2.1 GENERATOR MAINTENANCE 6.1 MAINTENANCE SCHEDULE Generator maintenance consists of keeping the Follow the calendar intervals shown below. unit clean and dry. Operate and store the unit in a More frequent service is required when clean dry environment where it will not be operating in adverse conditions. -
Page 13: Changing The Oil
6.2.4 CHANGING THE OIL Change the oil after the first five hours of operation, then every 20 hours thereafter. If running this unit under dirty or dusty conditions, or in extremely hot weather, change the oil more often. 6.2.6 SPARK ARRESTOR Sealing ring •... -
Page 14: Valve Clearance
SECTION 7 — STORAGE 6.4 VALVE CLEARANCE It is important to avoid gum deposits from forming After the first 50 hours of operation, check in essential fuel system parts such as the carburetor, the valve clearance in the engine and adjust if necessary. -
Page 15: Section 8 - Parameter
SECTION 8 — PARAMETER Specification Model 6.5HP 7.5HP 13HP Engine 196cc 208cc 208cc 223cc 389cc Displacement 60Hz/50Hz 60Hz/50Hz 60Hz/50Hz 60Hz/50Hz 60Hz/50Hz Rated frequency 120V/230V 120V/240V/230V 120V/240V/230V 120V/240V/230V 120V/240V/230V Rated voltage 2.2KW/2.0KW 2.8KW/2.5KW 3.2KW/2.8KW 3.8KW/3.3KW 4.5KW/4.2KW Rated power 2.5KW/2.2KW 3.2KW/2.8KW 3.5KW/3.1KW 4.1KW/3.8KW 5.0KW/4.5KW Max power... -
Page 16: Section 9 - Warranty
WARRANTY PERIOD damaged due to misusing, negligence, accident, Any new SENCI generator purchased for overloading, overspeeding, improper non-commercial use from an authorized SENCI maintenance, repair or storage so as, in our... - Page 17 “Consumer Use" means residential household using by a retail consumer. “Commercial Use" means all other uses, including used for commercial, industrial or business or rental purposes. Once equipment has experienced commercial use, it shall thereafter be considered as commercial use for purposes of this warrant ABOUT YOUR WARRANTY We welcome warranty repair and apologize to you for being inconvenienced.
