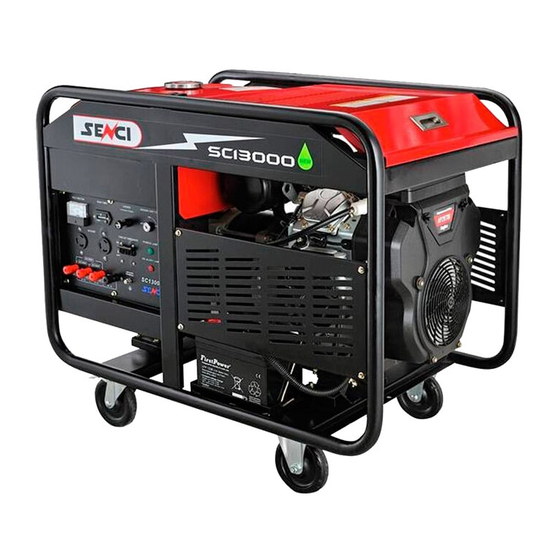

Senci SC13000 Safety Instructions & Operator's Manual

Single / three phase generator driven by v-twin engine
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Safety Instructions & Operator's Manual
SINGLE / THREE PHASE GENERATOR DRIVEN BY V-TWIN ENGINE
Thank you for buying a SENCI
Power Product! Before operating your generator,
read this manual carefully and
pay particular attention to the "IMPORTANT SAFETY INSTRUCTIONS" on Pages 2 & 3. Remember that all power
equipment can be dangerous if used improperly. Also keep in mind that SAFETY requires careful use in accordance
with the operating instructions and common sense.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SC13000 and is the answer not in the manual?

Questions and answers

Related Manuals for Senci SC13000

Summary of Contents for Senci SC13000

  • Page 1 Safety Instructions & Operator’s Manual SINGLE / THREE PHASE GENERATOR DRIVEN BY V-TWIN ENGINE Thank you for buying a SENCI Power Product! Before operating your generator, read this manual carefully and pay particular attention to the “IMPORTANT SAFETY INSTRUCTIONS” on Pages 2 & 3. Remember that all power equipment can be dangerous if used improperly.

  • Page 2: Table Of Contents

    Electrical Shock Electrical Shock without prior notice. All rights reserved, n o part of this material may be reproduced or transmitted in any form by any means without the express written permission of Explosion Fire SENCI Toxic Fumes Kickback Hot Surface...
  • Page 3 WARNING WARNING Running generator gives off carbon monoxide, Petrol and its vapors are extremely flammable an odorless, colorless, poison gas. and explosive. Breathing carbon monoxide will cause nausea, Fire or explosion can cause severe burns or fainting or death. death. Operate generator ONLY outdoors.
  • Page 4 WARNING CAUTION Excessively high operating speeds increase risk of injury Rapid retraction of starter cord (kickback) will and damage to generator. pull hand and arm toward engine faster than Excessively low speeds impose a heavy load. you can let go. Broken bones, fractures, bruises or sprains DO NOT tamper with governed speed.

  • Page 5: Know Your Generator

    Fuel tank Engine cover Engine Digital Hour Meter Air Filter Switch between single phase and three phase Switch Circuit breaker Multifunctional display meter Power indicator Ground connection nut Socket Terminal Oil alert Digital Hour Meter — Shows Generator Running Time per time & Total Running time. 30L.

  • Page 6: Assembly

    ASSEMB Add Petrol NOTE: This engine is certified to operate on petrol only. Your generator requires some assembly and is It will not operate on paraffin, diesel or other fuels. ready for use after it has been properly serviced with WARNING the recommended oil and petrol.

  • Page 7: Using The Generator

    USING THE GENERATOR Generator Location Generator Clearance System Ground WARNING The generator has a system ground that connects the Running generator gives off carbon monoxide, generator frame components to the ground terminals an odorless, colorless, poison gas. on the AC output receptacles. Breathing carbon monoxide will cause nausea, fainting or death.
  • Page 8 50Hz electrical loads.
  • Page 9 Use a compatible three prong plug with this receptacle (Figure 4). Connect a 3-wire cord, set rated 220V at 30 AC Amps to the plug.For Single phase, the receptacle power 220V AC, 30 Amps, 50Hz Loads requiring up to 6.6KVA. Total output for three receptacles require 10KVA.
  • Page 10 DON’T OVERLOAD Figure 6 — Wattage Reference Chart GENERATOR Additional Rated* Surge Tool or Appliance (Running) (Starting) Watts Watts Capacity Essentials You must make sure your generator can supply Light Bulb – 75 watt enough rated (running) and surge (starting) watts for Deep Freezer the items you will power at the same time.

  • Page 11: Specifications

    SPECIFICATIONS Model: SC13000 Maximum output Watts …………..……….12000 VA Continuous Wattage Capacity ………..…10000 VA Power Factor …...…………………………………… 1.0 Rated Maximum Continuous AC Load Current: At 220 Volts …..……………………...… 45 Amps Phase ………………………..………………..1-phase Rated Frequency …………….…………...…… 50 Hertz Petrol Tank Capacity ….......... 30L...

  • Page 12: Maintenance/Storage

    GENERAL MAINTENANCE Generator Cleaning Use a damp cloth to wipe exterior surfaces clean. RECOMMENDATIONS ● CAUTION The Owner/Operator is responsible for making sure Improper treatment of generator can damage it and that all periodic maintenance tasks are completed on shorten its life. a timely basis;...

  • Page 13: Operation

    3. Connect another device that is in Engine is running, but no AC good condition. output is available. 3. Connected device is bad. 4. Contact SENCI Authorized service 4. Fault in generator. Center. 1. Disconnect shorted electrical load. 1.Short circuit in a connected load.
  • Page 14 Safety Instructions & Operator’s Manual SUITABLE FOR SENCI POWER PRODUCTS SINGLE / THREE PHASE GENERATOR DRIVEN BY V-TWIN ENGINE IMPORTANT The labels of Power Products contain very important emissions information and critical safety warnings. SENCI Read, Understand, and Follow all warnings and instructions in this manual, the engine manual, and on the machine, engine and attachments.
