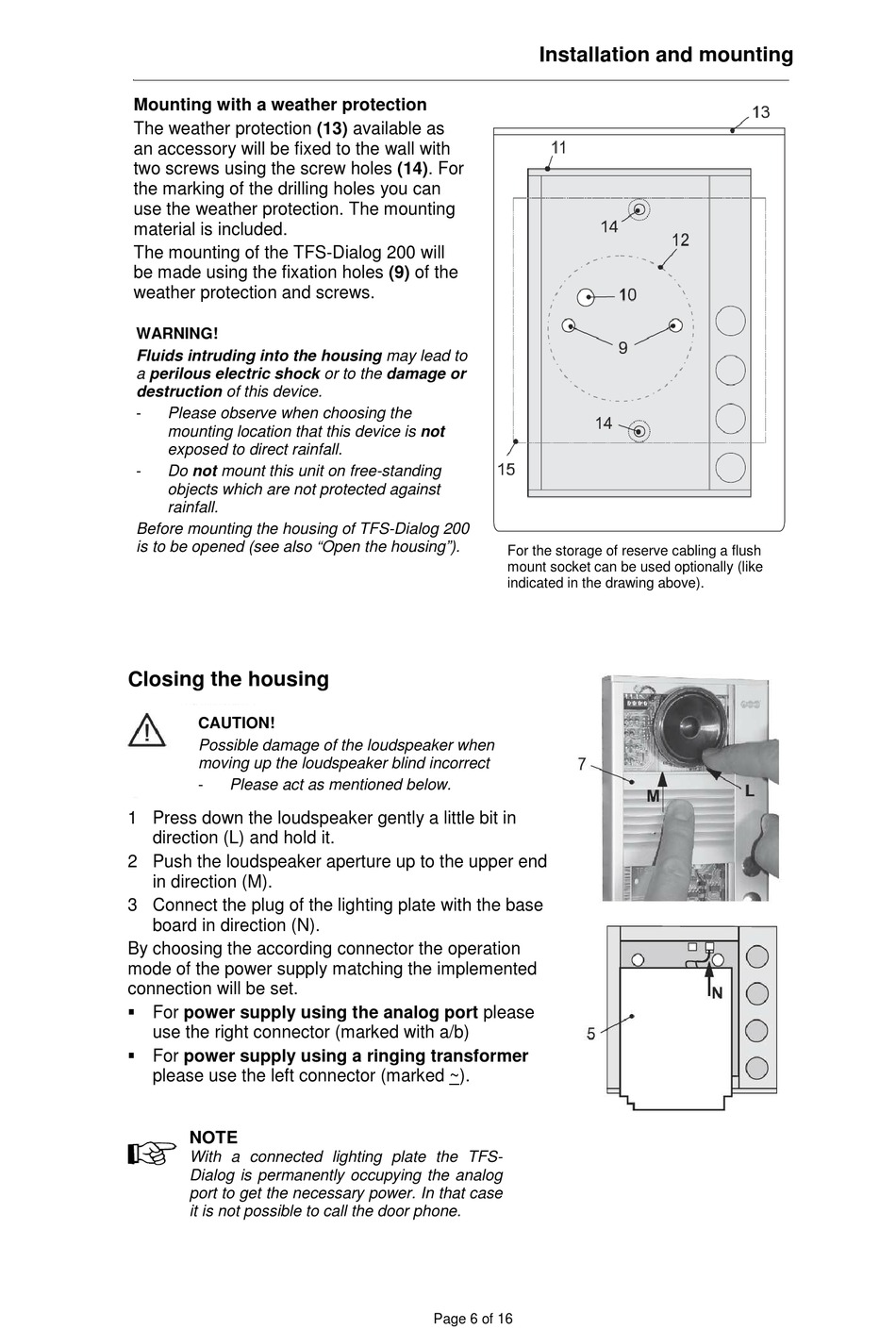

Mounting with a weather protection
The optional weather protection (13)
The weather protection (13) available as
can be fixed on the wall with two
an accessory will be fixed to the wall with
screws (14). The TFS-Dialog 200 can
two screws using the screw holes (14). For
be fixed to the weather protection with
the marking of the drilling holes you can
two screws.
use the weather protection. The mounting
material is included.
If a module frame for older Auerswald
The mounting of the TFS-Dialog 200 will
door phones is present it can be
be made using the fixation holes (9) of the
covered with the weather protection. It
weather protection and screws.
can be fixed directly onto the frame.
WARNING!
Fluids intruding into the housing may lead to
a perilous electric shock or to the damage or
destruction of this device.
- Please observe when choosing the
mounting location that this device is not
exposed to direct rainfall.
- Do not mount this unit on free-standing
objects which are not protected against
rainfall.
Before mounting the housing of TFS-Dialog 200
is to be opened (see also "Open the housing").
Closing the housing
CAUTION!
Possible damage of the loudspeaker when
moving up the loudspeaker blind incorrect
- Please act as mentioned below.
1 Press down the loudspeaker gently a little bit in
direction (L) and hold it.
2 Push the loudspeaker aperture up to the upper end
in direction (M).
3 Connect the plug of the lighting plate with the base
board in direction (N).
By choosing the according connector the operation
mode of the power supply matching the implemented
connection will be set.
For power supply using the analog port please
use the right connector (marked with a/b)
For power supply using a ringing transformer
please use the left connector (marked ~).
NOTE
With a connected lighting plate the TFS-
Dialog is permanently occupying the analog
port to get the necessary power. In that case
it is not possible to call the door phone.
Installation and mounting
For the storage of reserve cabling a flush
mount socket can be used optionally (like
indicated in the drawing above).
