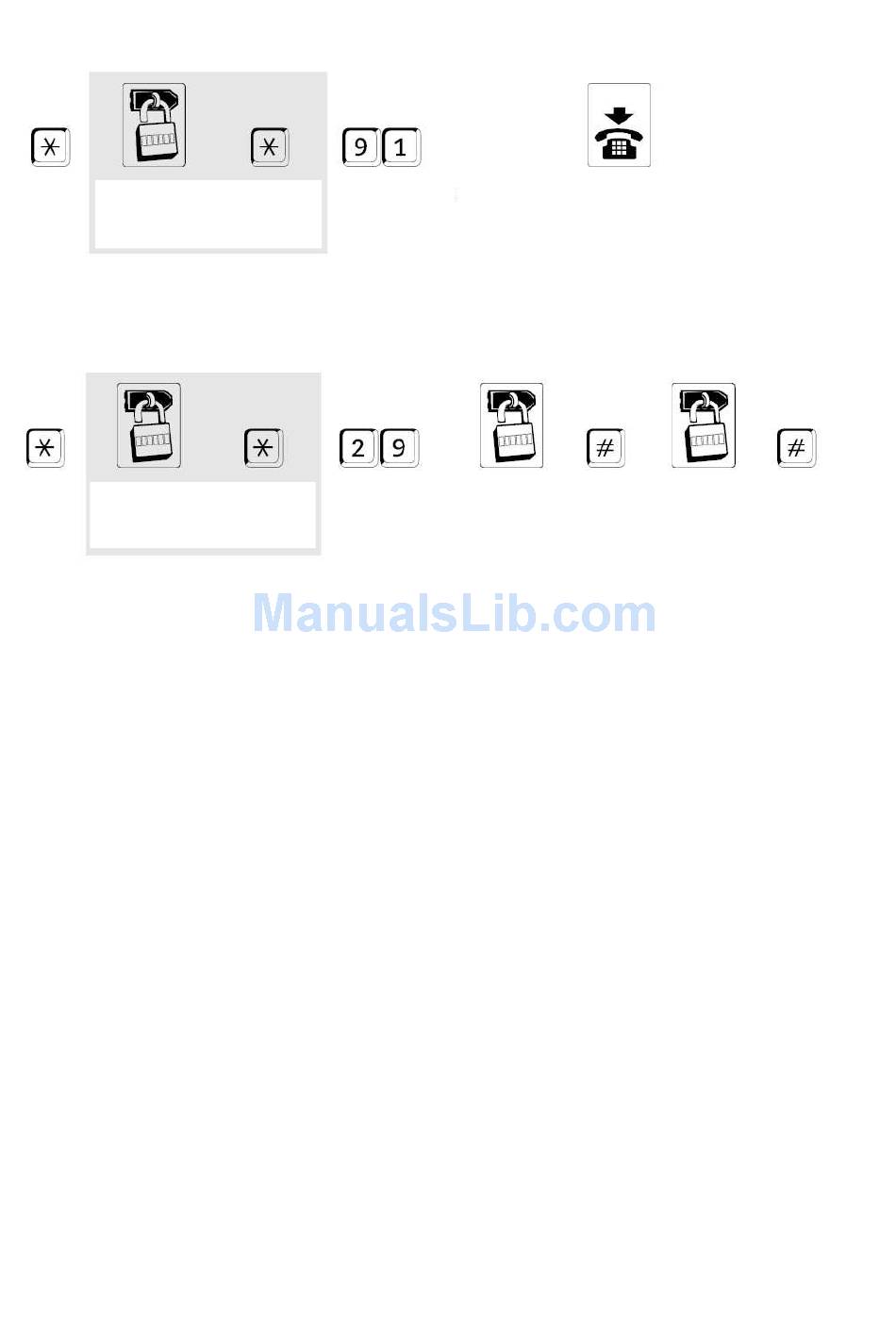

Reset to factory settings
Hang up – before new configuration the
Only necessary once – see
programming has to be started new.
above on the first page
Change of the PIN (default: 0000)
Only necessary once – see
Type in new PIN (1-6 digits) two times and end it with
above on the first page
# each time
A short intro to: a/b Switching Modules
It has six switching frequencies: No. 1 - 4 are related to bell buttons on the TFS-Dialog 200 with free
allocation. The other two can be used for door opening (No. 6) and light (No. 5) controlled by the
telephone which is doing the door call by dialling of certain numbers.
Please observe: the a/b switching modules are not made for 230 V!! For this you would have to use a
matching relay in between. The switching lasts for 1 to 4,5 seconds - if you need a longer time (e.g.
stairscase lighting) you will need a time relay. For some installations with high internal resistance (e.g.
staircase lighting) the included resistor has to connected parallel (see picture page 24 - top right
corner).
You can set the switching frequencies like this:
* PIN * 3 (number of button 1 - 4) (number of frequency 1 - 4)
Example: *0000*312 (button 1 (the top button) activates switching frequency 2)
How to start the programming see above.
Door opening is: * PIN * 56 (time 1 = 0,5 sec. - 9 = 4,5 sec.)
example: *0000*564 (for 2 sec. of door opener)
... and you will have to switch the module itself to "5" with the DIP switch.
