FM3622 User Manual
V1.11
*This version is suitable for device with universal FM36YX firmware
v.01.05.06 and later versions

Advertisement

Table of Contents
loading

Related Manuals for Teltonika FM3622

Summary of Contents for Teltonika FM3622

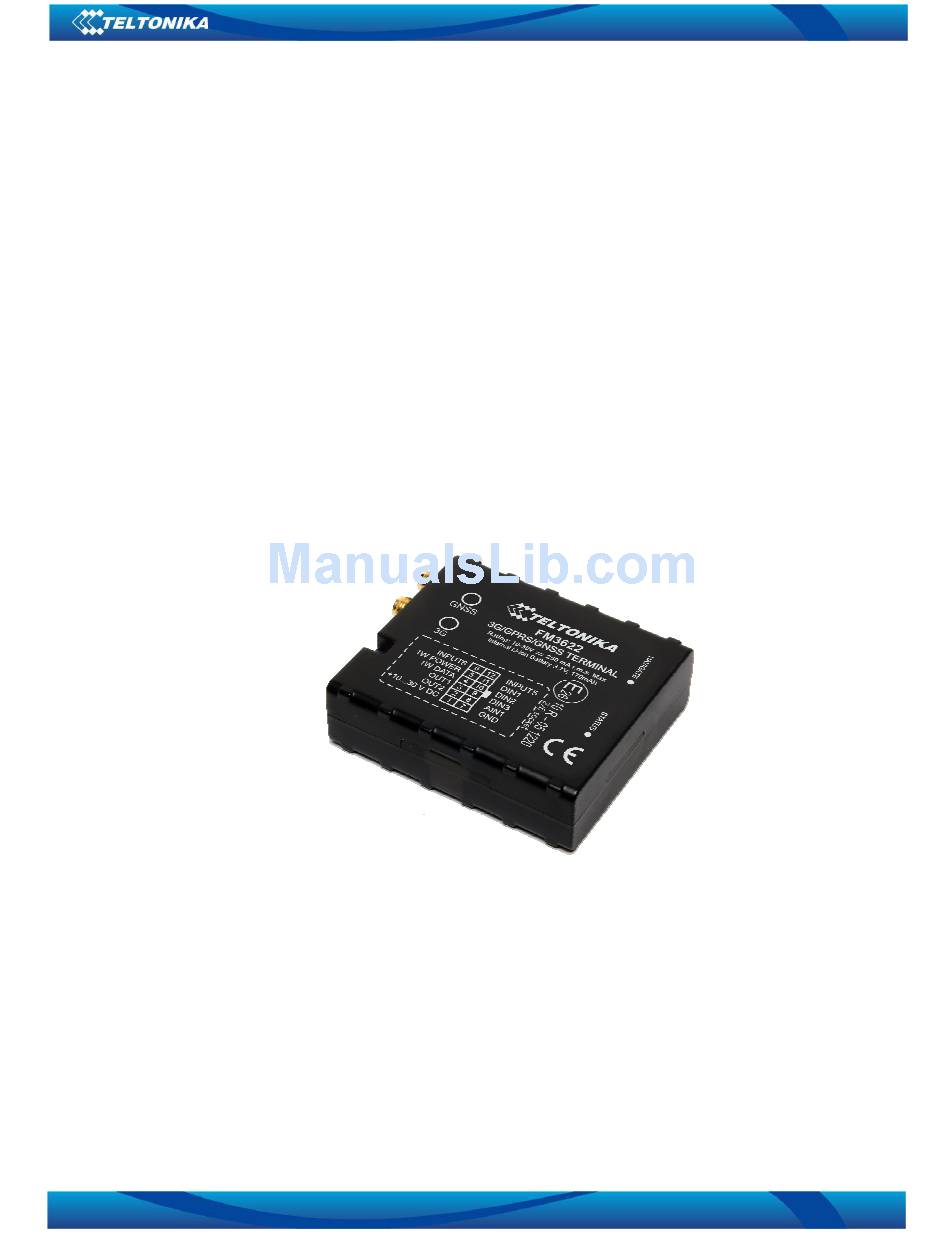

  • Page 1 FM3622 User Manual V1.11 *This version is suitable for device with universal FM36YX firmware v.01.05.06 and later versions...
  • Page 2 DEVICE FM3622 ....................15 NSTALLING DRIVERS LED........................16 AVIGATE LED........................17 ODEM LED ........................17 TATUS FM3622 S 2×6* ......................17 OCKET USB........................... 18 ........................19 CCESSORIES FIRMWARE .......................... 23 OPERATIONAL BASICS......................24 ....................... 24 PERATIONAL PRINCIPALS ........................25 LEEP MODES 5.2.1...
  • Page 3 SMS COMMAND LIST ......................56 ......................56 COMMAND LIST 6.1.1 getstatus......................... 58 6.1.2 getweektime......................58 6.1.3 getops........................58 6.1.4 getcfgtime ......................58 6.1.5 getgps........................59 6.1.6 ggps ........................59 6.1.7 getver ........................59 6.1.8 getinfo ........................60 6.1.9 getio........................60 6.1.10 readio #........................
  • Page 4 8.8.2 I\O Send as 0 when ignition is off ................86 ....................86 EVENT CONFIGURATION 8.9.1 I/O#1 element SMS event configuration (ID=5100)..........86 FM3622 WITH LIGHT VEHICLES CAN ADAPTER LV-CAN200/ALL-CAN300......88 LV-CAN200/ALL-CAN300 ........88 URPOSE OF IGHT EHICLES DAPTER LV-CAN200/ALL-CAN300 ............
  • Page 5 9.5.1 SCAN function ......................92 9.5.2 Offline configuration ....................93 ID ........................94 ARAMETERS SMS C ......................100 ONFIGURATION CAN P SMS ................102 ROGRAM UMBER REQUEST BY LV-CAN SMS ....................102 INFO BY 9.10 ........................102 EFERENCES MOUNTING RECOMMENDATIONS ................103 10.1 ......................

  • Page 6: Introduction

    DC. The allowed range of voltage is 10 V...30 V DC. To avoid mechanical damage, it is advised to transport the FM3622 device in an impact- proof package. Before usage, the device should be placed so that its LED indicators are visible, which show the status of operation the device is in.

  • Page 7: Legal Notice

    AC/DC – Alternating Current/Direct Current I/O – Input/Output Record – AVL data stored in FM3622 memory. AVL data contains GNSS and I/O information AVL packet – data packet that has been sent to server during data transmission. AVL packet contains from 1 to 50 records.

  • Page 8: Basic Description

    It is important to mention that FM3622 has additional inputs and outputs, which let you control and monitor other devices on remote objects. FM3622 also has a USB port for device status log output and configuration.
  • Page 9 • External GSM antenna (RP-SMA connector) for higher sensitivity; • External GNSS antenna (SMA connector) for higher sensitivity; • Interface for LVCAN; Hardware features: • Cortex®-M3 processor; • 8 Mbit internal Flash memory; • Built-in accelerometer sensor. GNSS features: • TG1000 engine for GNSS, GLONASS, Galileo and QZSS; •...

  • Page 10: T Echnical Features

    Storage relative humidity 5 ... 95 % (no condensation) Internal fuse: 3A, 125V Table 1. FM3622 specifications Figure 1. FM3622 view & dimensions (tolerance ±2mm) When in Sleep mode, FM unit turns OFF GNSS module. When in Deep Sleep mode no data storing and sending is activated.

  • Page 11: E Lectrical Characteristics

    Electrical characteristics VALUE Min. Typ. Max. Unit CHARACTERISTIC DESCRIPTION Supply Voltage: Supply Voltage (Recommended Operating Conditions) Digital Output (Open Drain grade): Drain current (Digital Output OFF) μA Drain current (Digital Output ON, Recommended Operating Conditions) Static Drain-Source resistance (Digital mΩ Output ON) Digital Input: Input resistance (DIN1,)

  • Page 12: A Bsolute M Aximum R Atings

    Analog Input Voltage (Absolute Maximum Ratings) Technical Information about internal battery FM3622 internal battery is used for detecting external voltage disconnection. CAUTION: RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS.

  • Page 13: Connection, Pinout, Accessories

    3 CONNECTION, PINOUT, ACCESSORIES How to insert SIM card and attach battery into FM3622 device: Gently open FM3622 case using screwdrivers...
  • Page 14 Remove FM3622 case Insert SIM card as shown Attach battery Attach top housing cover...

  • Page 15: I Nstalling Fm3622 Drivers

    Please download Virtual COM Port drivers from Teltonika website: http://avl1.teltonika.lt/downloads/FM36/vcpdriver_v1.3.1_setup.zip Installing drivers: Extract and run VCPDriver_V1.3.1_Setup.exe. This driver is used to detect FM3622 device connected to the computer. Click ‘Next’ in driver installation window (figures below): Figure 2. Driver installation window...

  • Page 16: N Avigate Led

    Figure 3. Driver installation window Setup will continue installing drivers and will display a window about successful process at the end. Click ‘Finish’ to complete setup: Figure 4. Driver installation window You have now installed drivers for FM3622 device successfully. Navigate LED Behavior Meaning...

  • Page 17: Modem Led

    Input 6 12 INPUT 5 1WIRE POWER 11 DIN 1 1WIRE DATA 10 DIN 2 OUT 1 DIN 3 OUT 2 DIN 4 / AIN 1 VCC (10÷30)V DC (+) GND(VCC(10÷30)V DC)(-) Figure 5. 2×6 socket pinout Figure 6. FM3622 sticker...
  • Page 18 Table 2. Socket 2x6 pinout description. Micro USB connector Figure 7. Micro USB type B connector FM3622 connected to PC creates an STM Virtual COM Port, which can be used as a system port (to flash firmware and configure the device): Figure 8. COM-Ports...

  • Page 19: A Ccessories

    One of the realized features is 1-Wire® data protocol, which enables connection of thermometer (DS1820, DS18S20 and DS18B20) and I-Button type: DS1990A (Figures 9 and 10 show FM3622 and 1-wire® device connection schemes). Left row of pins Right row of pins 1W.PWR (FM3622 –...
  • Page 20 Figure 10 shows the connection scheme to the FM3622 and fuel tank sensor through Analog input 1. After the connection to the tank fuel level sensor, calibration is needed. Calibration is needed because most fuel tank sensors are not linear.
  • Page 21 In cases when sensor output signal is negative, an additional relay has to be installed to convert negative signal to positive. Figure 13. Inverting relay connection Immobilizer relay When connected as shown below, FM3622 disables engine starter when output is OFF. More details about relays can be found below.
  • Page 22 Figure 14. Immobilizer relay connection Relays An ordinary automotive relay is used to invert input signal or to immobilize engine starter. Note, that they are available as 12 V or 24 V. Figure 15. Automotive relay pinout...

  • Page 23: Firmware

    FM3622 functionality is always improving, new firmware versions are developed. Current module firmware version can be retrieved from Configurator. Connect FM3622 to PC with the USB cable. Launch “Firmware Updater”, select COM port to which device is connected, click connect, and when IMEI and Firmware version fields are filled, start the update.

  • Page 24: Operational Basics

    GNSS data and I/O information. Module uses GNSS receiver to acquire GNSS data and is powered with four data acquire methods: time-based, distance-based, angle-based and speed-based method. Note, that if FM3622 loses connection to GNSS satellites, it continues to make records, however coordinate in these records remains the same (last known coordinate). Method’s details are described in section 5.13.

  • Page 25: S Leep Modes

    5.2.1 Sleep mode FM3622 is able to go to Sleep mode after configured interval of time. While in sleep mode, FM3622 sets GNSS receiver to sleep mode and it isn’t making periodic records (only event records is being recorded with last known coordinate and sent to AVL server). As a result power usage decreases allowing saving vehicle battery.

  • Page 26: V Irtual Odometer

    It keeps adding these intervals until it is time to make a record, then FM3622 records its location and adds odometer value, which is equal to the sum of all distances, measured every second.

  • Page 27: Trip

    Event will be generated (included into send records) only when trip starts and finishes. This feature is available on all FM3622 hardware versions without limitations. Note: Scenarios and Trip features are activated (DOUTs are activated) only if DIN1 = 1 (ignition is on).

  • Page 28: Ibutton List

    FM3622 has one user editable profile, which can be loaded from device, and saved. User can also revert to default settings, by pressing Load Defaults button. After any modification of configuration settings it has to be saved to FM3622 device, otherwise it will not be written to device.
  • Page 29 FM3622 is more configurable. Figure 19. Advanced Configuration window FM3622 Configurator is divided into main areas: 1 – main button area, 2 – information area, 3 –settings menu, 4 – parameters and values menu, 5 – recommended configuration values.

  • Page 30: R Ead Records

    ‘Add Keyword’ / ‘Change Keyword’ / ‘Switch Security Off’– buttons are used to protect configurator from unauthorized access to configuration. Keyword is 4 – 10 symbol length. If keyword is set, every time user reconnects FM3622 to USB port, user will be asked to provide valid keyword when connecting FM3622 to configurator.

  • Page 31: S Ystem Settings

    3854 data records if GSM is not available at the moment. It will send data later when GPRS is available again. Note that FM3622 can have memory full of records. In such a case it will start deleting oldest records in order to save new ones. Sending all the data records to server may take some time.
  • Page 32 Stop Detection Vehicle on Stop mode Vehicle Moving mode Source Ignition If ignition (configured Ignition If ignition (configured Ignition (recommended) Source) is logic low Source) is logic high Msensor (movement Internal movement sensor does Internal movement sensor detects sensor) not detect movement movement GNSS fix is available and vehicle GNSS fix is available and vehicle...

  • Page 33: R Ecords Settings

    13,2 – 16 V, or 27 – 32 V. Records settings Here user can modify if FM3622 device will send newest records first, meaning, that the most important thing is to know recent position of car, older records are being sent right after newest records arrive to AVL application.

  • Page 34: Gsm Settings , Sms Part

    Essential fields in ‘SMS’ part are ‘Login’ and ‘Password’. The login and password are used with every SMS sent to FM3622. If login and password are not set, in every SMS sent to FM3622 device two spaces before command have to be used (<space><space><command>).

  • Page 35: Gsm Settings , O Perator List

    Figure 25. Operator list configuration If operator list is left empty, it will allow using GPRS to any GSM operator. Please note that FM3622 will work in Unknown mode only (make sure it is configured to allow data sending – GPRS context is enabled).
  • Page 36 This functionality allows having different AVL records acquire and send parameters values when object is moving or stands still. Vehicle moving or stop state is defined by Stop Detection Source parameter. There are 3 ways for FM3622 to switch between Vehicle on Stop and Vehicle Moving modes see section 5.7.
  • Page 37 ‘Min Saved Records’ defines minimum number of coordinates and I/O data that should be transferred with one connection to server. If FM3622 does not have enough coordinates to send to server, it will check again after time interval defined in ‘Sending Period’...
  • Page 38 New GPRS context is opened if time is 10 minutes till time checked in table. Therefore if all boxes are checked, FM3622 is able to open new connection anytime. At scheduled time match FM3622 checks for GPRS session activity.
  • Page 39 Time based data acquiring (Min. period) – records are being acquired every time when defined interval of time passes. Entering zero disables data acquisition depending on time. Distance based data acquiring (Min. distance) – records are being acquired when the distance between previous coordinate and current position is greater than defined parameter value.

  • Page 40: F Eatures Settings

    5.14 Features settings For more information about available Scenarios, Trip, Geofencing and iButton list, refer to 5.4 chapter. 5.14.1 Scenarios settings In Scenarios window six different scenarios are available: Green driving, Over Speeding, Excessive Idling, Immobilizer, iButton List checking and Jamming. All scenarios can use DOUT together, but if DOUT1 is assigned to Immobilizer, other scenarios can’t control it.

  • Page 41: Trip Settings

    • Jamming detection (if selected DOUT1) DOUT1 is ON, while modem is fixing radio frequency jamming. After jamming is over, DOUT1 is deactivated. • Authorized driving (if selected DOUT2) DOUT2 is continuously OFF. Dout2 turns ON if Ignition turns ON (configured Ignition Source =1).

  • Page 42: Geofencing Settings

    Figure 31. Trip continuous distance counting parameter example 5.14.3 Geofencing settings FM3622 has 5 configurable Geofence zones and it can generate an event when defined Geofence zone border is crossed. Frame border – frame border is an additional border around Geofence zone. It is additional area around defined zone used to prevent false event recording when object stops on the border of the area and because of GNSS errors some records are made inside area and some –...
  • Page 43 Figure 32. Geofence border Shape – can be rectangle or circle Priority – priority of Geofence event: low, high or panic. These levels define priority of event information sending to server. See I/O element description for more details about priorities. Generate event (On entrance, On exit, On Both) –...
  • Page 44 If vehicle stopped and activation timeout has passed, an AutoGeofence will be created around vehicle’s last position with set Radius value. AutoGeofence event generation works the same as Geofencing mentioned above. Figure 34. Geofence configuration Note: FM3622 operates GMT:0 time without daylight saving.

  • Page 45: Sms Events

    The sent SMS messages format is according to: “Date Time EventText” For example, if FM3622 is configured to send an SMS (figure 36), when Digital Input 1 reaches High level, with priority High and configured to generate event on both range enter and exit (figure37), then the sent SMS is: “2016/1/20 12:00:00 Digital Input 1”...
  • Page 46 (numbers, letters and symbols in ASCII, except for comma “,”). ATTENTION! If FM3622 is in Deep Sleep mode and SMS event occurs with LOW priority (which does not wake up FM3622), then the device does not send the message. It is saved in device memory until it wakes up from Deep Sleep mode and GSM modem starts working normally.
  • Page 47 Figure 38. Scenarios SMS event configuration Figure 39. Scenarios SMS event configuration When any of the scenarios events occurs, a text message will be sent to the predefined number. Trip In order to configure Trip SMS events click on Trip window and Enable Trip feature (figure 40). Then go to GSM ->...
  • Page 48 Figure 40. Trip Start/Stop SMS event configuration Figure 41. Trip Start/Stop SMS event configuration Geofence Geofence SMS event is triggered and message sent when the device exits and/or enters a configured Geofence zone. The Geofence zone must be configured to generate an event On Exit, On Enter or On Both (figure 42).
  • Page 49 Figure 43. Geofence SMS event configuration AutoGeofence SMS events for AutoGeofence are configured the same as in Geofence. AutoGeofence is in Features -> Auto geofencing (figure 44), for SMS events configuration, go to GSM -> SMS -> SMS Events (figure 45). Figure 44.

  • Page 50: I/O Settings

    I/O events FM3622 sends SMS event message when a configured I/O property enters and/or exits its configured High/Low boundaries or Hysteresis event generation is chosen (Monitoring does not generate event, so SMS event could not be configured). Every IO element SMS event can be configured to send individual message to different numbers.
  • Page 51 External Voltage Voltage: mV, 0 – 30 V States: 0 – off state (when GPS module is off) 1 – antenna disconnected (when antenna is disconnected) 2 – GPS ready (antenna is working, but with no GPS GNSS Power fix) 3 –...
  • Page 52 Property Name Description Geofence zone 01 Event: 0 – target left zone, 1 – target entered zone Geofence zone 02 Event: 0 – target left zone, 1 – target entered zone Geofence zone 03 Event: 0 – target left zone, 1 – target entered zone Geofence zone 04 Event: 0 –...
  • Page 53 LVC Axle 3 Load Value range: 0-65535 LVC Axle 4 Load Value range: 0-255 LVC Axle 5 Load Value range: 0-65535 LVC Control State Flags Value range: 0-255 LVC Agricultural Value range: 0-255 Machinery Flags LVC Harvesting Time Value range: 0-65535 LVC Area of Harvest Value range: 0-65535 LVC Mowing Efficiency...
  • Page 54 Figure 48. I/O settings Enabled or disabled field – allows enabling I/O element so it is added to the data packet and is sent to the server. By default all I/O element are disabled and FM3622 records only GNSS coordinates.

  • Page 55: Monitoring

    Note: I/O element’s “Movement sensor” Averaging constant is interpreted as Start Move Timeout in seconds (from 1 to 59). Start Move Timeout – is a time interval required for movement sensor to be in the moving state, to consider vehicle as moving. 5.15.1 Monitoring I/O monitoring starts after enabling I/O element and setting up I/O parameters as it is...

  • Page 56: Hysteresis

    Figure 52. Event generation according hysteresis algorithm 6 SMS COMMAND LIST Read chapter 5.11 to know how to construct a proper SMS message and send it to FM3622 device. All commands are case sensitive. While FM3622 operates in Deep Sleep mode and user tries to send SMS message it cannot arrive to FM3622 device, because GSM/GPRS module is disabled most of the time (wake up depends on Send Period parameter).
  • Page 57 set digital outputs 0 – OFF, 1 – ON setdigout ## Y1 Y2 Y1 – timeout for DO1 Y2 – timeout for DO2 getparam # Readout parameter value according entered ID. # - ID value. Set parameter value according entered ID and Value. setparam # # 1.# - ID value.

  • Page 58: Getstatus

    6.1.1 getstatus Response details Description Indicate module connection to server at the moment: 0 – Not Data Link connected, 1 – connected GPRS Indicate if GPRS is available at the moment Voice Call status: 0 – ready, 1 – unavailable, 2 – unknown, 3 – Phone ringing, 4 –...

  • Page 59: Getgps

    6.1.5 getgps Response details Description Indicates valid (1) or invalid (0) Gps data Count of currently available satellites Latitude (Last good Latitude) Long Longitude (Last good Longitude) Altitude Speed Ground speed, km/h Ground direction, degrees Date Current date Time Current GMT time Example: GPS:1 Sat:7 Lat:54.71473 Long:25.30304 Alt:147 Speed:0 Dir:77 Date: 2007/8/24 Time: 13:4:36 6.1.6...

  • Page 60: Getinfo

    6.1.8 getinfo Response details Description Device Initialization Time RTC Time Restart Counter Error Counter Number of Sent Records Number of broken records Profile CRC Fail counter Failed GPRS counter Failed link counter UPD Timeout counter Sent SMS Counter NOGPS No GPS Timer GPS receiver state.

  • Page 61: Setdigout ## Y1 Y2

    6.1.11 setdigout ## Y1 Y2 Sets digital outputs to ON or OFF state (for some time if needed). Value is written as a row for OUT1 and OUT2 values. Example: ‘setdigout 01 0 5’ will set OUT2 to high level for 5 seconds, while OUT1 to low level.

  • Page 62: Banlist

    7.# - MODE (0-TCP/1-UDP) Parameters are separated by comma (no spaces needed). In case you don’t need to enter parameter (Login/Pass) – do not put space, simply put comma and write next parameter. Example: opa opa flush 353976012555151,banga,,,212.47.99.62,12050,0 Response details Description FLUSH SMS Accepted FLUSH SMS Accepted...

  • Page 63: Debug Mode

    KernVar: 49 MdlID: 8884443332221110” 7 Debug mode FM3622 is able to transmit its current state when connected to PC using USB cable. It is used to detect errors and provide information to possible solutions when operating as unexpected. Download Terminal from: http://avl1.teltonika.lt/Downloads/Software/Terminal.zip.

  • Page 64: S Ystem Parameters

    (value 1) module reduces level of power usage by turning GNSS module to sleep, in deep sleep mode (value 2) module turns GNSS module to sleep and switch GSM module off (note, that FM3622 do not receive SMS while in deep sleep).

  • Page 65: Ignition Source (Id=1004)

    8.2.6 Ignition Source (ID=1004) Ignition Source sets ignition triggered functionalities. Parameter Value 0 (By Power Voltage – default) Ignition Source 1004 1 (By Ignition Din1) 2 (By Movement sensor) High Voltage Level* 1005 Min: 0, Max: 30000 (mV) Low Voltage Level* 1006 Min: 0, Max: 30000 (mV) * - used when External voltage selected as ignition source.

  • Page 66: Saving/Sending Without Time Synchronization (Id=201)

    8.2.10 Saving/Sending without time synchronization (ID=201) When this feature is enabled (value = 1), then records can be saved and sent to server without time synchronization. Minimum Maximum Recommended Goes with (depends on) Value value value value parameters type 8.2.11 GNSS System (ID=202) This parameter sets Satellite System, available values: 0 –...

  • Page 67: Gsm Parameters

    device sends data to server every 86400 seconds (24 hours), the operator might disconnect the link earlier and the device will have to connect to the server anew. This may cost extra, depending on the operator GPRS data charge. It is strongly recommended, when using active data link timeout, that data sending to the server should not be very rare (24 hours or more).

  • Page 68: Target Server Port (Id=1246)

    Minimum Maximum Recommended Goes with (depends on) Value value value value parameters type 31 char GPRS content activation (ID=1240) S8[16] Target Server Port (ID=1246) string 8.4.6 Target Server Port (ID=1246) Parameter defines AVL data destination server port number. Example: 12050 Minimum Maximum Recommended...

  • Page 69: Sms Data Sending Settings (Id=1250)

    Minimum Maximum Recommended Goes with (depends on) Value value value value parameters type SMS Data send week time -720 +840 schedule (ID=1273) 8.4.12 SMS data sending settings (ID=1250) Parameter allows or does not allow sending AVL data using binary SMS. If SMS use is not allowed value is 0 and 1 if SMS use is allowed.

  • Page 70: D Ata A Cquisition M Odes Parameters

    X defines starting position that is changed: If X is from 0 to 49, X means index of operator code which has to be configured. Up to 20 operator codes may be configured in 1 SMS. Example: setparam 1271 16 24602,24603,24605 Here 16 , 17 and 18...

  • Page 71: Home Network Gsm Operator Code "Vehicle Moving" Parameters

    defined by 18 bytes (144 bits). Every n bit (beginning from the first bit (LSB) and ending 18 bytes bit (MSB)) indicates every 10 minute of the day (day has 1440 minutes). Sample: GPRS will be allowed on Monday to Friday at 8:00 and 16:00 GMT. The following value should be configured: 00011111 00000000 00000000 00000000 000000000 00000000 00000000...

  • Page 72: Roaming Network Gsm Operator Code "Vehicle On Stop" Parameters

    8.5.2.4 Min Speed (ID=1556) This parameter indicaes speed difference in order to acquire new record. If speed difference between last recorded coordinate and current position is greater than defined value, new record is stored. If value is 0 it means no records by min distance will be saved. Minimum Maximum Recommended...

  • Page 73: Roaming Network Gsm Operator Code "Vehicle Moving" Parameters

    2592000 8.5.3.2 Min Saved Records (ID=1563) This parameter defines minimum number of records in one data packet that can be sent to server. It has higher priority than Data Send Period (ID=1564). Minimum Maximum Recommended Goes with (depends on) Value value value value...
  • Page 74 Minimum Maximum Recommended Goes with (depends on) Value value value value parameters type Min Period (ID=1570) Min Angle (ID=1572) Min Speed (ID=1576) GPRS Week Time (ID=1575) 8.5.4.4 Min Speed (ID=1576) This parameter indicates speed difference in order to acquire new record. If speed difference between last recorded coordinate and current position is greater than defined value, new record is stored.

  • Page 75: R Ead Chapter 8.5.1.4

    GPRS Week Time (ID=1575) 8.5.4.8 GPRS Week Time (ID=1575) Read chapter 8.5.1.4. 8.5.5 Unknown Network GSM operator code “Vehicle on STOP” parameters 8.5.5.1 Min Period (ID=1580) This parameter indicates time interval in seconds in order to acquire new record. If value is 0 it means no records by min period will be saved.
  • Page 76 Minimum Maximum Recommended Goes with (depends on) Value value value value parameters type Min Period (ID=1590) Min Angle (ID=1592) 65535 Min Speed (ID=1596) GPRS Week Time (ID=1595) 8.5.6.3 Min Angle (ID=1592) This parameter indicates angle in degrees in order to acquire new record. If angle difference between last recorded coordinate and current position is greater than defined value, new record is stored.

  • Page 77: F Eatures P Arameters

    Min Period (ID=1590) Min Distance (ID=1591) Min Angle (ID=1592) Min Speed (ID=1596) GPRS Week Time (ID=1595) 8.5.6.7 Send Period (ID=1594) This parameter indicates frequency (time interval in seconds) of sending data to server. In order to send data to server GPRS parameters must be enabled Minimum Maximum Recommended...

  • Page 78: Max Allowed Speed (Id=1605)

    Green Driving scenario (ID=1600) 8.6.5 Max allowed Speed (ID=1605) It is max allowed speed which can be reached. If this value exceeded Over speeding event will occur. Minimum Maximum Recommended Goes with (depends on) Value value value value parameters type Green Driving scenario (ID=1600) 8.6.6 OverSpeeding scenario (ID=1601)

  • Page 79: Excessive Idling Detection (Id=1610)

    value value parameters type 8.6.11 Excessive Idling detection (ID=1610) If ignition is ON and no movement, event will be generated when TMO reached. This functionality is 1 – enabled, 0 – disabled (default). Minimum Maximum Recommended Goes with (depends on) Value value value...

  • Page 80: Trip Distance Mode (Id=1283)

    value value value parameters type 65535 8.6.17 Trip distance mode (ID=1283) There are three Trip types to choose: Between records, continuous trip, continuous. Between records – distance is counted separately for every record. Continuous trip – distance in records is summed up for the trip duration. Continuous – Distance is counted despite the trip end or ignition off state(trip value is saved to flash memory).
  • Page 81 value value value parameters type All Geofencing parameters 1000000 1000 8.6.21.2 Geofence Zone #1 Shape (ID=1030) Geofence shape parameter can be: circle – value 0; rectangle – value 1. Minimum Maximum Recommended Goes with (depends on) Value value value value parameters type All Geofencing parameters...

  • Page 82: Autogeofencing

    Minimum Maximum Recommended Goes with (depends on) Value value value value parameters type All Geofencing parameters -180 Float For circle: Minimum Maximum Recommend Goes with (depends on) Value value value ed value parameters type 1000000 1000 All Geofencing parameters Float 8.6.21.8 Geofence Zone #1 Latitude (Y2) (ID=1036) If shape is rectangular, then ID=1036 is right upper corner Y coordinate.

  • Page 83: Ibutton List (Id=7000-7499)

    8.6.22.4 AutoGeofence event generating (ID=1104) Generate event: 0 – on exiting zone, 1 – on entering zone, 2 – on both; Minimum Maximum Recommended Goes with (depends on) Value value value value parameters type Priority (ID=1103) AutoGeofence event Priority (ID=1103) 8.6.22.5 Radius (ID=1105) Parameter represents radius of circle with center device coordinates after activating AutoGeofence feature.

  • Page 84: I/O#1 Low Level (Id=2002)

    I/O#1 event generation type (ID=2003) I/O#1 averaging length (ID=2004) 8.7.3 I/O#1 Low level (ID=2002) Parameter defines low value of triggered I/O property. This parameter is used to set thresholds for I/O properties to generate events. Minimum Maximum Recommended Goes with (depends on) Value value value...

  • Page 85: Lv-Can Features

    I/O element I/O Element Number parameters Digital Input 1 2000-2004 Digital Input 2 2010-2014 Digital Input 3 2020-2024 Digital Input 4 2030-2034 Analog Input 1 2040-2044 Digital Output 1 2050-2054 Digital Output 2 2060-2064 GNSS PDOP 2070-2074 GNSS HDOP 2080-2084 External Voltage 2090-2094 GNSS Power...

  • Page 86: I\O Send As 0 When Ignition Is Off

    8.8.2 I\O Send as 0 when ignition is off Sends LV-CAN200/ALL-CAN300 I\O values as “0” when ignition turns off Parameter Value 0 – Disable Send I\O as 0 when ignition is 1621 1 - Enable SMS event configuration 8.9.1 I/O#1 element SMS event configuration (ID=5100) Command sets SMS warning on I/O#1 element.
  • Page 87 Deep Sleep 5118 Cell ID 5119 Area Code 5120 Dallas Temperature 1 5121 Dallas Temperature 2 5122 Dallas Temperature 3 5123 Battery Voltage 5124 Battery Current 5125 Ignition 5126 Network Type 5127 Continuous odometer 5128 Dallas Temperature ID 1 5129 Dallas Temperature ID 2 5130 Dallas Temperature ID 3...

  • Page 88: Fm3622 With Light Vehicles Can Adapter Lv-Can200/All-Can300

    LV-CAN200 is used to read data from light vehicles, while ALL-CAN300 is used to read data from any type of transport: light vehicles, Trucks, busses, agriculture and other special transport. With those adapters FM3622 device is able to collect and send vehicle data.

  • Page 89: Lv-Can200/All-Can300 Program Number Selection

    LV-CAN200/ALL-CAN300 must be set to program number which depends on vehicle model. Correct program number is always written on LV-CAN200/ALL-CAN300 mounting scheme. Please contact Your Teltonika sales manager to get latest supported vehicle list and mounting scheme for your vehicle, please provide CAR manufacturer, model and year information.

  • Page 90: Program Number Logic Change

    Figure 54. Adapter signaling led 9.2.3 Program number logic change Due to the growing number of supported cars, program numbers have exceeded 999. In order to maintain one number format, we are moving from 3 digits, to 4 digits program numbers. In new LV-CAN200/ALL-CAN300 firmware (from 2017-09-01) all program numbers that were up to 999 are changed to start from 1000.

  • Page 91: C Onnecting Fm3622 With L Ight V Ehicles Can Adapter

    9.3 Connecting FM3622 with Light Vehicles CAN adapter FM3622 connection with CAN adapter is different than with other FM devices, when connecting ALL-CAN300 and LV-CAN200 adapters. FM3622 has closed USB connector and CAN adapter is connected with INPUT 5 and INPUT 6 wires as shown in Error! Reference source not found.55.

  • Page 92: Fm3622 C Onfiguration

    Connect Light Vehicles Can adapter Pin 5 to FM3622 Input 5 and Pin 6 to FM3622 Input 6. Pins 9, 10 connection is optional it depends on exact car model. For exact pinout see sticker on Light Vehicles Can adapter.

  • Page 93: Offline Configuration

    For example Speed changes, low fuel level, engine temperate, etc. Send data to server field – allows enabling CAN element so it is added to the AVL data packet and sent to the server. By default, all CAN elements are disabled and FM3622 records only GPS data.

  • Page 94: P Arameters Id

    Figure 59. Configurator example Available CAN Bus IO parameters and configuration can be found in Configurators CAN tab (Figure 59) and in next chapter “Parameters ID”. Parameters ID When no I/O element is enabled, AVL packet comes with GPS information only. After enabling I/O element(s) AVL packet along with GPS information contains current value(s) of enabled I/O element.
  • Page 95 Table 9.1.1 ACQUIRED ALL-CAN PARAMETERS IO ID Param Param IO Measurement Remarks Property Input Size (Bytes) index units ALL-CAN300 Program number Module ID Engine Work Time Engine Work Time (counted) * meters Total Mileage Total Mileage meters (counted) * Ltr * 10 Fuel Consumed Fuel Consumed Ltr * 10...
  • Page 96 Harvesting Drum RPM Gap Under Harvesting Drum see table Security State Flags 9.2.1 Tacho Total Vehicle Distance Trip Distance km/h Tacho Vehicle Speed Tacho Driver Card see table Presence 9.2.1 see table Driver1 States 9.2.1 see table Driver2 States 9.2.1 Driver1 Continuous Driving Time Driver2 Continuous...
  • Page 97 0x10 – Battery charging 0x20 – AIRBAG Byte1: 0x01 – CHECK ENGINE 0x02 – Lights failure 0x04 – Low tire pressure 0x08 – Wear of brake pads 0x10 – Warning 0x20 – ABS 0x40 – Low Fuel Byte2: 0x01 – ESP 0x02 –...
  • Page 98 Byte3: 0x01 – Unloader drive is ON. Unloading tube pivot is in idle position 0x02 – No operator! 0x04 – Straw walker is plugged 0x08 – Water in fuel 0x10 – Cleaning fan RPM 0x20 – Trashing drum RPM Byte4: 0x02 –...
  • Page 99 0x08 – webasto 0x20 – car closed by factory's remote control 0x40 – factory-installed alarm system is actuated (is in panic mode) 0x80 – factory-installed alarm system is emulated by module Byte2: 0x01 – parking activated (automatic gearbox) 0x10 – handbrake is actuated (information available only with ignition on) 0x20 –...

  • Page 100: Sms C Onfiguration

    SMS Configuration All LV-CAN200/ALL-CAN300 IO elements can be configured remotely via SMS command. First ID number is always ‘2’, second, and third ID number refers to specific LV-CAN200/ALL- CAN200 IO element (table 9.2). And the last ID number refers to sections – Property; Generation Type;...
  • Page 101 LVC Gap Under Harvesting Drum 2630-2634 LVC Security State Flags 2640-2644 LVC Tacho Total Vehicle Distance 2650-2654 LVC Trip Distance 2660-2664 LVC Tacho Vehicle Speed 2670-2674 LVC Tacho Driver Card Presence 2680-2684 LVC Driver1 States 2690-2694 LVC Driver2 States 2700-2704 LVC Driver1 Continuous Driving Time 2710-2714 LVC Driver2 Continuous Driving Time...

  • Page 102: Can P Rogram N Umber Request By Sms

    Speed Accelerator pedal position Total fuel used 99999999 Fuel level (liters) Engine RPM 8200 Vehicle distance 2145000000 Fuel level (proc.) Program number CAN Program Number request by SMS CAN program number can be obtained via SMS: SMS Text: “ lvcangetprog ” Response: “CAN Program Nr: XXX”...

  • Page 103: Mounting Recommendations

    GND vehicle computer. Connecting the GND at an arbitrary point to the mass of the car is unacceptable, as static and dynamic potentials on the line GND will be unpredictable, which can lead to unstable FM3622 and even its failure.

  • Page 104: C Onnecting A Ntennas

    • When placing antennas avoid easily reached places. • Avoid GNSS antenna placement under metal surfaces. • Avoid placing FM3622 device near car radio, speakers or alarm systems. • GNSS antenna must be placed so its state is as horizontal as possible (if antenna is leant more than 30 degrees, it is considered incorrect mounting).

  • Page 105: Change Log

    11 CHANGE LOG Date Version Comments 2016-10-06 Preliminary draft release. 2016-12-07 Added information for LVD. 2016-12-23 Updated illustrations. Changed informationa about inputs and fixed tables. Added new information about LVCAN adapter. 2017-01-10 Added LV-CAN200/ALL-CAN300 parameter id’s, sms event parameters, excessive idling configuration, trip...
