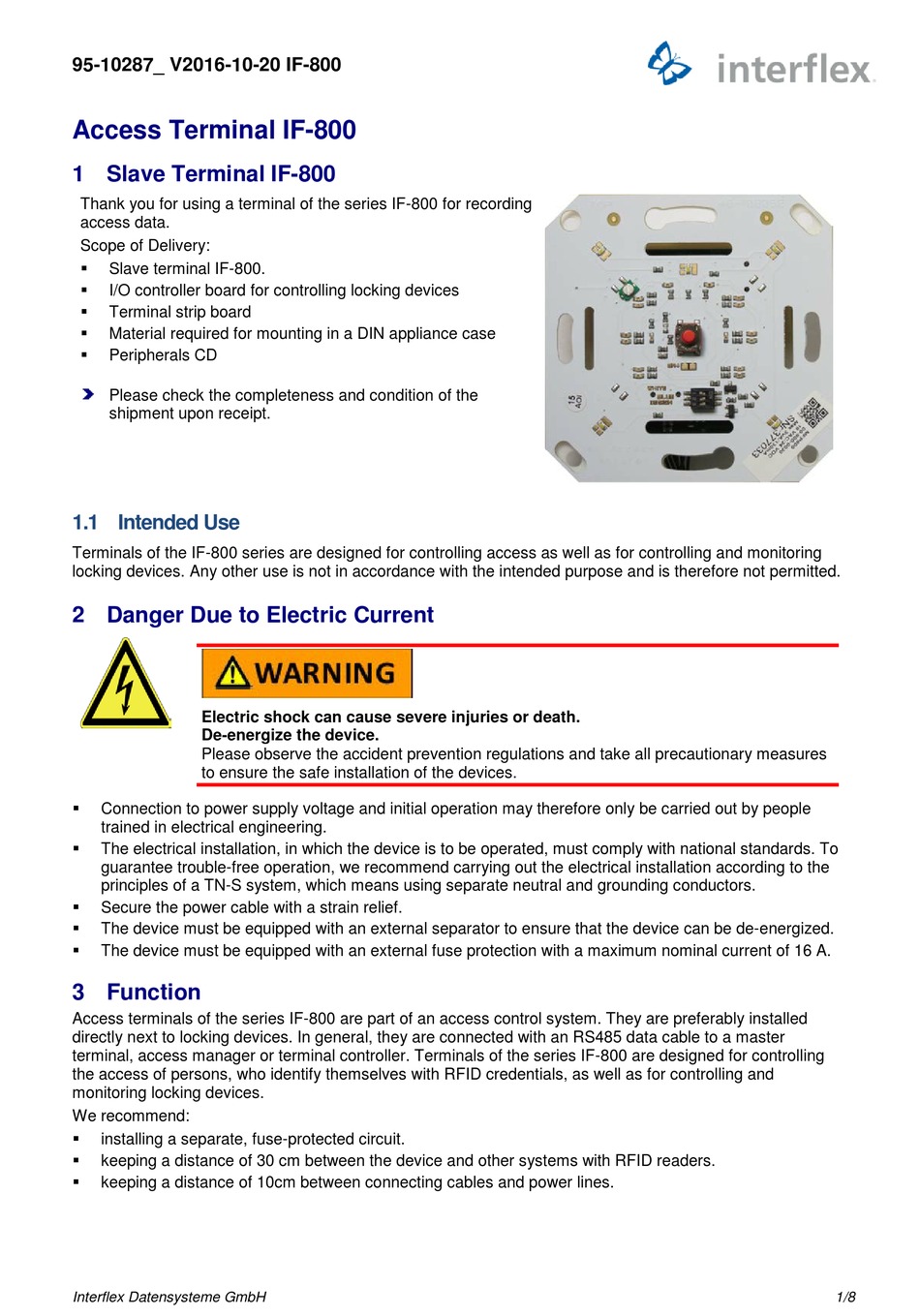

95-10287_ V2016-10-20 IF-800
Access Terminal IF-800
1 Slave Terminal IF-800
Thank you for using a terminal of the series IF-800 for recording
access data.
Scope of Delivery:
Slave terminal IF-800.
I/O controller board for controlling locking devices
Terminal strip board
Material required for mounting in a DIN appliance case
Peripherals CD
Please check the completeness and condition of the
shipment upon receipt.
1.1 Intended Use
Terminals of the IF-800 series are designed for controlling access as well as for controlling and monitoring
locking devices. Any other use is not in accordance with the intended purpose and is therefore not permitted.
2 Danger Due to Electric Current
Electric shock can cause severe injuries or death.
De-energize the device.
Please observe the accident prevention regulations and take all precautionary measures
to ensure the safe installation of the devices.
Connection to power supply voltage and initial operation may therefore only be carried out by people
trained in electrical engineering.
The electrical installation, in which the device is to be operated, must comply with national standards. To
guarantee trouble-free operation, we recommend carrying out the electrical installation according to the
principles of a TN-S system, which means using separate neutral and grounding conductors.
Secure the power cable with a strain relief.
The device must be equipped with an external separator to ensure that the device can be de-energized.
The device must be equipped with an external fuse protection with a maximum nominal current of 16 A.
3 Function
Access terminals of the series IF-800 are part of an access control system. They are preferably installed
directly next to locking devices. In general, they are connected with an RS485 data cable to a master
terminal, access manager or terminal controller. Terminals of the series IF-800 are designed for controlling
the access of persons, who identify themselves with RFID credentials, as well as for controlling and
monitoring locking devices.
We recommend:
installing a separate, fuse-protected circuit.
keeping a distance of 30 cm between the device and other systems with RFID readers.
keeping a distance of 10cm between connecting cables and power lines.
Interflex Datensysteme GmbH
1/8
