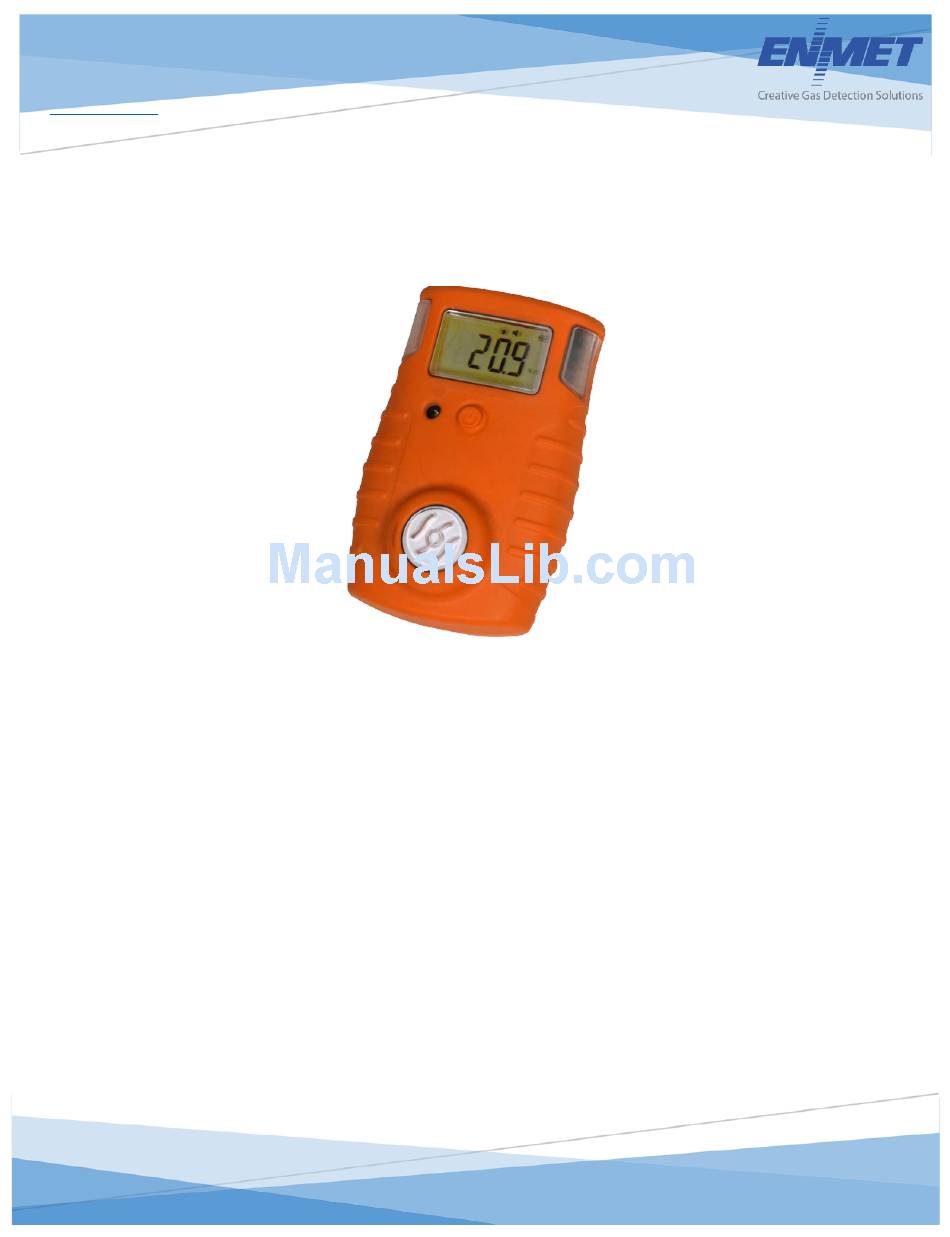

- Page 1 ENMET 680 Fairfield Court Ann Arbor, MI 48108 734.761.1270 Fax 734.761.3220 www.enmet.com Recon IS Operation and Maintenance Manual...
- Page 2 Figure 3: Recon IS with Calibration Adapter ............................8 Figure 4: Replacing Recon IS Sensor ................................ 9 List of Tables Table 1: Recon IS Range and Alarm Levels .............................. 7 Table 2: Sensor Part Numbers ................................... 9 Reference Information: : [important information about use of instrument] : [affects equipment –...
-
Page 3: I Ntroduction
1.2 Check Order Check, the contents of the shipment against the purchase order. Verify that the Recon IS is received as ordered. If there are accessories on the order, ascertain that they are present. Check the contents of calibration kits. Notify ENMET customer service personnel of any discrepancy immediately 1.3 Safety Settings... -
Page 4: Recon-Is F Eatures
Multi-function, See Section 2.3 for details Sensor See back of unit for Type: CO, H2S, O2 Label al number) of Unit Belt Clip Figure 1: Recon IS Features Manual Revision Date – June 15, 2017 P a g e Manual Part No. – 80006-022... -
Page 5: Recon-Is Display
Error alert Zero Calibration Calibration Point Percent by Volume Measurement Figure 2: Recon IS Display Parts Per Million Measurement 2.3 RECON-IS Button Function Easy operation through the single button: turn on or off the detector, mute, cancel vibration alarm, information checking, activate/deactivate confidence beep, calibration etc. -
Page 6: Recon-Is O Peration
After passing the self-test, the detector starts warm-up, display shows 3, 2, 1. The unit is now operational and mentoring for the target gas concentration in the area: If the self-test fails, the RECON-IS will turn off automatically. Please contact the ENMET for information. 3.2 Turn Off RECON-IS In the normal monitoring status, hold the button till the buzzer gives sound 3 times and the screen displays “OFF”, “OFF3”,... -
Page 7: Information Checking
Recon IS ENMET 3.3 Information Checking In the normal monitoring status, press and release the button twice to activate the backlight. Press the button for about 1 second and the screen will display: STEL level, TWA level, Max. gas level (for toxic gas) or Min. gas level (for O2 only), confidence beep status (on or off), zero calibration information, and data reset information. -
Page 8: Alarm Information
Within 0-9 days before the sensor is used up, screen will display as the right picture shows when the detector is self-testing after turning on. The figure means the number of the days remaining. Table 1: Recon IS Range and Alarm Levels Detecting Low alarm High alarm STEL... -
Page 9: Calibration
ENMET 3.8 Calibration In order to assure the testing accuracy, ENMET Corporation suggests that the RECON-IS be calibrated at a minimum of every 180 days. The calibration procedures are as follows: 1. In clean air, press the button till the detector is turned off, keep pressing the button, the detector will turn on again, the screen displays time count-down of 3 second. -
Page 10: T Roubleshooting Recon-Is
Description of Part Part Number Sensor H2S 02542-0200 Sensor O2 02542-1100 Sensor CO 02542-1200 : Contact ENMET Corporation or local distributor for additional sensor information. Manual Revision Date – June 15, 2017 P a g e Manual Part No. – 80006-022... -
Page 11: M Aintenance
6.0 Maintenance In order for the RECON-IS to operate normally, please follow these maintenance procedures: Inspect, test and calibrate the RECON-IS periodically. ENMET Corporation suggests that the RECON-IS be calibrated at a minimum of every 180 days. Keep a record of all the maintenance, calibration and alarms. After extended use, if there is dust on the cover of the detector, clean it by using a clean soft cloth. -
Page 12: T Echnical D Ata And S Pecifications
Recon IS ENMET 7.0 Technical Data and Specifications Detection Method Natural Diffusion Sensor Electrochemical Sensor Detection Range & Alarm Levels See Table 1 Temperature: -20°C – 55°C Operation Condition Humidity: 5 – 95%RH non-condensing Electrical Power Lithium Battery, DC3.6v CR123A, Rechargeable... -
Page 13: T Erms And C Onditions
ENMET, LLC for damages arising out of or in connection with the use or repair or performance of the product. -
Page 14: I Nstructions For R Eturning An I Nstrument For S Ervice
ENMET charges a one hour minimum billing for all approved repairs with additional time billed to the closest tenth of an hour. All instruments sent to ENMET are subject to a minimum evaluation fee, even if returned unrepaired. - Page 15 Mailing/Shipping Address: ENMET 680 Fairfield Court Ann Arbor, MI 48108 Phone: 734.761.1270 repair@enmet.com Fax: 734.761.3220 Service Request Form Product Name or Number: Product Serial Number: Describe Problem or Needed Service: Warranty Claim? ☐ Yes ☐ No CUSTOMER INFORMATION Billing Address:...
