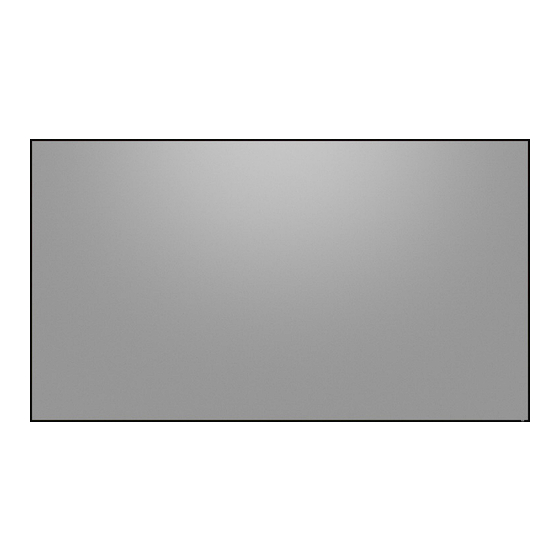

Summary of Contents for Screen Innovations 5 Series Zero Edge
Page 1
5 SERIES ZERO EDGE Owner’s Manual INSTALLERS: PLEASE BE SURE TO LEAVE THIS MANUAL WITH THE OWNER. THANK YOU!
Page 2
RESULTING FROM INTERRUPTION IN OPERATION OF EQUIPMENT, OR FOR INCIDENTAL, DIRECT, OR CONSEQUENTIAL DAMAGES OF ANY NATURE. In the event that there is a defect in materials or workmanship of a Screen Innovations product, you may contact our Sales Partners at 9715-B Burnet Road Suite 400, Austin, TX 78758, (512) 832-6939.
Page 3
5 SERIES ZERO EDGE 512-832-6939 9715-B Burnet Road Suite 400, Austin,TX 78758 SCREENINNOVATIONS.COM 09052017ZE...
Page 4
5 SERIES ZERO EDGE Projector Placement Better 11° Best 11° Good Not for short throw installations. See below for ST orientation and projector notes. 36”-42” (91cm - 106cm) SHORT THROW INSTALLATIONS - Ensure the orientation of the screen is correct be- fore mounting to the wall.
Page 5
5 SERIES ZERO EDGE PRE ASSEMBLED STANDARD SPLIT 09052017ZE...
Page 6
Parts Included (some optional) STANDARD (LED Lights Only) Hardware Kit (MAESTRO and SHORT TROW ONLY) NOTE: Split frame screens will also in- clude a support bar and related hard- ware, as well as additional wall brackets.
Page 9
STANDARD Finger tighten only at this time. Square the frame before final tightening of set screws. 09052017ZE...
Page 10
STANDARD A = B Using a tape measure or carpenter’s square, ensure the frame is perfectly square, then tighten the set screws using the provided allen wrench. DO NOT USE A DRILL OR IMPACT! You will damage the frame.
Page 19
SLATE/PURE For AT Material Only Acoustically Transparent (AT) materials come with a black backer that must be installed to eliminate shine through. Spread out the nuts in the top frame piece and attach the black backer to the nuts with the thumb screws. 09052017ZE...
Page 23
MAESTRO Starting in the middle of each horizontal and vertical, bungee the middle of each side, then work your way outward, completing a side at a time. 09052017ZE...
Page 25
Material Installation SHORT THROW Carefullly lay the frame onto the back of the screen material. Note the orientation of the UP sticker on the screen material to make sure the lighting harness will be on the bot- tom of the screen. 09052017ZE...
Page 26
SHORT THROW Starting in the middle of each horizontal and vertical, bungee the middle of each side, then work your way outward, completing a side at a time.
Page 27
5 SERIES ZERO EDGE Trim Installation Install the trim by slipping the “C” around the material and frame first, then snapping it into place on the back of the frame. Do not force the trim over the material or you may damage the material.
Page 32
FLYING MOUNT 100 lbs 100 lbs (45.3 kg) (45.3 kg)
Page 33
FLYING MOUNT NOTE: If you pull too far the screen can be lowered by pushing down the button on the top of the flying mount. We recommend you don’t cut the extra cables for future adjustability. Simply tape the extra cable to the back of the screen frame.
Page 34
5 SERIES ZERO EDGE LED Lighting Hex Codes 20 13 20 13 20 13 20 13 5C A3 5D A2 41 BE 40 BF 20 13 20 13 20 13 20 13 58 A7 59 A6 45 BA 44 BB...
Page 35
5 SERIES ZERO EDGE Signal Power LED CONTROLLER 3.5mm jack (3rd party IR) Input/Output Voltage: DC 12V-24V Total Output of Current: 12A DC 12~24V (Power1) 09052017ZE...
