Summary of Contents for Thermo Scientific CL10
- Page 1 IEC CL10 Centrifuge User’s Manual Analyze Detect Measure Control • • •...
- Page 2 IEC CL10 Centrifuge User’s Manual IEC CL10 Centrifuge...
- Page 3 Carefully read this manual before operating your instrument. Information contained in this document is the property of Thermo Electron Corporation; it may not be duplicated or distribuited without the owner’s authorization. The validity of the guarantee is subject to the observation of the instructions and precautions described in this document.
- Page 4 Preface MANUAL NUMBER ECR/ECN DATE DESCRIPTION 11290085 03/06 Initial release Thermo Electron Corporation IEC CL10...
- Page 5 Packing List 11210900 Centrifuge IEC CL10 230V 50/60 Hz 11210901 Centrifuge IEC CL10 120V 60 Hz 11210902 Centrifuge IEC CL10 100V 50/60 Hz Item number Quantity Check Centrifuge User manual Manual lid opening instructions 64227001 Mains cord Toolbox: 11202979 Rotor removal tool...
- Page 6 Existe information adictional acerca de la conformidad de Thermo Electron con esta Directiva, incluyendo los nombres de las diversas companias autorizadas para disponer/recyclar nuestros productos. Adicionalmente suministramos informacion acerca Thermo Electron Corporation IEC CL10...
- Page 7 Thermo Electron à ces directives, les recycleurs dans votre pays et les informations sur les produits Thermo Electron qui peuvent aider le détection des substances sujettes à la directive RoHS sont disponibles sur www.thermo.com/WEEERoHS IEC CL10 Thermo Electron Corporation...
- Page 8 72 / 23 / CEE - 93 / 68 CEE • EMC: 89 / 336 CEE - 92 / 31 CEE - 93 / 68 CEE • Safety standard: EN 61010-1 - EN 61010-2-020 Château-Gontier, 28th June 2005 Managing Director Christian Galiana Thermo Electron Corporation IEC CL10...
- Page 9 ONE YEAR from the delivery. This guarantee is invalid if the unit is incorrectly used, poorly serviced or neglected, mis-used or accidentally damaged. There is no explicit guarantee other than as stated above. IEC CL10 Thermo Electron Corporation...
- Page 10 Tel.: +32 24 82 30 30 Visit our web site at: www.thermo.com Germany Tel.: +49 61 84 90 69 40 Fax: +49 61 03 40 81 012 Finland Tel.: +35 89 32 91 00 Thermo Electron Corporation IEC CL10...
- Page 11 Performance ..................4-2 RCF Calculation ................4-3 Front Panel..................4-4 Chapter 5 Operation Procedure ................5-1 Instructions to the operator ..............5-1 Power Switch - Cover unlock ............5-1 Loading balance ................5-1 SET parameters ................5-3 Acceleration and Deceleration. Soft key..........5-3 viii IEC CL10 Thermo Electron Corporation...
- Page 12 Dangerous operations - working conditions to avoid ......6-1 EN 61010-2-020 Standard (IEC 1010-2-020) ........6-2 Rotor and accessory precautions ............6-2 Corrosion information ..............6-2 Contamination hazards ..............6-5 Chapter 7 Routine Maintenance ................7-1 Rotating Equipment and Centrifugation Chamber cleaning ....7-1 Exterior cleaning ................7-2 Fuses ....................7-2 Thermo Electron Corporation IEC CL10...
-
Page 14: Chapter 1 Manufacturer
It is strictly forbidden to take any changes to the centrifuge by customers or other personnel not authorized. • Do not use the centrifuge when it is damaged or not safely operating or irregularly. Advice authorized personnel by manufacturer as soon as for every anomaly. Thermo Electron Corporation IEC CL10... -
Page 15: User Manual
Chapter 1 Manufacturer Safety devices and In order to ensure both mechanical and electrical operational safety, the IEC CL10 centrifuge is provided with the following safety control notices systems, as detailed in the attached Declaration of Agreement: • The centrifuge will not start unless the lid is locked. -
Page 16: Chapter 2 Installation
Leave a 300 mm space free on each side of the machine and behind for right ventilation. ▲ Mains Wiring Check mains and frequency: they must correspond to values shown on instrument identification label. IEC CL10 230 V ±10% 50/60 Hz (1 phase + ground) IEC CL10 120 V ±10%... -
Page 17: Environmental Conditions
1. Unscrew the nylon screw in the hole next to opening lever, and here below identified by the corresponding label. 2. Insert horizontally the unlocking tool supplied with the centrifuge in the hole (fig. a). IEC CL10 Thermo Electron Corporation... -
Page 18: Preliminary Inspection
If visible signals of corrosion or anomalies on the rotor or buckets are present, contact the authorized personnel. Also the centrifuge should be observed: screw, lid hings, latch and corrosion. In case of problems contact the technicians. ▲ Thermo Electron Corporation IEC CL10... -
Page 19: Assembly Of Rotating Equipment
▲ Rotating head For rotating equipment with accessible centers, unscrew with the supplied wrench and lift with the fingers while pulling with the other removing hand supporting the rotor. IEC CL10 Thermo Electron Corporation... -
Page 20: Chapter 3 Characteristics
• High or low acceleration. • High or low deceleration. • Set timer 1 min. up to 99 min. + continuous function. • Electronic-accelerometric imbalance encoder. • Direct driving system. • Brushless induction drive motor. Thermo Electron Corporation IEC CL10... -
Page 21: Chapter 4 Description And Performance
Description and Performance Chapter 4 Functional principles The IEC CL10 centrifuge was designed for laboratory use. Through the application of the Relative Centrifugal Force (RCF), it allows the separation of substances made of different density elements. Swing out rotating equipment can generally carry a higher load than a fixed angle or aerodynamical equipment. -
Page 22: Rotating Equipment - Performance
Max speed Max radius Max RCF Max Noise [rpm] [xg] [°C] [dBA] O-G26/1 4000 0,148 2647 O-G26/2 4000 0,144 2575 O-G26/3 4000 0,144 2575 F-G1 5000 0,131 3661 F-G3 4000 0,133 2379 A-G20 6500 0,078 3684 Thermo Electron Corporation IEC CL10... -
Page 23: Rcf Calculation
1000 xg). ▲ The following relations connect the relative centrifuge acceleration and the RPM number: xg = 1,1178 • 10-3 • n2 • r where n = RPM r = radius in meters 1,1178 * 10 IEC CL10 Thermo Electron Corporation... -

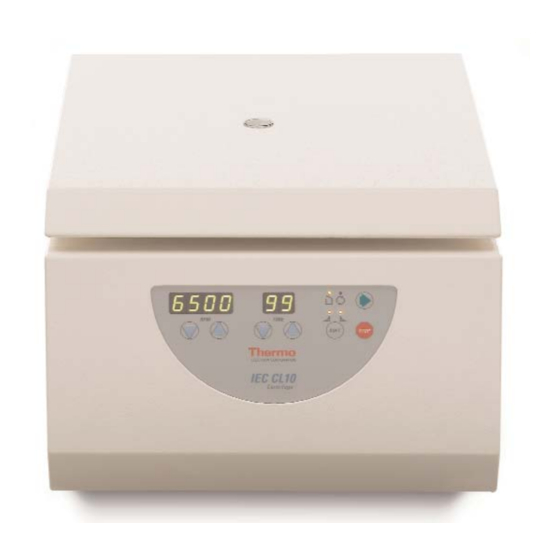

Page 24: Front Panel
Corresponding led will indicate activated soft function status. 8. Running led: flashes during acceleration and breaking down phase, fixed when real speed = SET rpm. 9. Lid opening led: it is on when the centrifuge is stationary. Thermo Electron Corporation IEC CL10... -
Page 25: Power Switch - Cover Unlock
(adapters, tubes, etc.). Distribute the load correctly. Loads should be inserted two by two, of equal weight, at 180 degrees from the rotation axis and at equal distance (radius) from the center of rotation (see fig. 2). IEC CL10 Thermo Electron Corporation... -
Page 26: Chapter 5 Operation Procedure
After having placed and locked the rotating equipment, lower the lid, then close it pressing on the front edges until the hook in the lid clicks into the lid lock mechanism. Only this operation will activate the centrifuge-starting device. Thermo Electron Corporation IEC CL10... -
Page 27: Starting The Centrifuge
In any situation, press STOP key to anticipate stopping. Note The centrifuge stop can also occurs automatically for: • load imbalance • sudden power failure error or breakdown ▲ • In all cases the relative information will appear on the rpm display. IEC CL10 Thermo Electron Corporation... -
Page 28: Messages - Alarms
It appears when the START key is pressed without a rotating equipment installed. This operation must be avoided. If persists, please contact authorized Technical Service. E .. When E..followed by a number appears, together with an acoustic alarm, you have to contact authorized Technical Service. Thermo Electron Corporation IEC CL10... - Page 29 Leave the appliance exposed to the elements (rain, sun, etc.). • Exceeding the maximum speed indicated in the “max. rpm” column of the performance table (see 4.2.2). • Using old accessories on a new machine. • Using tubes, bottles not suited for centrifugation. IEC CL10 Thermo Electron Corporation...
-
Page 30: En 61010-2-020 Standard (Iec 1010-2-020)
The chemical products, which are the origin of this corrosion do not necessarily originate from broken tubes, for example they could come from: • chemical vapors present in the laboratory which are dissolved in the residual humidity, in condensed water (refrigerated centrifuges) Thermo Electron Corporation IEC CL10... - Page 31 The corrosion by a small amount of corrosive product does not disrupt the accessory but makes it mechanically weaker and weaker until disruption due to both centrifugal effort and number of cycles. IEC CL10 Thermo Electron Corporation...
-
Page 32: Contamination Hazards
Warning For any other unscheduled cleaning, the customer must contact the manufacturer to verify that the proposed method does not damage the appliance. ▲ Thermo Electron makes no claims as to the effectiveness of proprietary brands of decontaminating solutions. Thermo Electron Corporation IEC CL10... -
Page 33: Chapter 7 Routine Maintenance
This will ensure the buckets to swing easily. The vast majority of apparent imbalance problems arise from the failure of the user to clean and grease the studs and not from instrument error. IEC CL10 Thermo Electron Corporation... -
Page 34: Exterior Cleaning
You can change them drawing off from the main tap (see fig. 7.4) Fuses dia 5 x 20 mm 2AT / 250V IEC CL10 (230V 50-60Hz) dia 5 x 20 mm 4AT / 120V IEC CL10 (120V 60Hz) Figure 7.4 Warning Before changing the fuses, disconnect the centrifuge from the mains. - Page 35 • Clean the instrument and proceed to its decontamination from any kind of dangerous products. • Compile this Decontamination Certificate with all the information required. IEC CL10 Thermo Electron Corporation...
- Page 36 Customer Service representative. In the event these certificates are not available, a written statement certifying that the instrument or part has been properly decontaminated and outlining the procedures used will be acceptable. For your convenience, use a copy of this page Thermo Electron Corporation IEC CL10...
- Page 38 P/N 11290085-a...
