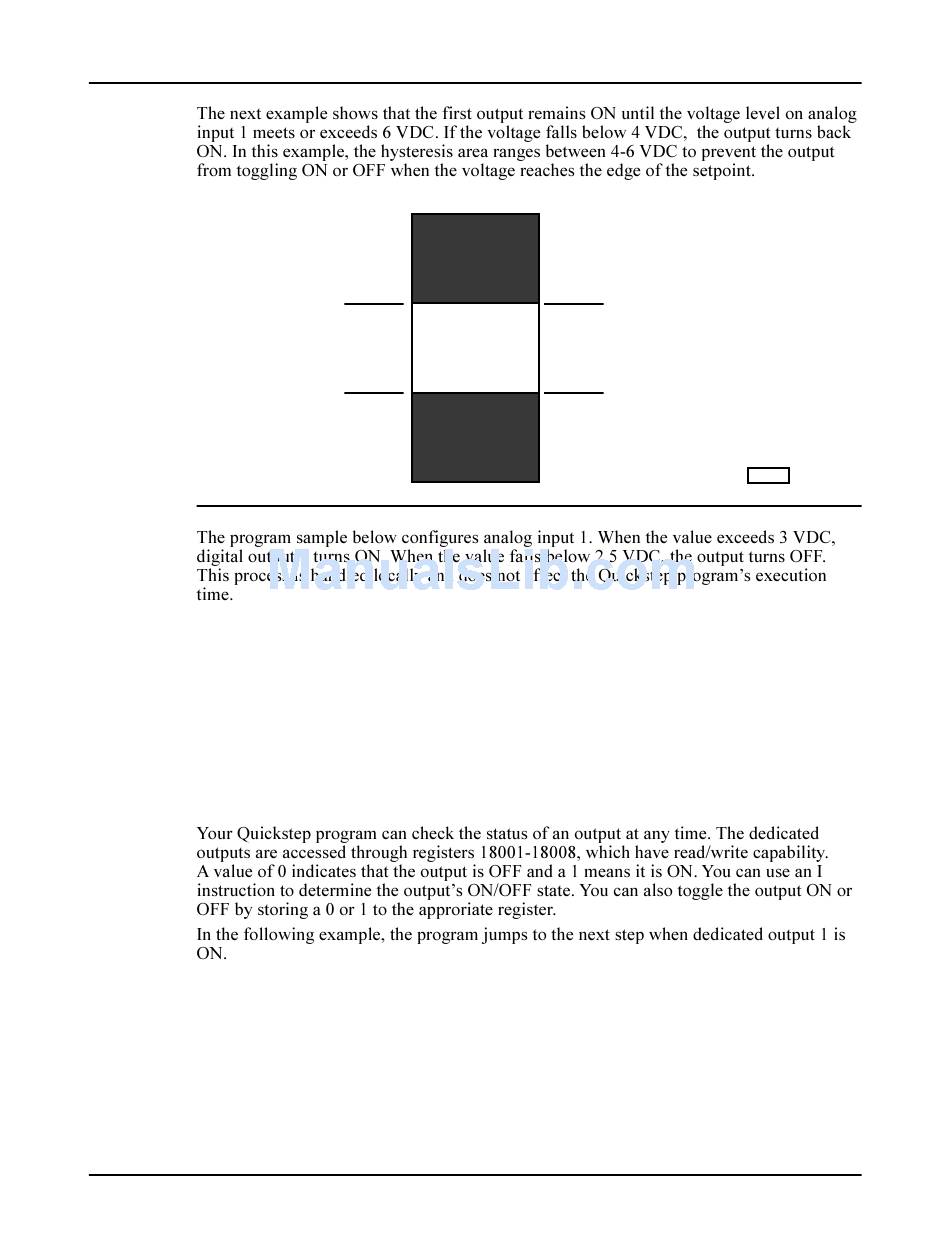

Connecting and Programming Analog Inputs
6.000 VDC
4.000 VDC
[10] DIGITAL_OUTPUT_THRESHOLDS
;;;
;;; Register 19001 sets the minimum threshold for analog
;;; input 1 as 2.500000. Register 19501 sets the maximum
;;; threshold for analog input 1 as 3.000000.
;;;
------------------------------------------
<NO CHANGE IN DIGITAL OUTPUTS>
------------------------------------------
store 2500000 to Reg_19001
store 3000000 to Reg_19501
goto next
[56] CHECK_DEDICATED_OUTPUT
;;;
------------------------------------------
<NO CHANGE IN DIGITAL OUTPUTS>
------------------------------------------
if Reg_18001=1 goto next
18
Output Off
Hysteresis Area
Output On
Model 2646 MultiPro™ MC Dual Servo Installation
Register 19001 = 6,000,000
Register 19501 = 4,000,000
2220-3
F
Guide
