Bryant TSTATCCPF101 Installation Instructions Manual page 8

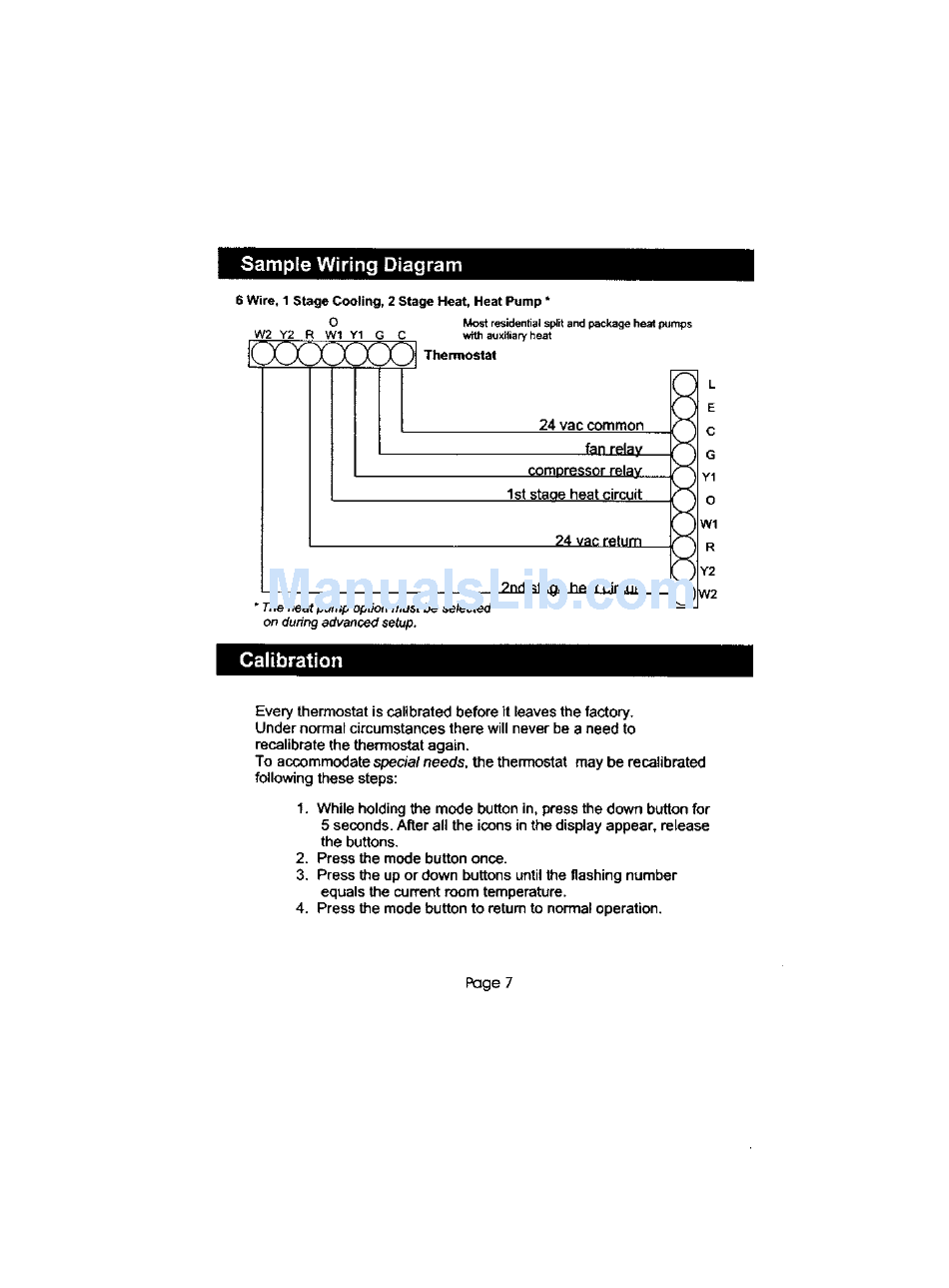

6 Wire. 1 Stage Cooling, 2 Stage Heat, Heat Pump *
O Most resldentlaJ spiff and package heat pumps
W2 Y2 R WI Y1 O C withauxiliaryheat
J_ _ Thermostat
* The heat pump option must be selected
on during advanced setup.
24 vac common
fan relay
compressor relay
1st staae heat circuit
24 vac return
2nd _t_o_ h_t cJr_lJit
L
c
>-_ Yl
Wl
R
"(2
Every thermostat is calibrated before it leaves the factory.
Under normal circumstances there will never be a need to
recalibrate the thermostat again.
To accommodate special needs, the thermostat may be recalibratod
following these steps:
1. While holding gle mode button in, press the down button for
5 seconds. After all the icons in the display appear, release
the buttons.
2. Press the mode button once.
3. Press the up or down buttons until the flashing number
equals the current room temperature.
4. Press the mode button to return to normal operation.
Page 7
